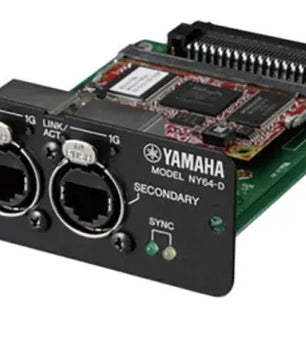

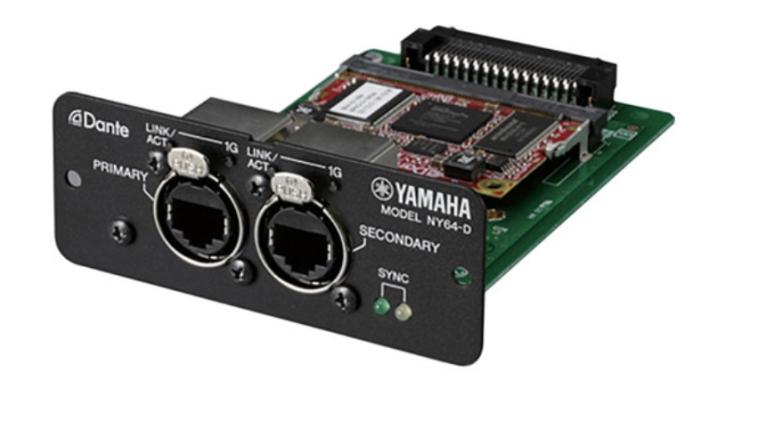

Yamaha NY64-D | Dante Expansion Card for TF Mixers | 64x64 Digital Audio at 48kHz

Dante I/O Expansion Card

Yamaha NY64-D is a Dante expansion card designed for Yamaha TF-series digital mixers. It adds 64 channels of input and 64 channels of output over Dante audio networking, expanding the I/O capabilities of your system for stageboxes, audio routing, and multitrack recording.

Yamaha NY64-D Competitive Differences

• Enables 128 channels (64 in / 64 out) of 24-bit/48kHz digital audio
• Direct integration with Dante-enabled devices and networks

Yamaha NY64-D Description

The Yamaha NY64-D gives TF-series digital mixer users access to the full power and flexibility of Dante audio networking. Once installed in the expansion slot of a TF1, TF3, or TF5 console, it allows up to 128 channels of bi-directional uncompressed digital audio (64 in / 64 out) at 48kHz and 24-bit resolution. The card connects via two etherCON ports and integrates seamlessly with Dante-enabled devices and audio systems. It's ideal for live sound, installations, broadcast, and recording where high channel counts and flexible audio routing are needed. Compatible with Yamaha’s Tio1608-D I/O rack, the NY64-D also supports scalable stagebox configurations. A single TF console equipped with an NY64-D card and paired with up to three Tio1608-D units can provide 48 mic/line inputs and 24 outputs, all routed and synced over a Dante network.

Model Features

• Expands TF-series mixer connectivity via Dante protocol
• Supports 64 channels in / 64 channels out (128 total)
• 24-bit/48kHz uncompressed digital audio transmission
• Dual etherCON connectors for Dante redundancy or daisy-chaining
• Seamless integration with Dante-compatible devices and software
• Pairs with Tio1608-D I/O rack for remote stagebox applications

Model Specifications

• Compatibility: Yamaha TF1, TF3, TF5 digital mixers
• Audio Format: 24-bit / 48kHz
• Channel Capacity: 64 in / 64 out
• Connectors: 2 x RJ45 etherCON
• Dimensions (Packaging): 8.8 x 7.1 x 3.6 in
• Weight: 1 lb

What's In The Box

• Yamaha NY64-D Dante expansion card
• Mounting screws
• Documentation
