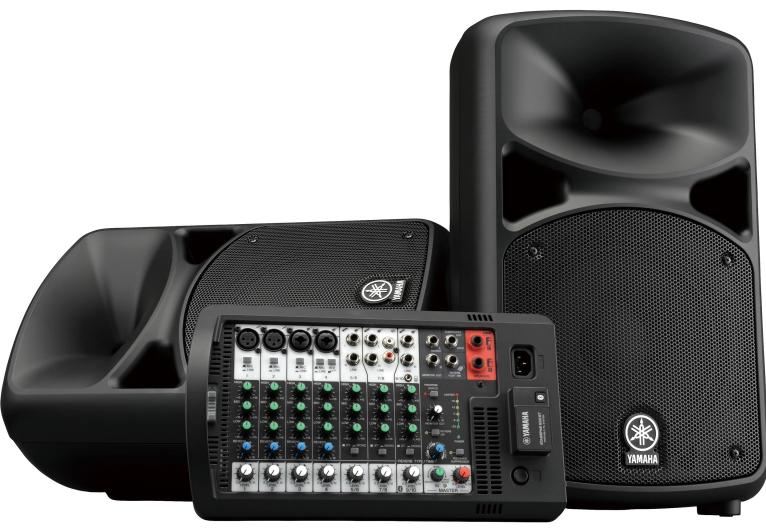

Yamaha STAGEPAS 600BT

Compact and light enough to carry by hand, STAGEPAS 600BT is an all in one PA system that you can take literally anywhere. The two lightweight speakers and a detachable mixer, along with a pair of speaker cables and a power cord combine into a high performance, compact package that provides remarkable portability. With its intuitive, simple design STAGEPAS 600BT can be set up and ready to go in seconds. Even users with no PA operation experience will be able to produce high-quality sound in under a minute. Flexible enough to be used in a truly impressive range of environment and applications, STAGEPAS 600BT can be set up in a variety of PA and monitoring configurations.

Features:

Ultimate portability: compact and light enough to carry by hand
Fast and easy set-up: STAGEPAS 600BT can be setup and ready to perform in a matter of seconds
A PA for any occasion: cover a wide range of environments and applications
Bluetooth connectivity: allows wireless streaming from smartphones and tablets
Intelligent DSP: one button operation for Intelligent feedback Suppressor


Specifications:

Type Powered mixer with 2 passive speakers
Channel 10
Input Channels Hi-Z Switch: CH4, ST/Mono switch: Ch 5/6-9/10
Output Channel Function Feedback suppressor, 1-knob master EQ
I/O
Inputs 4 x mono mic/line + 4 mono /2 stereo line
Phantom Power +30 V (Ch1, 2)
Outputs Speakers out (L, R)
Monitor out (L/Mono, R)
Subwoofer out (mono) with auto HPF
Bluetooth Bluetooth ver 4.1, A2DP ver 1.2, Maximum Range: Approx. 32.8' / 10.0 m
Other Controls Reverb foot switch
Input Channel Function Hi-Z Channel 4
Low Shelving: 100 Hz
Mid Peaking: 2.5 kHz
DSP SPX digital reverb (4 program, parameter control)
Maximum Output At 4 Ohms: 680 W (340 W + 340 W) (dynamic), 560 W (280 W + 280 W) (continuous)
EQ Mid Mid Peaking: 2.5 kHz
General Specifications
Speaker Type Two-way, bass-reflex speakers
Frequency Range 55 Hz to 20 kHz
Nominal Coverage Angle H: 90°
V: 60°
Floor Monitor: 50°
Components 10" / 25 cm cone
1.4" / 3.56 cm voice coil compression driver
Maximum Output Level 129 dB SPL / speaker
Power Requirements 100 to 240 VAC, 50/60 Hz
Power Consumption 35 W (Idle), 100 W (1/8 power)
Pole Socket 34.8 to 35.2 mm pole socket with StageLok
Other Features Handle: 1 x top
Dimensions (W x H x D) Speaker: 13.2 x 21.5 x 12.6" / 33.5 x 54.5 x 31.9 cm
Mixer: 13.7 x 7.8 x 5.3" / 34.8 x 19.7 x 13.5 cm
Weight 56.4 lb / 25.6 kg
