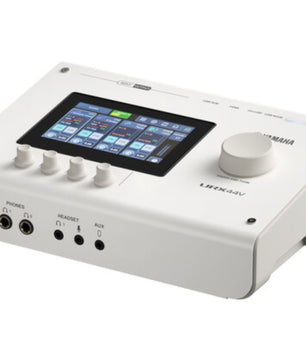

Yamaha URX44V W | 32-Bit USB-C Interface with HDMI I/O | 4 Mic Inputs + microSD Multitrack Recording

Audio/Video USB Interface

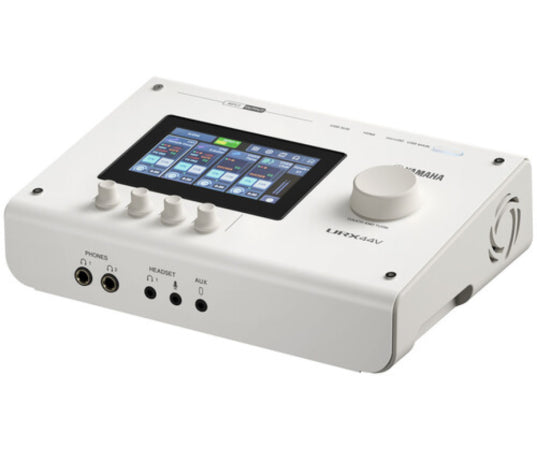

Yamaha URX44V W is a 6-in/4-out audio and video interface designed for content creators, live streamers, and mobile filmmakers. With HDMI I/O, touchscreen control, onboard DSP, and standalone microSD multitrack recording, it brings professional production tools into a compact and flexible desktop unit.

Yamaha URX44V W Competitive Differences

• HDMI input and output with 4K/60 and 1080p/240 passthrough and capture
• microSD card slot for up to 16-track standalone audio recording

Yamaha URX44V W Description

The Yamaha URX44V W offers creators a hybrid audio and video workflow solution. It features four XLR-1/4" combo inputs with up to 78 dB of gain, dual USB-C ports for flexible routing (Main: 18-track, Sub: 2-track), and a built-in 4.3" LCD touchscreen with customizable control knobs for intuitive real-time adjustments.

With onboard DSP—including EQ, reverb, gate, multiband compression, and Pitch Fix—you can shape your sound directly from the unit. HDMI In/Out enables simultaneous capture and passthrough of high-resolution video up to 4K/60 or 1080p/240, making it a true all-in-one interface for modern streaming and content creation.

The integrated microSD slot allows up to 16-track recording and 2-track playback without a computer, perfect for mobile sessions or backup multitrack capture. Scene Recall, Auto Gain, Clip Safe, Ducker, and lip-sync delay features make the URX44V W a streamlined tool for professional multimedia production.

It’s fully compatible with OBS Studio, Elgato Stream Deck, and includes a Steinberg software suite and MixKey mixer to get you started right out of the box.

Model Features

• 6x4 USB-C interface with 32-bit / 192 kHz audio resolution
• 4 XLR-1/4" combo mic/line/Hi-Z inputs with 78 dB gain
• HDMI input/output for video passthrough and capture up to 4K/60

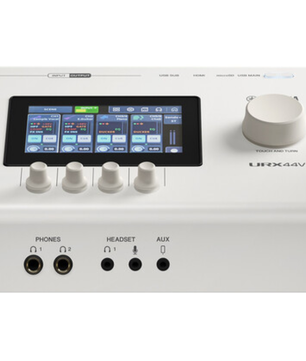

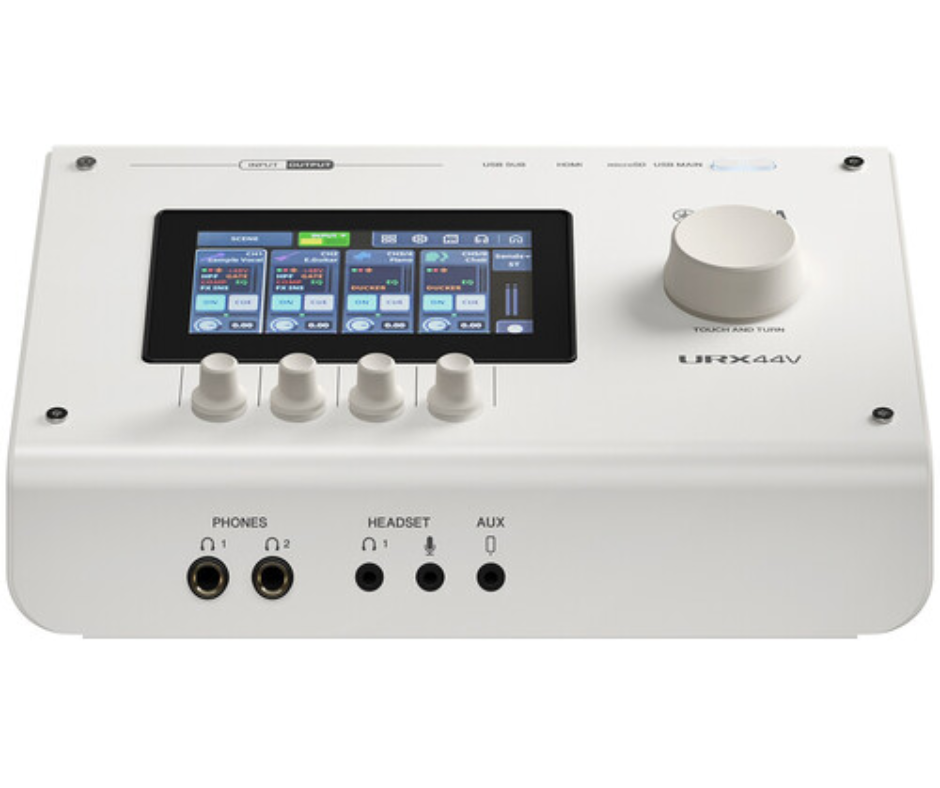

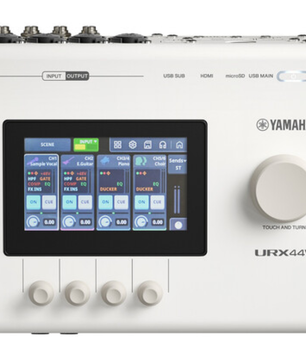

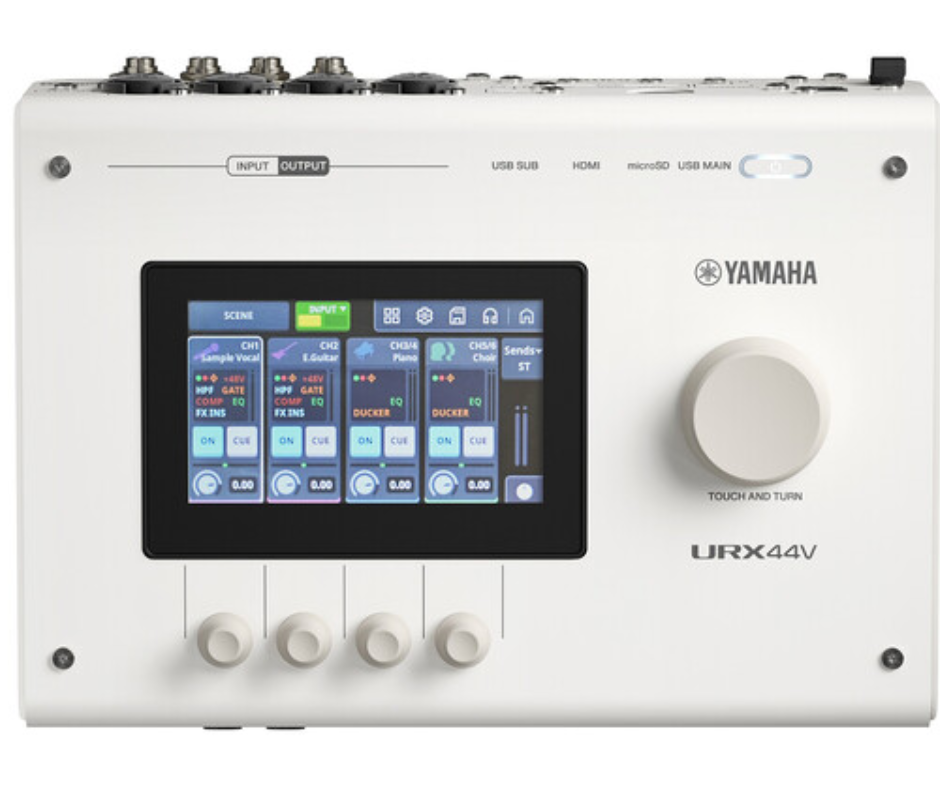

• Touchscreen GUI with 4 assignable knobs and Touch & Turn control
• microSD slot for 16-track standalone recording (2-track playback)
• Built-in DSP: EQ, compressor, gate, reverb, amp sim, Pitch Fix
• Dual USB-C ports for multi-track and streaming flexibility
• Scene Recall, Auto Gain, Clip Safe, Ducker, lip-sync delay
• Includes Steinberg software suite and MixKey software mixer

Model Specifications

• Audio Resolution: 32-bit / 192 kHz

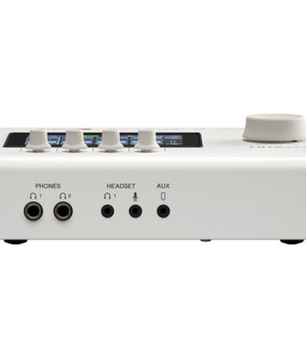

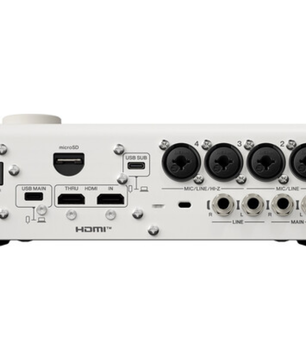

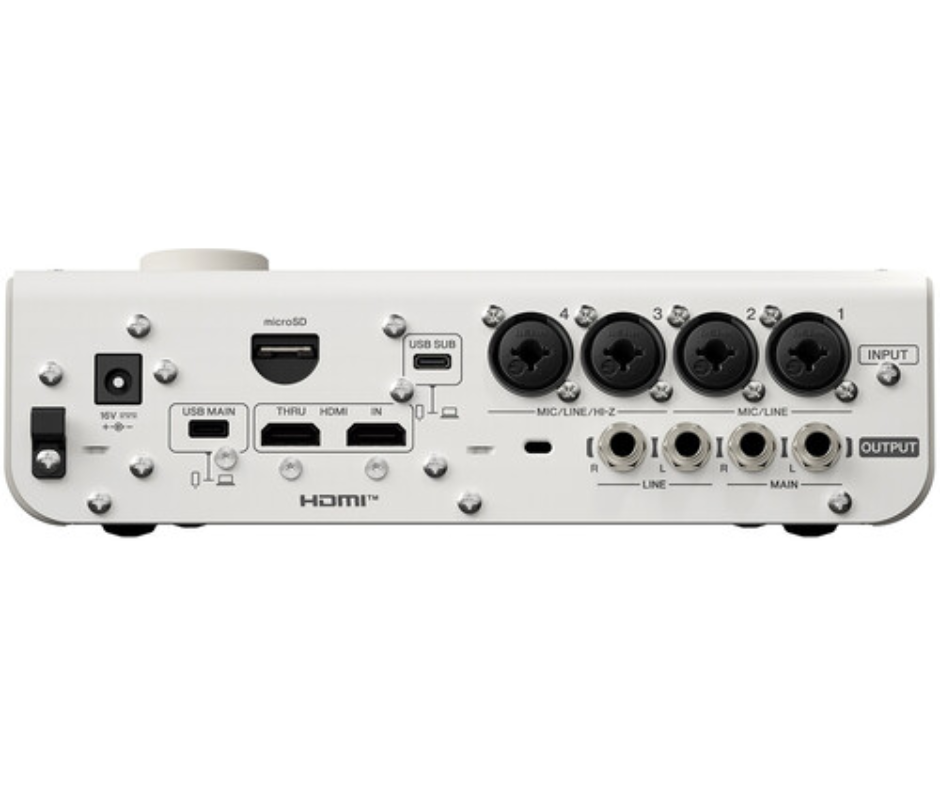

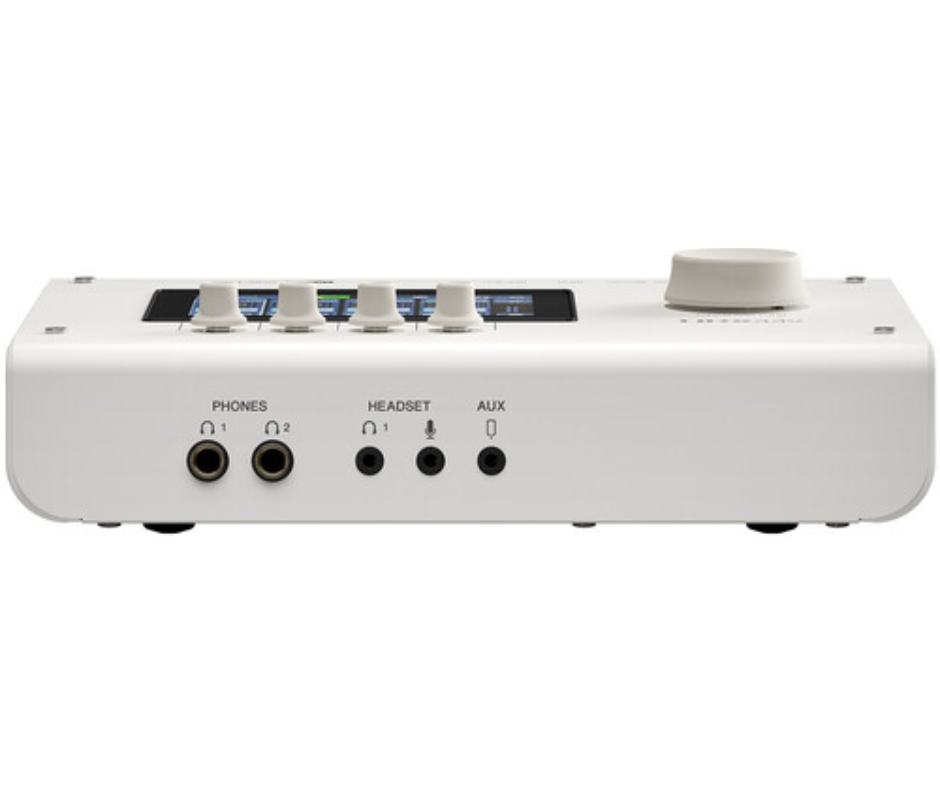

• Inputs: 4x XLR-1/4" combo, 1x 3.5mm mic/line/headset, 1x 3.5mm mic/line, 1x 3.5mm aux
• Outputs: 2x 1/4" TRS main, 2x 1/4" TRS line, 2x 1/4" headphone
• HDMI I/O: 1x HDMI input, 1x HDMI output
• Touchscreen: 4.3" color LCD
• Gain Range: 78 dB
• Dynamic Range: 115 dB (inputs), 125 dB (line outputs)
• THD: 0.0008% (inputs), 0.00036% (outputs)
• microSD Recording: 16-track record / 2-track playback
• Power: 100–240V AC adapter (included)
• Power Consumption: 38.4W typical
• Dimensions: 9.6 x 7.2 x 3.1 in (24.4 x 18.3 x 7.9 cm)
• Weight: 4.4 lb (2.0 kg)
• UPC: Not confirmed

What's In The Box

• Yamaha URX44V W Interface
• USB-C Cable
• AC Power Adapter
• Software Download Information
