LED Pixel Driver

Acclaim PIX001 is a low-voltage DMX driver built to control multi-color LED fixtures with precision and flexibility. Designed for use in architectural and entertainment lighting systems, it offers stable dimming and simple integration with DMX networks. Its compact size and removable terminal blocks make it ideal for tight installations.

Acclaim PIX001 Competitive Differences

DMX control of up to 5A multi-color LED products
12–24VDC input and output range for broad compatibility

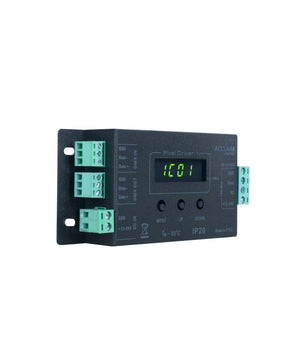

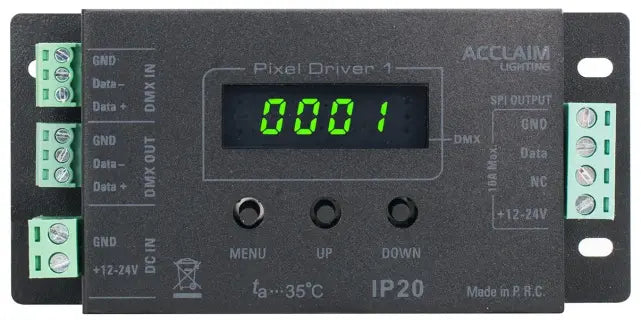

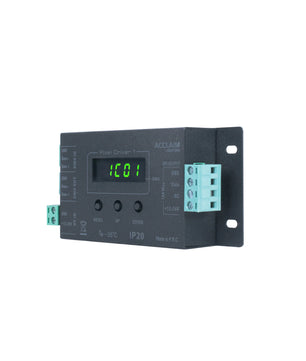

Acclaim PIX001 Description

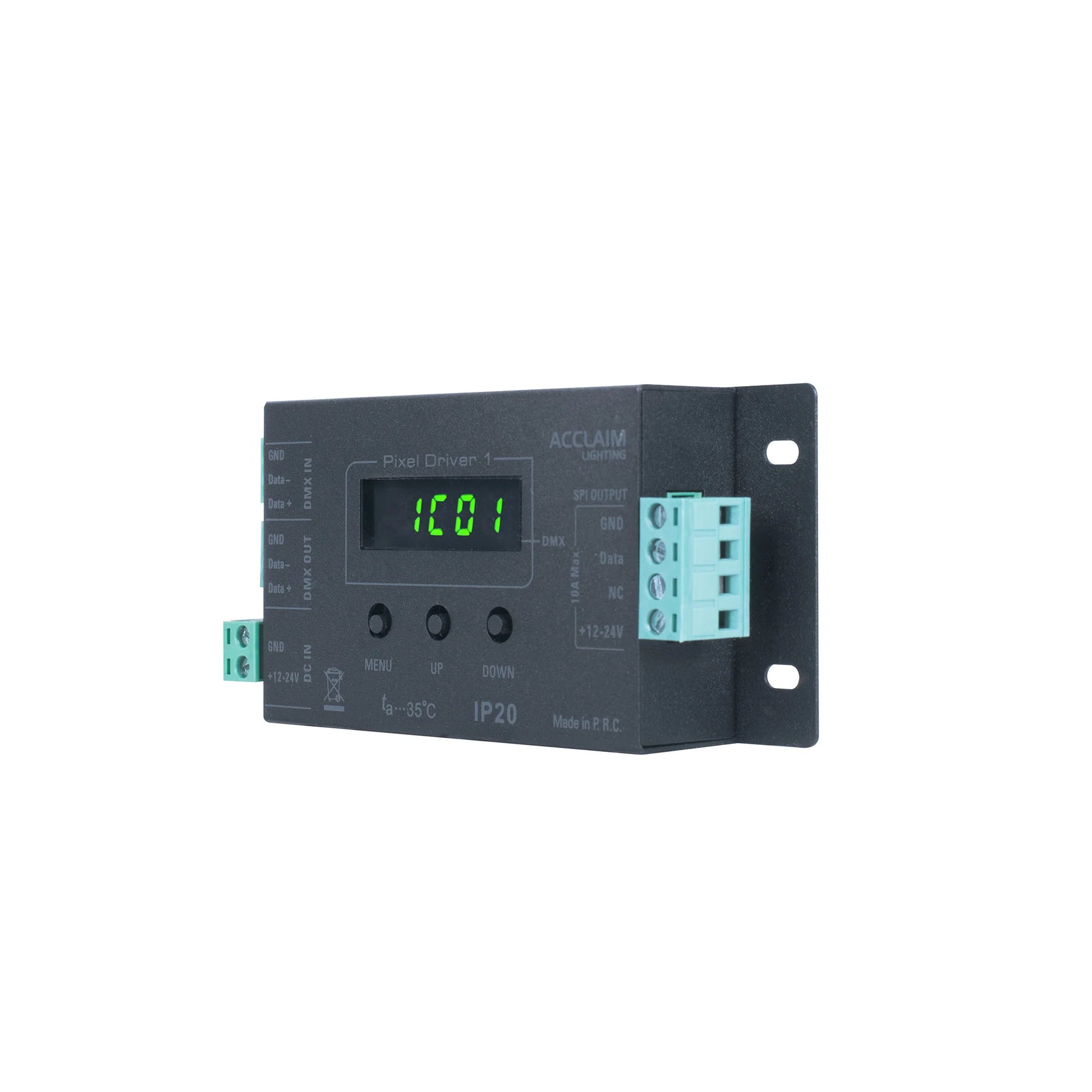

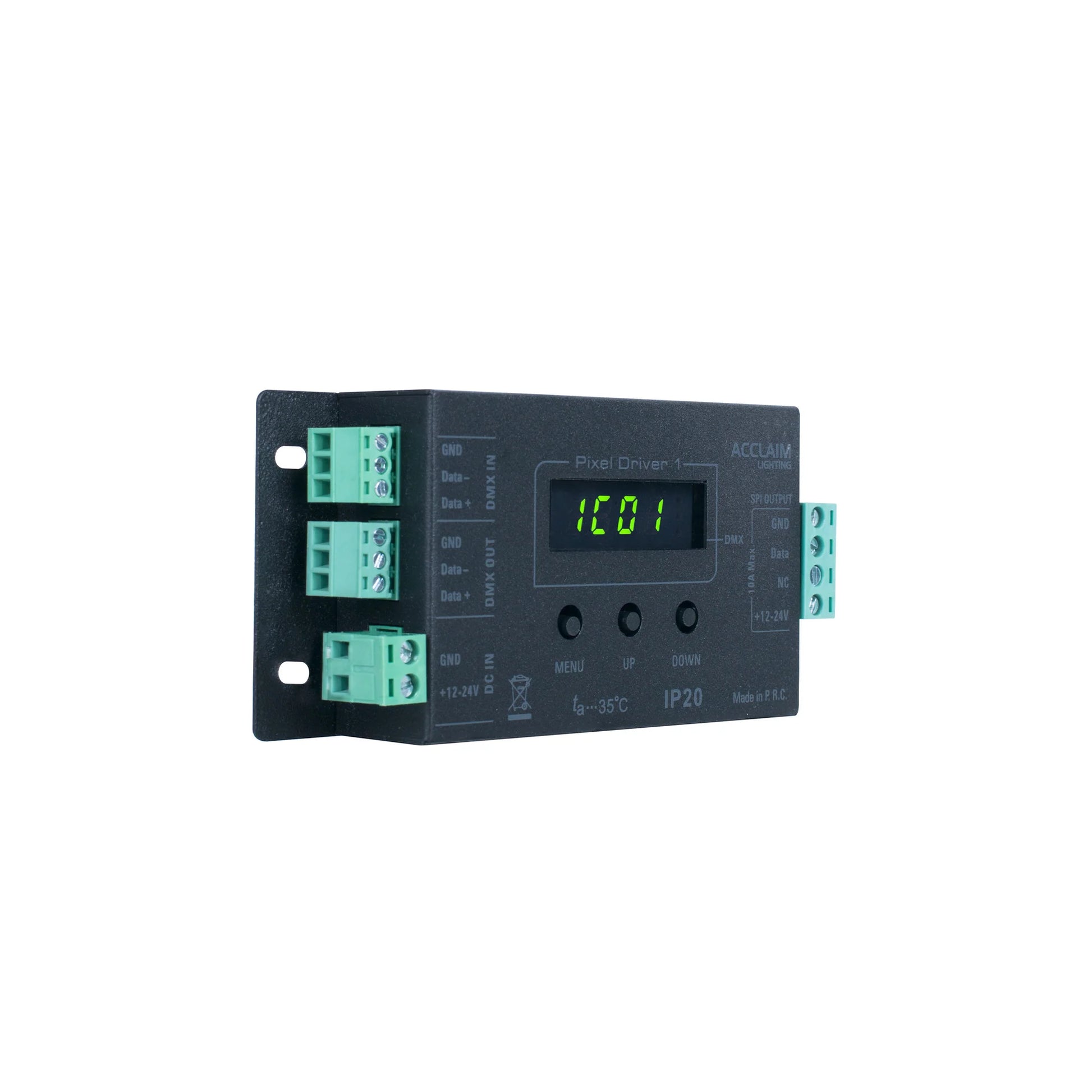

The Acclaim PIX001, also known as Pixel Driver 1, is a PWM dimming driver designed for low-voltage LED installations requiring smooth, responsive control. It supports up to 5A total output across multiple channels, making it suitable for RGB or tunable white LED systems. It accepts 12–24VDC input and delivers the same voltage output, ensuring compatibility with standard low-voltage power supplies. When connected to a DMX system, the driver provides fine-tuned dimming capabilities. Alternatively, manual color settings can be configured when external control isn't available. The unit is housed in a lightweight black polycarbonate enclosure with removable multi-pin terminal blocks for streamlined wiring. It's a great choice for dry indoor environments where flexible, DMX-driven LED control is required.

Model Features

Supports PWM dimming via DMX
Manual color setting available
Removable multi-pin terminal blocks
Black polycarbonate housing
ETL and CE certified

Model Specifications

Input Voltage: 12–24VDC
Output Voltage: 12–24VDC
Output Power: 5A total
Control Protocol: DMX
Connectors: Removable terminal blocks
Material: Black polycarbonate
Certifications: ETL, CE
Impact Protection: IK02 (0.2 joule impact)
Ingress Protection: IP20 (dry location only)
Ambient Temperature Range: 14°F to 131°F (-10°C to 55°C)
Weight: 1.6 oz (45 g)
UPC: 815853025953

What's In The Box

Pixel Driver 1 (PIX001)
Removable terminal blocks
Quick start guide
