The American DJ 15 HEX BAR IP is an IP65-rated linear wash fixture built for indoor or temporary outdoor use, featuring 15x 12W HEX LEDs, 5-zone control, and a 25-degree beam angle. Its rugged all-metal housing, flicker-free output, and included diffusion filter make it a versatile choice for stages, events, and architectural lighting.
IP65 Linear Wash Fixture

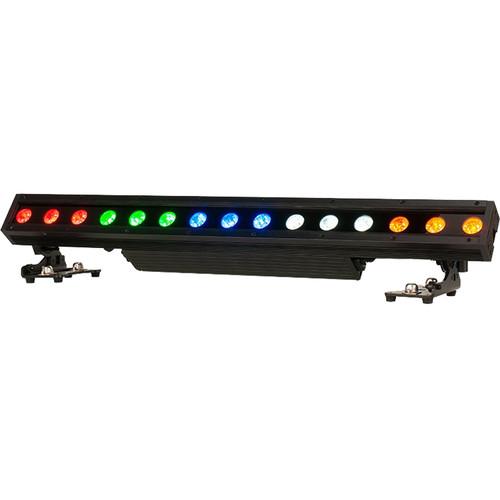

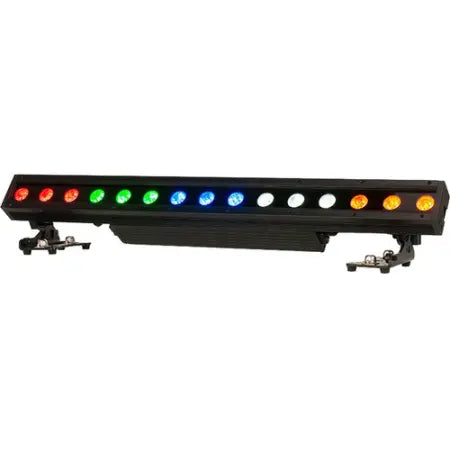

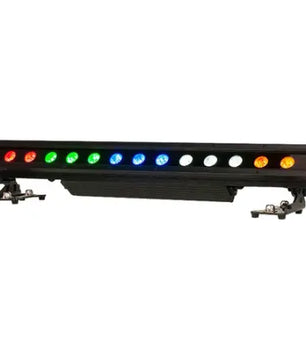

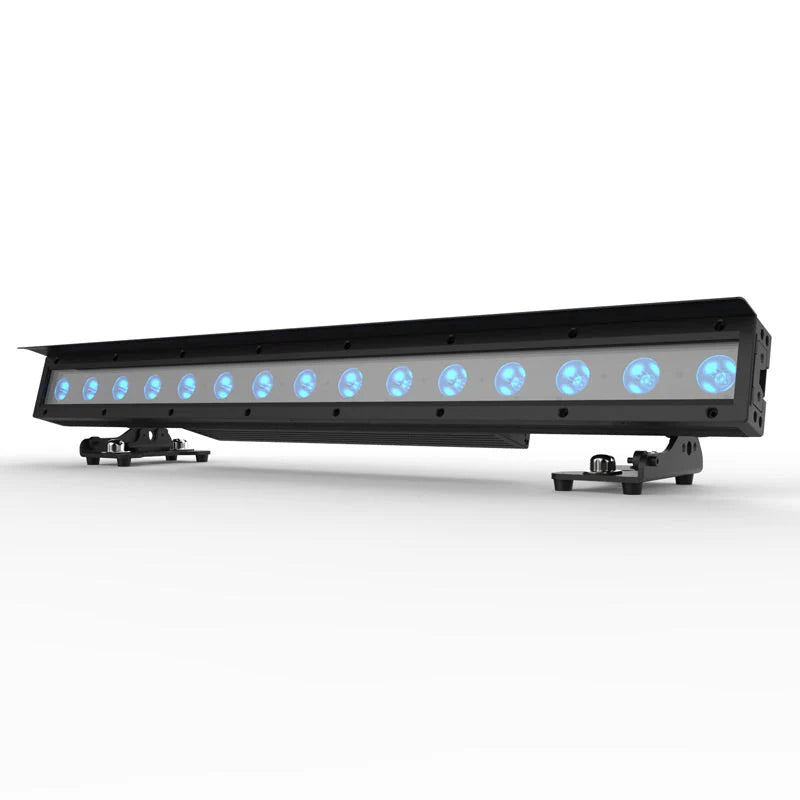

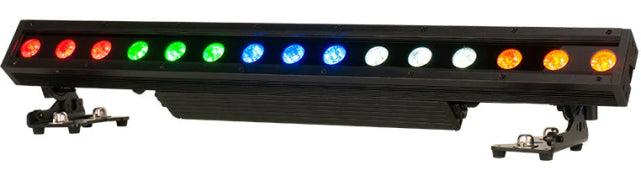

American DJ 15 HEX BAR IP is a multi-functional linear wash fixture designed for indoor installations and temporary outdoor events where reliable, weather-resistant performance matters. With 15 powerful 12W HEX LEDs, 5 individually controlled sections, and an IP65-rated housing, it delivers vibrant color mixing, flexible zone effects, and dependable operation in environments exposed to dust, moisture, and liquids.
American DJ 15 HEX BAR IP Competitive Differences

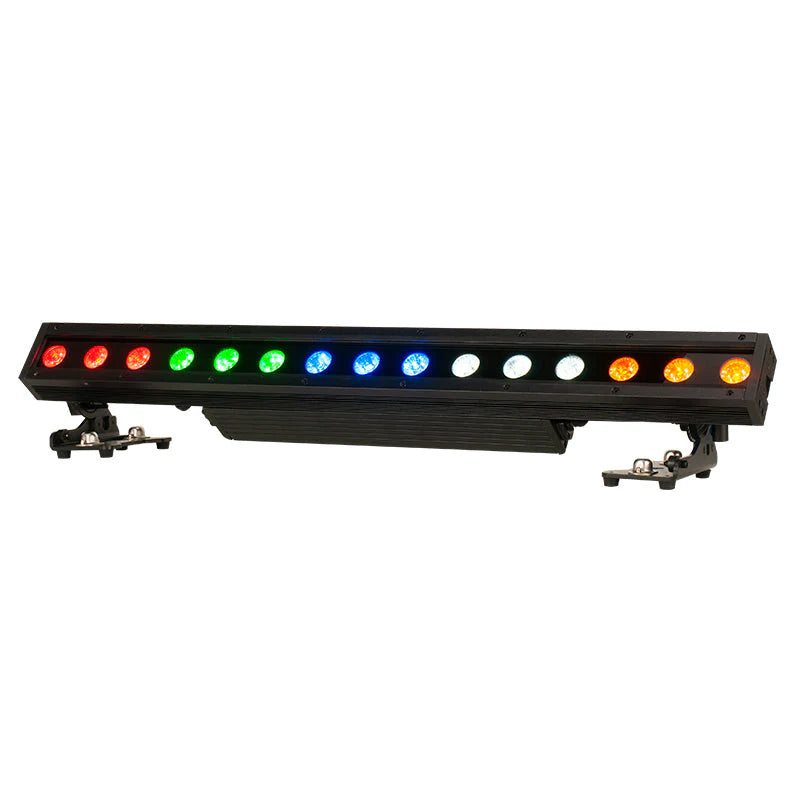

- 15x 12W HEX (6-in-1) RGBWA+UV LEDs with 5 individually controlled sections and Zone Control
- IP65-rated all-metal housing with Seetronic IP65 power and 5-pin DMX connections for indoor or temporary outdoor use
- Includes removable frost/diffusion filter, glare shield, and 2 Omega brackets for added versatility
- Flicker-free operation for film and broadcast applications
American DJ 15 HEX BAR IP Description
The American DJ 15 HEX BAR IP is built for lighting professionals who need a durable linear fixture that can handle a wide range of wash, uplighting, and stage applications. Its 15 HEX LEDs use RGBWA+UV color mixing to create saturated colors, pastel tones, warm ambers, and ultraviolet-enhanced looks from a single fixture. The native 25-degree beam angle provides focused output, while the included removable diffusion filter allows for a softer spread when needed.
This fixture is especially useful for productions that demand more than a simple static wash. With 5 individually controlled sections and multiple DMX channel modes, the unit can produce dynamic chase effects, color blocks, and pixel-style looks across the bar. Built-in programs, 0-100% dimming, smooth 16-bit dimming, and 6 dimming curve modes give lighting designers more control over transitions and cue timing.

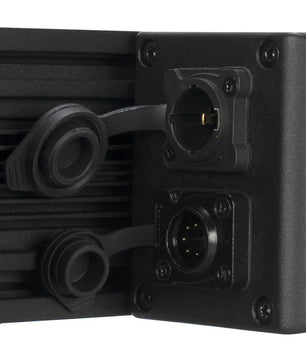

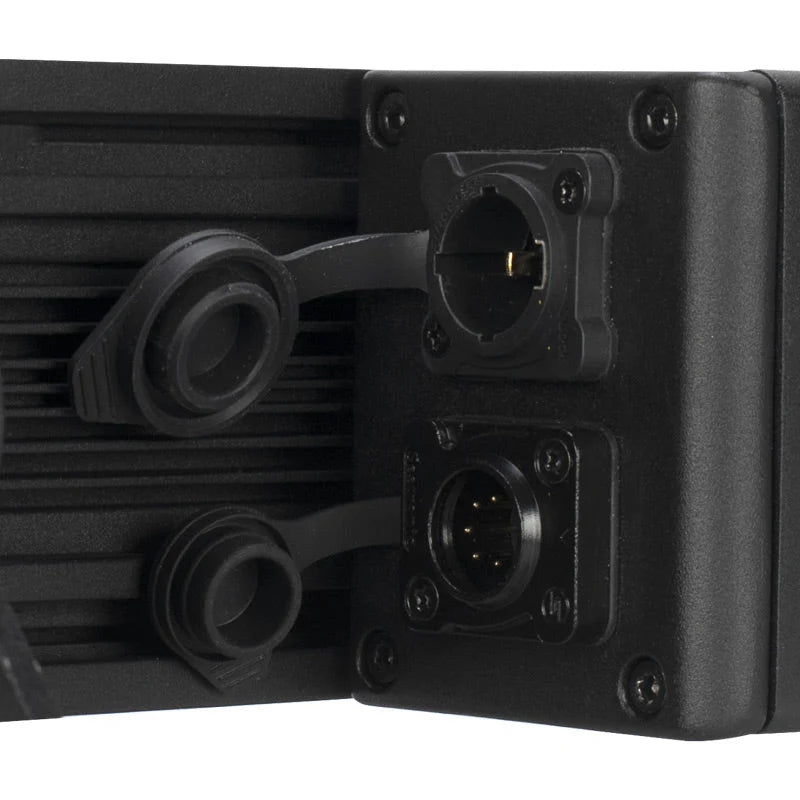

For touring, event, and architectural users, the rugged construction is a major advantage. The all-metal black housing is designed to stand up to demanding use, while the heavy-duty bracket and sure-lock locking bracket system provide secure positioning in 10-degree increments. Seetronic IP65-rated power locking In/Out and 5-pin DMX In/Out connections, along with rubber protective covers, help protect the fixture in temporary outdoor environments.

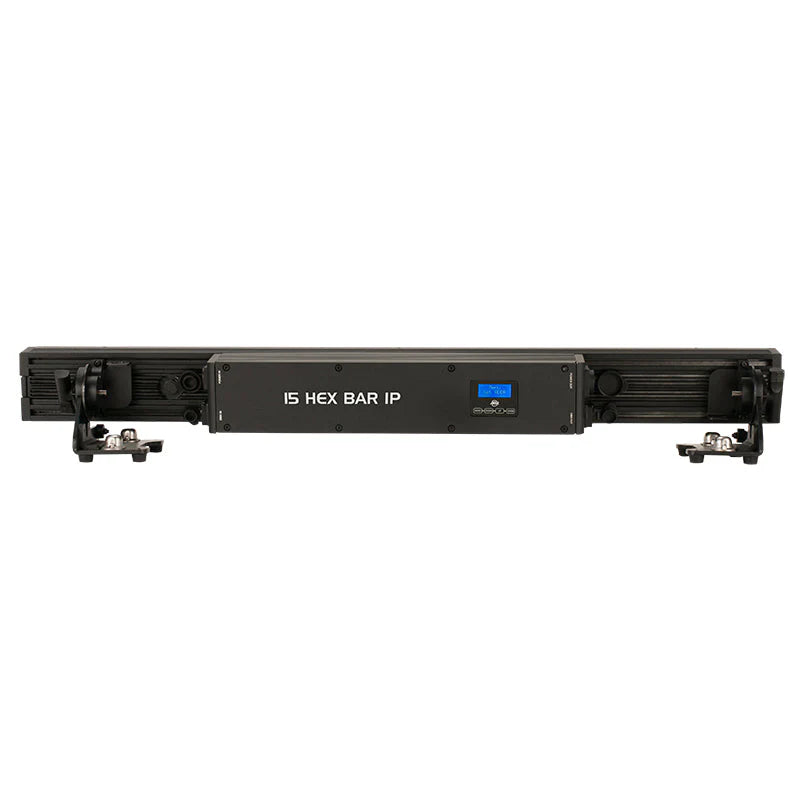

The American DJ 15 HEX BAR IP is also a strong fit for film and broadcast work thanks to its flicker-free performance. Its OLED display with function buttons makes onboard setup straightforward, while RDM support and daisy-chain capability simplify integration into larger lighting systems for productions, installations, and live events.
15 HEX BAR IP Features
- 15x 12W HEX (6-in-1) RGBWA+UV LEDs
- IP65 rated for protection against dust, sand, moisture, and liquids
- Temporary outdoor use design
- 5 individually controlled sections with Zone Control
- 25-degree beam angle

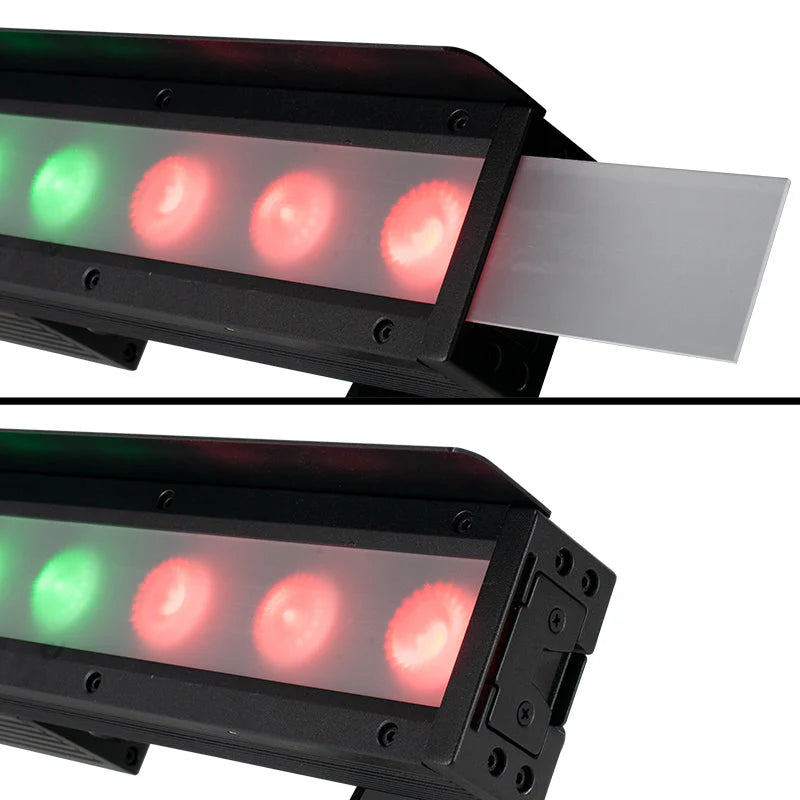

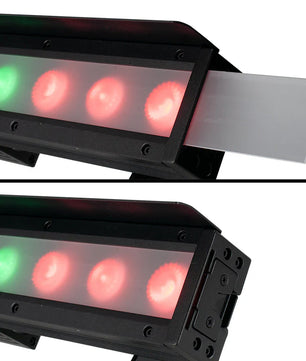

- Includes removable frost/diffusion filter
- Flicker-free operation for film and broadcast
- 63 built-in color macros
- Linear variable white color temperature control
- Multiple DMX channel modes
- Built-in internal programs
- 0-100% dimming with smooth 16-bit dimming
- 6 dimming curve modes
- DMX512 and RDM control
- OLED display with function buttons
- Seetronic IP65-rated 5-pin DMX In/Out connections
- Seetronic IP65-rated power locking In/Out connections
- Daisy chain up to 6 fixtures at 120V
- Daisy chain up to 15 fixtures at 240V
- All-metal heavy-duty black housing
- Heavy-duty bracket included

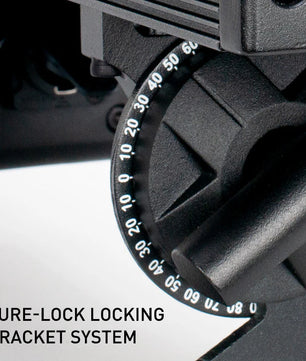

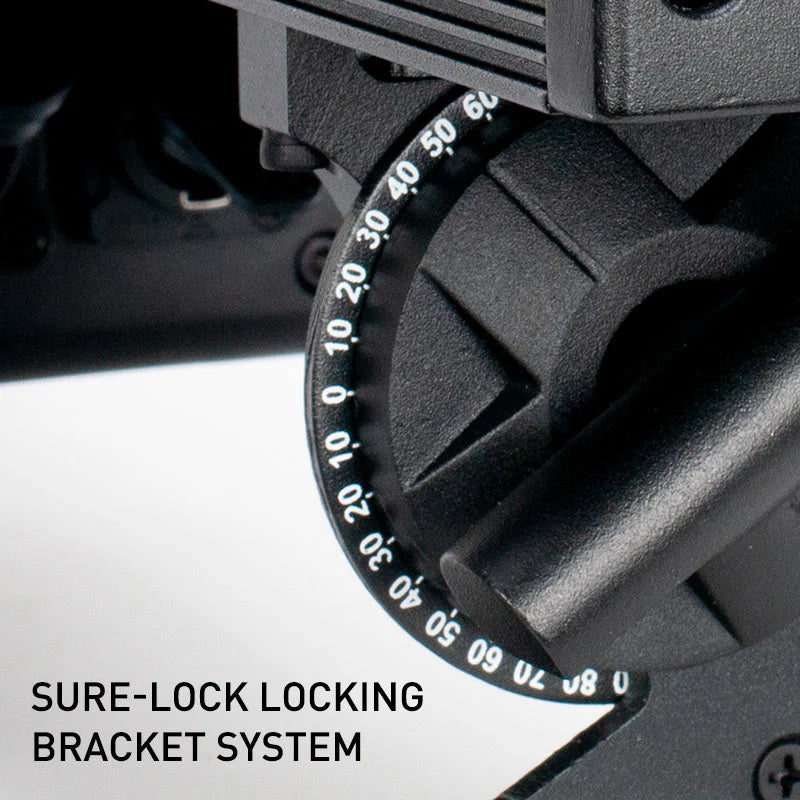

- Sure-lock locking bracket system with 10-degree increments
- CE certified
15 HEX BAR IP Specifications
- Light Source: 15x 12W HEX (6-in-1) RGBWA+UV LEDs
- LED Life Expectancy: 50,000 hours
- Beam Angle: 25 degrees
- LUX Output: 14,541 lux at 1 m, 582 lux at 5 m (Full On No UV)
- LUX Output: 14,517 lux at 1 m, 581 lux at 5 m (Full On)
- Control Protocol: DMX512, RDM
- Dimming: 0-100% with 16-bit dimming
- Power Voltage: AC 100-240V, 50/60Hz
- Power Consumption: 130W max
- Dimensions: 36 x 8 x 7.75 in (915 x 203 x 200 mm)
- Weight: 20 lb (8.9 kg)
- Rating: IP65
- Certification: CE Certified
- UPC: 818651026498
- SKU: HEX155
What's In The Box
- American DJ 15 HEX BAR IP fixture
- Seetronic IP65 locking power cord
- Frost/Diffusion Filter
- Glare Shield
- 2 Omega Brackets
