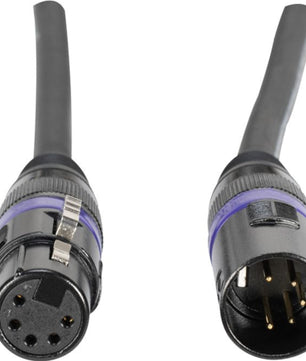

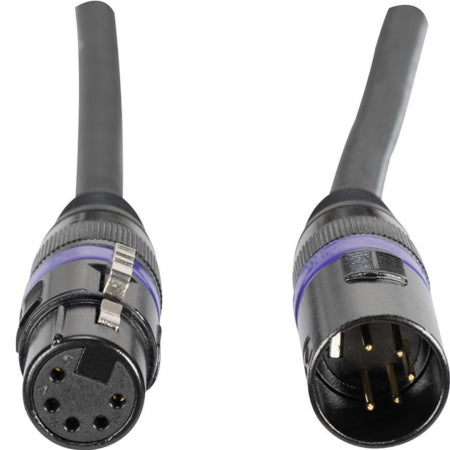

American DJ AC5PDMX100 100ft 5-Pin DMX

$89.99

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

ACCU Cable AC5PDMX100 (American DJ AC5PDMX100)
100ft 5 Pin DMX Cable
DMX Cables - ACCU Cables

High Quallty DMX 5 Pin Male XLR to 5 Pin Female XLR Turnaround, Description: 22 AWG stranded tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

•5 Pin DMX Cables

Conductor:

Number of Pairs: 2
Total Number of Conductors: 4
AWG: 22
Stranding: 0.15 x 19
Conductor Diameter: 0.0354"
Conduct or Material: TC-Tinned Copper Insulation: Insulation Material PE Polyethylene
Lay Length:

Lay Length: 1.1"
Direction: Left Hand Lay
Twists: 10.9 per foot
Inner Jacket:

Inner Jacket Material: PE- Polyethylene
Inner Jacket Diameter: 0.055"
Pair Color Code: Green/Black/Red/White
Outer Shield:

Outer Shield Trade Name: Duofoil®
Outer Shield Type: Tape/Braid
Outer Shield Material:

Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85
Outer Jacket:

Outer Jacket Material: PVC-Polyvinyl Chloride
Overall Nominal Diameter: Overall Nominal Diameter: 0.295"

Mechanical Characteristics:

Operating Temperature Range: (-30 degrees C To + 75 degrees C)
Bulk Cable Weight: 50 lbs/1000 ft
Minimum Bend Radius (Install): 3.5"
Maximum Recommended Pull Tension: 22 lbs.
Electrical Characteristics:

Nominal Characteristic Impedence: 110 Ohms
Nominal Capacitance Conductor to Conductor @ 1KHz: 12.5 pF/ft
Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
Nominal Velocity of Propagation: 76%
Nominal Delay: 1.6 Nanoseconds per foot
Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
Individual Pair Nominal Shield DC Resistance @ 20 degrees C: 15 Ohms/1000 ft
Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MHz) dB/100 ft.
Maximum Recommended Current: 2.1 Amps per conductor @ 25 degrees C

• AC5PDMX5
• AC5PDMX10
• AC5PDMX25
• AC5PDMX50
• AC5PDMX100
