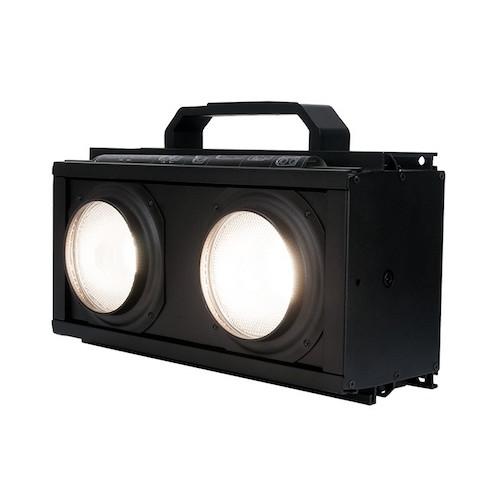

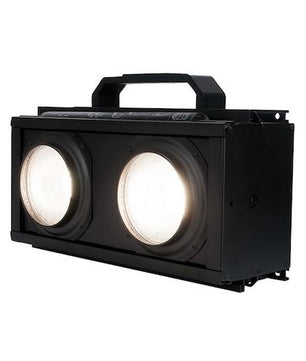

American DJ Encore Burst 200

The Encore Burst 200 is an IP rated, high intensity dual lens audience blinder/strobe. It’s powered by two 110W warm white (2700K) CREE COB LEDs. The fixture is constructed with a rugged metal housing and an aluminum extrusion rails system to connect multiple fixtures to create a larger cluster of fixtures in a vertical or horizontal array. The fixture features a dim to warm effect that replicates a halogen-like dimming profile.

The Encore Burst 200 has selectable dimming curves, strobe effect, manual tilt adjustment of individual lenses, 4-button LED menu system, True 1 powerCON and a 50-degree beam angle.


Light Source:

• Two 110W  Warm White C.O.B. (Chip On Board) CREE LEDs

• Color Temperature: 2700K (1200K dim to warm mode)

• 50,000 Hour Average LED Life

• 50-degree beam angle

Control:

• Control Channels: 1, 2, 4, 6 channels

• DMX Modes: 4

• 5 Dimming Curves

• Dimming: 0 - 100% of each module

• Strobe effect

• Flicker free (1.2 Hz)

• Dim to warm effect with Amber LED

Connections:

• Power Input: powerCON True 1 AC

• Power Pass through: powerCON True 1 AC

• 3-pin DMX In/Out

• Safety loop on rear

Electrical:

• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)

• Daisy chain max: 4 fixtures (@120V); 8 fixtures (@230V)

• Power Draw: 235W

Dimensions/Weight:

• Dimensions (LxWxH): 15.75” x 8.5” x 9” / 400x215.5x200.5mm

• Weight: 15 lbs. / 6.8 kg.
