American DJ Focus CMY Compact | 400W LED Hybrid Moving Head | CMY + CTO, 14,500 Lumens

Hybrid LED Moving Head

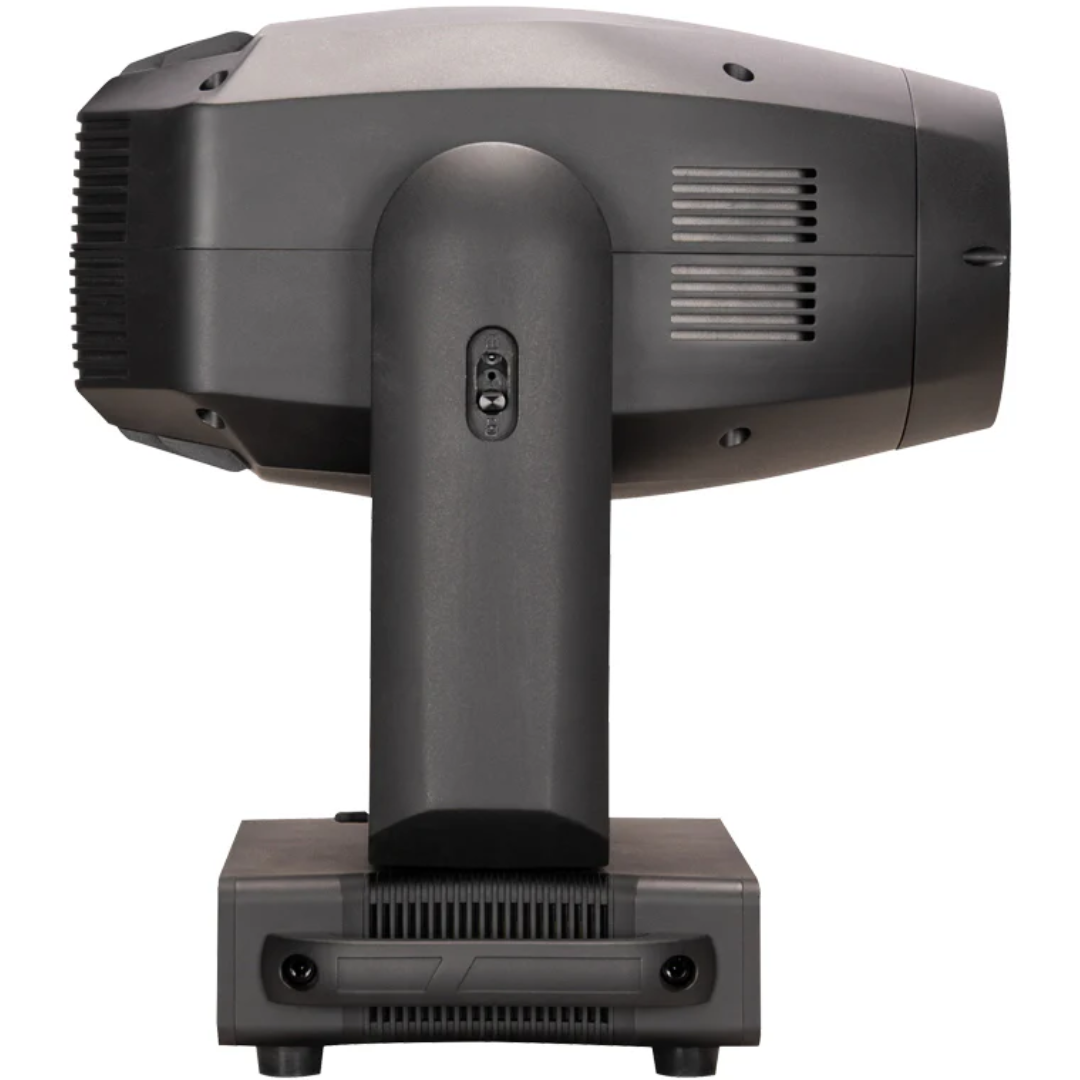

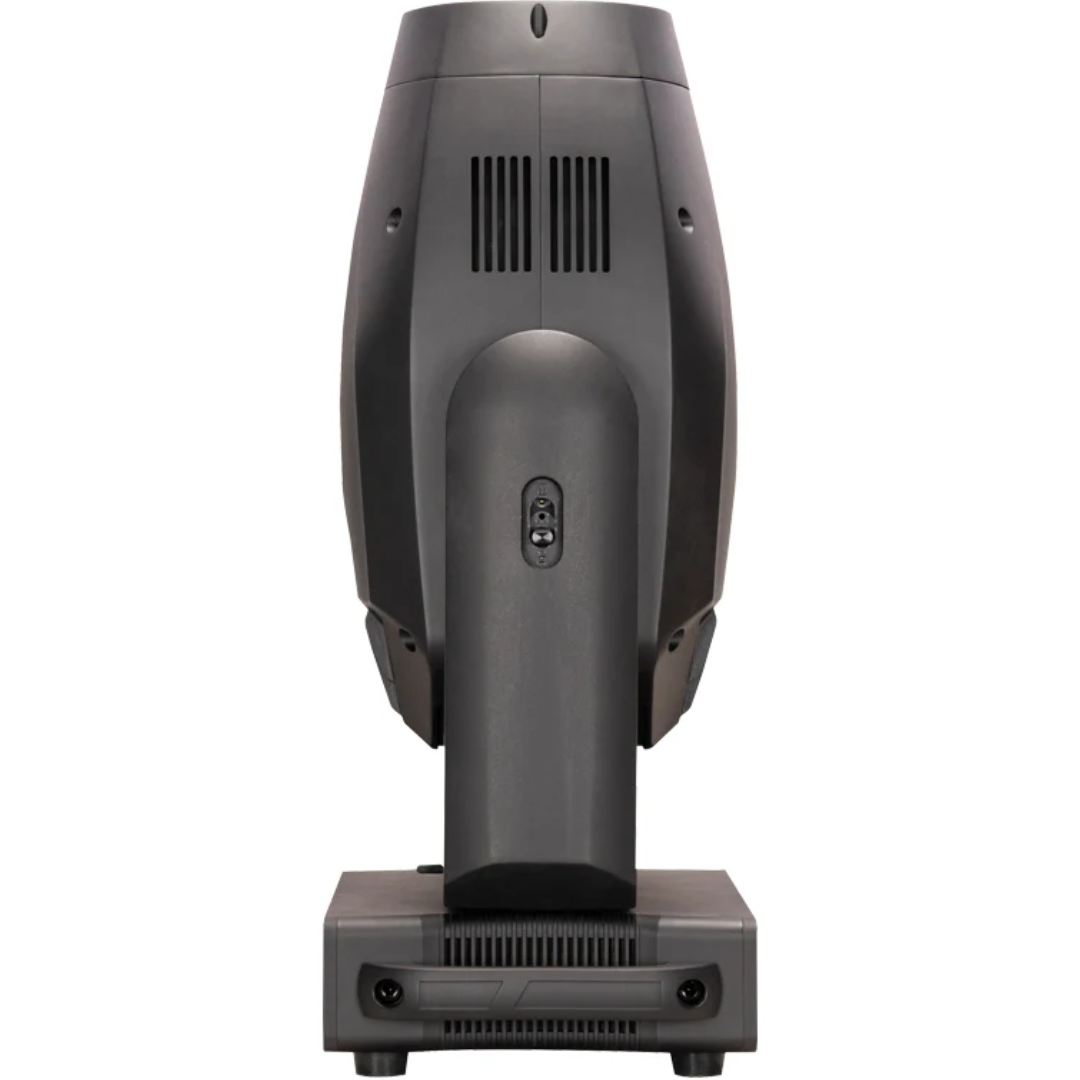

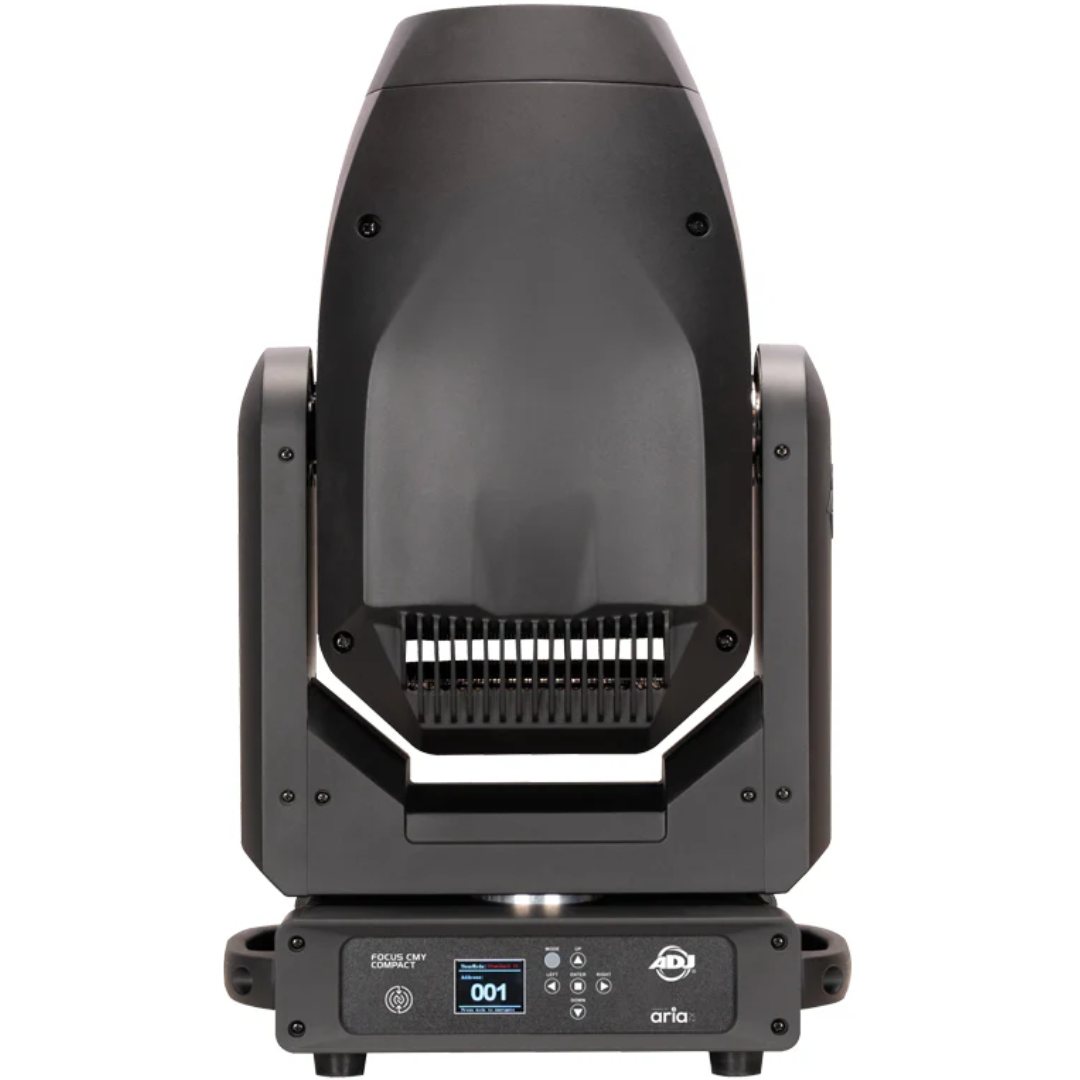

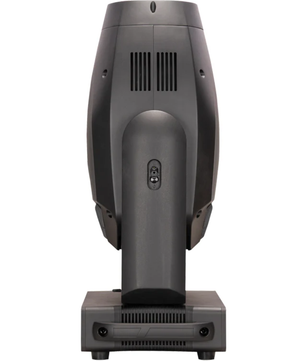

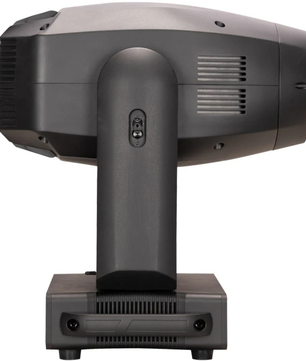

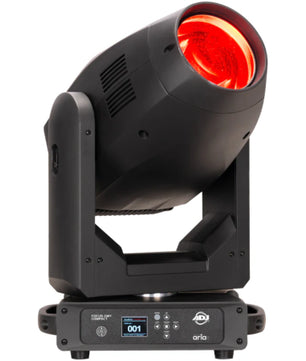

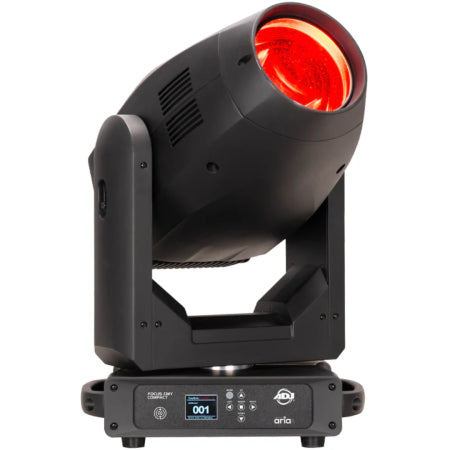

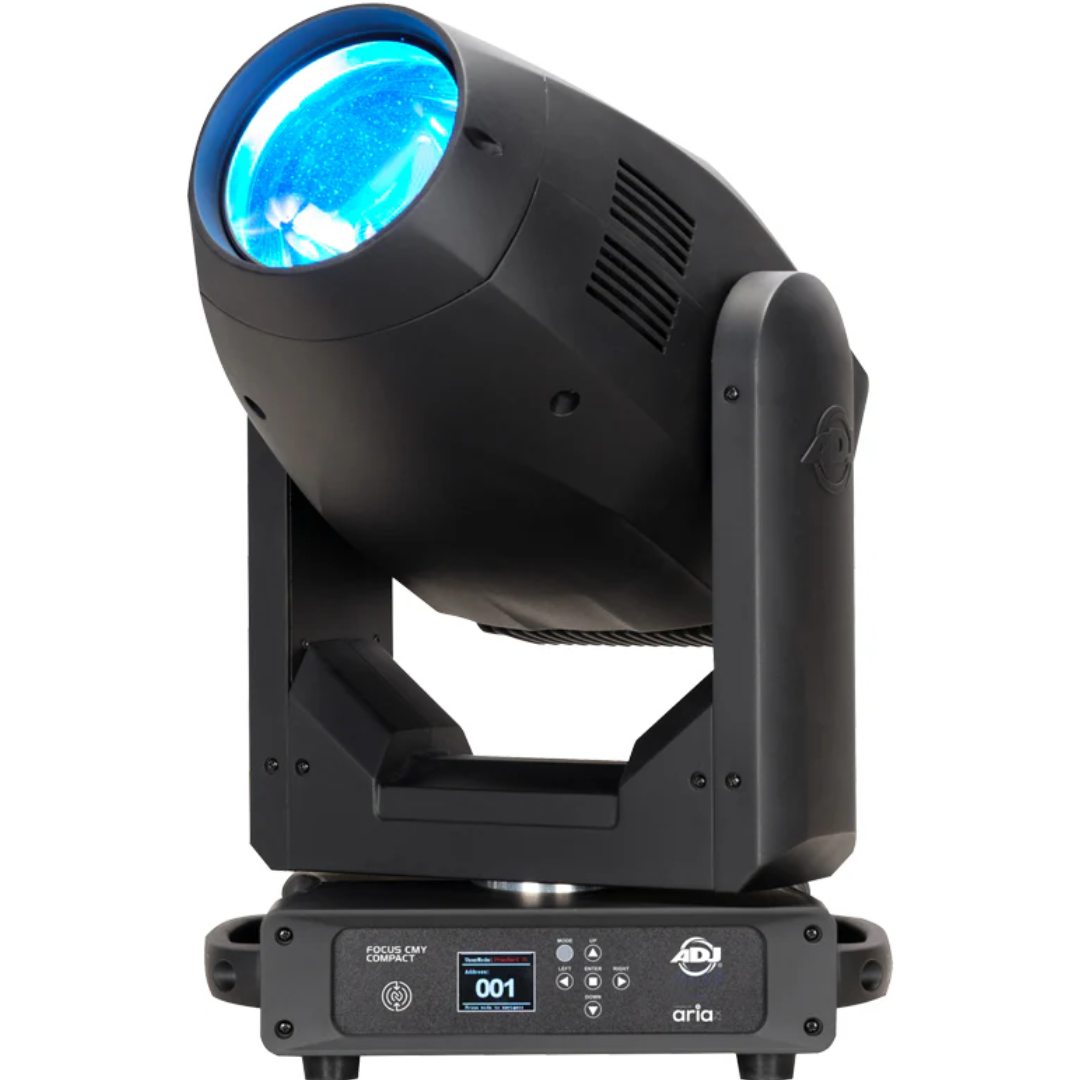

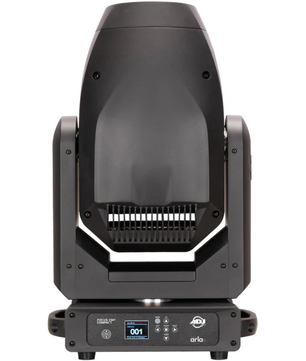

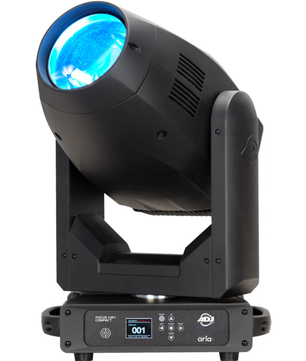

The American DJ Focus CMY Compact is a powerful and versatile automated luminaire that functions as a beam, spot, or wash. Ideal for touring, corporate events, theaters, and houses of worship, it features a 400W LED engine that delivers up to 14,500 lumens of output—all packed into a compact, under-45 lb fixture.

American DJ Focus CMY Compact Competitive Differences

• Full CMY + CTO color mixing with additional 7-slot dichroic color wheel
• Motorized zoom (3°–52°) enables beam, spot, and wash functionality in one unit

American DJ Focus CMY Compact Description

The Focus CMY Compact redefines versatility in compact moving heads. Powered by a 400W LED engine with a 6900K native color temperature, it produces rich, vibrant output with a max brightness of 14,500 lumens. This hybrid fixture offers full CMY color mixing and a variable CTO system (3200K–8500K), giving lighting designers precise control over mood and tone. It’s packed with creative tools including two GOBO wheels—one with 8 rotating, indexable gobos and another with 10 static patterns—plus dual rotating prisms (circular and linear) and dual frost filters for dynamic beam and wash effects. A motorized zoom range of 3° to 52° allows seamless transitions between narrow beams and wide washes. The fixture supports a wide range of control protocols including DMX, RDM, Art-Net, and sACN, and is equipped with ADJ’s Aria X2 wireless system and NFC configuration for streamlined setup. A 6-button touch panel and full-color reversible LCD menu enhance usability, while rugged build quality ensures dependable operation on the road or in permanent installs. At just 44.5 lbs., the Focus CMY Compact offers top-tier performance in a form factor that’s easy to transport, rig, and maintain—making it a go-to choice for professionals who demand power and flexibility without excess bulk.

Model Features

• 400W LED engine with 14,500 lumens output
• Full CMY color mixing with variable CTO (3200K–8500K)
• 7-slot color wheel including High CRI filter
• Dual GOBO wheels: 8 rotating + 10 static patterns
• 6-facet circular and linear rotating prisms
• Motorized zoom (3°–52°) and motorized focus
• Supports DMX, RDM, Art-Net, sACN + Aria X2 wireless

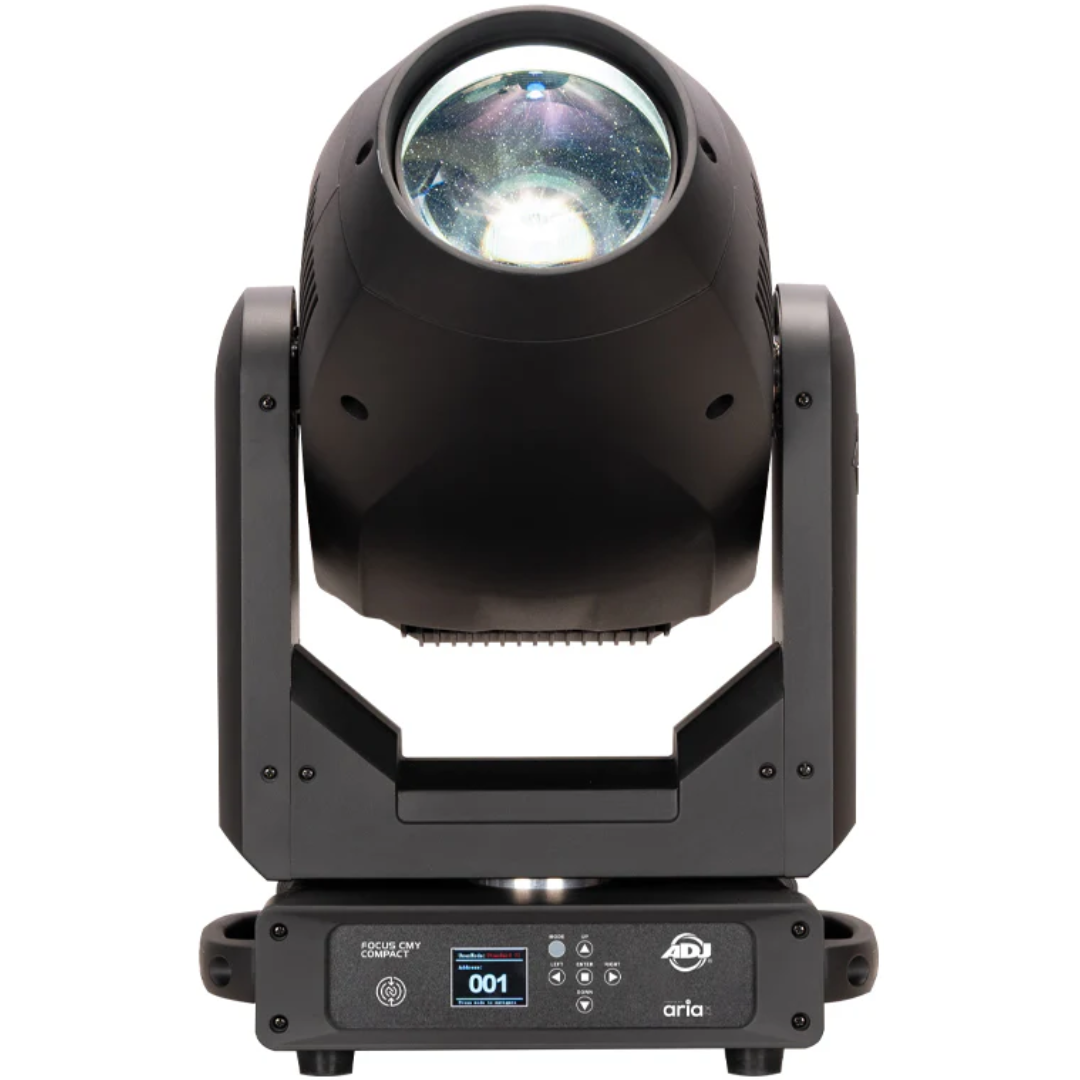

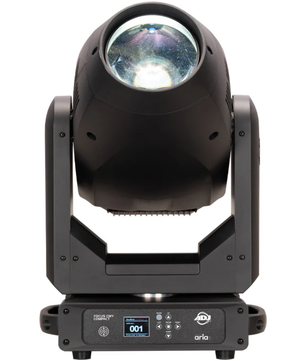

• Touch panel with full-color reversible LCD screen

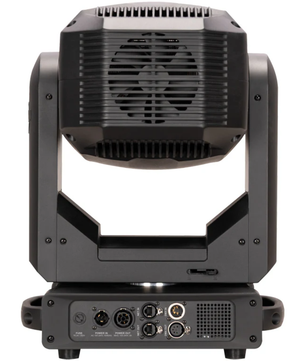

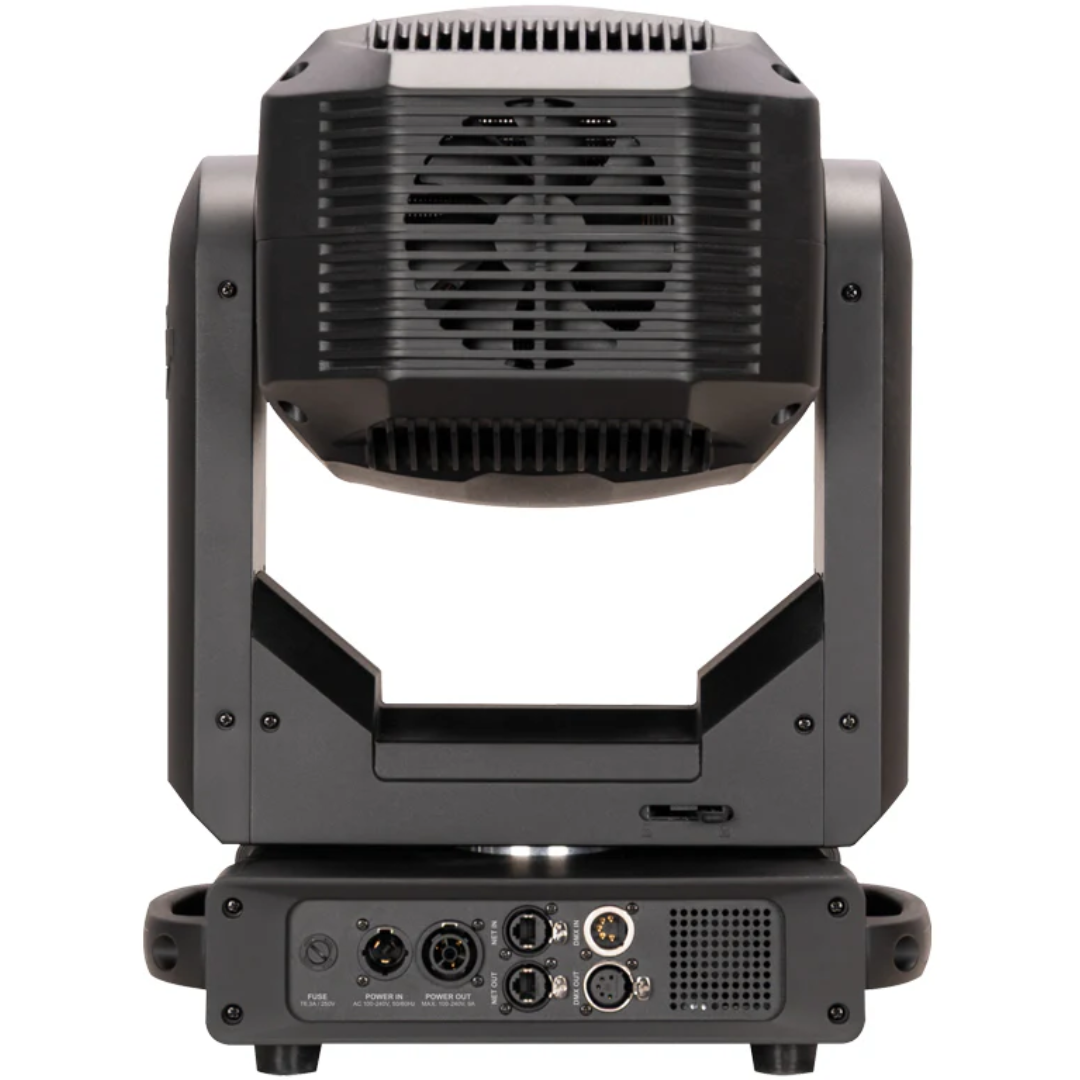

• 3-pin and 5-pin XLR, RJ45, and IP65 locking power I/O

Model Specifications

• Light Source: 400W LED Engine (6900K ±350K)
• Output: 14,500 Lumens
• CRI: 64 (80/90 with optional High CRI Filter)
• Zoom Range: 3°–52° (motorized)
• Pan: 540° / 630°, Tilt: 270° (with locks)
• DMX Modes: Basic / Standard / Extended
• Control Protocols: DMX, RDM, Art-Net, sACN
• Display: Full-color 180° reversible LCD with 6-button touch panel
• Power: AC 100–240V, 50/60Hz
• Max Power Consumption: 450W @ 220V
• Operating Temp: -13°F to 113°F (-25°C to 45°C)
• Dimensions: 14.2 x 9.3 x 23.5 in (360 x 234 x 597 mm)
• Weight: 44.5 lbs (20.2 kg)

What's In The Box

• Focus CMY Compact fixture
• Power cable
• 2 x Omega brackets
