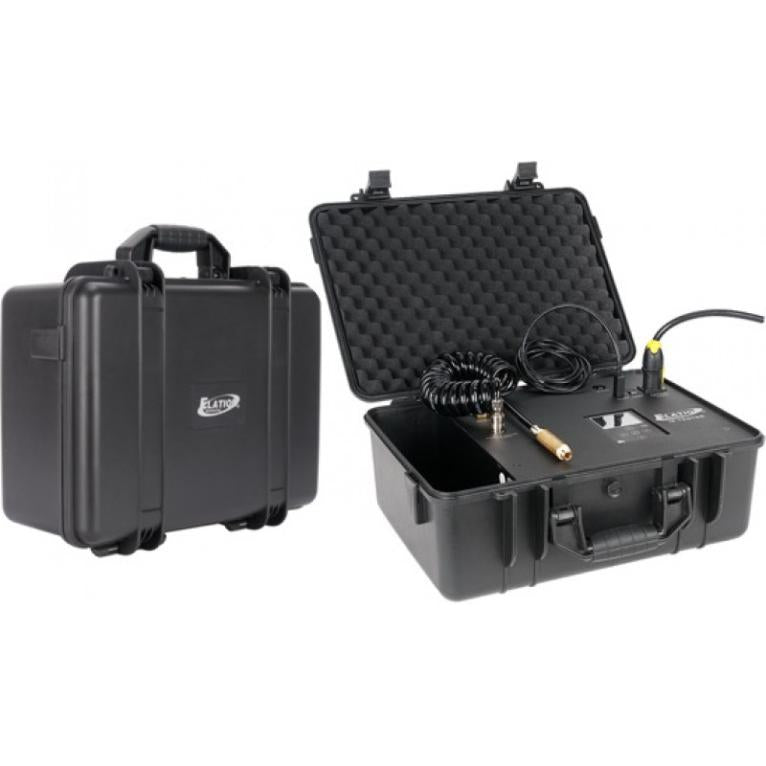

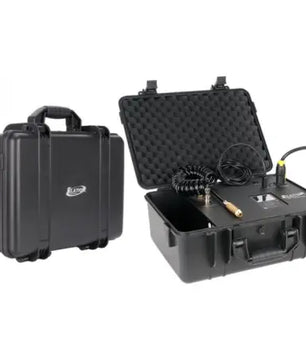

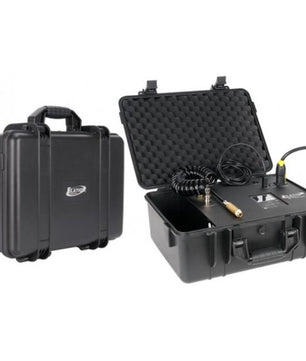

American DJ IP TESTER | Vacuum & Pressure Leak Detector | For Elation & Compatible IP Fixtures

IP Fixture Leak Tester

American DJ IP TESTER is a portable diagnostic tool designed to verify the sealed integrity of IP-rated lighting fixtures after maintenance or repairs. It's a critical solution for ensuring continued protection against dust and moisture, especially for fixtures used in outdoor or demanding environments.

American DJ IP TESTER Competitive Differences

• Tests both vacuum and pressure to ensure full IP seal integrity
• Preloaded with Elation fixture presets and supports manual testing

American DJ IP TESTER Description

The American DJ IP TESTER is purpose-built for technicians and production crews who maintain IP-rated lighting fixtures, particularly those from the Elation PROTEUS series. It stands out from other tools by testing for both vacuum and pressure leaks, providing a more comprehensive integrity check. The unit features an intuitive LCD control panel with a 6-button navigation system, making setup and operation fast and straightforward. Preloaded presets for Elation fixtures streamline testing, while manual modes accommodate other compatible IP-rated lights. You can also input fixture serial numbers to track maintenance history and generate records for accountability. A Micro SD card slot enables direct storage of test reports, and USB connectivity allows integration with PC software for more advanced control and documentation. Its rugged flight case and included accessories ensure it's ready for use in mobile service environments. Whether you're a touring technician or managing an install in a wet or dusty location, the American DJ IP TESTER ensures peace of mind that your fixtures are sealed tight.

Model Features

• Dual vacuum and pressure leak testing
• 6-button LCD display with test progress indicators
• Preloaded Elation model presets and manual setup
• Fixture serial number tracking and report storage
• Micro SD card slot and USB PC software control
• Includes rugged flight case and full accessory kit

Model Specifications

• Max Power Consumption: 40W
• Power Input: AC 100-240V, 50/60Hz
• Dimensions: 16.5 x 6.5 x 14.25 in (419.1 x 165.1 x 362 mm)
• Weight: 15.4 lb (7.0 kg)
• UPC: 837874008548

What's In The Box

• Main unit in rugged flight case
• 3–5 ft (0.9–1.8m) coiled air hose with quick-connect fitting
• M12 threaded brass nozzle with push-to-connect fitting
• (2) M12 x 1.5 nylon bolts
• 6 ft (1.8m) USB cable
• 5 ft (1.5m) powerCON TRUE1 power cable
• Micro SD card (4GB minimum)
