ADJ Jolt 300 | 288W Pixel Strobe LED

RGB & White LED Strobe Light

The ADJ Jolt 300 is a professional LED strobe, blinder, and color effects fixture designed for concerts, nightclubs, touring productions, and live entertainment applications. Featuring 144 RGB SMD LEDs rated at 1.5W each and 144 cool white SMD LEDs rated at 0.5W each, it combines vibrant color washes, dynamic chasing effects, and bright white strobe effects in one compact fixture. Its 120° beam angle, three independently controllable RGB zones, 64 built-in color macros, and 32 automated programs provide versatile lighting options for stage and event productions. With eight selectable DMX channel modes, adjustable dimming curves, and locking power connections, the Jolt 300 integrates into professional lighting systems for both temporary and permanent installations.

ADJ Jolt 300 Competitive Differences

• Dual RGB and White LED System: Combines 144 x 1.5W RGB SMD LEDs with 144 x 0.5W cool white SMD LEDs for colorful effects and traditional white strobe lighting.
• 3-Zone RGB Control: Divides the RGB LEDs into three independently controllable sections for dynamic chasing patterns, color transitions, and eye-catching effects.
• 120° Wide Beam Angle: Provides broad lighting coverage for stages, dance floors, nightclubs, and entertainment venues.
• 64 Built-In Color Macros: Offers an extensive selection of preset colors for creating lighting looks without manually programming individual RGB values.
• 32 Automated Programs: Includes built-in lighting sequences for coordinated strobe, color, and chasing effects.
• Eight DMX Channel Modes: Supports 4, 8, A10, B10, 12, 15, A18, and B18 channel configurations for different levels of control.
• Adjustable Dimmer Curves: Six dimming presets and adjustable dimming speeds from 0.1 to 10 seconds allow precise control over brightness transitions.
• Adjustable LED Refresh Rate: Supports refresh rates from 900Hz to 25kHz for adapting light output to video production and camera applications.
• Gamma Adjustment: Selectable gamma settings from 1.0 to 2.8 provide additional control over dimming response and light intensity transitions.
• Dual DMX Connections: Both 3-pin and 5-pin XLR DMX inputs and outputs provide flexible integration with professional lighting controllers.
• Power Linking: Locking power input and output connectors allow compatible fixtures to share AC power connections, reducing cable requirements.
• Flexible Mounting: Integrated scissor yoke and included Omega bracket support floor positioning and overhead installation using compatible mounting hardware.

ADJ Jolt 300 Description

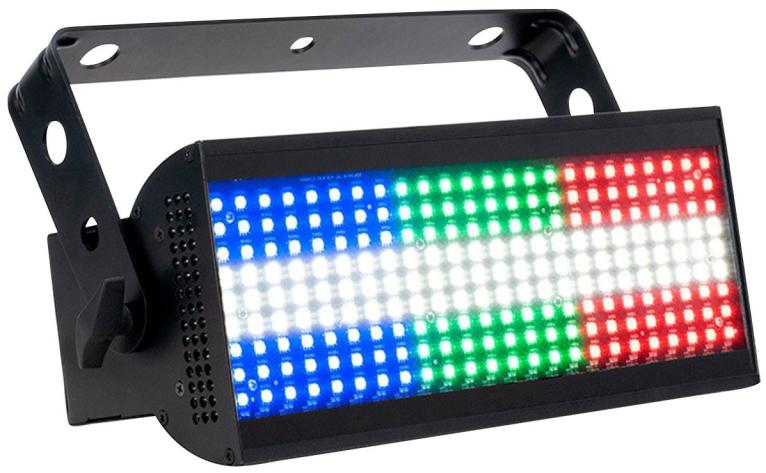

The ADJ Jolt 300 combines traditional white strobe lighting with RGB color effects in a compact fixture designed for professional entertainment environments. Its central strip of 144 cool white SMD LEDs produces bright strobe effects with a 6000K color temperature, while 144 RGB SMD LEDs positioned around the white section generate colorful washes, flashes, and dynamic visual patterns. The fixture's 120° beam angle provides wide coverage, making it suitable for large stages, concert tours, nightclub installations, and live event productions. The RGB LEDs are divided into three independently controllable sections, enabling lighting designers to create chasing effects and coordinated color sequences.

The Jolt 300 offers extensive creative control through 64 built-in color macros, 32 automated programs, and eight selectable DMX channel modes. Users can create synchronized white strobe effects, multicolor flashes, pulse effects, and dynamic lighting sequences through compatible DMX controllers. Six dimmer presets include Standard, Stage, TV, Architectural, Theatre, and Stage 2 modes, allowing lighting output to be adjusted for different applications. Dimming speeds can be configured between 0.1 and 10 seconds, while adjustable LED refresh rates from 900Hz to 25kHz and gamma settings from 1.0 to 2.8 provide additional flexibility for theatrical lighting and video production.

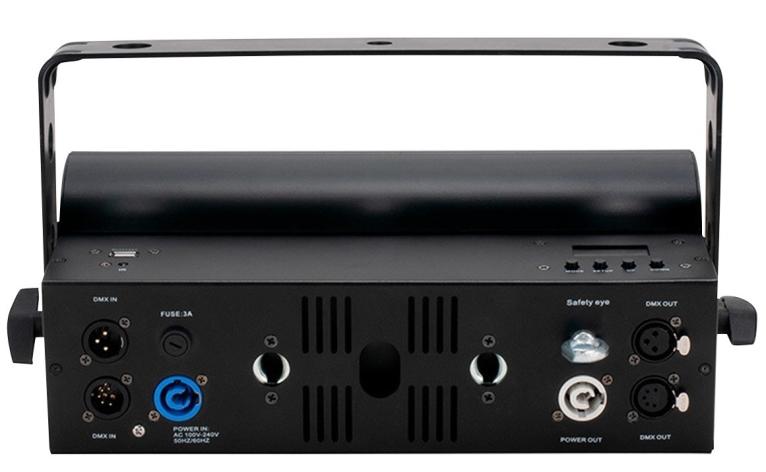

For convenient programming and operation, the Jolt 300 features an LCD display with a four-button control interface. The onboard menu provides access to DMX addressing, channel modes, color macros, automated programs, dimmer curves, refresh rates, and system settings. The fixture also supports compatible ADJ UC IR remote control for accessing supported functions. Its 3-pin and 5-pin DMX input and output connectors simplify integration with existing lighting systems, while locking power input and output connections allow multiple fixtures to be power-linked. Up to four compatible Jolt 300 fixtures can be linked on a 120V circuit according to the manufacturer's specified configuration.

The Jolt 300 is designed for professional stage and touring use, with a compact enclosure measuring 15.3 x 5.63 x 8.38 inches and weighing approximately 10.5 lb (4.75 kg). Its integrated scissor yoke and included Omega bracket provide flexible mounting options for lighting trusses and stage installations using appropriate clamps and safety hardware. A rear-panel USB service connection supports firmware updates, allowing the fixture's control software to be maintained as required. The unit operates from a universal 100-240V AC power supply with a maximum consumption of 226W.

With its combination of RGB color mixing, cool white strobe output, three-zone control, and versatile DMX programming, the Jolt 300 is suitable for lighting designers, touring productions, rental companies, nightclub installations, and live event professionals. Whether used for high-impact white strobes, synchronized RGB chases, colorful audience effects, or dynamic stage lighting, it provides a flexible LED effects solution for professional entertainment applications.

Jolt 300 Features

• Professional RGB and white LED strobe, blinder, and effects fixture
• 144 x 1.5W RGB SMD LEDs for color effects and dynamic lighting
• 144 x 0.5W cool white SMD LEDs for traditional white strobe effects
• 120° beam angle for wide stage and audience coverage
• 6000K cool white LED color temperature
• 50,000-hour average LED life expectancy
• Three independently controllable RGB LED sections
• Zone chasing effects for dynamic color patterns
• 64 built-in color macros
• 32 built-in automated lighting programs
• RGB color mixing and white strobe operation
• DMX512 control for professional lighting systems
• Eight selectable DMX modes: 4, 8, A10, B10, 12, 15, A18, and B18 channels
• Independent RGB and white strobe, shutter, and pulse effects in supported DMX modes
• 0-100% electronic dimming control
• Six dimmer presets: Standard, Stage, TV, Architectural, Theatre, and Stage 2
• Adjustable dimming speeds from 0.1 to 10 seconds
• Adjustable LED refresh rates from 900Hz to 25kHz
• Adjustable gamma settings from 1.0 to 2.8
• Built-in LCD display with four-button menu control
• Direct menu access to DMX settings, effects, dimming, and system configuration
• Compatible with ADJ UC IR wireless remote control
• 3-pin XLR DMX input and output connections
• 5-pin XLR DMX input and output connections
• Locking power input and output connections
• Supports power linking of up to four compatible fixtures at 120V
• USB service port for firmware updates
• Integrated scissor yoke for flexible fixture positioning
• Included Omega bracket for mounting with compatible clamps
• Safety attachment point for secure overhead installation
• 100-240V AC auto-sensing power supply
• Maximum power consumption of 226W
• Compact design for professional touring and permanent installations
• Suitable for concerts, nightclubs, touring productions, live events, and stage lighting

Jolt 300 Specifications

• Product Type: RGB and White LED Strobe / Blinder / Effects Fixture
• Manufacturer SKU: JOL300
• UPC: 818651027785
• Light Source Type: SMD LED
• RGB Light Source: 144 x 1.5W RGB SMD LEDs
• White Light Source: 144 x 0.5W Cool White SMD LEDs
• Total LED Count: 288
• Color Mixing: RGB + Cool White
• White LED Color Temperature: 6000K
• Beam Angle: 120°
• Average LED Life: 50,000 Hours
• RGB Control Zones: 3
• Built-In Color Macros: 64
• Built-In Programs: 32
• Control Protocol: DMX512
• DMX Channel Modes: 8 (4, 8, A10, B10, 12, 15, A18, B18)
• DMX Inputs: 3-Pin and 5-Pin XLR
• DMX Outputs: 3-Pin and 5-Pin XLR
• Dimming Range: 0-100%
• Dimmer Modes: 6 (Standard, Stage, TV, Architectural, Theatre, Stage 2)
• Dimmer Speed: 0.1-10 Seconds
• Strobe Control: Shutter, Strobe, Pulse, and Random Strobe Effects
• LED Refresh Rate: Adjustable, 900Hz-25kHz
• Gamma Adjustment: 1.0-2.8
• Display: LCD
• Menu Controls: 4 Buttons
• Remote Compatibility: ADJ UC IR
• Firmware Update Connection: USB Service Port
• Power Input: Locking AC Power Connector
• Power Output: Locking AC Power Connector
• Power Linking at 120V: Up to 4 Fixtures
• Input Voltage: 100-240V AC (Auto-Sensing)
• Input Frequency: 50/60Hz
• Maximum Power Consumption: 226W
• Fuse: 3A
• Mounting: Integrated Scissor Yoke and Omega Bracket
• Working Position: Any Safe Working Position
• Dimensions (L x W x H): 15.3 x 5.63 x 8.38 in (389 x 143 x 213 mm)
• Weight: 10.5 lb (4.75 kg)
• Certification: CE

What's In The Box

• ADJ Jolt 300 RGB and White LED Strobe Light
• Omega Mounting Bracket
• Locking AC Power Cable
