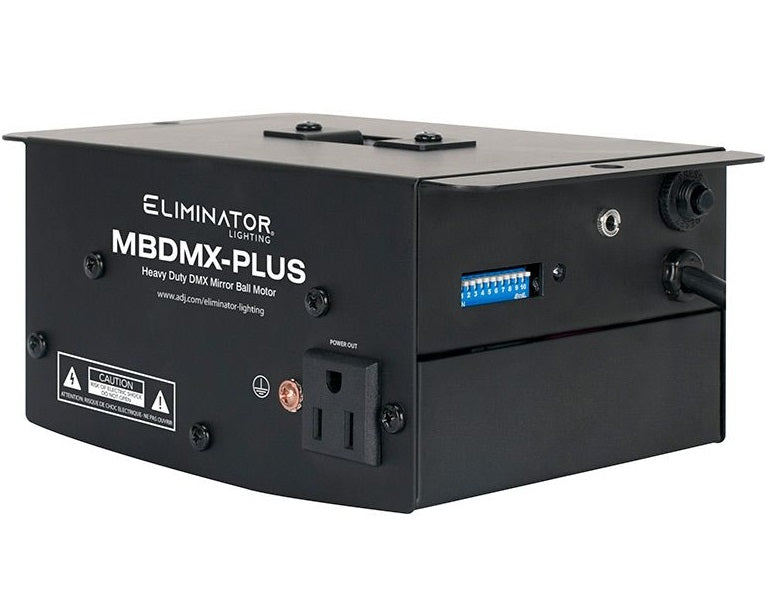

American DJ MBDMX Plus | Heavy-Duty DMX Mirror Ball Motor with Adjustable Speed Control

DMX Motor for Mirror Balls up to 20 Inches

The ADJ MBDMX-PLUS is a heavy-duty DMX mirror ball motor designed for precision and reliability. Perfect for enhancing visual effects, it supports mirror balls up to 20 inches in diameter. With adjustable speed and direction, it adds dynamic movement to your lighting displays.

ADJ MBDMX-PLUS Competitive Differences

• Heavy-Duty Build: Built to handle up to 20-inch mirror balls.
• Advanced DMX Control: 2 DMX channels for lighting control and motor speed/direction adjustment.
• Flexible Operation: Includes 3-prong Edison sockets to power pinspots.
• Optional Wireless Control: Compatible with UC IR remote for wireless On/Off control (sold separately).
• Synchronized Effects: Link up to 4 units for unified rotation and speed.
• Reliable Safety Features: Circuit breaker protection eliminates the need for fuses.

ADJ MBDMX-PLUS Description

The ADJ MBDMX-PLUS is a versatile motor that transforms any lighting setup with dramatic mirror ball effects. It features two DMX channels, offering precise control over lighting and motor functions. Channel 1 turns lighting On/Off, while Channel 2 adjusts motor speed and direction. The unit includes two 3-prong Edison sockets for powering pinspots, adding further functionality. For ultimate convenience, the MBDMX-PLUS is compatible with the optional UC IR remote, allowing wireless control over On/Off functions. Its Primary/Secondary control mode enables synchronized motor rotation across up to 4 linked units, creating a stunning visual spectacle. The motor's circuit breaker protection ensures operational safety, eliminating the need for fuse replacements.

MBDMX-PLUS Features

• Supports mirror balls up to 20 inches in diameter
• 2 DMX channels for lighting and motor control
• Adjustable motor speed and direction
• On-board 3-pin DMX In/Out
• Two 3-prong Edison sockets for pinspots
• Primary/Secondary linking for synchronized effects
• Compatible with UC IR wireless remote (sold separately)
• 1/4” socket and IR cable for additional control
• Circuit breaker protection for added safety

MBDMX-PLUS Specifications

• Power Draw: Max 5rpm - 10.5W / 0.101A; Min 0.5rpm - 10.2W / 0.100A
• Dimensions: 8” x 4.8” x 5.75” (203mm x 122mm x 146mm)
• Weight: 4 lbs. (2 kg)
• UPC: 810087371685
