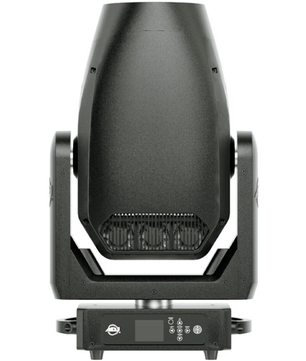

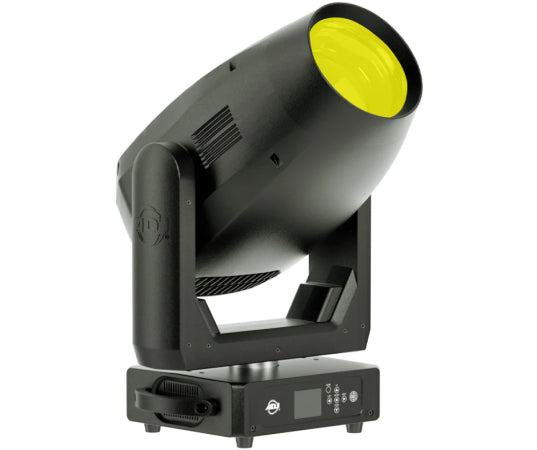

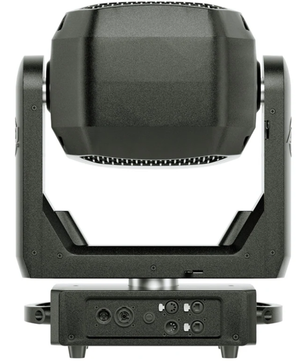

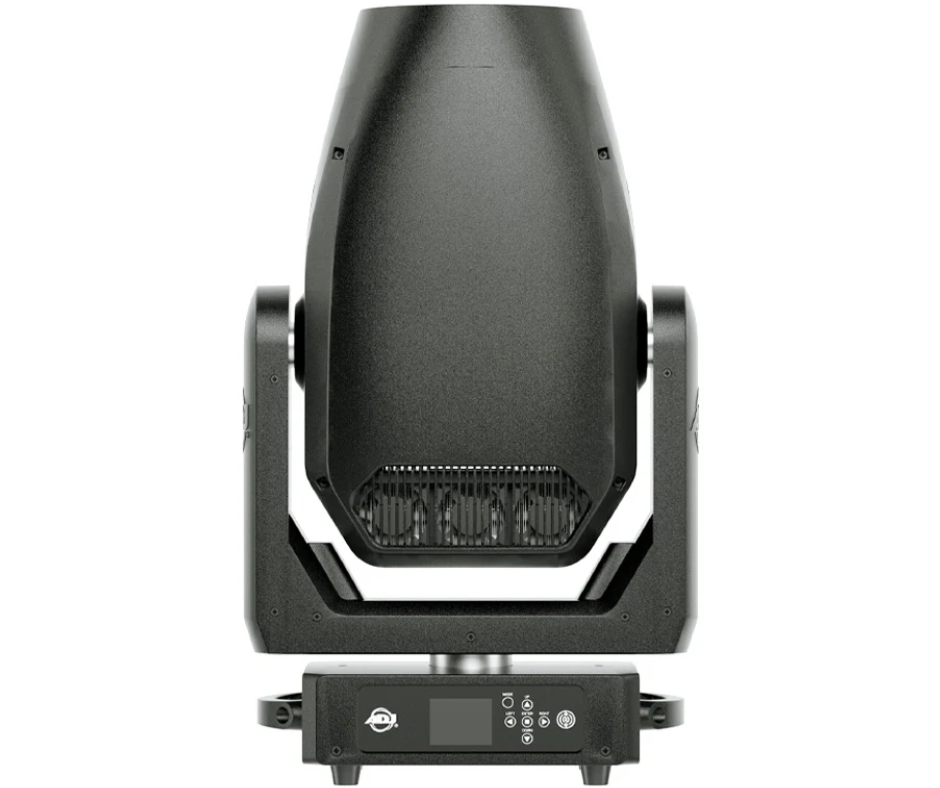

American DJ Protégé XL | 450W LED Spot - 20,000 Lumens | CMY + CTO, Dual GOBOs & Prisms

LED Moving Head Spot

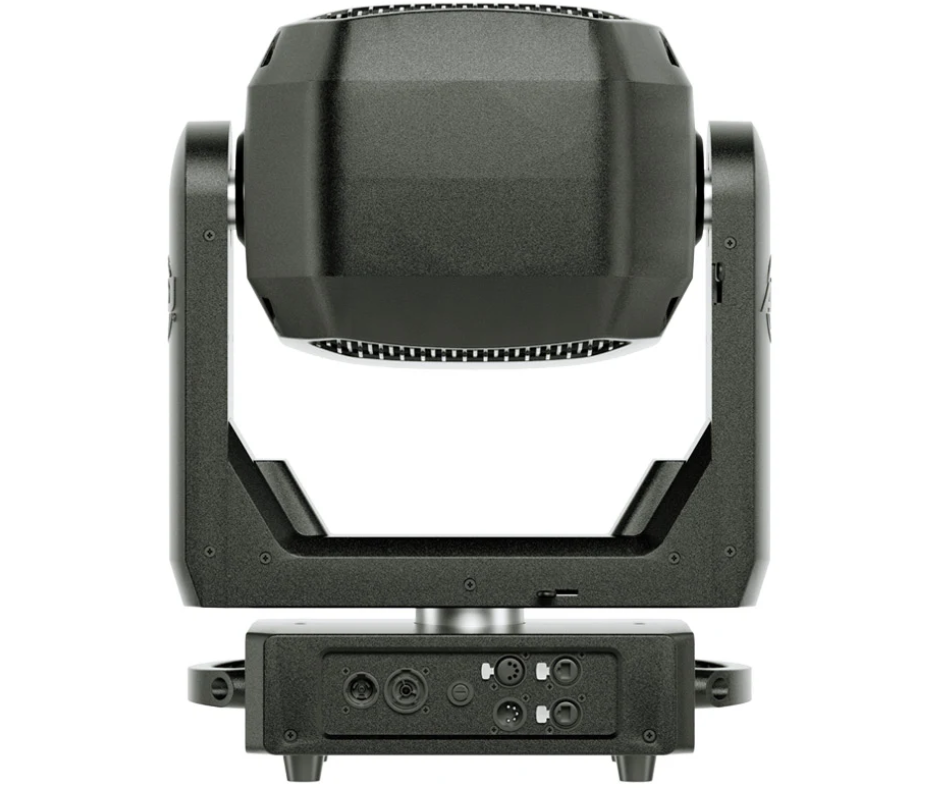

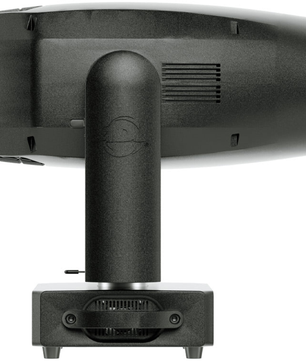

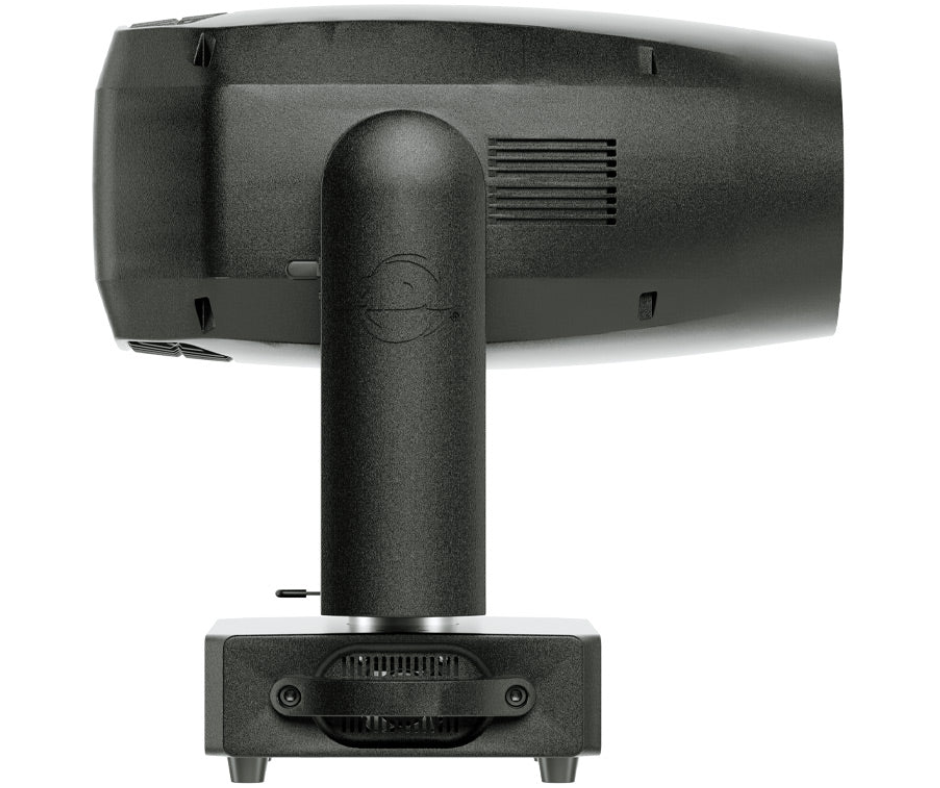

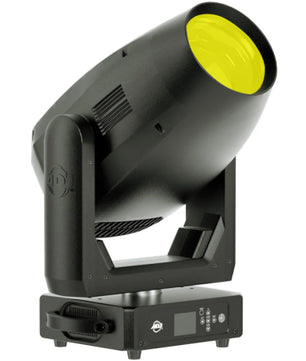

ADJ Protégé XL is a high-output, fully-featured moving head spot designed to meet the needs of professional lighting designers and production environments. With a powerful 450W LED engine, advanced color and effects systems, and comprehensive connectivity, it’s built for maximum impact and creative versatility.

ADJ Protégé XL Competitive Differences

• 20,000 Lumen Output from a 450W White LED Engine
• CMY + CTO Color Mixing with Dual Rotating GOBO Wheels

ADJ Protégé XL Description

The ADJ Protégé XL stands at the top of ADJ’s Protégé Series as a flagship moving head spot packed with premium features. It harnesses a 450W white LED light source with a 7000K color temperature to generate up to 20,000 lumens of crisp, vibrant output. A motorized zoom range of 4.1° to 45° gives it the flexibility to handle both narrow beam aerials and wide-angle projection with equal clarity and punch. Engineered for creative freedom, the Protégé XL includes disc-based CMY color mixing, a separate CTO for color temperature adjustment, and a dedicated color wheel with seven saturated dichroic options. Its dual rotating GOBO wheels are each loaded with seven replaceable glass gobos for layered textures and dynamic projection effects. It also includes both light and heavy frost filters for soft washes, an animation wheel, and two overlay-capable 6-facet prisms—one linear and one circular. This fixture’s ultra-fast 3-phase motors deliver precision pan/tilt movement with 360° continuous rotation. It’s built for reliability in demanding environments, with rugged pan/tilt locks and IP-rated connectors. Remote configuration is simple thanks to Aria X2 wireless, RDM, and NFC technology. Designed for stages, concert tours, houses of worship, clubs, and broadcast environments, the Protégé XL brings together sharp optics, powerful output, and deep creative control into a rugged, professional-grade package.

Model Features

• 450W White LED engine with 20,000 lumen output
• Disc-based CMY and CTO color mixing system
• 2 rotating GOBO wheels with interchangeable patterns
• 2 prisms (linear and circular) with overlay capability
• 4.1°–45° motorized zoom and motorized focus
• Light and heavy frost filters for wash effects
• Animation wheel for dynamic texture projection
• 360° continuous pan with pan/tilt locks
• Control via DMX, sACN, Art-Net, RDM, and Aria X2
• NFC configuration and 6-button LCD touch menu

Model Specifications

• Max Lumen Output: 20,000 Lumens
• LED Source: 450W White LED (7000K)
• Zoom Range: 4.1°–45°
• CRI: 72
• Strobe Rate: 1Hz – 10Hz
• Pan: 540° / 630° + 360° continuous
• Tilt: 270°
• Max Power Consumption: 781W (7.1A @ 120V)
• Voltage: AC 100–240V, 50/60Hz
• Dimensions: 15.43 x 9.69 x 25.55 in (392 x 242 x 649 mm)
• Weight: 59 lb (27 kg)
• IP Rating: IP20
• UPC: 818651029083

What's In The Box

• Protégé XL moving head fixture
• Locking power cable (6.5 ft)
• 2 x Omega brackets
• Safety cable
