The American DJ UBL6H is a professional half-meter linear wash fixture with six 20W RGBAL+UV LEDs, high CRI output over 90, and tunable white control from 2,300K to 9,900K. Built for event production, wall washing, and uplighting applications, it delivers precise color mixing in a compact, linkable design.

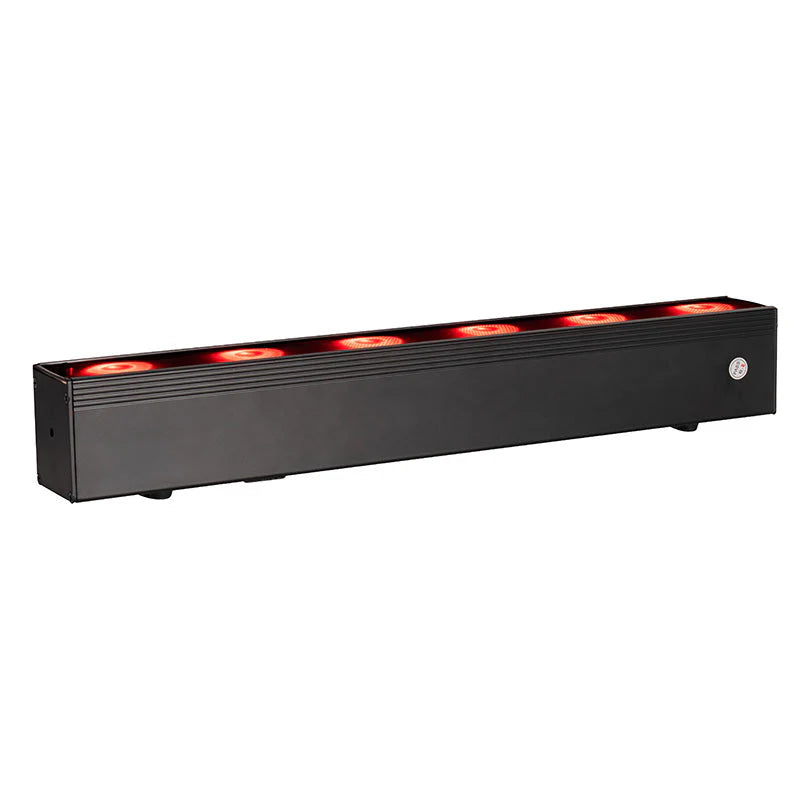

Half Meter LED Linear Wash Fixture

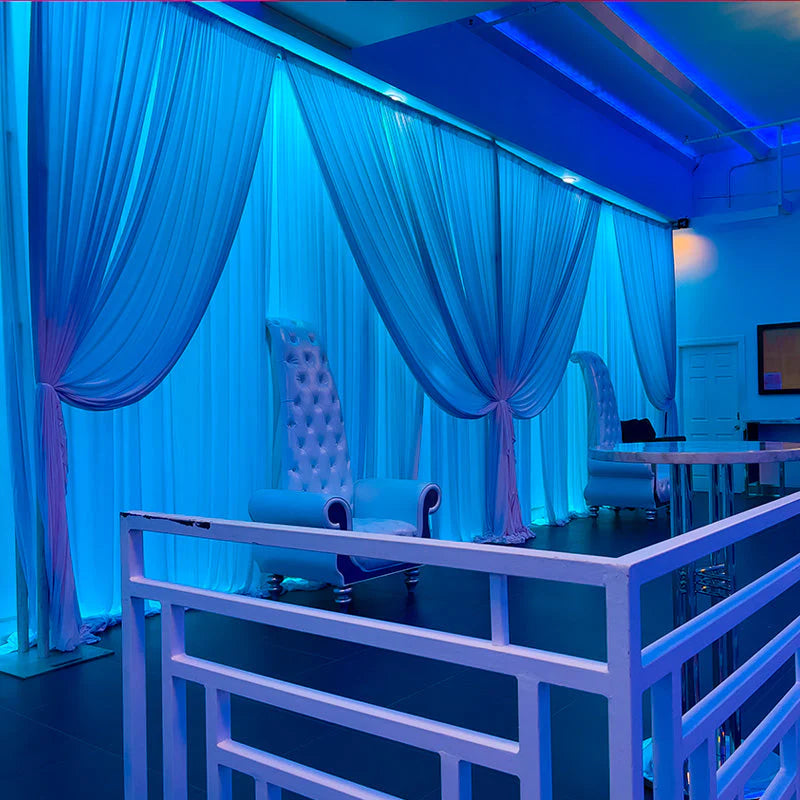

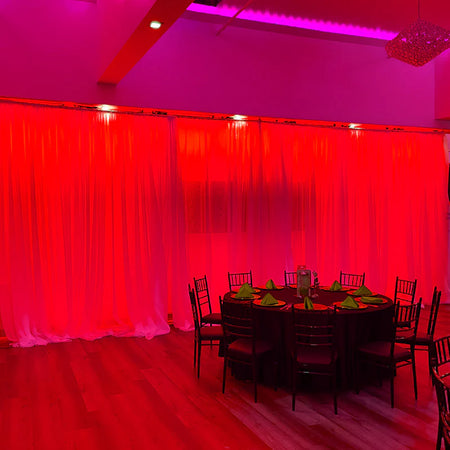

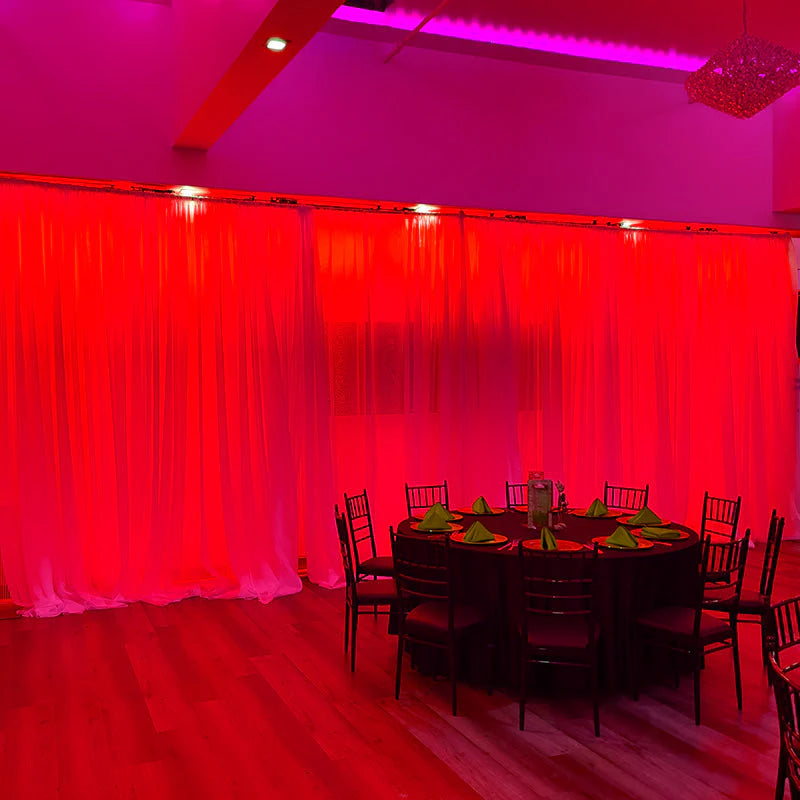

American DJ UBL6H is a professional half-meter LED linear wash fixture designed for event production, wall washing, uplighting, and architectural accent lighting. Its lime-infused HEX LED engine delivers rich RGBAL+UV color mixing, high CRI output, and tunable white light control, making it a strong choice for designers who need both vibrant color and more accurate white light reproduction.
American DJ UBL6H Competitive Differences
- Lime-infused RGBAL+UV LED system for improved color rendering and CRI greater than 90
- Linear color temperature control from 2,300K to 9,900K for flexible white light adjustment

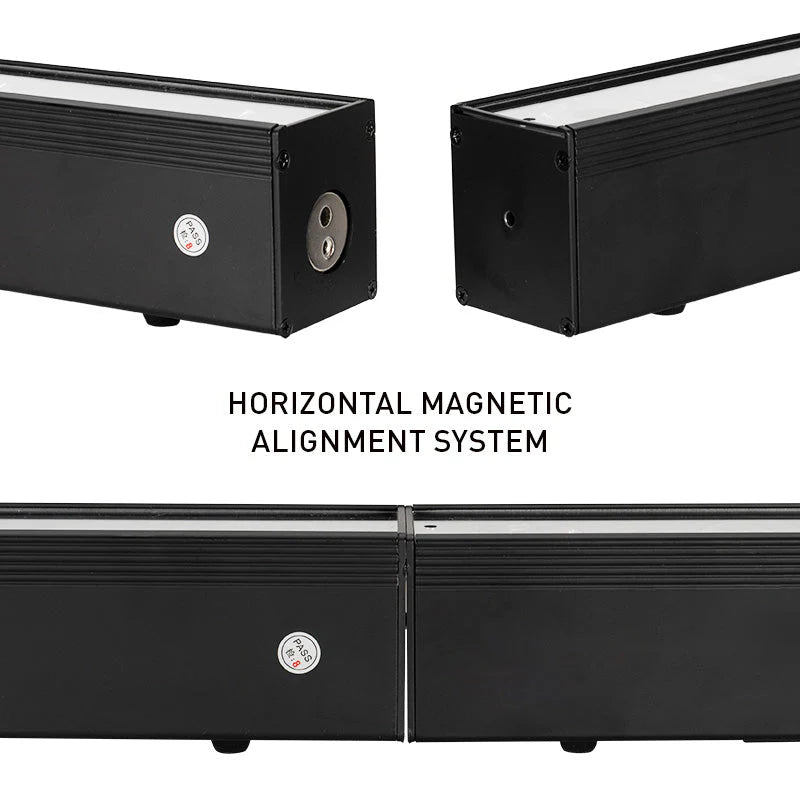

- Horizontal Magnetic Alignment feature for smoother visual continuity across multiple fixtures
- Includes a 20° diffusion filter and supports optional linear diffusion lenses for expanded beam shaping
American DJ UBL6H Description

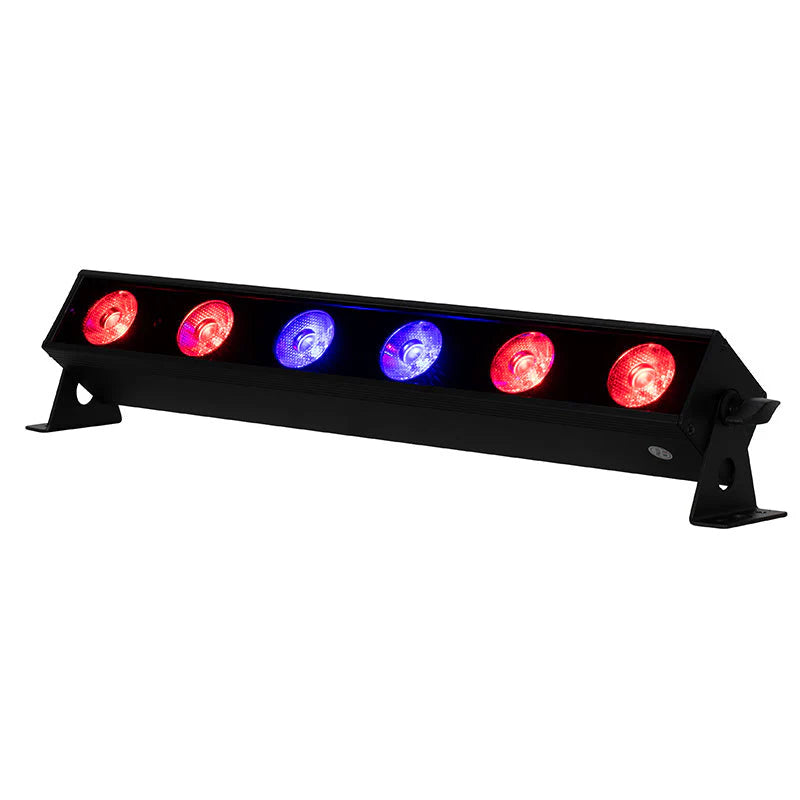

The American DJ UBL6H is built for lighting professionals who want a compact linear fixture that can deliver both saturated color and refined white light. It uses six ultra-bright 20-Watt LEDs with red, green, blue, amber, lime, and UV sources to create smooth color blends for stages, event spaces, ceilings, walls, and floors.

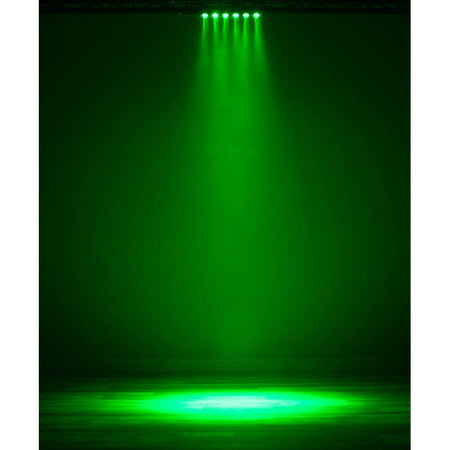

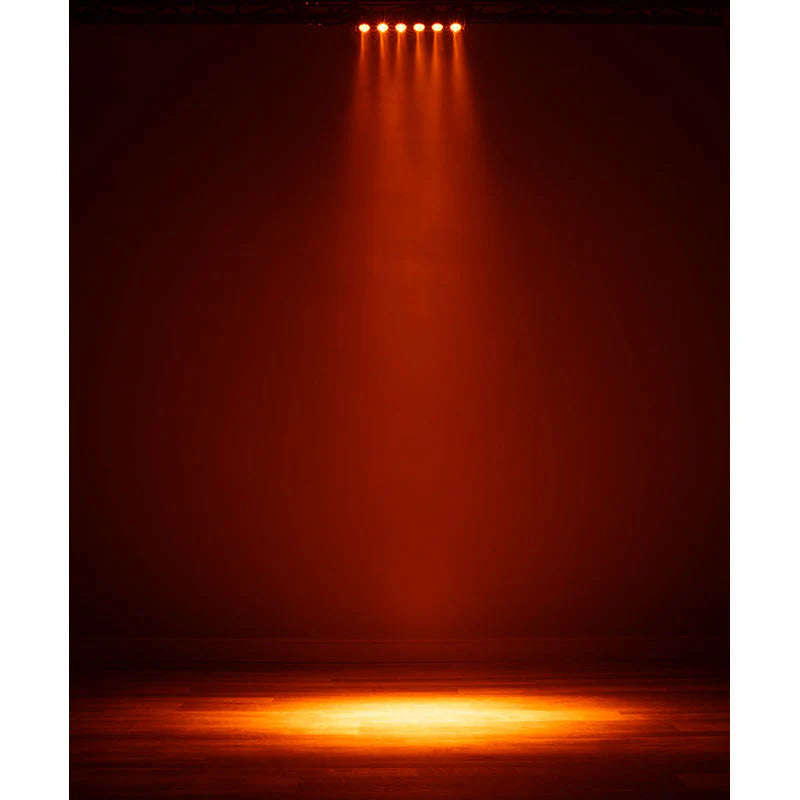

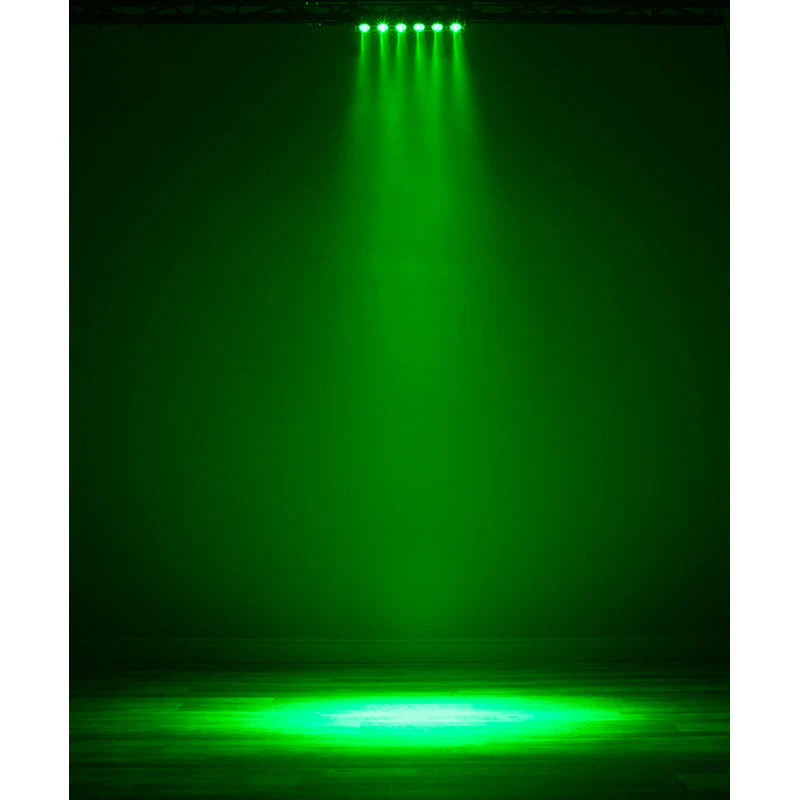

The addition of the lime LED chip helps the fixture achieve a CRI above 90, giving it an advantage in applications where color quality and more natural-looking output matter. With linear color temperature control from 2,300K to 9,900K, the UBL6H can move from warm ambient tones to crisp cool white looks, making it suitable for weddings, corporate events, productions, and installation work.
Control is flexible and production-ready, with seven DMX channel modes, RDM compatibility, onboard OLED display navigation, sound trigger capability, built-in color macros, selectable dim modes, and multiple dim curves. The fixture also supports pixel control in select DMX modes, allowing designers to create more dynamic chases and segmented effects across its 3 groups of 2 RGBAL+UV LED pixels.
Its compact housing, locking power input/output, and 5-pin XLR DMX connectivity make it easy to deploy in linked systems. Included mounting brackets allow the fixture to be placed on the floor for uplighting or mounted to truss, while the included diffusion filter and optional lens accessories offer added flexibility for shaping output to fit different production environments.
UBL6H Features
- 6 x 20W ultra-bright LEDs
- LED colors: Red, Green, Blue, Amber, Lime, and UV
- Long-life LEDs rated at approximately 50,000 hours
- 17° beam angle
- CRI greater than 90
- Pixel pitch: 85.5mm

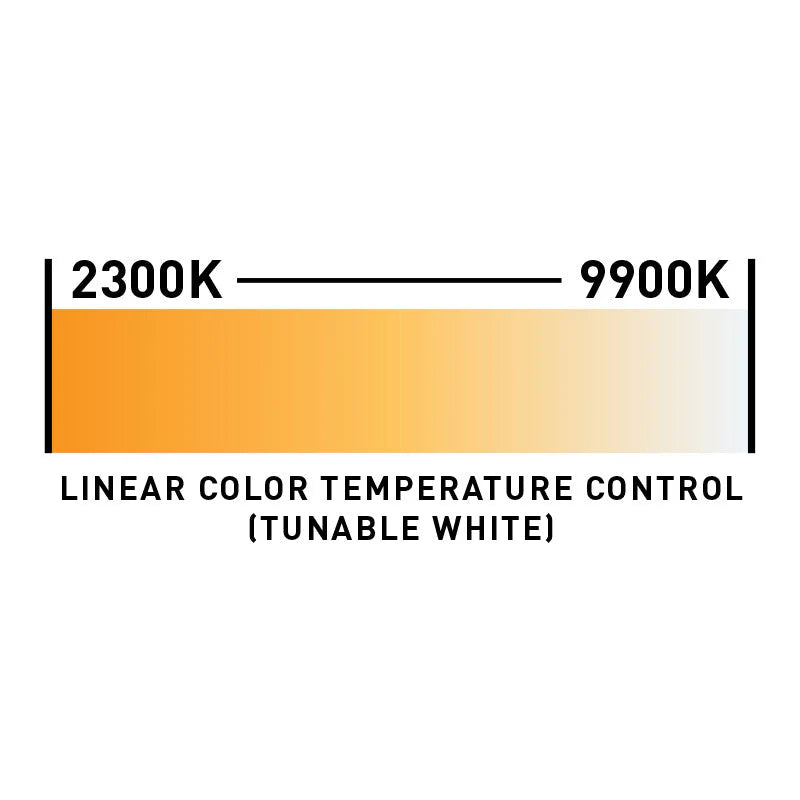

- Linear color temperature control from 2,300K to 9,900K
- Smooth RGBAL+UV color mixing
- Horizontal Magnetic Alignment feature built in
- OLED display with 4-button menu
- Compatible with ADJ UC-IR24 remote up to 32.8 ft (10 m)
- RDM compatible
- 7 DMX channel modes: 6, 11, 13, 16, 18, 25, and 28 channels
- 3 groups of 2 RGBAL+UV LED pixels controllable via DMX in 18, 25, and 28 channel modes
- 5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode
- LED refresh rate: 1.9KHz
- 64 built-in color macros
- 6 selectable dim modes
- 4 selectable dim curves
- Built-in microphone for sound trigger
- LED pulse and strobe effect
- Electronic dimming from 0% to 100%
- 5-pin XLR DMX input/output
- Locking power input/output for daisy chaining
- Multi-voltage operation

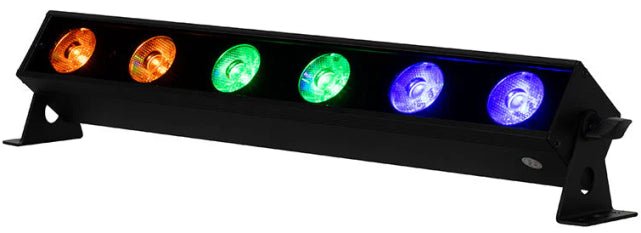

- Mounting brackets included for ground placement or truss mounting
UBL6H Specifications
- Light Source: 6 x 20W LEDs
- LED Colors: Red, Green, Blue, Amber, Lime, UV
- LED Life: Approximately 50,000 hours
- Beam Angle: 17°
- CRI: >90
- Pixel Pitch: 85.5mm
- Color Temperature Range: 2,300K to 9,900K
- DMX Channel Modes: 6 / 11 / 13 / 16 / 18 / 25 / 28
- Control Modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, DMX-512
- LED Refresh Rate: 1.9KHz
- Dimming: 0% to 100% electronic dimming
- Connections: 5-pin XLR DMX, locking power in/out
- Power Input: AC 100V to 240V, 50/60Hz
- Power Draw: 26W
- Daisy Chain Capacity: Up to 26 units at 120V; up to 50 units at 230V
- Dimensions: 2.96 x 22.40 x 4.2 in (75 x 568.9 x 106.7 mm)
- Weight: 4.41 lb (2 kg)
- Operating Temperature: -1°F to 113°F (-20°C to 45°C)
- Storage Temperature: -22°F to 113°F (-20°C to 45°C)
- Certifications: cETLus, CE, FCC
- IP Rating: IP20
- UPC: 810087371913
- SKU: UBL600

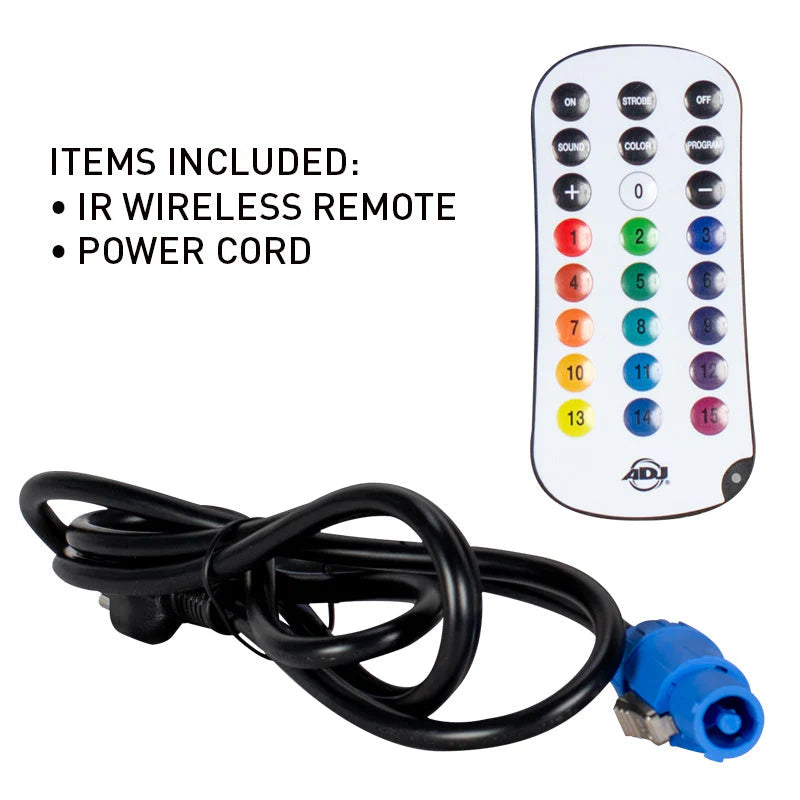

What's In The Box
- American DJ UBL6H fixture
- Indoor locking power cord
- UC-IR24 remote
- 20° diffusion filter
- Mounting brackets
