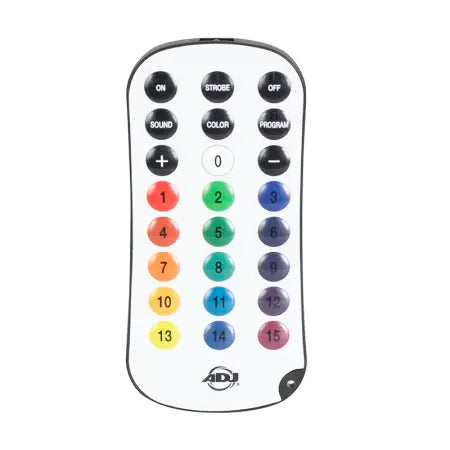

American DJ UC-IR24 | Infrared Remote for ADJ IR Fixtures | Controls Colors, Programs, and Strobe

Infrared Remote for ADJ Lighting Fixtures

The American DJ UC-IR24 is a compact infrared remote that gives DJs and lighting operators wireless control over compatible ADJ fixtures. Designed for simplicity and quick access, it allows users to trigger presets, strobe effects, programs, and color selections directly from the palm of their hand—no DMX setup required. Ideal for mobile setups, small venues, and quick-access lighting adjustments.

American DJ UC-IR24 Competitive Differences

• Controls strobe, color, sound activation, and internal programs
• Compatible with multiple ADJ IR-enabled lighting fixtures

American DJ UC-IR24 Description

The UC-IR24 remote makes wireless lighting control intuitive and accessible for any performer or lighting tech using supported American DJ fixtures. With a range of up to 5 meters, it allows users to activate or deactivate lights, adjust brightness, modify strobe speeds, and select from up to 15 built-in color presets or programs—depending on the fixture's capabilities. The remote includes ON/OFF functions, strobe control with speed adjustment, sound-activated mode sensitivity, static color selection with intensity control, and direct access to internal programs. Adjustment of all key functions can be done via the + and - buttons for fine-tuned control. Designed for plug-and-play functionality, it requires no additional setup beyond aiming at the fixture's IR sensor. This makes it an ideal solution for quick show changes, remote access in hard-to-reach installations, or portable lighting rigs.

Model Features

• IR remote control with 5-meter range
• Controls ON/OFF, strobe, color, sound mode, and program selection
• +/- buttons for real-time speed, brightness, and sensitivity adjustments
• Buttons 0–15 access static colors, strobe speeds, and programs
• Requires CR2025 lithium battery (included)

Model Specifications

• Battery Type: Lithium (CR2025)
• Battery Energy: 0.45 Wh
• Battery Weight: 2.5 g
• Battery Voltage: 3V
• Battery Capacity: 150mAh
• Total Lithium Ion Cells: 1 pc
• Control Range: Up to 5 meters (line-of-sight)
• UPC: (Not provided)

Compatible Fixtures

• Mirage Q IP (Chrome and Black)
• Element H IP
