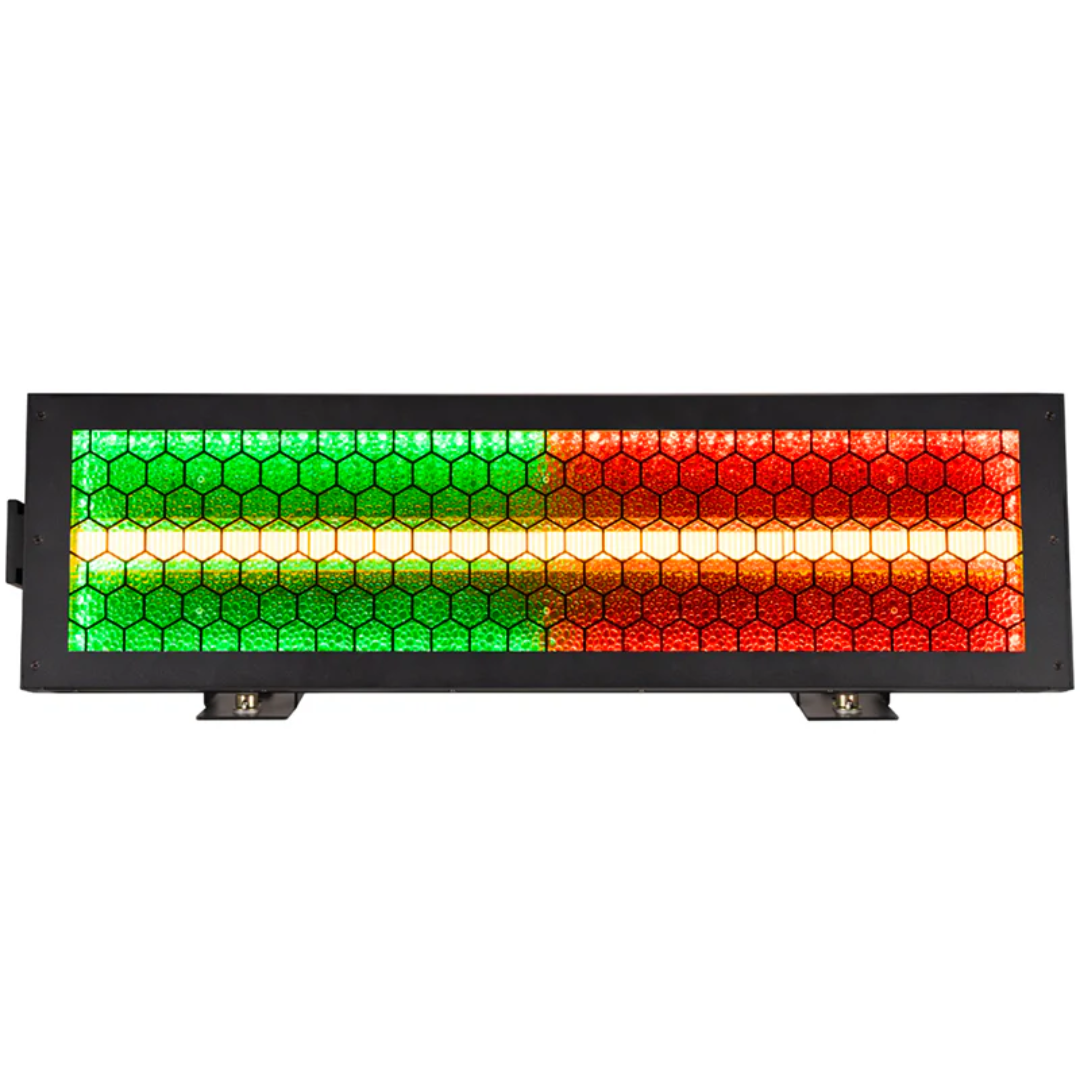

American DJ Vintage Bar | 4x150W Amber COB Blinder with RGBL Pixel FX & Art-NET

Retro Amber Blinder with RGBL Pixel Background for Eye-Catching Stage FX

The American DJ Vintage Bar is a high-output scenic lighting fixture that combines the nostalgic warmth of amber blinder lighting with advanced RGBL background effects. With four 150W COB amber LEDs and 120 RGBL SMD LEDs arranged into 20 pixel zones, this fixture delivers both retro vibes and modern pixel-mapped creativity, making it ideal for concerts, theatrical productions, and immersive event designs.

American DJ Vintage Bar Competitive Differences

• Four powerful 150W amber COB LEDs (2000K) for vintage blinder effects
• RGBL background LEDs (120x SMD 5050) arranged into 20 pixel-mapped zones
• Wide 160° field angle for broad light coverage
• Over 27,000 lumens of combined output
• Silent, flicker-free operation — ideal for TV and theatre
• Advanced strobe effects from 0.5Hz to 33Hz
• Supports DMX, RDM, sACN, and Art-NET protocols
• Aria X2 wireless management system with OTA firmware updates
• Interlocking capability for large-scale fixture arrays

American DJ Vintage Bar Description

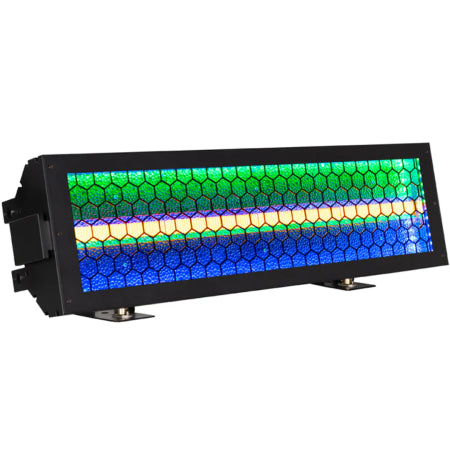

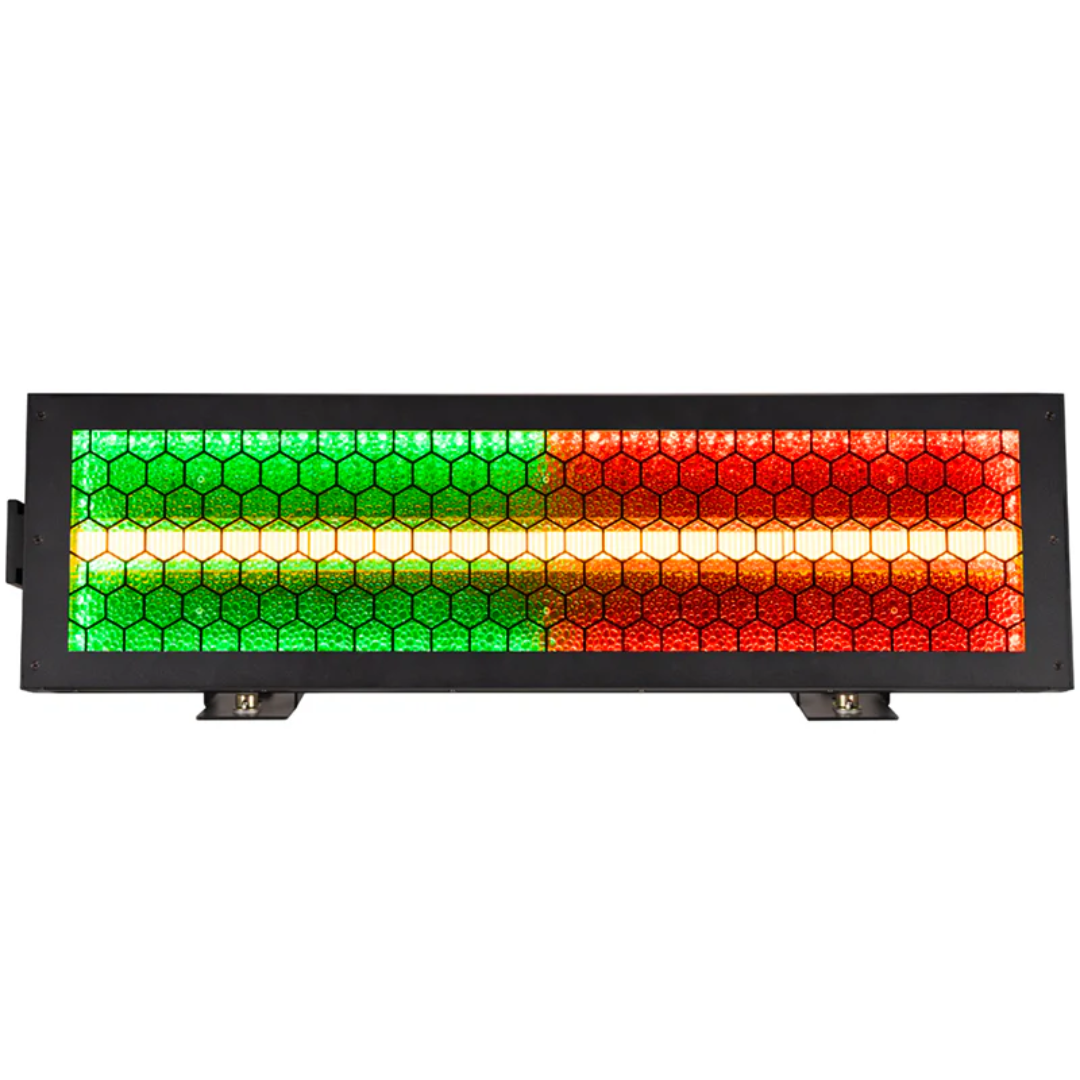

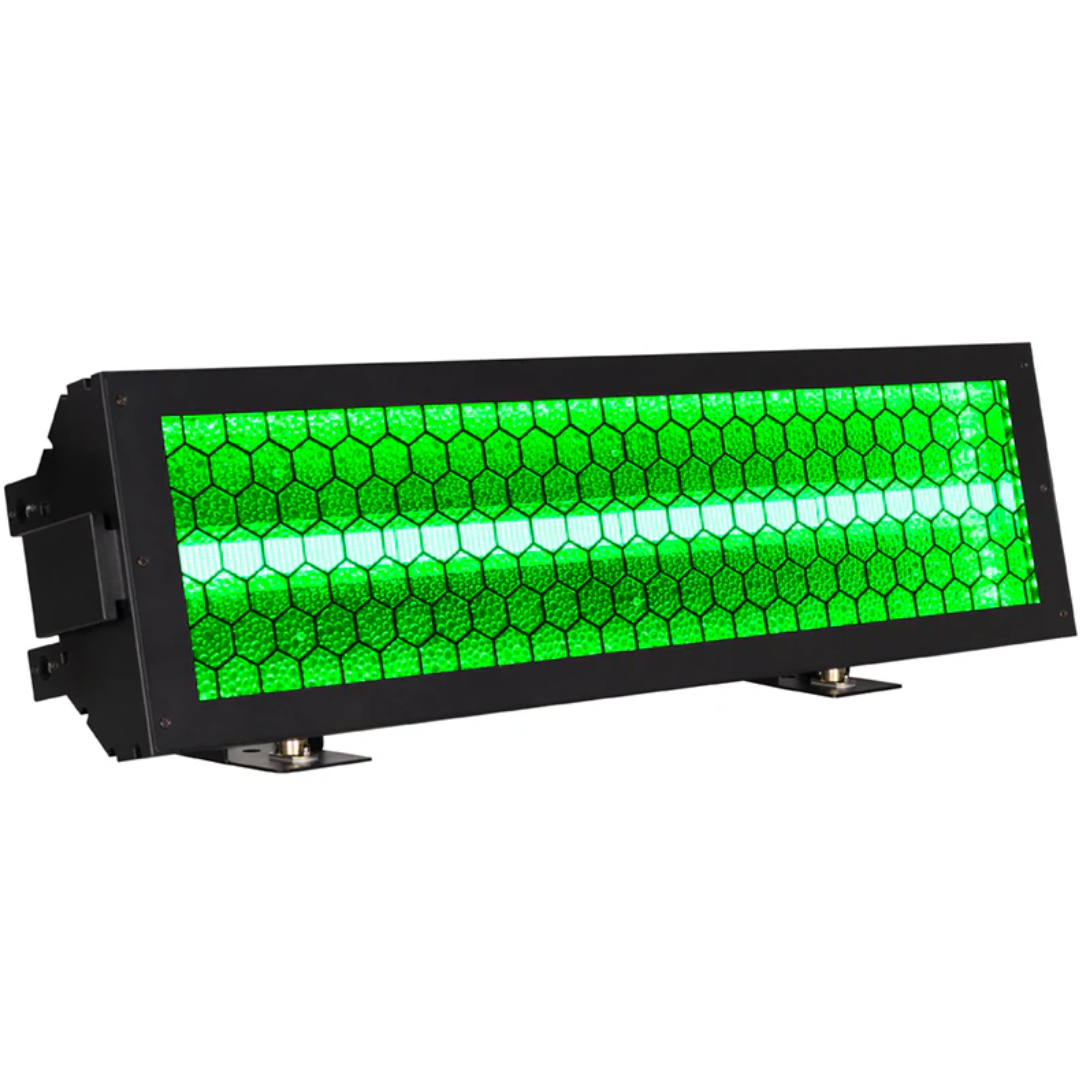

The Vintage Bar by American DJ merges classic stage aesthetics with modern control and creative possibilities. Designed for stage productions, events, and visual installations, it delivers rich amber light from four high-powered 150W COB LEDs with a tungsten-style 2000K color temperature, evoking traditional blinder looks with over 27,000 lumens of output. Complementing the amber output is a vibrant RGBL background array comprised of 120 SMD 5050 LEDs, grouped into 20 controllable pixel zones for colorful animated effects and background ambiance.

This fixture stands out for its ultra-wide 160° field angle and powerful strobe functionality (0.5–33Hz), along with smooth 0–100% linear dimming and flicker-free performance suitable for broadcast environments. Its silent operation and sleek design make it ideal for quiet stage and theatrical setups.

Control options are extensive, featuring 10 DMX channel modes, RDM, sACN, Art-NET, and onboard manual control with OLED display. The built-in Aria X2 wireless management system enables over-the-air firmware updates and system integration. Multiple units can be physically interlocked for seamless vertical or horizontal array configurations, expanding creative possibilities for lighting designers.

The Vintage Bar ships with adjustable mounting feet and Omega clamps, with optional floor base accessories available. It’s a robust, versatile fixture that blends vintage aesthetics with cutting-edge performance.

Vintage Bar Features

• 4x 150W amber COB LEDs with 2000K color temperature
• RGBL background array with 120x 0.8W SMD 5050 LEDs
• 20 pixel-mapped zones (6 LEDs per zone)
• Over 27,000 lumens total output
• Wide 160° field angle for extensive coverage
• Strobe effects from 0.5 to 33Hz
• 0–100% linear dimming system
• Flicker-free operation — suitable for camera and film use
• Silent, fanless design for low-noise environments

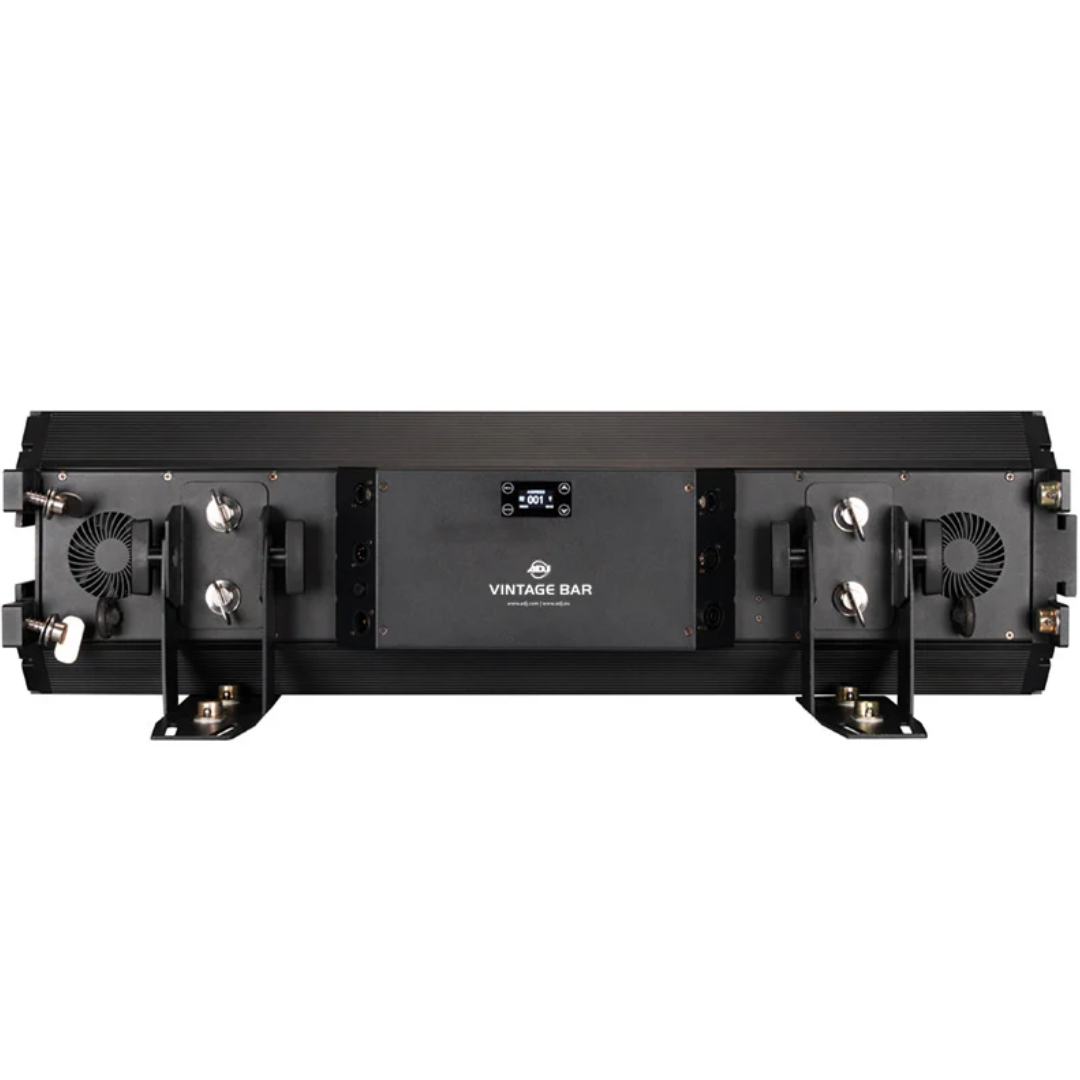

• OLED display with 4-button touch menu
• Aria X2 wireless system for OTA firmware and updates
• Supports DMX, RDM, sACN, and Art-NET control protocols
• 10 DMX channel modes: 5/6/8/14/17/18/84/88/90/97
• Primary/Secondary sync and Standalone operation

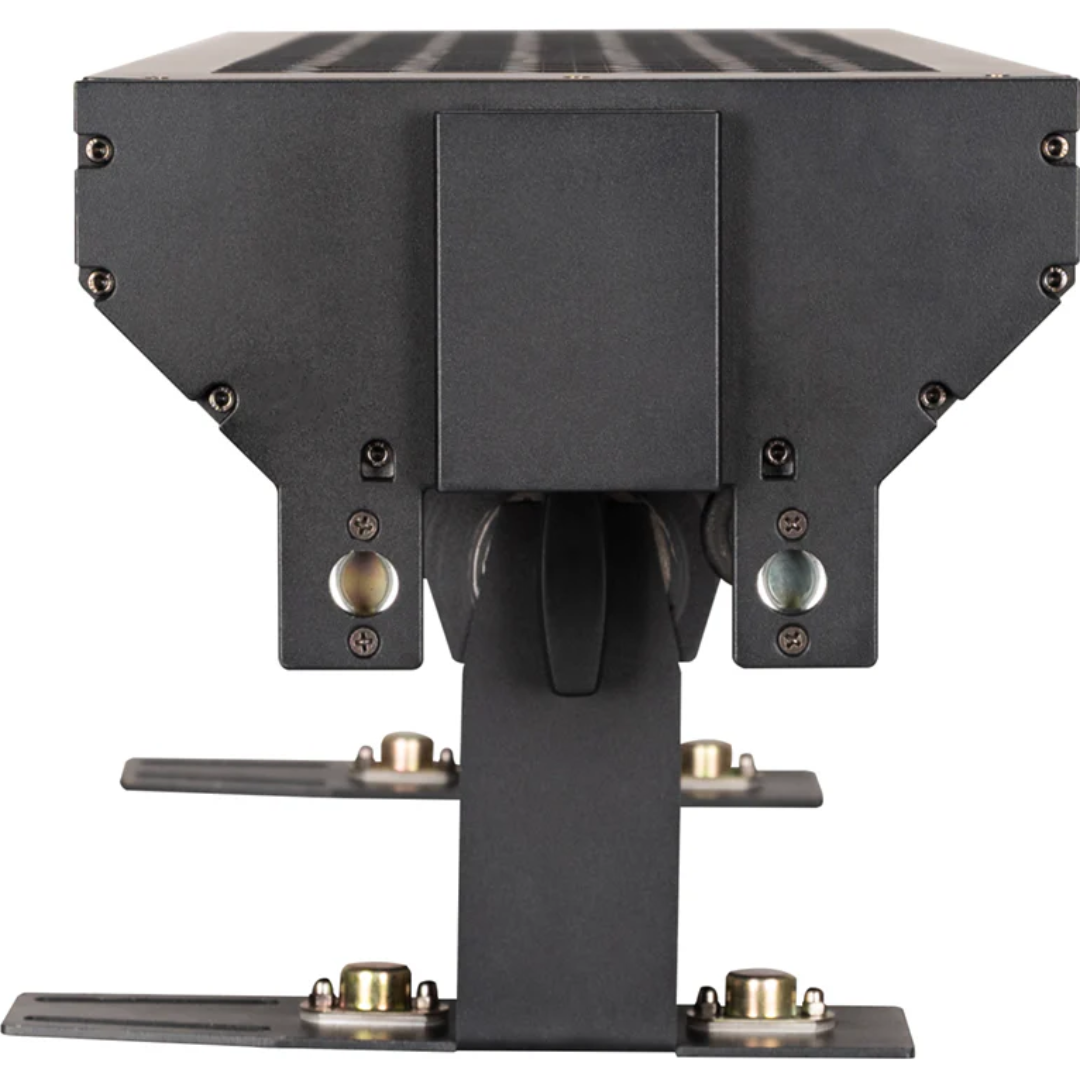

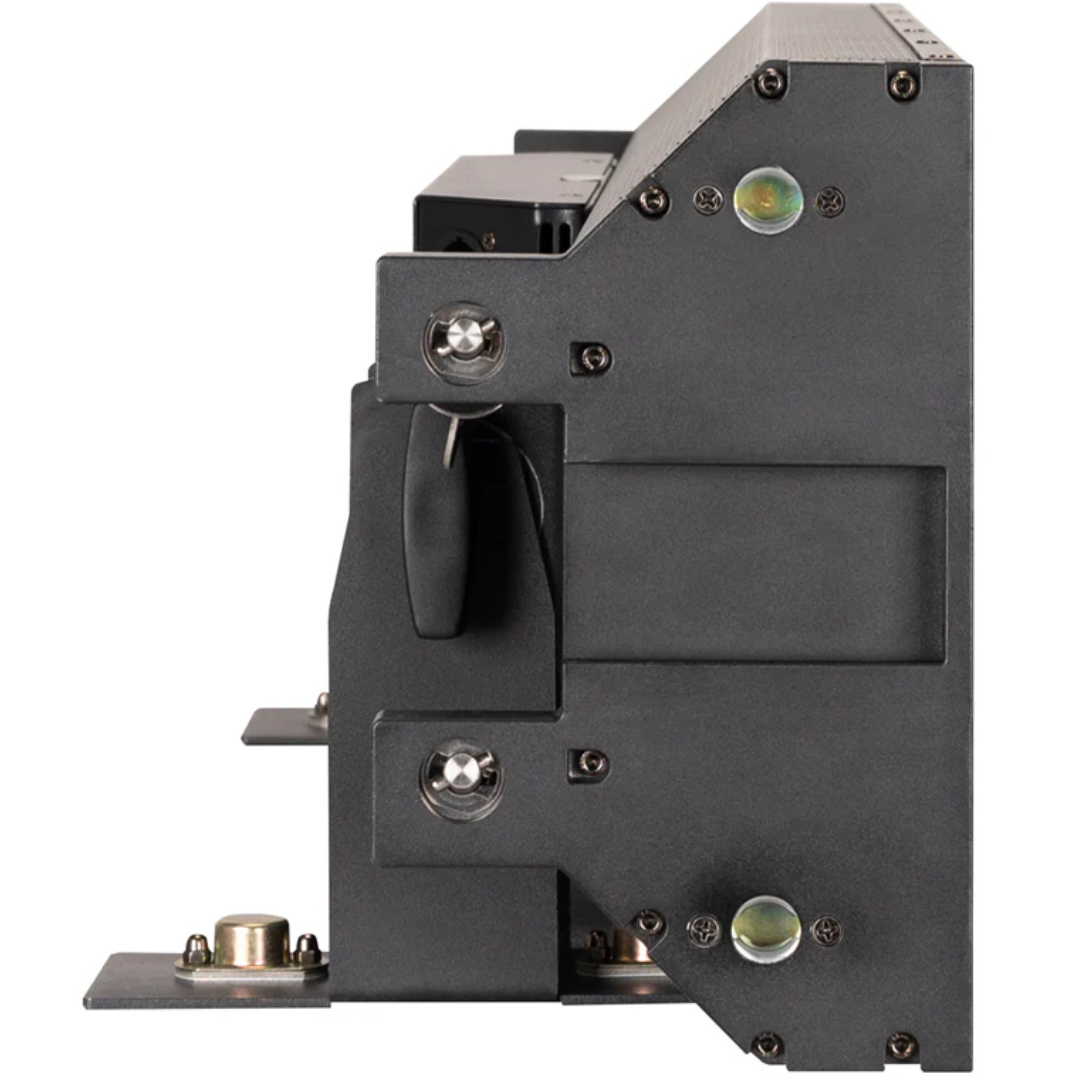

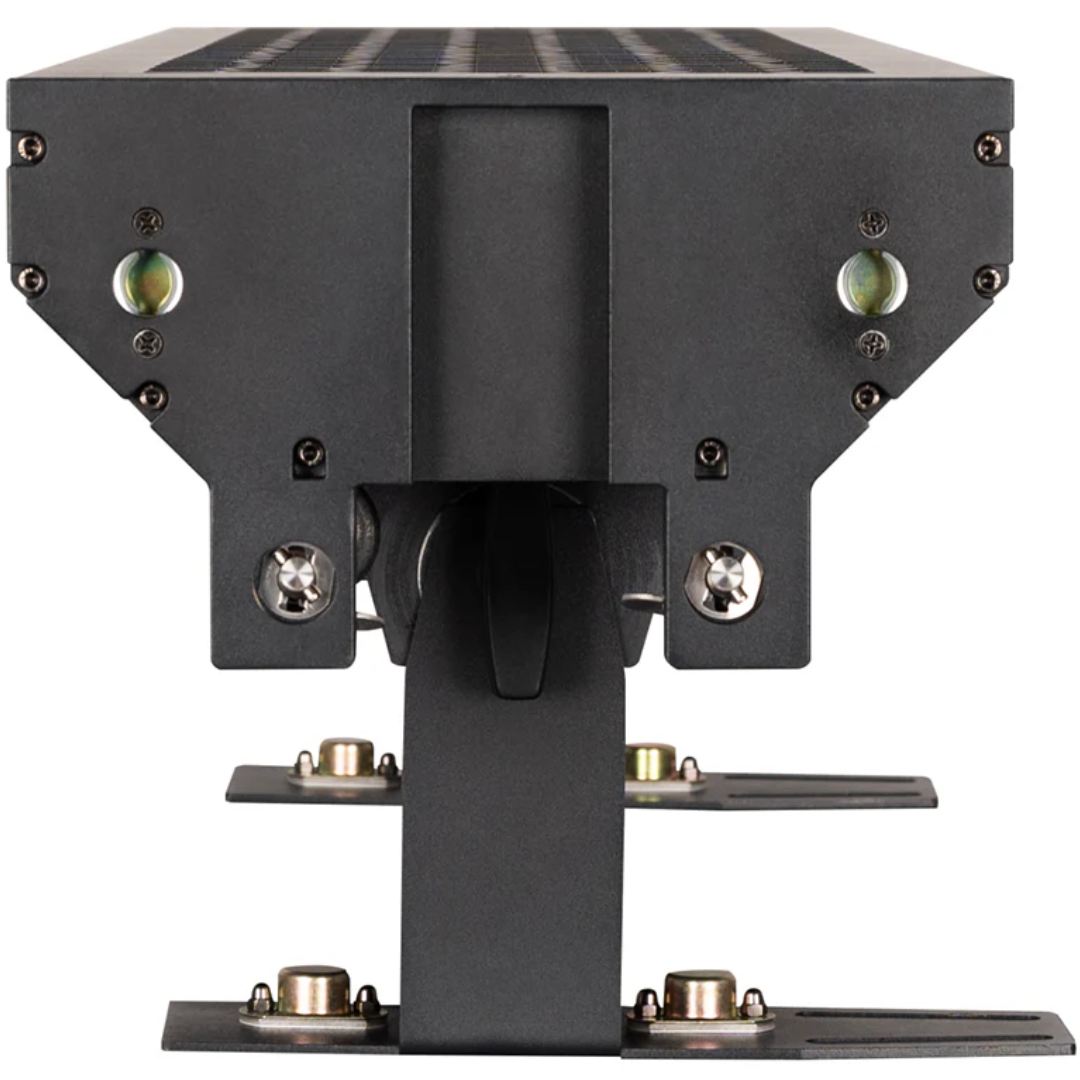

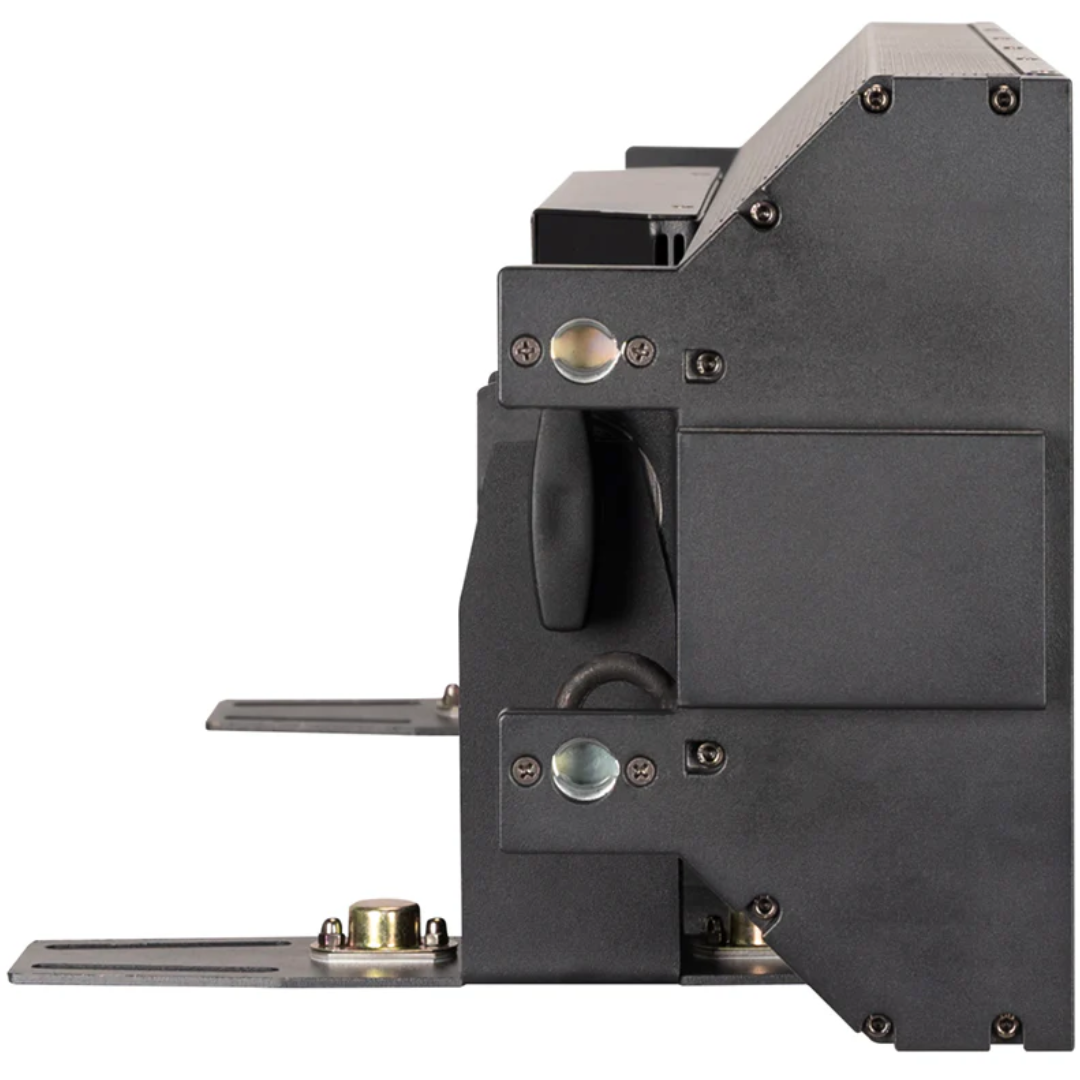

• Interlocking hardware for multi-fixture arrays

Vintage Bar Specifications

• Primary LEDs: 4x 150W amber COB (2000K)
• Background LEDs: 120x RGBL SMD 5050 (0.8W each)
• CRI: 70
• Lux Output: 647 lux @ 5 meters
• Field Angle: 160°
• Power Input: AC100-230V, 50/60Hz
• Power Consumption: 780W @ 120V / 750W @ 230V
• Power Linking: 1 unit @ 120V or 2 units @ 230V
• Control Protocols: DMX512, RDM, sACN, Art-NET
• DMX Modes: 10 modes (5CH to 97CH)
• Connections: IP20 5-pin DMX I/O, RJ45 Ethernet, IP65 power I/O
• Dimensions (L x W x H): 35.75" x 11.50" x 10.12" (908 x 292 x 257 mm)
• Weight: 41.89 lbs. (19 kg)
• Certifications: CE, FCC, cETLus (Control # 5028947)
• IP Rating: IP20 (Indoor use only)
• UPC: 810087374068

What's In The Box

• (1) American DJ Vintage Bar Fixture
• (2) Adjustable feet with 108mm Omega clamp receivers
• (2) 108mm Omega Clamps
• (1) IP65 Locking Power Cable
