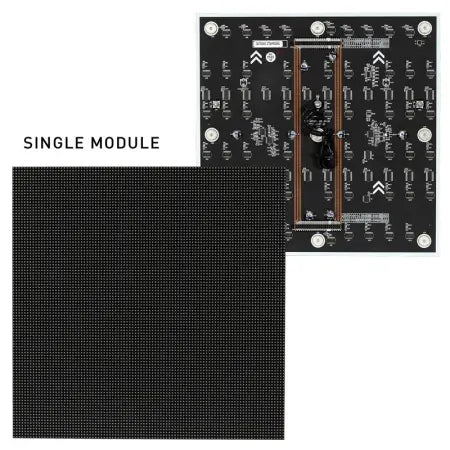

American DJ WMS P1M | 1.95mm Replacement LED Module | 128 x 128 Pixel Panel for WMS1
Replacement LED Video Module
American DJ WMS P1M is a direct replacement LED module engineered for use with the WMS1 indoor LED video panel system. Designed for quick servicing and long-term reliability, this module restores full visual performance while maintaining consistent pixel pitch, brightness, and color accuracy across your existing video wall installation.
American DJ WMS P1M Competitive Differences
- Exact 1.95mm pixel pitch match for seamless WMS1 integration
- 128 x 128 pixel module resolution for consistent panel performance
American DJ WMS P1M Description
The American DJ WMS P1M is the official replacement module for the WMS1 LED video panel, allowing technicians and integrators to maintain peak display performance with minimal downtime. Built to match the original panel’s 1.95mm pixel pitch and 262,144 dots/m² density, this module ensures uniform brightness and image clarity across the entire wall.
Each module measures 250 x 250mm (9.84" x 9.84") and delivers a 128 x 128 pixel resolution, forming part of the WMS1’s overall 512 x 256 (horizontal) or 256 x 512 (vertical) panel resolution. The SMD1212 LED configuration provides vibrant RGB color mixing and smooth visual reproduction for indoor display applications.
Designed for front-serviceable access, the WMS P1M simplifies maintenance without requiring full panel removal. This makes it ideal for permanent installations in retail environments, museums, boardrooms, digital signage systems, and entertainment venues where consistent uptime is critical.
WMS P1M Features
- Designed for American DJ WMS1 LED Video Panel
- Pixel Pitch: 1.95mm
- Module Resolution: 128 x 128 pixels
- LED Type: SMD1212
- Module Size: 250 x 250mm (9.84" x 9.84")
- Front-service compatible design
- Indoor use
WMS P1M Specifications
- Pixel Pitch: 1.95mm
- Module Resolution: 128 x 128 pixels
- Module Dimensions: 9.84" x 9.84" (250 x 250mm)
- LED Type: SMD1212
- Application: Replacement module for WMS1
Shipping Dimensions
- Package Type: Unit
- Master Pack Quantity: 1
- Length: 12.00 in.
- Width: 12.00 in.
- Height: 2.00 in.
- Weight: 2 lbs.
- Cubic Feet: 0.17 cu. ft.
What's In The Box
- American DJ WMS P1M LED Module
