American DJ WMS1 | 1.95mm High Resolution LED Panel | 700 NITS Indoor Video Display

Indoor LED Video Panel

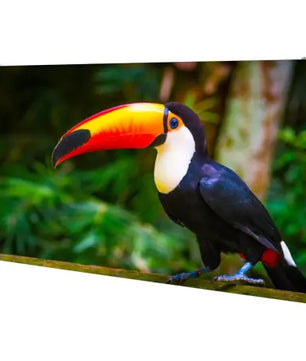

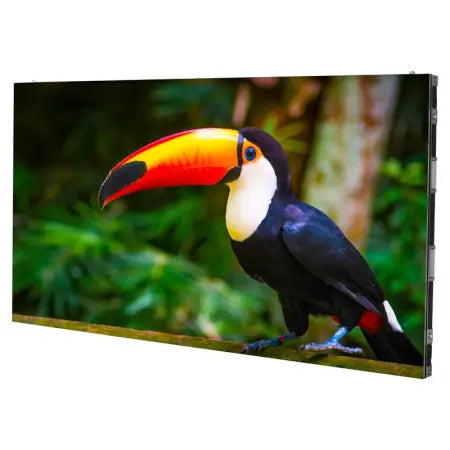

American DJ WMS1 is a high-resolution indoor LED video panel engineered for permanent integration and professional display applications. Designed for environments where image clarity and close viewing distances matter, this panel delivers ultra-fine pixel pitch performance, vibrant color reproduction, and flexible mounting options for clean, modern installations.

American DJ WMS1 Competitive Differences

• Ultra-fine 1.95mm pixel pitch with 262,144 dots/m² density for sharp close-range viewing
• Front-serviceable design with built-in Novastar A8s-N receiving card for horizontal or vertical wall mounting

American DJ WMS1 Description

The American DJ WMS1 represents ADJ’s highest-resolution LED panel to date, delivering exceptional vibrance and clarity for professional indoor installations. With a 1.95mm pixel pitch and a dense 262,144 dots per square meter configuration, it provides outstanding definition even at short viewing distances—making it ideal for retail displays, museums, corporate boardrooms, digital signage, and entertainment venues.

Equipped with RGB SMD1212 LEDs and a brightness rating of 700 NITS, the panel produces vivid, balanced color output suitable for controlled indoor environments. A wide 160° horizontal and 140° vertical viewing angle ensures consistent image quality across large spaces, while the 3840Hz refresh rate delivers smooth, flicker-free visuals for live video and broadcast applications.

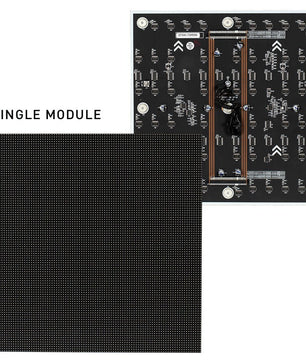

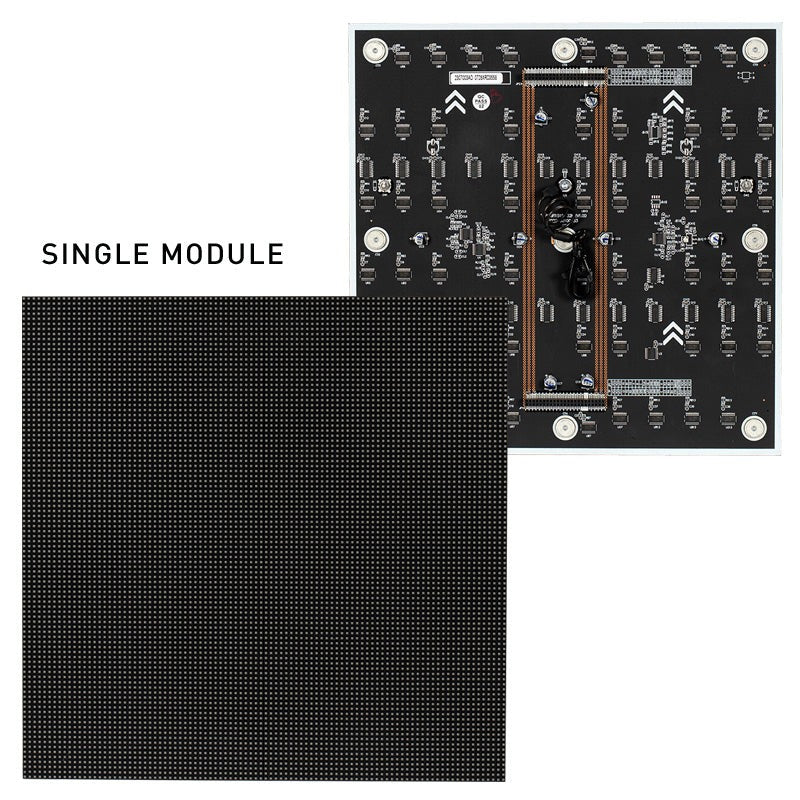

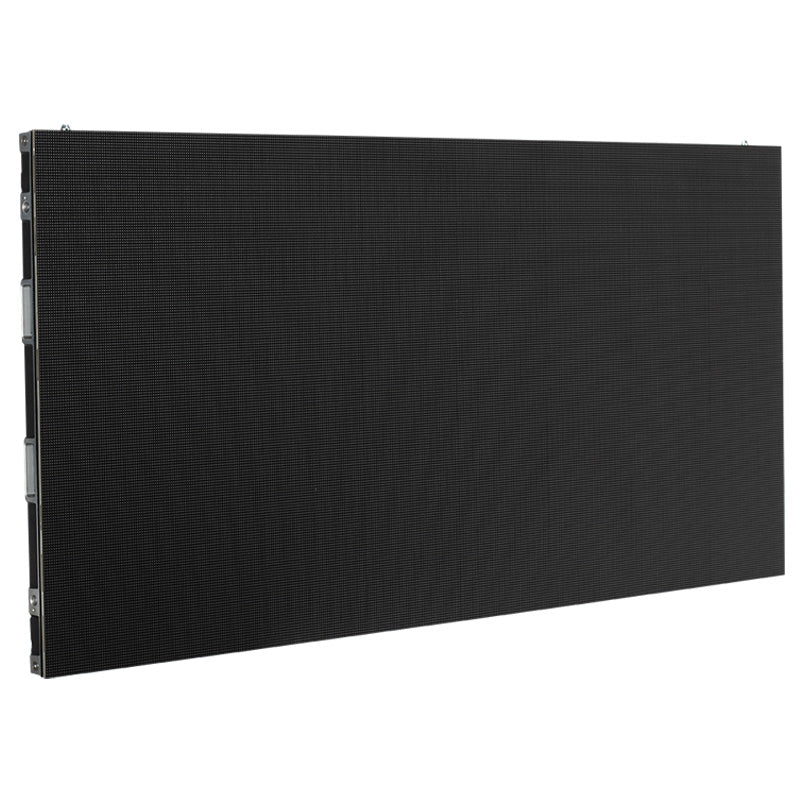

The WMS1 cabinet measures 39.3" x 19.6" (1000 x 500mm) and consists of eight 250mm x 250mm modules, each with 128 x 128 pixels. Total panel resolution is 512 x 256 pixels in horizontal orientation or 256 x 512 in vertical orientation. A secure locking system allows multiple panels to be seamlessly joined for expanded video walls.

Designed for integration flexibility, the slim 1.3" (33mm) cabinet weighs just 21 lbs. (9.5 kg) and supports wall mounting, hanging, or stacking configurations. Its front-serviceable construction allows easy module access and maintenance without removing the panel from the installation—minimizing downtime and simplifying service.

WMS1 Features

• Pixel Pitch: 1.95mm
• Pixel Density: 262,144 dots/m²
• LED Type: SMD1212 Kinglight Cooper
• Module Size: 250 x 250mm
• Module Resolution: 128 x 128 pixels
• Panel Resolution: 512 x 256 (horizontal) / 256 x 512 (vertical)
• Brightness: 700 NITS
• Refresh Rate: 3840Hz
• Viewing Angle: 160° (H) / 140° (V)
• Grey Scale: ≥14 Bit
• Built-in Receiving Card: Novastar A8s-N
• Installation Methods: Wall mount or hang
• Front-serviceable maintenance design
• Average LED Life: 50,000 hours
• Indoor use (IP20)
• cETLus certified

WMS1 Specifications

• Pixel Pitch: 1.95mm
• Pixel Density: 262,144 dots/m²
• Panel Resolution: 512 x 256 (horizontal) / 256 x 512 (vertical)
• Brightness: 700 cd/m²
• Refresh Rate: 3840Hz
• Viewing Angle: 160° (H) / 140° (V)
• Input Voltage: 100–240VAC
• Max Power Dissipation: 370 W/m²
• Average Power Consumption: 140 W/m²
• Operating Temperature: -4° to 104°F (-20° to 40°C)
• Storage Temperature: -40° to 176°F (-40° to 80°C)
• Humidity (Operating): 10%–90% RH
• Cabinet Size: 39.3" x 19.6" (1000 x 500mm)
• Cabinet Thickness: 1.3" (33mm)
• Cabinet Weight: 21 lbs. (9.5 kg)
• IP Rating: IP20 (Indoor Use)
• UPC: 810087373726

What's In The Box

• American DJ WMS1 LED Video Panel
• Power connection components
• Mounting hardware
