Ape Labs Battery for Stick (v1 or 2.0) | Replacement Battery for Stick & Stick 2.0 | 9.6V 2200mAh NiMH
Replacement Battery Pack

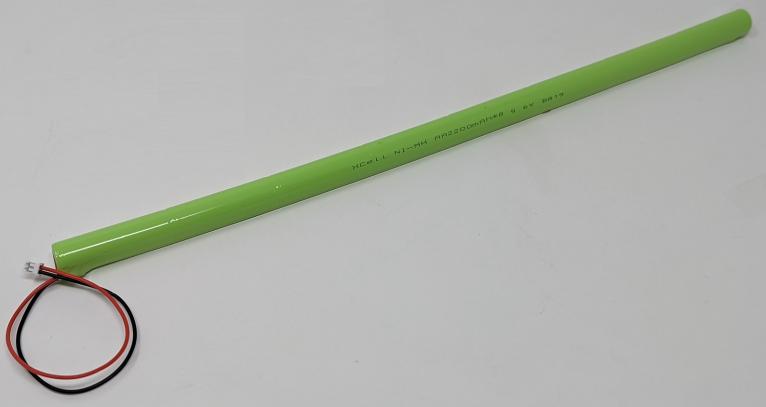

The Ape Labs Battery for Stick (v1 or 2.0) is a replacement NiMH battery pack for Ape Labs Stick and Stick 2.0 lighting fixtures. Designed to restore battery-powered operation, it provides 8+ hours of runtime at full power with all colors.
Ape Labs Battery for Stick (v1 or 2.0) Competitive Differences
- Designed specifically as a replacement battery for Ape Labs Stick and Stick 2.0 fixtures
- Provides 8+ hours of battery runtime at full power with all colors
- 9.6V NiMH battery pack using eight 2200mAh XCell cells
- JST PHR-2P connector for compatible fixture installation
- CE and RoHS compliant
Ape Labs Battery for Stick (v1 or 2.0) Description
The Ape Labs Battery for Stick (v1 or 2.0) is intended for replacing the rechargeable battery inside compatible Ape Labs Stick and Stick 2.0 fixtures. The pack uses eight 2200mAh XCell NiMH cells and operates at 9.6V.
When properly charged and calibrated, the battery provides 8+ hours of runtime with the fixture operating at full power and displaying all colors. A JST PHR-2P connector provides the electrical connection to the compatible fixture.
Battery calibration is required the first time the replacement battery is used. Fully charge the battery and fixture, operate the fixture at full brightness using static white, allow it to run until completely discharged, and then fully recharge it.
NOTE: Battery replacement in an Ape Labs Stick is a delicate procedure and should only be performed by someone experienced with this type of repair. Damage to the light caused during battery replacement may void the warranty. If you are unsure about completing the installation, the battery should be replaced by a qualified technician. Contact us if you'd like to have our repair center handle the battery swap for you.
Battery for Stick (v1 or 2.0) Features
- Replacement battery pack for Ape Labs Stick and Stick 2.0
- 8+ hour runtime at full power with all colors
- Rechargeable NiMH battery chemistry
- Eight 2200mAh XCell cells
- 9.6V operating voltage
- JST PHR-2P connector
- CE and RoHS compliant
- Battery calibration required after installation
- Calibration step 1: Fully charge the battery and fixture
- Calibration step 2: Set the fixture to full brightness using static white
- Calibration step 3: Allow the fixture to operate until completely discharged
- Calibration step 4: Fully recharge the battery and fixture
Battery for Stick (v1 or 2.0) Specifications
- Compatible Fixtures: Ape Labs Stick and Stick 2.0
- Battery Type: NiMH
- Cell Configuration: 2200mAh x 8
- Voltage: 9.6V
- Connector: JST PHR-2P
- Battery Runtime: 8+ hours at full power, all colors
- Compliance: CE and RoHS
What's In The Box
- Ape Labs replacement battery pack for Stick and Stick 2.0
