Wireless DMX Transceiver and App Controller

The Ape Labs Connect 2.0 IP Grey is a battery-powered wireless DMX transceiver and Bluetooth app interface designed for controlling Ape Labs LED lighting systems. With a wireless transmission range of up to 3,900 feet (1,200 meters), approximately 50 hours of battery operation, and compatibility with the Ape Labs iOS and Android app, it provides flexible lighting control for DJs, event production, stage lighting, and permanent installations.

Ape Labs Connect 2.0 IP Grey Competitive Differences

• 3,900ft Wireless Range: Transmits lighting control signals up to 1,200 meters in clear line-of-sight conditions using 2.4 GHz wireless technology.
• 50-Hour Battery Life: Integrated rechargeable battery provides approximately 50 hours of operation per charge.
• Transmitter and Receiver: Functions as a wireless DMX transmitter, wireless DMX receiver, or Bluetooth interface for the Ape Labs app.
• iOS and Android App Control: Access color selection, custom programs, fixture addressing, wireless firmware updates, and lighting adjustments from a compatible smartphone or tablet.
• Four-Group Management: Control one, two, three, or all four Ape Labs lighting groups simultaneously.
• KNX Integration: Supports integration with KNX smart home systems using an additional KNX-DMX adapter.
• DMX Controller Compatibility: Features 3-pin Neutrik DMX input and output connections for integration with DMX lighting control systems.

Ape Labs Connect 2.0 IP Grey Description

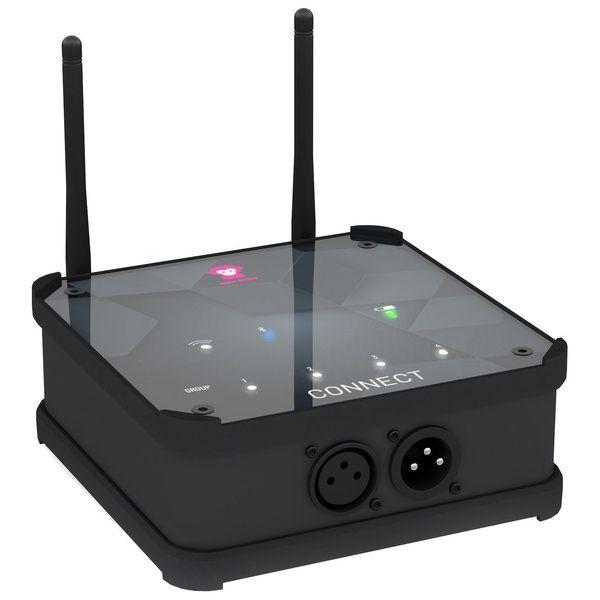

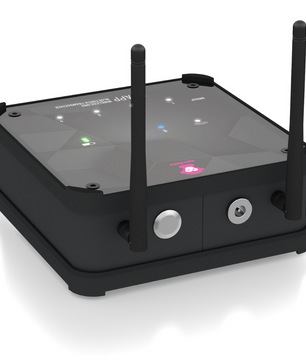

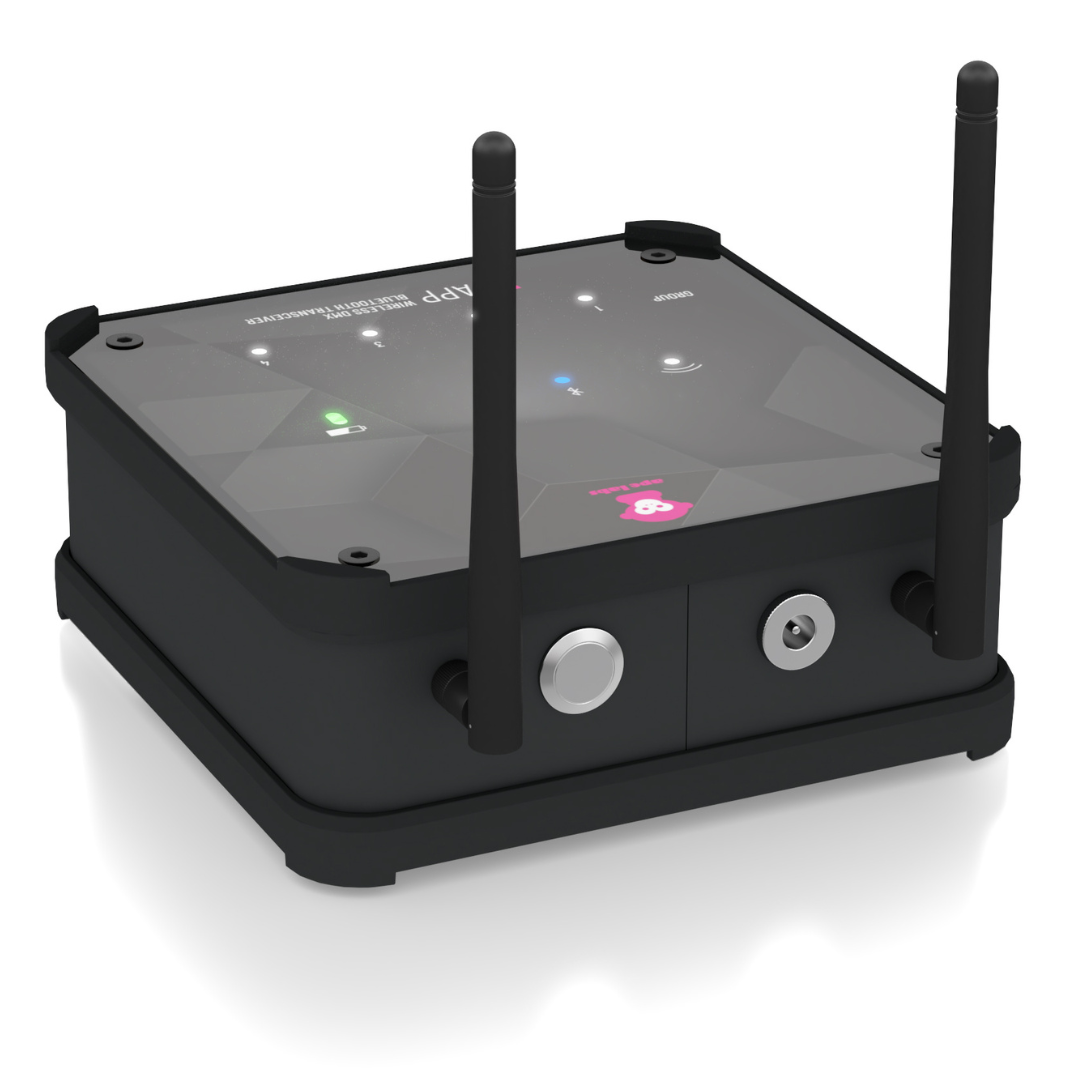

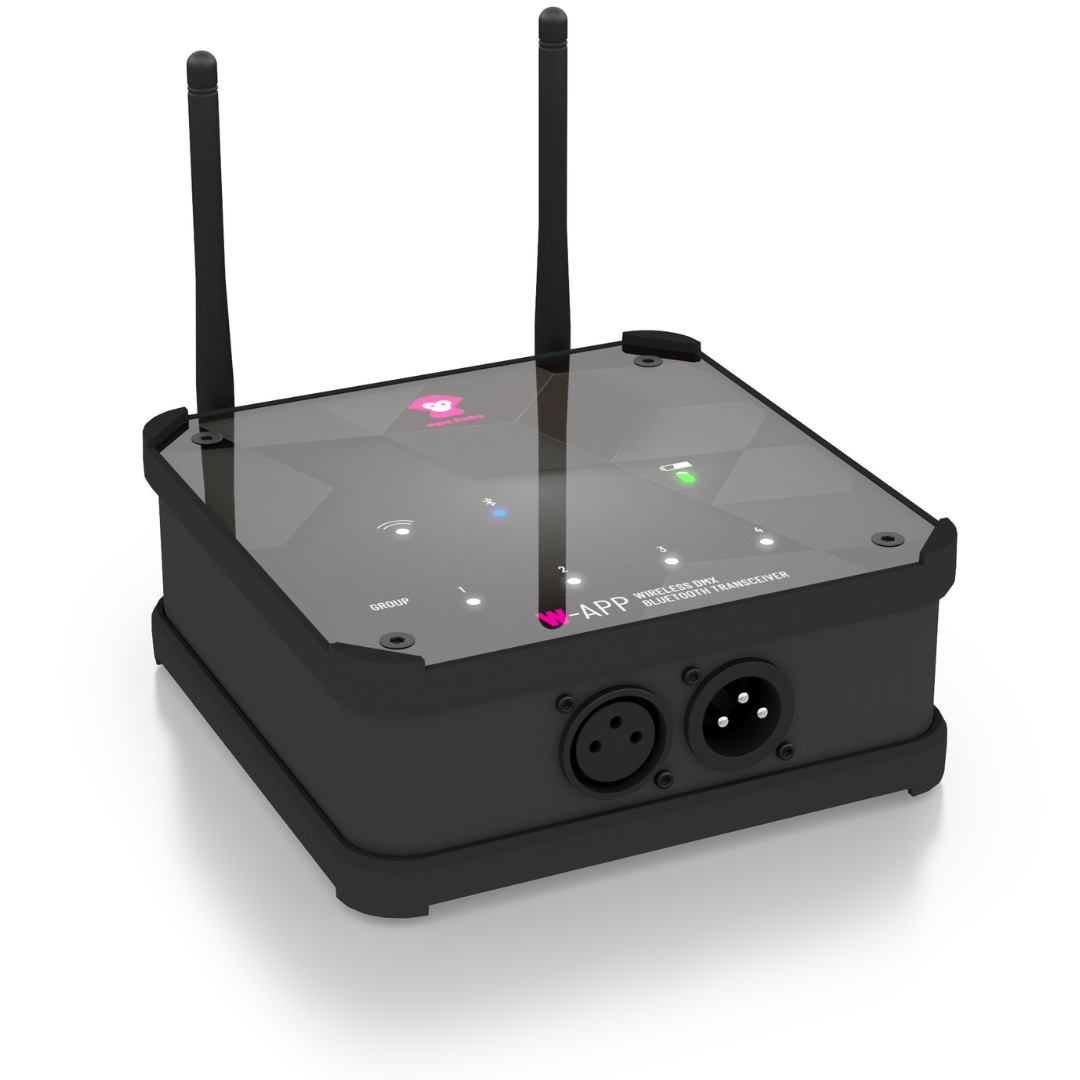

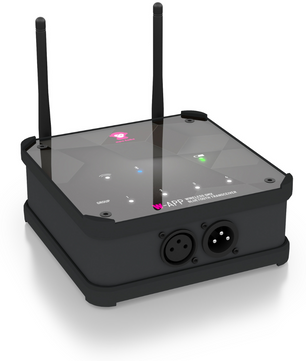

The Ape Labs Connect 2.0 IP Grey, also known as the W-App 2.0, serves as a central wireless control interface for Ape Labs lighting fixtures. A smartphone or tablet communicates with the Connect through Bluetooth, while the Connect communicates with compatible lighting fixtures using 2.4 GHz wireless transmission. The free Ape Labs app provides access to color selection, brightness adjustment, custom scenes, lighting programs, and fixture configuration without requiring a traditional DMX console.

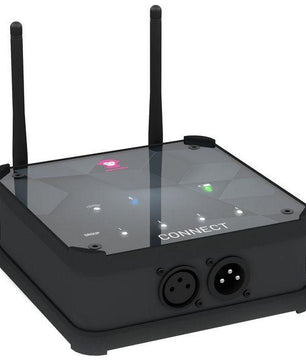

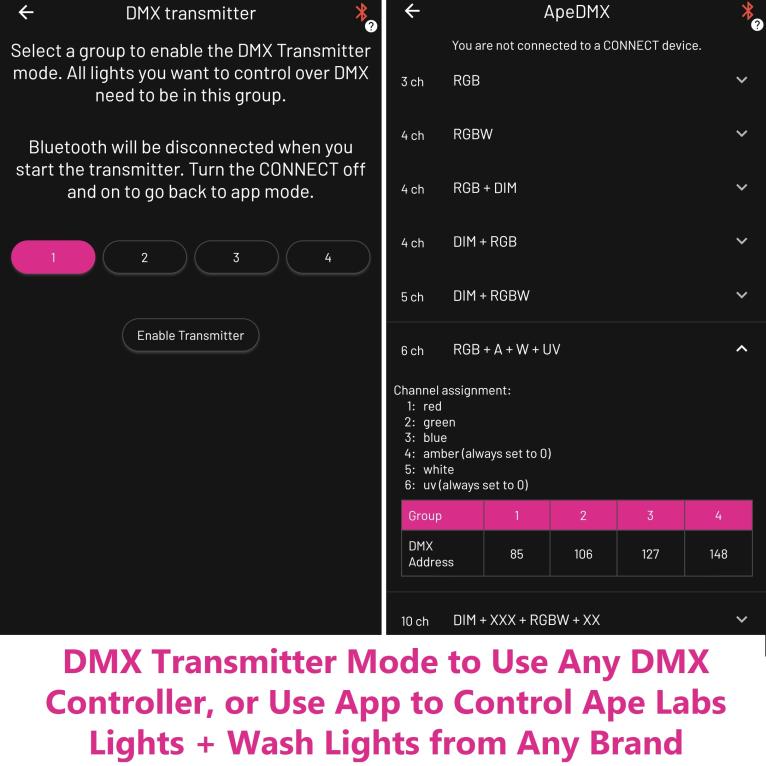

For DMX-based lighting systems, the Connect operates as either a wireless DMX transmitter or receiver. Its 3-pin Neutrik DMX input and output connectors provide an interface for DMX controllers and equipment. Two Connect units can establish a wireless DMX bridge, allowing DMX signals to be transmitted between a controller and compatible equipment. Systems using four Connect or W-App transceivers can transmit up to four DMX universes simultaneously.

The integrated rechargeable battery provides approximately 50 hours of operation per charge, making the controller suitable for mobile DJs, event lighting technicians, touring productions, and installations where convenient wireless operation is important. Its compact grey housing measures 4.9 x 4.9 x 1.9 inches and weighs approximately 1.6 pounds. Sound-active operation can use the Connect as a master microphone or utilize the microphones built into compatible Ape Labs fixtures.

For architectural and smart home installations, the Connect also supports KNX-based lighting control when connected to a separately purchased KNX-DMX adapter. The adapter sends DMX control signals to the Connect, which wirelessly communicates with compatible Ape Labs lights. This allows Ape Labs lighting to be incorporated into KNX-controlled environments, including installations using standard 8-bit RGBW fixture control.

Connect 2.0 IP Grey Features

• Bluetooth connectivity with compatible Android and iOS smartphones or tablets.
• 2.4 GHz wireless communication with compatible Ape Labs fixtures.
• Wireless DMX transmitter and receiver functionality.
• Up to 3,900 feet (1,200 meters) wireless transmission range under clear line-of-sight conditions.
• Approximately 50 hours of battery operation per charge.
• 3-pin Neutrik DMX input and output connectors.
• Compatible with DMX lighting controllers.
• Supports individual wireless DMX addressing of compatible Ape Labs fixtures.
• Manage up to four Ape Labs lighting groups, individually or simultaneously.
• Supports up to four simultaneous DMX universes when using four Connect or W-App transceivers.

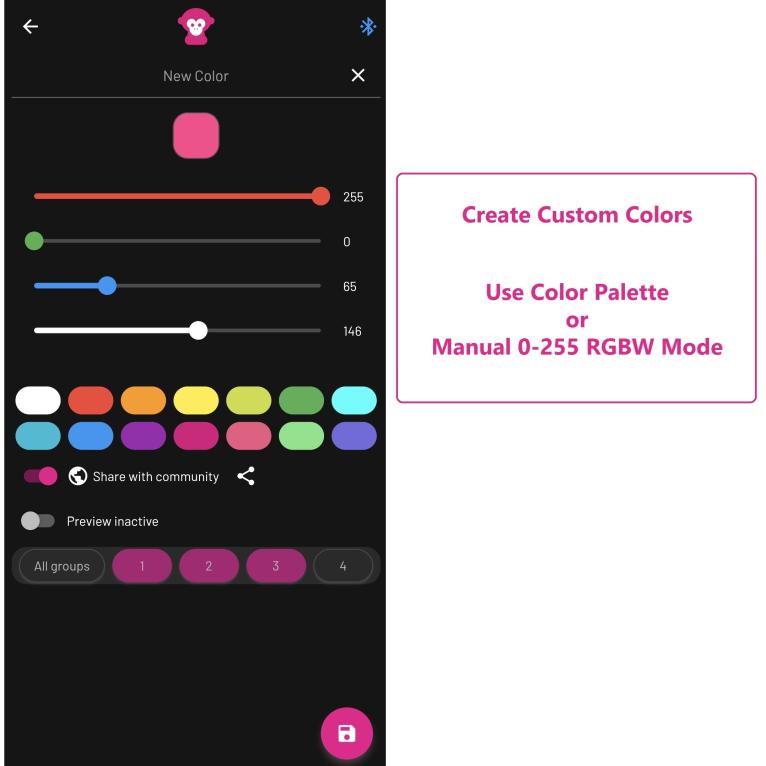

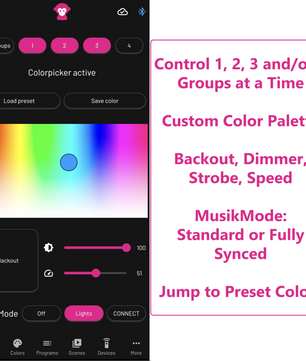

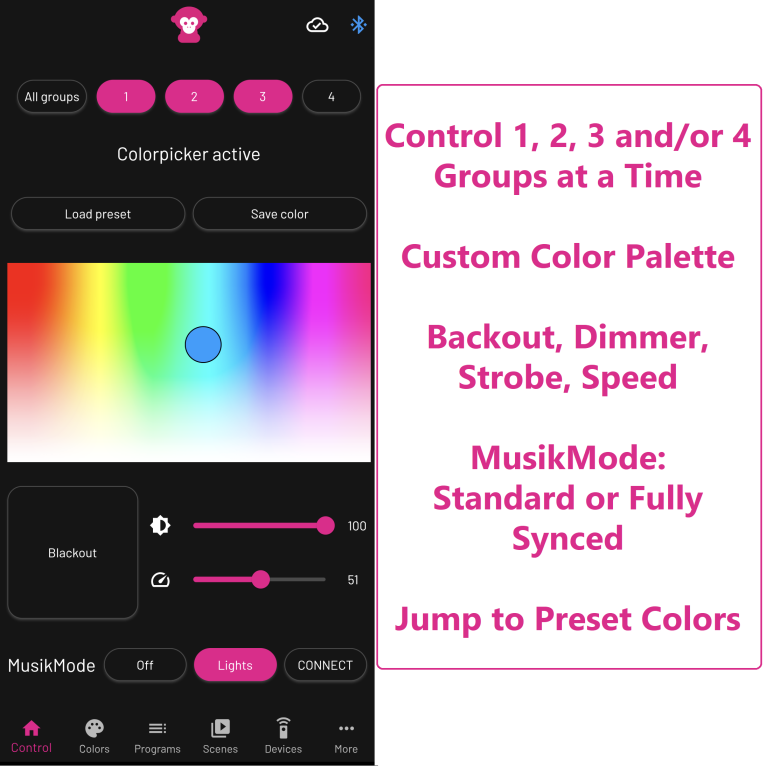

• App-based color wheel and color palette selection.

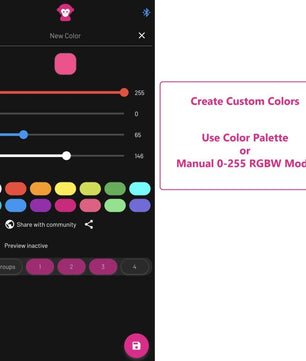

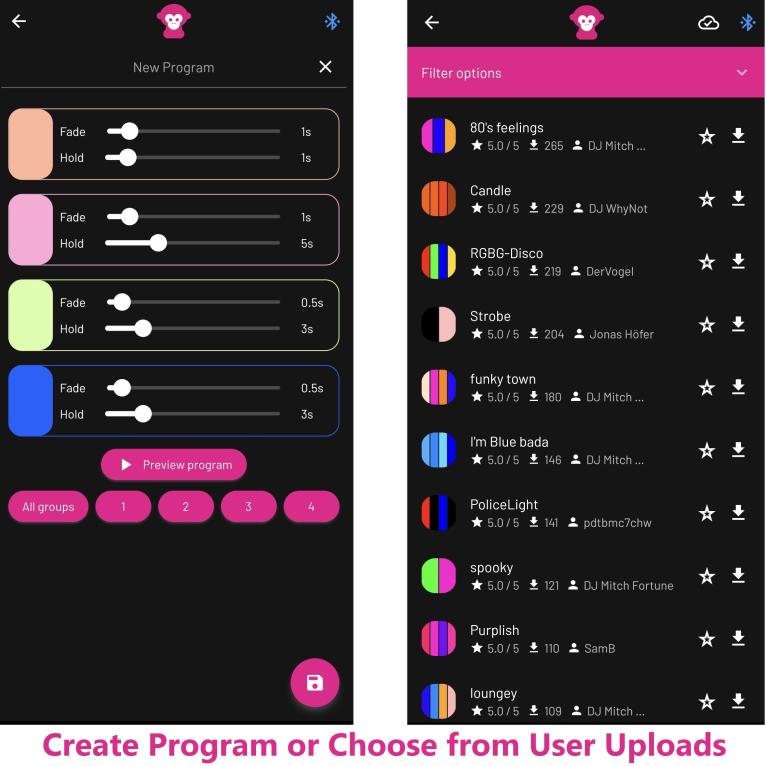

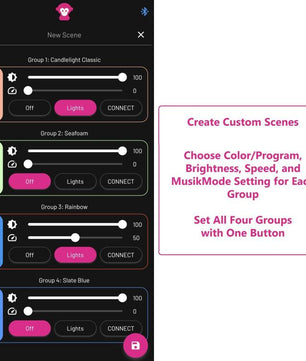

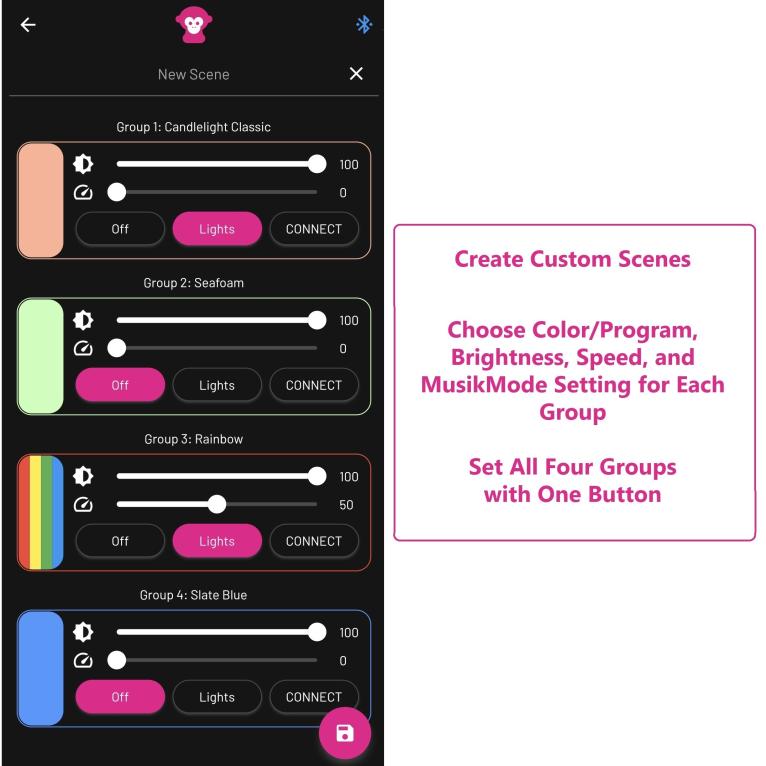

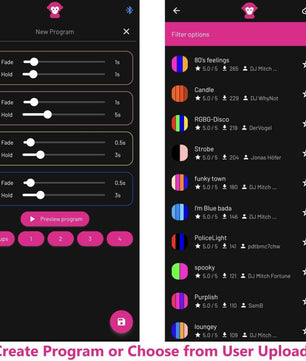

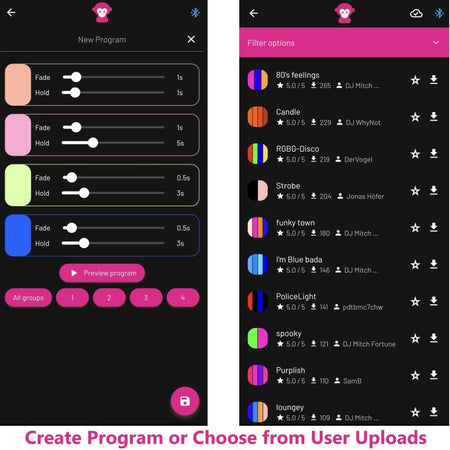

• Create, save, and recall custom colors, lighting programs, and scenes.
• Share custom programs, scenes, and colors with other app users.
• Synchronize custom settings across compatible devices.
• Trigger preset colors and lighting programs.
• Adjust brightness, program speed, and strobe settings from 0-100%.
• Blackout control for selected lighting groups or all groups.
• Adjust supported fixture brightness to target a desired battery runtime.

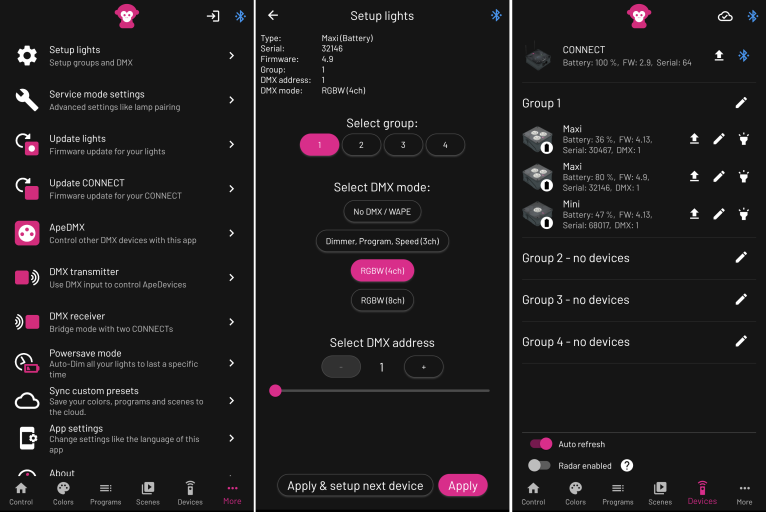

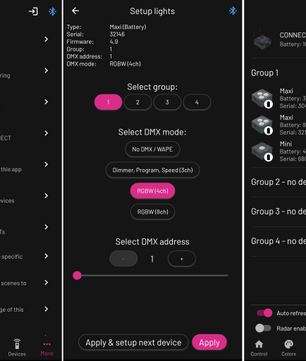

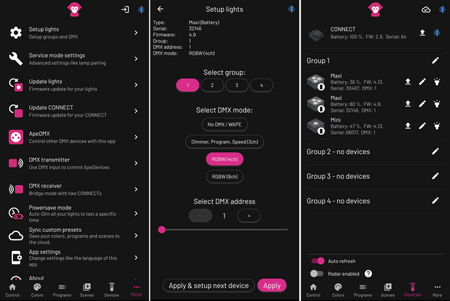

• Wirelessly address, configure, and update compatible Ape Labs lighting fixtures.
• Sound-active operation using the Connect master microphone or individual fixture microphones.

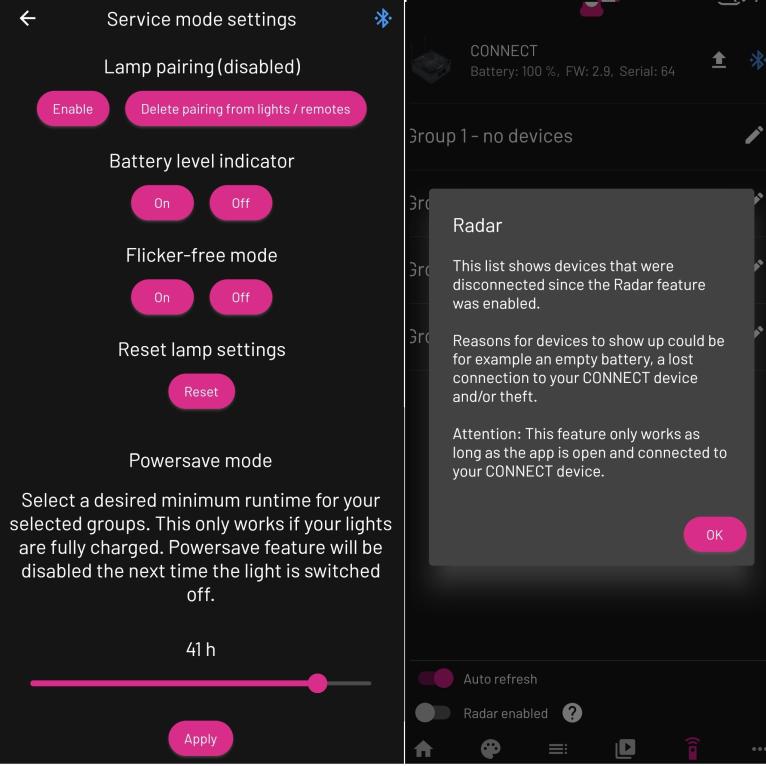

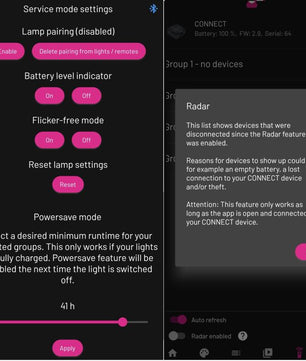

• App access to pairing controls, battery indicators, and flicker-free mode settings on supported fixtures.
• Supports KNX smart home integration with an additional KNX-DMX adapter, sold separately.
• Compatible with Ape Labs Coin, Coin 2.0, Can, Can SE, Can 2.0, Mini, Mini 2.0, Stick, Stick 2.0, Stick XL 2.0, Glow Tubes, Double Wall Mini, Double Wall Maxi, DW Maxi 2.0, Track Maxi, Bulb GU10, and current 2.0 series fixtures.
• Compatible with the original Ape Labs W-App system.
• Free Ape Labs app available for compatible Android and iOS devices.

Connect 2.0 IP Grey Specifications

• Product Type: Wireless DMX Transceiver and App Controller
• Color: Grey
• Wireless Technology: Bluetooth and 2.4 GHz Wireless DMX
• Operating Frequency: 2400-2485 MHz
• Maximum Transmission Power: 20 dBm (approximately 100 mW EIRP)
• Maximum Wireless Range: Up to 3,900 ft (1,200 m), line of sight
• Battery: Integrated Rechargeable Battery
• Battery Runtime: Approximately 50 Hours Per Charge
• DMX Connections: 3-Pin Neutrik DMX Input and Output
• DMX Functions: Transmitter and Receiver
• Lighting Group Control: 4 Groups
• DMX Universe Support: Up to 4 Simultaneous Universes with 4 Connect/W-App Transceivers
• App Compatibility: Android and iOS
• Smart Home Integration: KNX via Separate KNX-DMX Adapter
• Power Supply Input: 100-240V AC, 50/60 Hz
• Dimensions: 4.9 x 4.9 x 1.9 in (approximately 125 x 125 x 48 mm)
• Weight: 1.6 lb (approximately 0.73 kg)

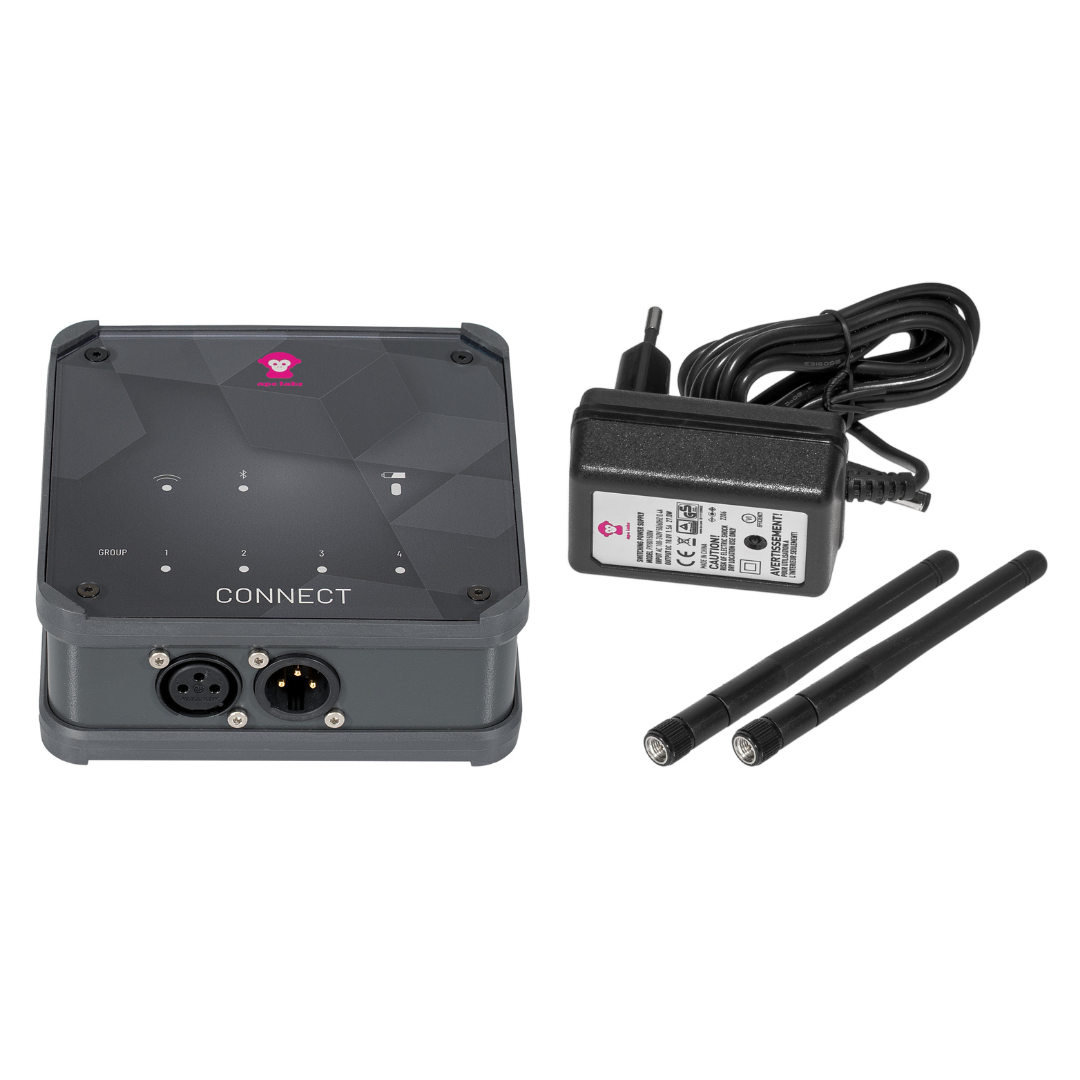

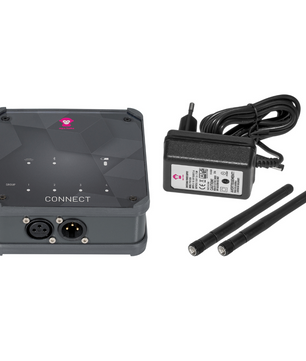

What's In The Box

• 1 x Ape Labs Connect 2.0 IP Grey (W-App 2.0)
• 2 x Omnidirectional Antennas
• 1 x Power Supply Unit (100-240V)
