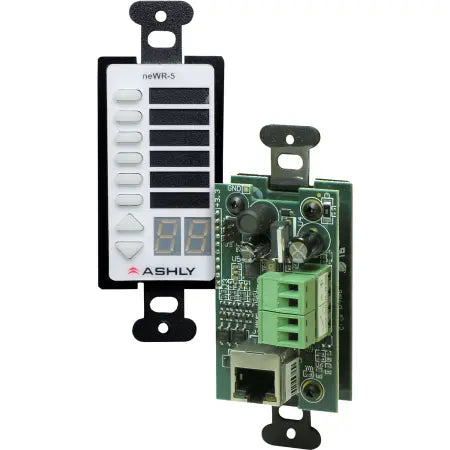

Ashly NEWR-5 | 6-Button Network Wall Controller | PoE-Powered Remote for NE Amps & DSP

Network Wall Controller

Ashly NEWR-5 is a network-enabled wall-mounted remote control that connects via Ethernet to control Ashly NE Series amplifiers and processors. Designed for easy system integration, it allows for real-time control of presets, levels, mutes, and logic outputs from any room. Ideal for installed sound systems in venues, conference rooms, or houses of worship, the NEWR-5 brings intuitive remote operation to your fingertips.

Ashly NEWR-5 Competitive Differences

• 6 programmable function buttons with LED indicators
• PoE-powered via IEEE 802.3af or 15–48VDC external supply

Ashly NEWR-5 Description

The Ashly NEWR-5 is purpose-built for installations requiring a flexible and secure wall-mounted control interface. With six LED-labeled programmable buttons and two up/down arrow keys with an LED display, it offers comprehensive control of NE-series devices, including preset scrolling, source selection, level adjustments, and logic outputs. Programming is handled via Ashly’s Protea NE Software across the network, simplifying configuration without needing physical access to each device. The NEWR-5 fits in standard wall boxes and includes a lockout input for external security key switches. Built with long-term reliability in mind, it’s hand-assembled in Webster, NY and includes a 5-year warranty. The unit communicates over a 100M Ethernet connection and is compatible with Ashly’s NE, nXe, nXp, Pema amplifiers, and DSP processors like the ne24.24M, ne4800, and ne8800. Its Power over Ethernet (PoE) capability ensures minimal wiring, making it a clean and cost-effective addition to any professional AV installation.

Model Features

• 6 programmable LED function buttons
• Up/Down buttons with LED display for level control
• Preset recall and scroll
• Input/output, zone, and matrix mix level control
• Source selection and channel mute
• Logic output control (compatible with NE devices that support it)
• Powered via IEEE 802.3af PoE or external 15–48VDC supply
• Lock-out terminal for security key switch
• Standard RJ-45 Ethernet connection

Model Specifications

• Power: IEEE 802.3af PoE or 15–48VDC (2W)
• Ethernet: RJ-45, 100M max cable distance
• Mounting: Standard wall box compatible
• Warranty: 5 years
• Made in: Webster, NY, USA

What's In The Box

• Ashly NEWR-5 unit
• Mounting hardware
• Quick start guide
