Avante ATL328 | Dual 8in - 127dB | 3 Way Active Line Array Module

Active Line Array Speaker

Avante ATL328 is a professional 3-way active line array module designed for scalable sound reinforcement in medium to large venues. Engineered for clarity, power, and precise coverage, it integrates advanced DSP processing and Milan-certified networking for modern touring and installation systems.

Avante ATL328 Competitive Differences

• 3-way active design with dual 8-inch LF drivers and coaxial MF/HF system
• Integrated 64-bit DSP with FIR filters and Milan-certified networking

Avante ATL328 Description

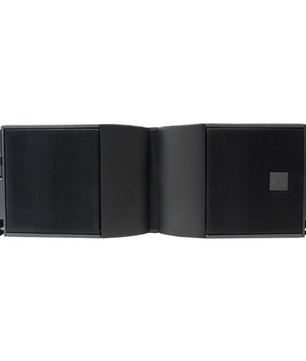

The Avante ATL328 is built to deliver high-performance audio in a compact line array format. Featuring dual 8-inch neodymium low-frequency drivers, along with a coaxial mid/high-frequency section, it produces a balanced and detailed sound with impressive output and clarity. Its custom waveguide ensures consistent coverage across a wide 110° horizontal dispersion.

Powered by a 3-channel Class-D amplifier system, the ATL328 delivers up to 1800W peak power, efficiently driving LF, MF, and HF sections independently. Advanced onboard DSP includes 64-bit processing, FIR linear phase filters, and multiband limiting to maintain sonic integrity even at high output levels.

This line array module is designed for flexibility and scalability, making it suitable for touring productions, concert venues, and large-scale installations. Integrated Milan-certified networking allows seamless system control and audio distribution, while onboard presets for LF coupling and HF compensation simplify system tuning for different array configurations.

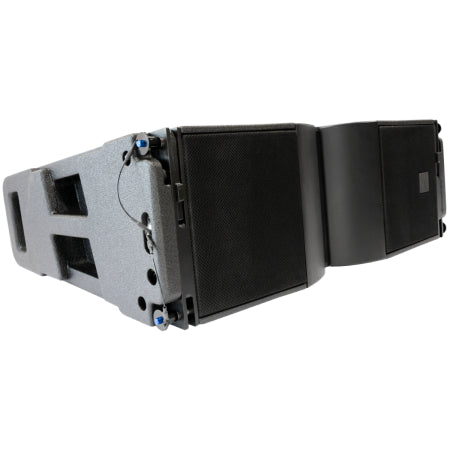

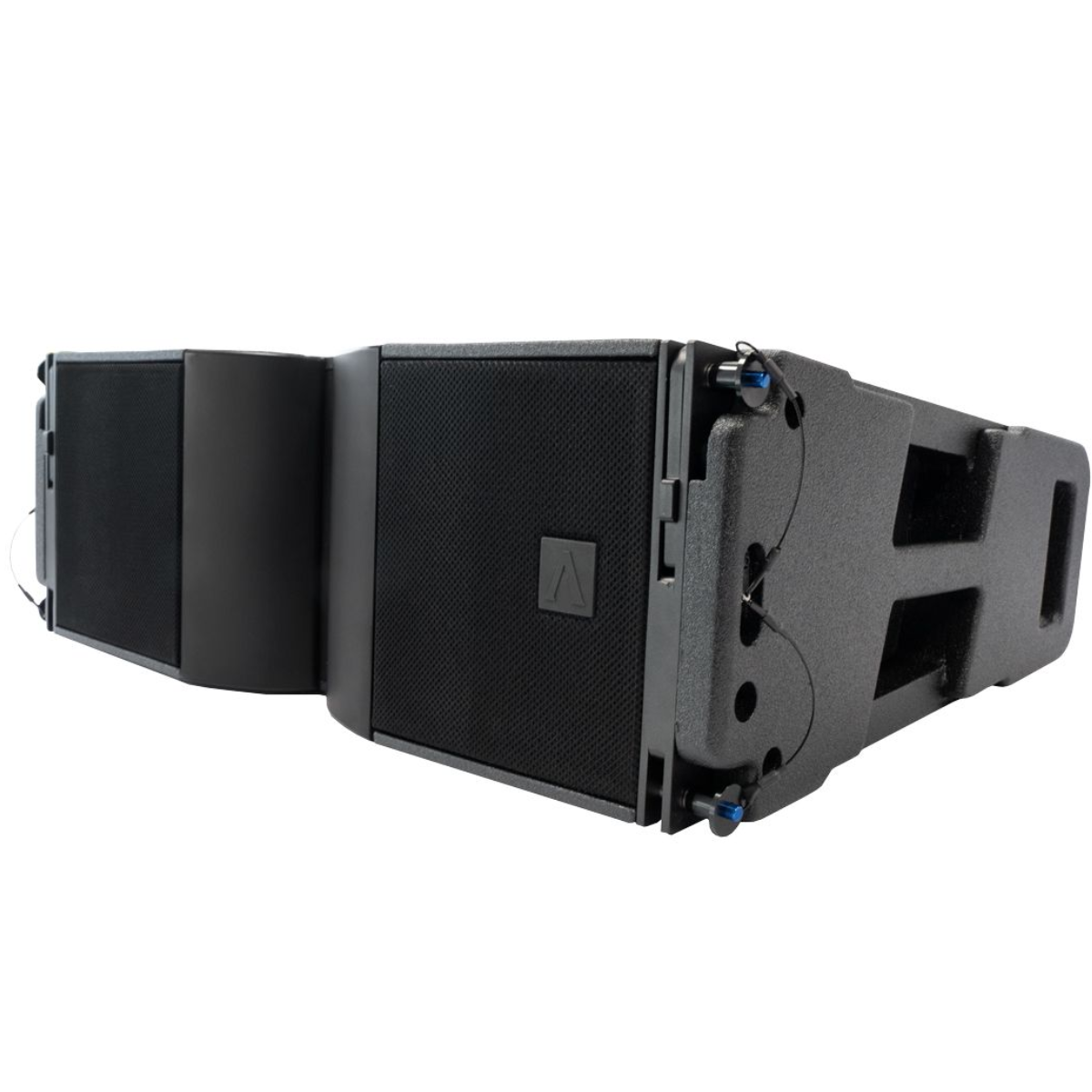

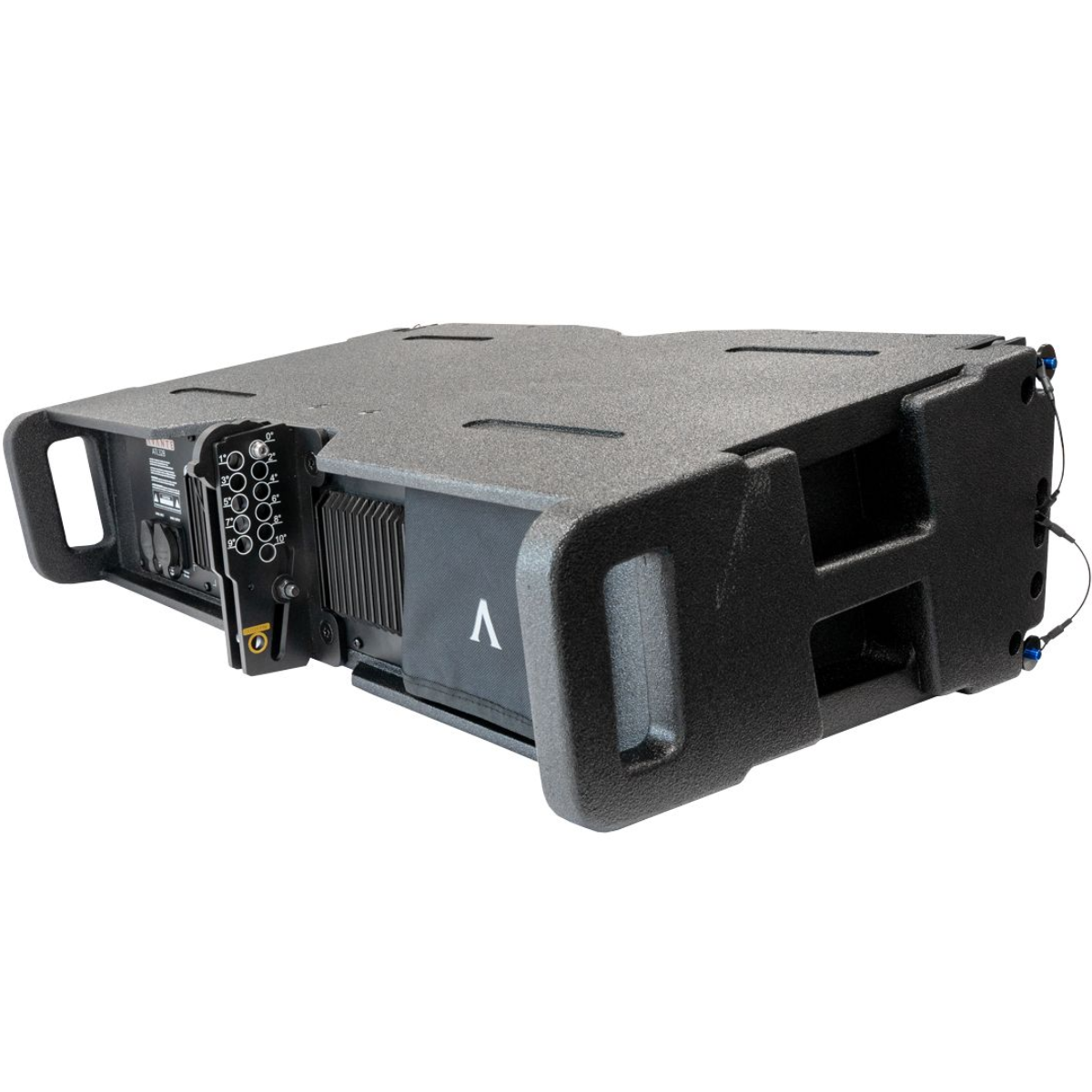

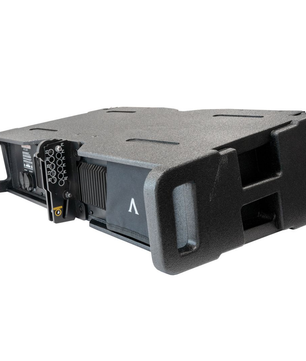

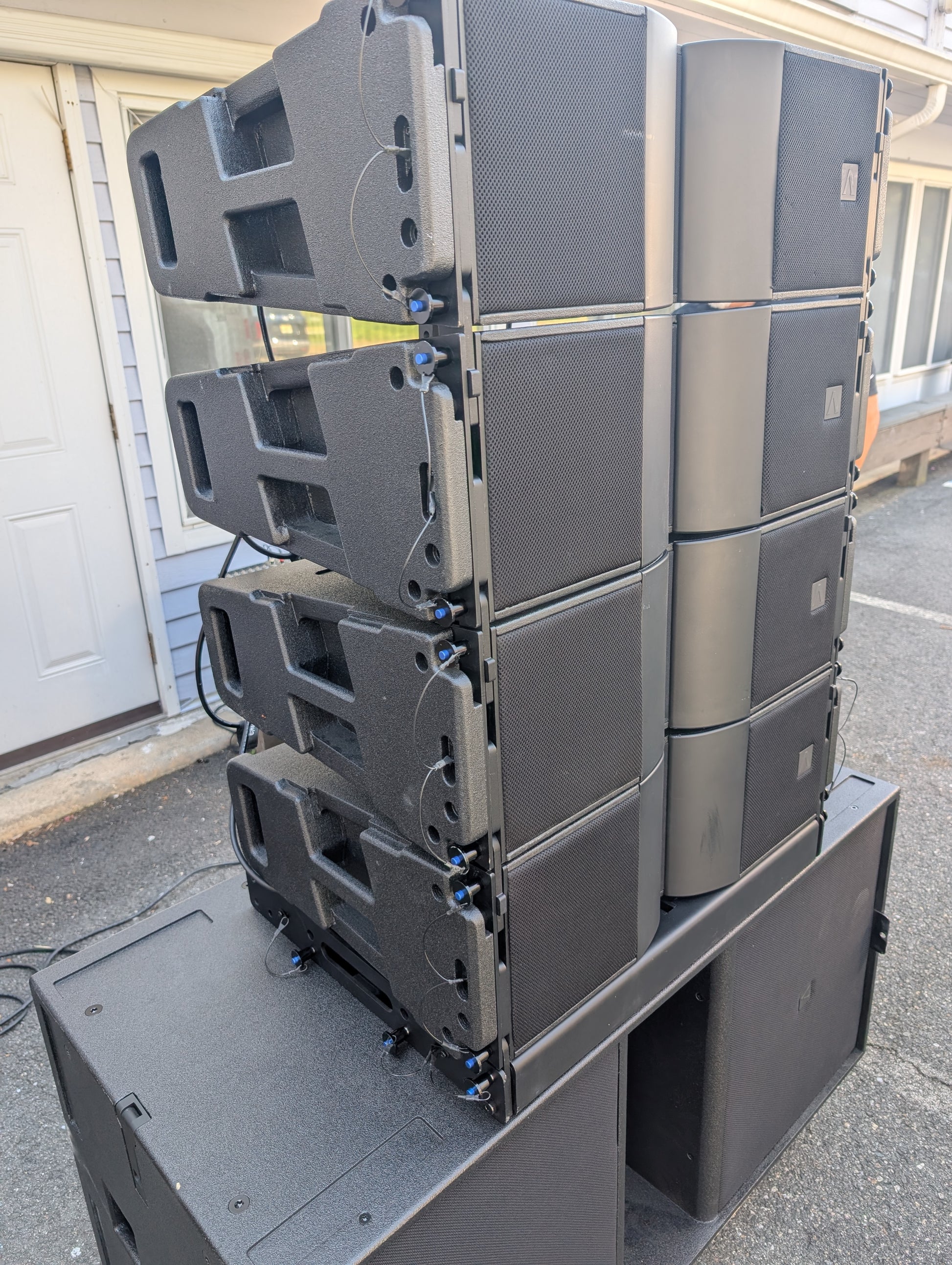

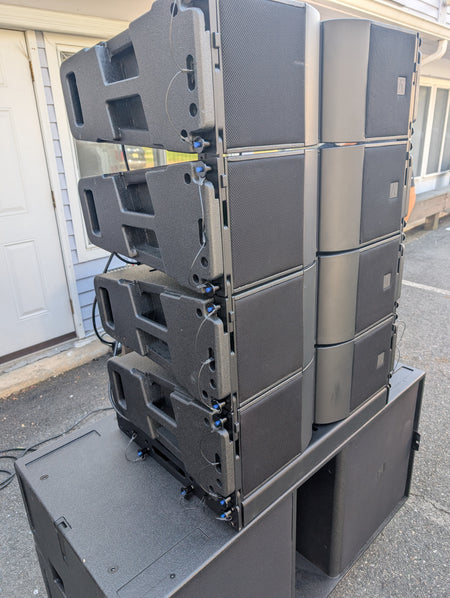

Constructed from durable multiplex plywood with a rugged polyurea coating, the ATL328 is built for the demands of the road. Integrated rigging hardware, an inclinometer, and a frontal LED identification system enhance setup efficiency and accuracy in complex array deployments.

ATL328 Features

• 3-way active line array module with dual 8" LF drivers
• Coaxial MF (4") and HF (2.55") neodymium drivers
• 600W RMS / 1800W peak Class-D amplification (3 channels)
• 64-bit DSP with FIR linear phase and 10-band IIR filters
• Milan-certified networking with RJ45 control and audio
• Multiband compressor and peak limiter protection
• 110° horizontal coverage with scalable vertical dispersion

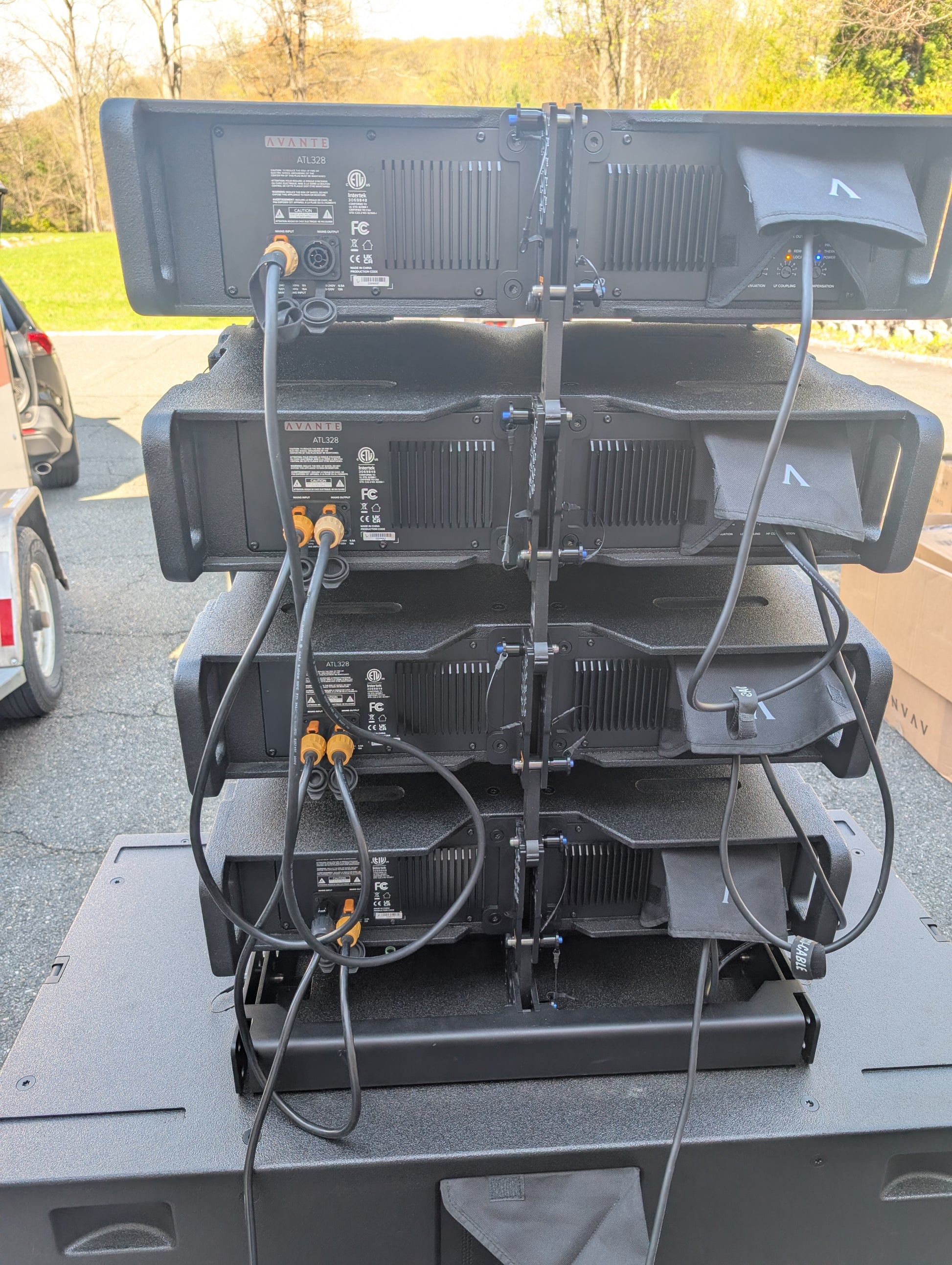

• Integrated rigging system with 3-point hardware
• Durable polyurea-coated plywood enclosure with handles

ATL328 Specifications

• Frequency Response: 70 Hz – 20 kHz
• Max SPL: 127 dB (single الوحدة)
• Amplifier Power: 600W RMS / 1200W Program / 1800W Peak
• Crossover Frequencies: 600 Hz / 3.5 kHz
• Horizontal Coverage: 110°
• DSP: 64-bit with FIR linear phase processing
• Sample Rate: 96 kHz

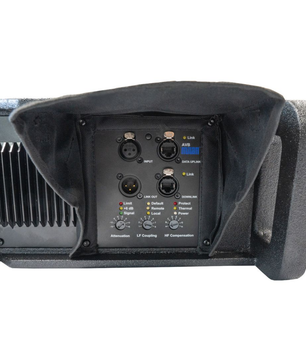

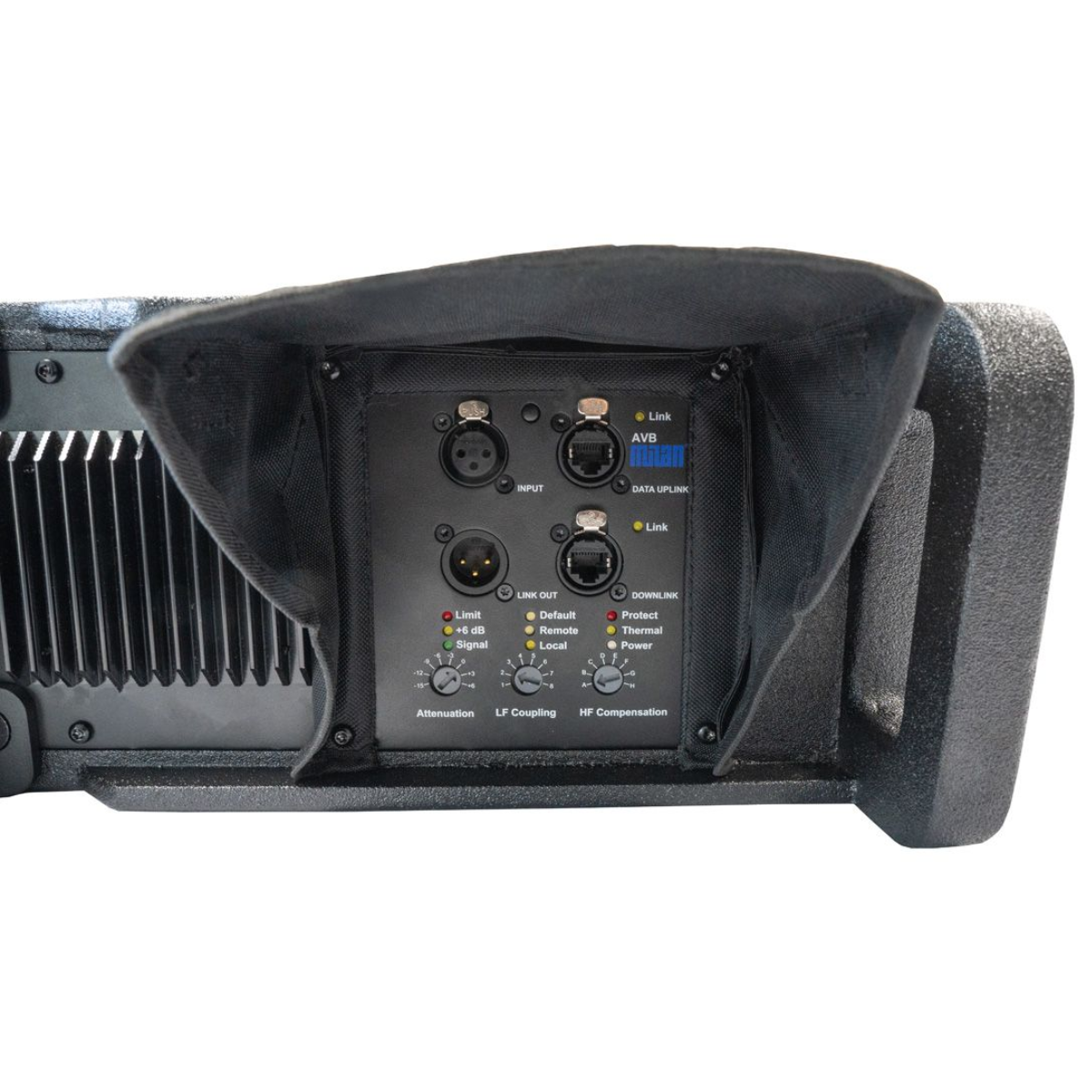

• Inputs: XLR (analog), RJ45 (network/Milan)
• Power: 100–240V, 50/60 Hz auto-switching
• Dimensions: 29.9 x 9.1 x 18.3 in (760 x 230 x 465 mm)
• Weight: 63 lb (28.6 kg)

What's In The Box

• ATL328 line array module
• Integrated rigging hardware
• Fixed rain cover
• Power input cable (varies by region)
