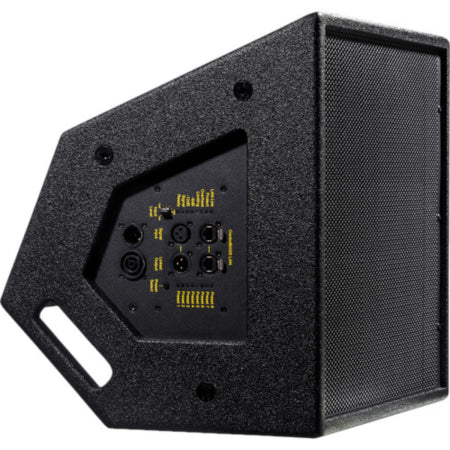

BassBoss CCM12-MK3 | 12in - 126dB Peak | Compact Coaxial Stage Monitor

$2,295.00

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Powered Stage Monitor

BassBoss CCM12-MK3 is a compact powered coaxial stage monitor built for professional performers, portable sound systems, and venue installations. Featuring a 1200W bi-amplified Class-D design, integrated DSP processing, and consistent conical coverage, it delivers clear and accurate sound for stage monitoring, front-fill, side-fill, and main speaker applications.

BassBoss CCM12-MK3 Competitive Differences

Coaxial 12" design for consistent phase response and coverage
1200W bi-amplified Class-D power system
80° conical coverage with strong feedback resistance
Compact Baltic birch enclosure with multiple monitor angles
96 kHz DSP with eight onboard presets and LAN preset management

BassBoss CCM12-MK3 Description

The BassBoss CCM12-MK3 is designed for performers and engineers who need a compact stage monitor with powerful output and consistent sound coverage. Its coaxial driver configuration places the high-frequency driver in the center of the woofer, helping maintain phase accuracy and intelligibility across the entire listening area.

A 12" neodymium woofer with a 3" voice coil combines with a 3" compression driver in a sealed Baltic birch enclosure to deliver detailed sound with strong transient response. The integrated 1200W Class-D amplifier provides 900W to the low-frequency section and 300W to the high-frequency section for reliable performance in live sound environments.

The MK3 platform adds enhanced DSP processing, expanded preset storage, and network connectivity through etherCON ports. The BassBoss CCM12-MK3 supports multiple monitor angles, pole mounting, and fly-point installation, making it adaptable for stage wedges, DJ monitors, front-fill systems, and compact venue reinforcement.

CCM12-MK3 Features

Powered 12" coaxial stage monitor
1200W bi-amplified Class-D amplifier system
900W LF amplifier and 300W HF amplifier
50 Hz to 19 kHz frequency response
126 dB peak SPL and 123 dB continuous SPL
12" neodymium woofer with 3" voice coil
3" compression driver with 1.4" throat
80° conical coverage pattern
Coaxial design for consistent off-axis response
96 kHz DSP with user, venue, and voicing presets
Eight onboard pushbutton presets
Stores up to 100 presets through LAN control
ControlBASS software compatibility
2 etherCON/RJ45 network ports for Ethernet/Milan AVB support
Neutrik powerCON True1 waterproof power input
35 mm pole socket
M10 fly points for wall or ceiling mounting
Multiple monitor wedge angles
Braced Baltic birch enclosure with waterproof finish

CCM12-MK3 Specifications

Speaker Type: Active Loudspeaker
Configuration: 2-Way
Enclosure Type: Sealed
Total Output Power: 1200W
Amplifier Class: Class-D
LF Amplifier Power: 900W
HF Amplifier Power: 300W
LF Driver: 1 x 12" woofer
LF Voice Coil: 3" / 7.6 cm
LF Magnet: Neodymium
HF Driver: 1 x 3" horn-loaded compression driver
HF Throat: 1.4" / 35.6 mm
HF Magnet: Neodymium
Frequency Response: 50 Hz - 19 kHz ±3 dB
Maximum SPL: 123 dB continuous, 126 dB peak
Coverage Angle: 80° conical
Audio Input: 1 x XLR 3-pin line input
Audio Thru: 1 x XLR 3-pin line thru
Network I/O: 2 x etherCON/RJ45
AC Power Input: 100 - 240 VAC, 50/60 Hz
AC Power I/O: 1 x powerCON TRUE1 input
Current Consumption: 1.4A at 120 VAC, 0.7A at 240 VAC
Mounting: 1 x 1.38" / 35 mm pole socket
Construction Material: Plywood, polyurethane, steel
Color: Black
Dimensions: 16.5 x 15.8 x 14 in (41.9 x 40.1 x 35.6 cm)
Weight: 35 lb (15.9 kg)
Package Weight: 39.345 lb
Box Dimensions: 19.7 x 19.6 x 16.2 in

What's In The Box

BassBoss CCM12-MK3 powered stage monitor
Neutrik powerCON True1 power cable
