Powered Coaxial Loudspeaker

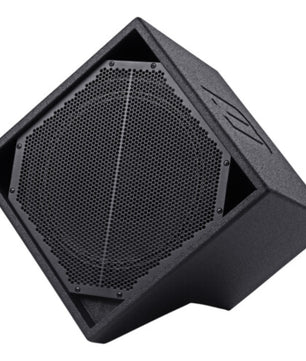

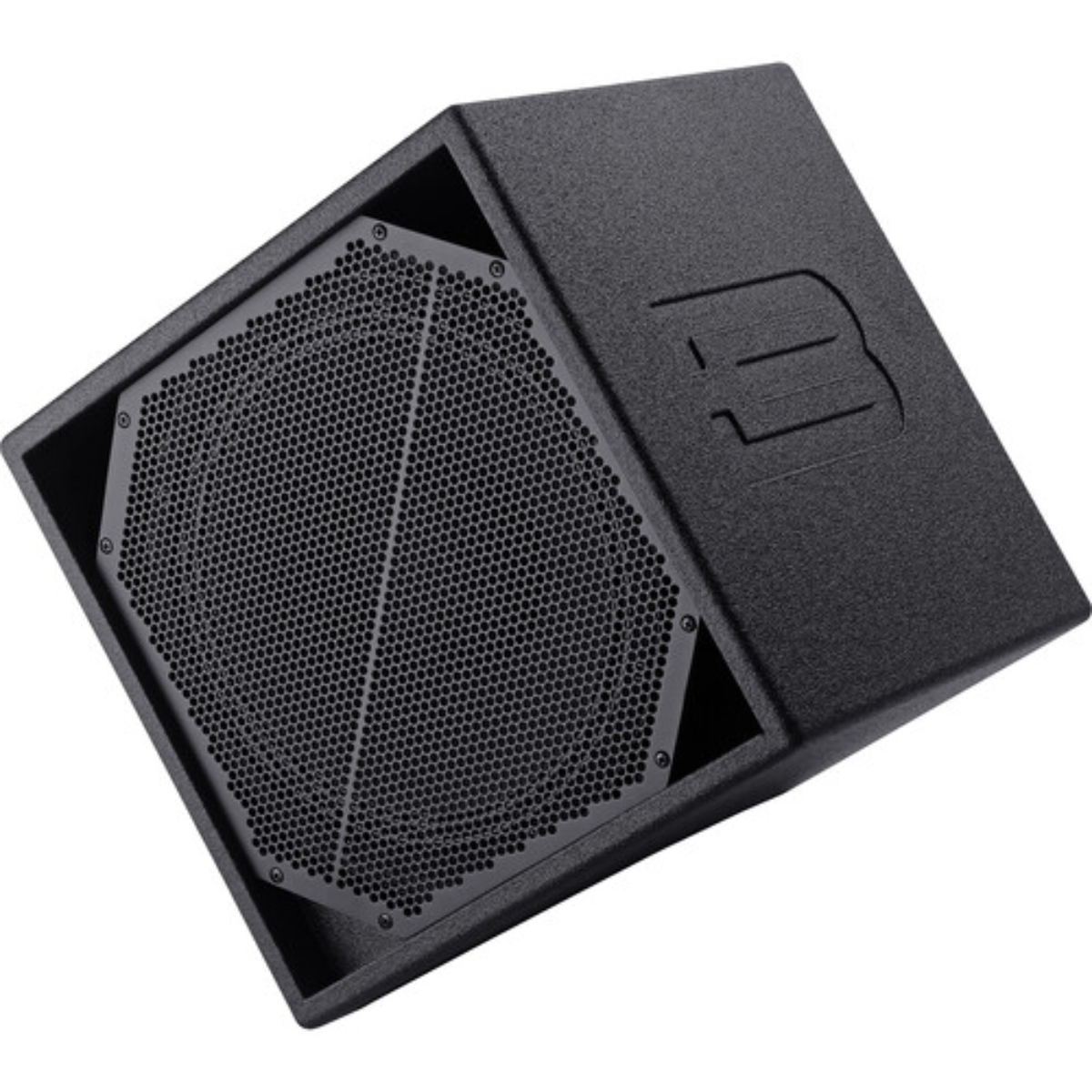

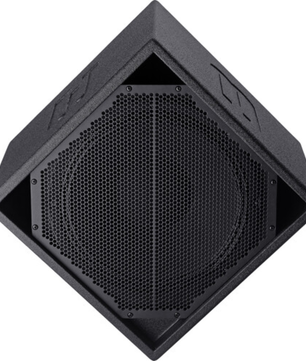

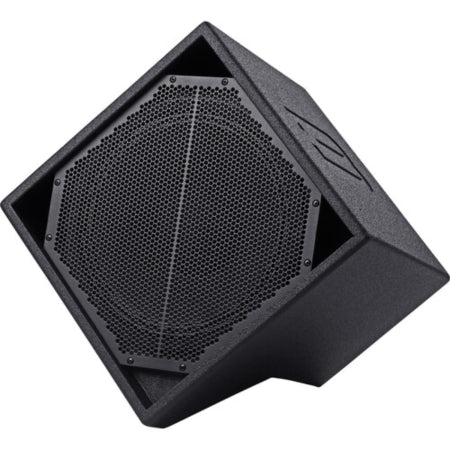

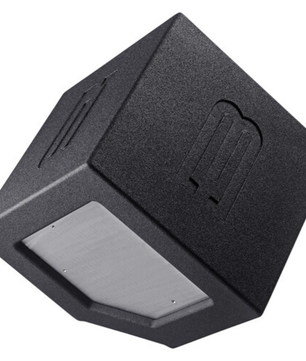

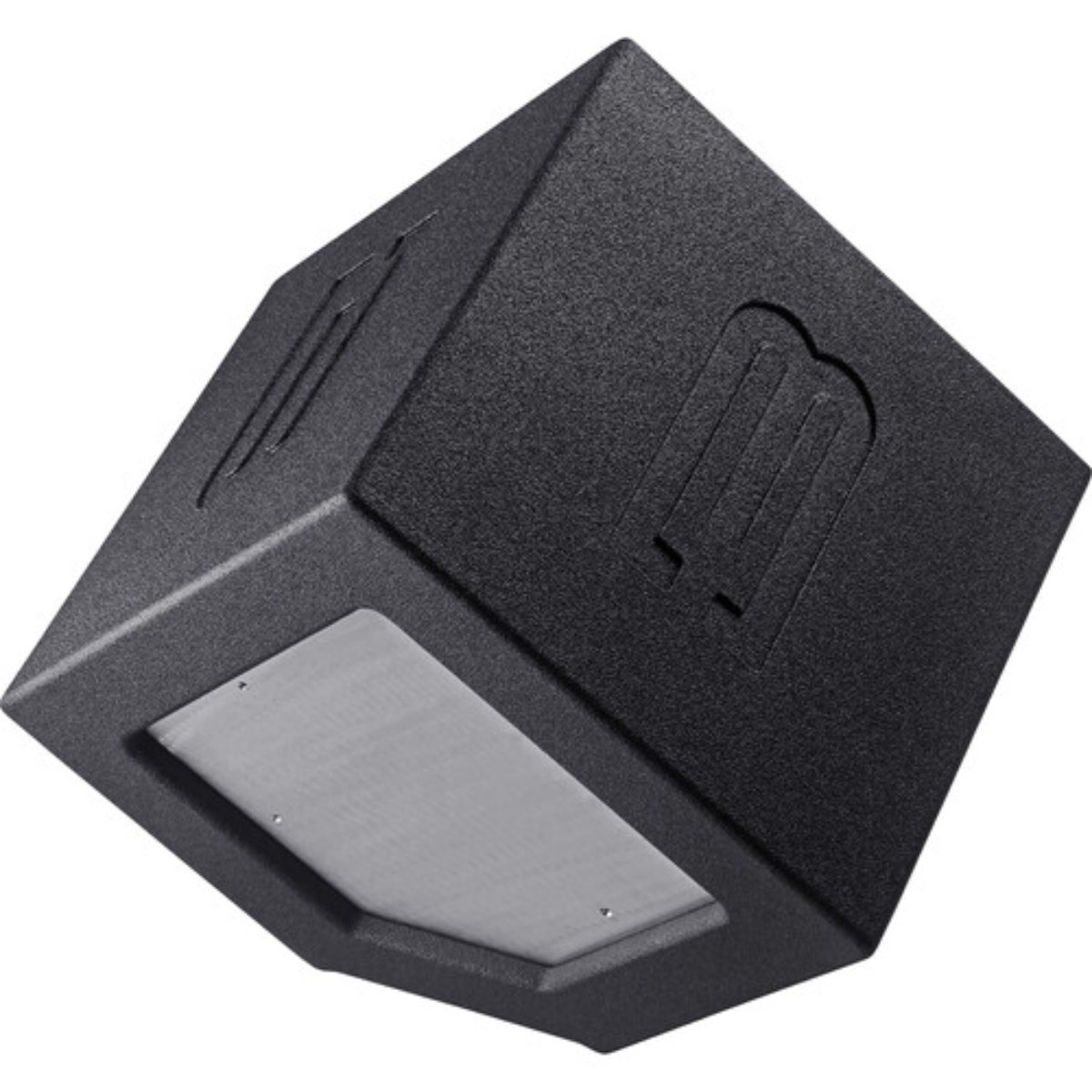

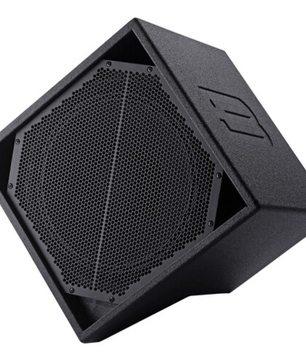

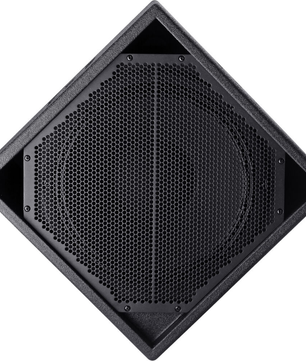

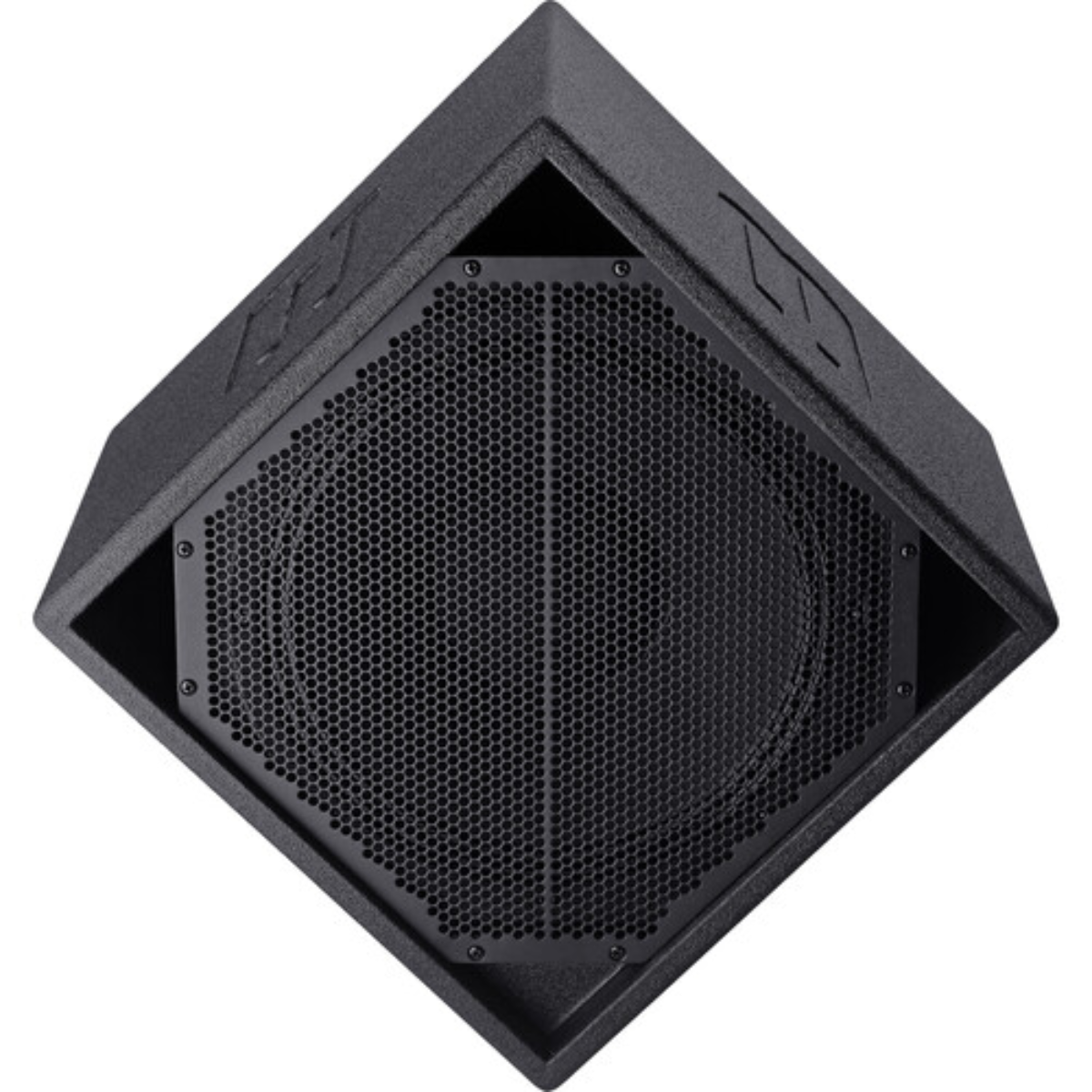

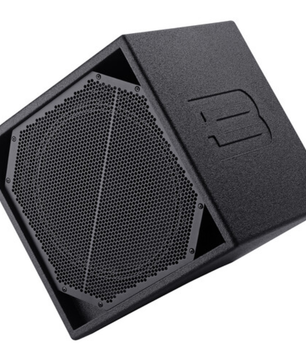

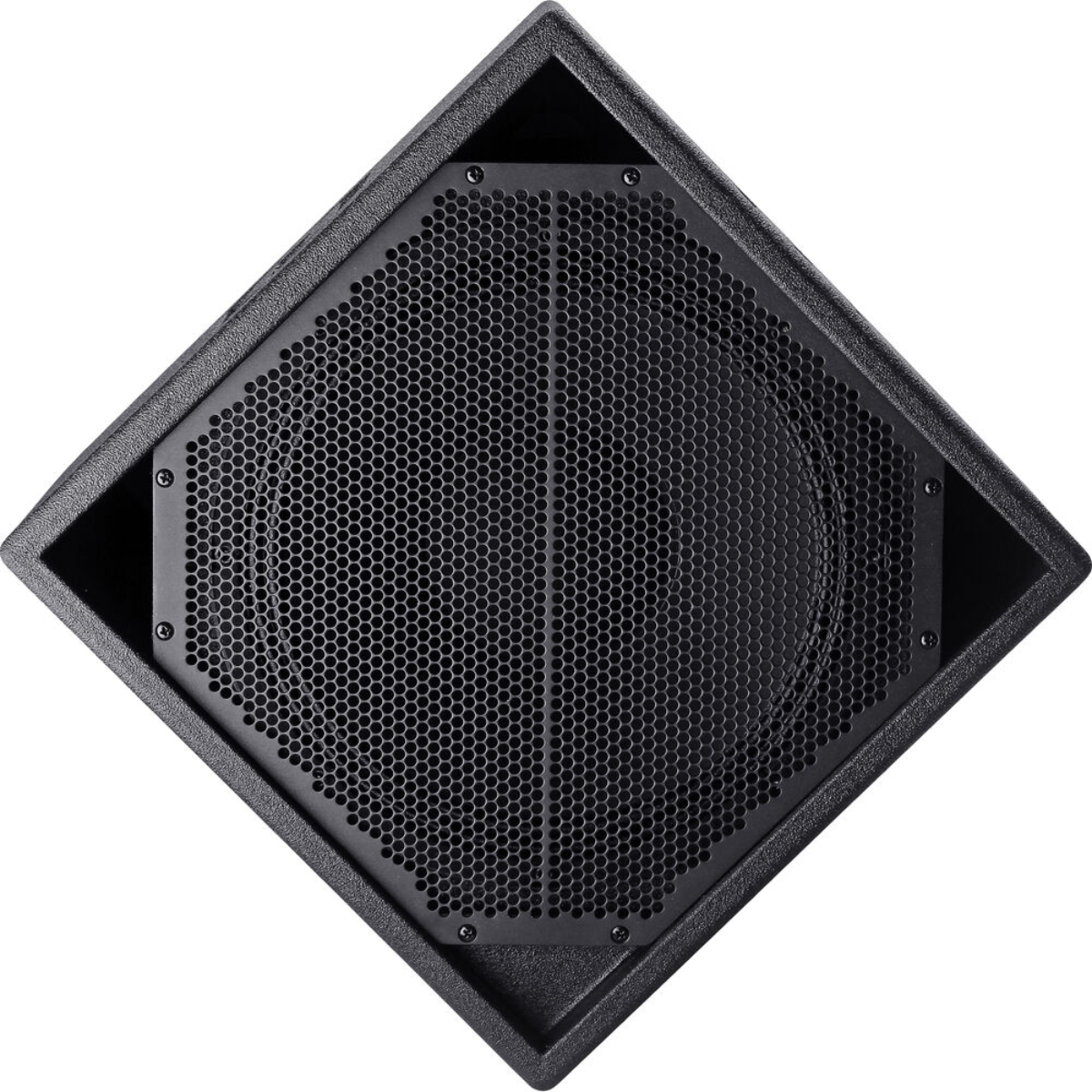

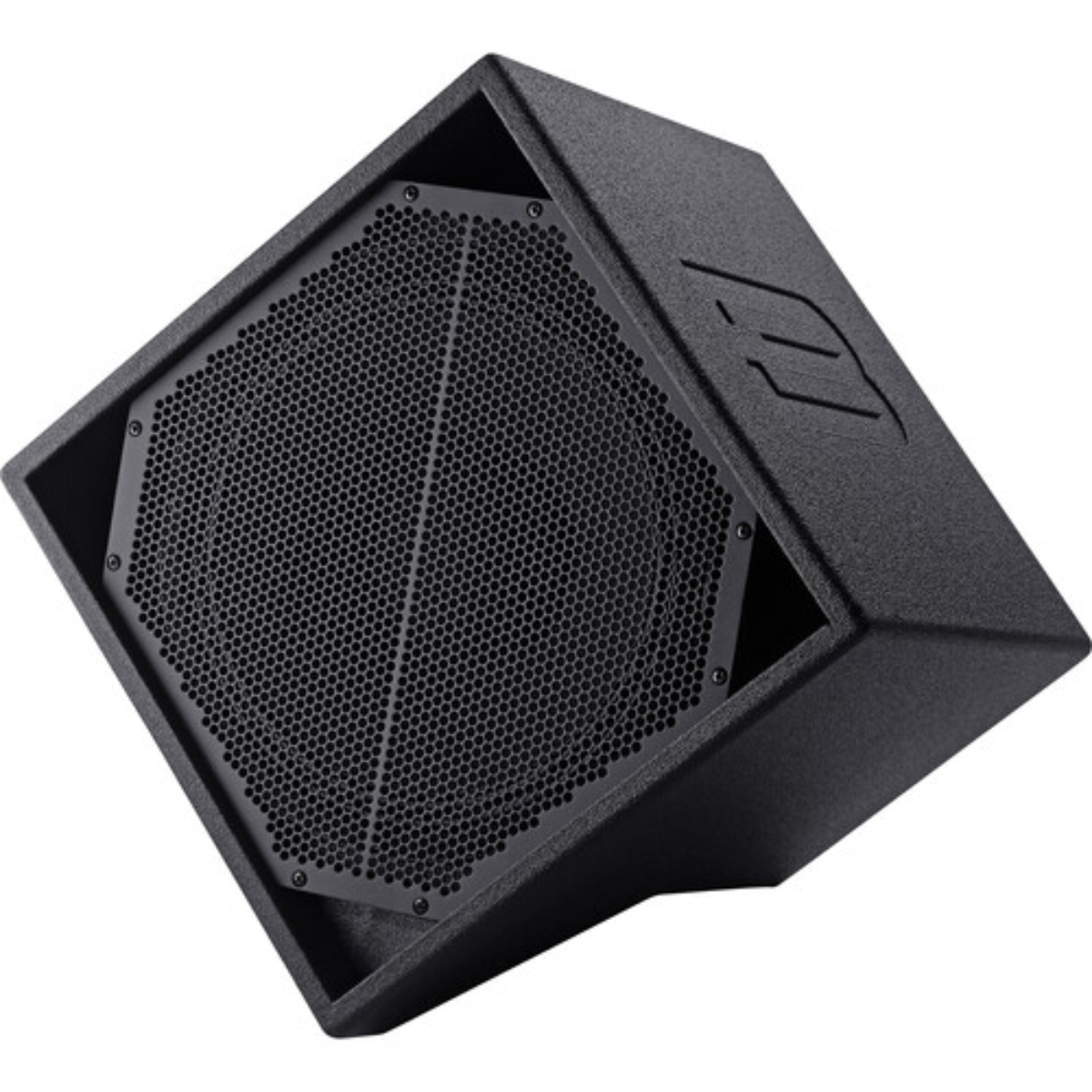

BASSBOSS DiaMon MK3 is a compact, high-output powered loudspeaker designed for professional sound reinforcement in portable and installed applications. Its coaxial design delivers highly consistent coverage and phase-accurate sound, making it ideal for mains, stage monitoring, satellite use, nightclub fills, and event production.
The sealed birch plywood enclosure keeps the cabinet lightweight and compact while maintaining impressive output and clarity. Advanced DSP, onboard presets, and LAN connectivity provide flexible system integration and optimized performance for a wide range of audio environments.
BASSBOSS DiaMon MK3 Competitive Differences
- Coaxial 12" woofer and 3" compression driver design for phase-accurate sound and consistent 80° conical coverage
- 1200W Class-D amplifier with advanced 96 kHz DSP and up to 100 storable presets via LAN control
- Compact sealed Baltic birch enclosure with waterproof Neutrik powerCON True1 TOP connectors
- Integrated Ethernet control and Milan AVB-ready DSP architecture for scalable system management
BASSBOSS DiaMon MK3 Description
BASSBOSS DiaMon MK3 is engineered for professionals who need powerful sound reinforcement in an ultra-compact footprint. The integrated 1200W Class-D amplifier provides 900W to the low-frequency woofer and 300W to the high-frequency compression driver, producing a frequency response of 50 Hz to 19 kHz with impressive detail and impact.
The coaxial driver arrangement places the high-frequency driver directly through the center of the woofer, creating highly coherent sound reproduction and smooth off-axis response. This design improves intelligibility, enhances audience coverage consistency, and increases resistance to feedback in live environments.
The extensively braced Baltic birch enclosure combines durability with portability, while the waterproof-coated woofers and Neutrik powerCON True1 TOP connectors provide added reliability for outdoor and demanding event applications. The sealed enclosure design also allows flexible DSP tuning for either deeper low-frequency extension or maximum SPL performance.
The upgraded MK3 DSP platform operates at 96 kHz and supports eight onboard presets with storage for up to 100 presets accessible through Ethernet control. Using ControlBASS software, users can remotely configure systems, group multiple cabinets, monitor temperatures and levels, and integrate seamlessly with other BASSBOSS loudspeakers.
With its compact size, lightweight construction, and professional-grade output, the DiaMon MK3 is ideal for DJs, clubs, houses of worship, touring productions, and installed sound systems requiring premium audio performance in limited space.
DiaMon MK3 Features
- 1200W Class-D amplifier with PFC power supply
- 12" neodymium woofer with 3" voice coil
- 3" horn-loaded compression driver with 1.4" throat
- 50 Hz to 19 kHz frequency response (±3 dB)
- 126 dB peak SPL output
- 80° conical coverage pattern
- 96 kHz DSP with onboard presets and LAN control
- Up to 100 preset storage capacity
- Ethernet connectivity with Milan AVB readiness
- Waterproof Neutrik powerCON True1 TOP connectors
- Extensively braced Baltic birch plywood enclosure
- Compact sealed cabinet design
- Compatible with ControlBASS software
- 35 mm pole mount socket
- Included Neutrik powerCON True1 power cable
DiaMon MK3 Specifications
- Speaker Type: Active Loudspeaker
- Configuration: 2-Way Coaxial
- Amplifier Power: 1200W Total
- LF Amplifier Power: 900W
- HF Amplifier Power: 300W
- Amplifier Class: Class-D
- LF Driver: 12" Woofer with 3" Voice Coil
- HF Driver: 3" Compression Driver with 1.4" Throat
- Frequency Response: 50 Hz to 19 kHz (±3 dB)
- Maximum SPL: 126 dB Peak / 123 dB Continuous
- Coverage Pattern: 80° Conical
- Audio Inputs: 1 x XLR Line Input
- Audio Outputs: 1 x XLR Line Thru
- Network Connections: 2 x etherCON/RJ45 Ethernet
- AC Input Voltage: 100 to 240 VAC, 50/60 Hz
- Power Connector: powerCON TRUE1 Input
- Pole Mount: 35 mm Socket
- Construction Material: Plywood, Polyurethane, Steel
- Dimensions: 14 x 14 x 11 in (35.6 x 35.6 x 27.9 cm)
- Weight: 29.8 lb (13.5 kg)
What's In The Box
- BASSBOSS DiaMon MK3 Powered Loudspeaker
- Neutrik powerCON True1 Power Cable
- User Documentation
