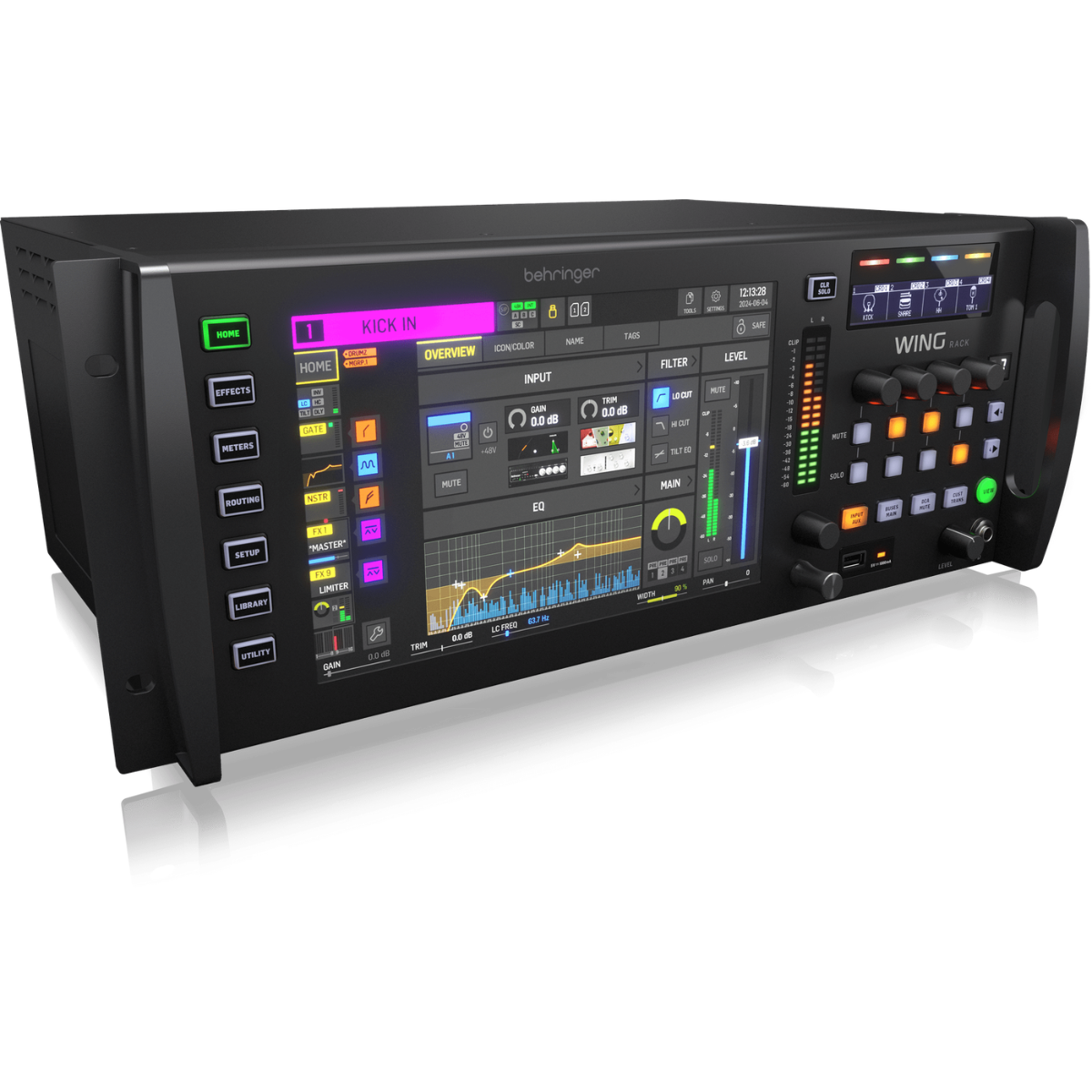

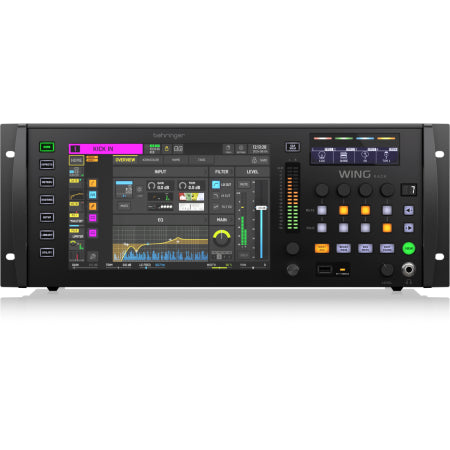

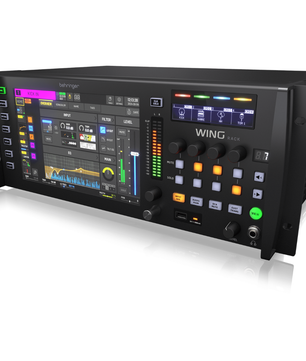

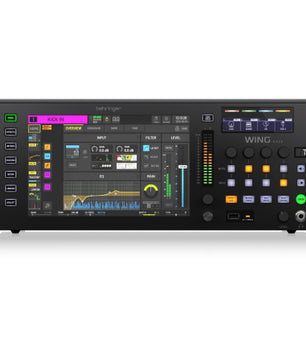

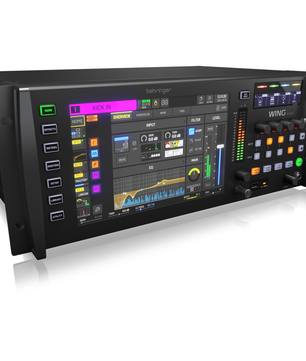

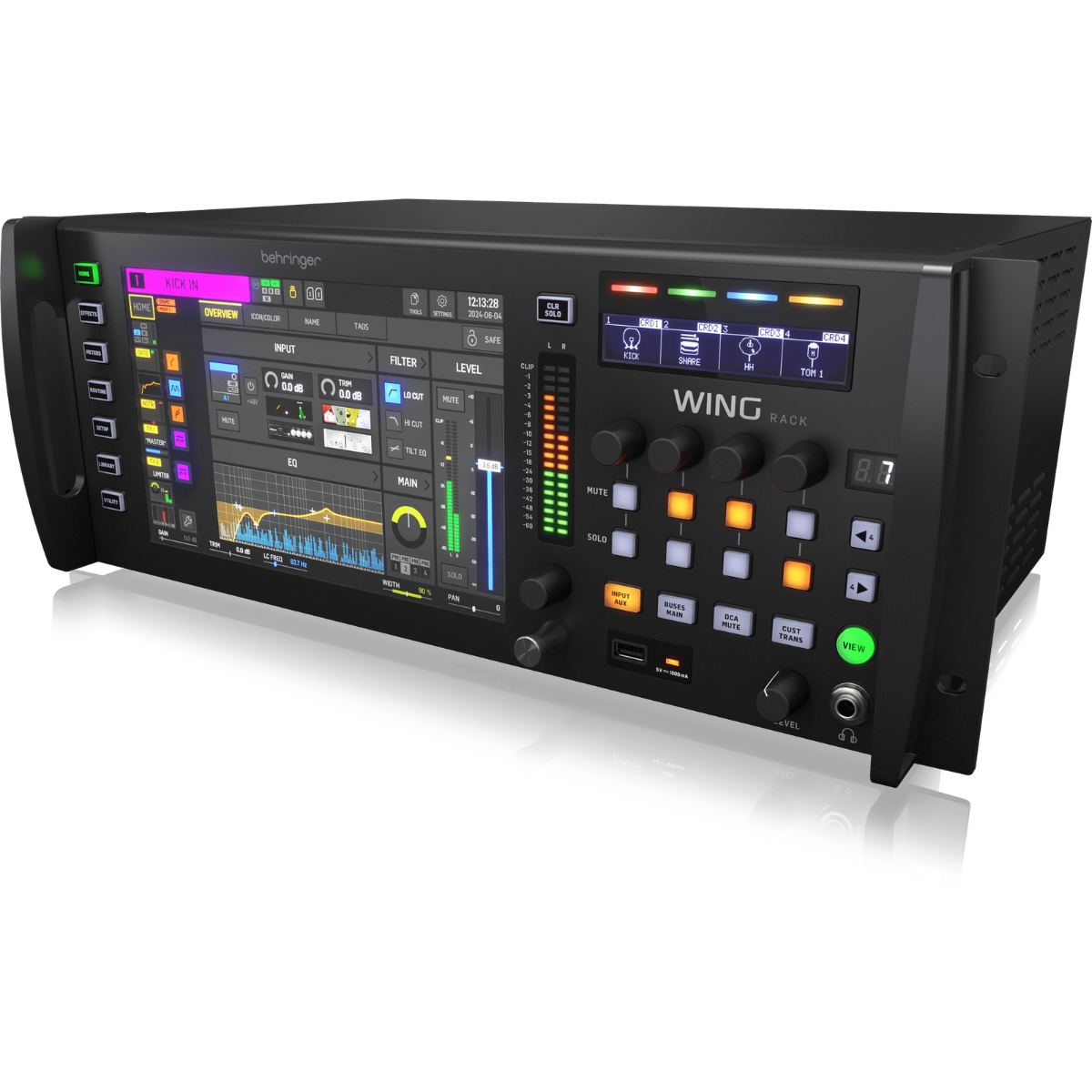

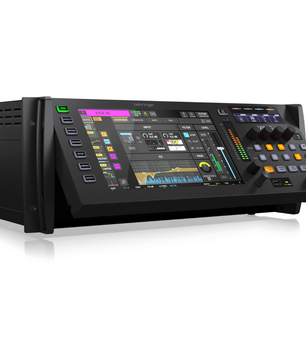

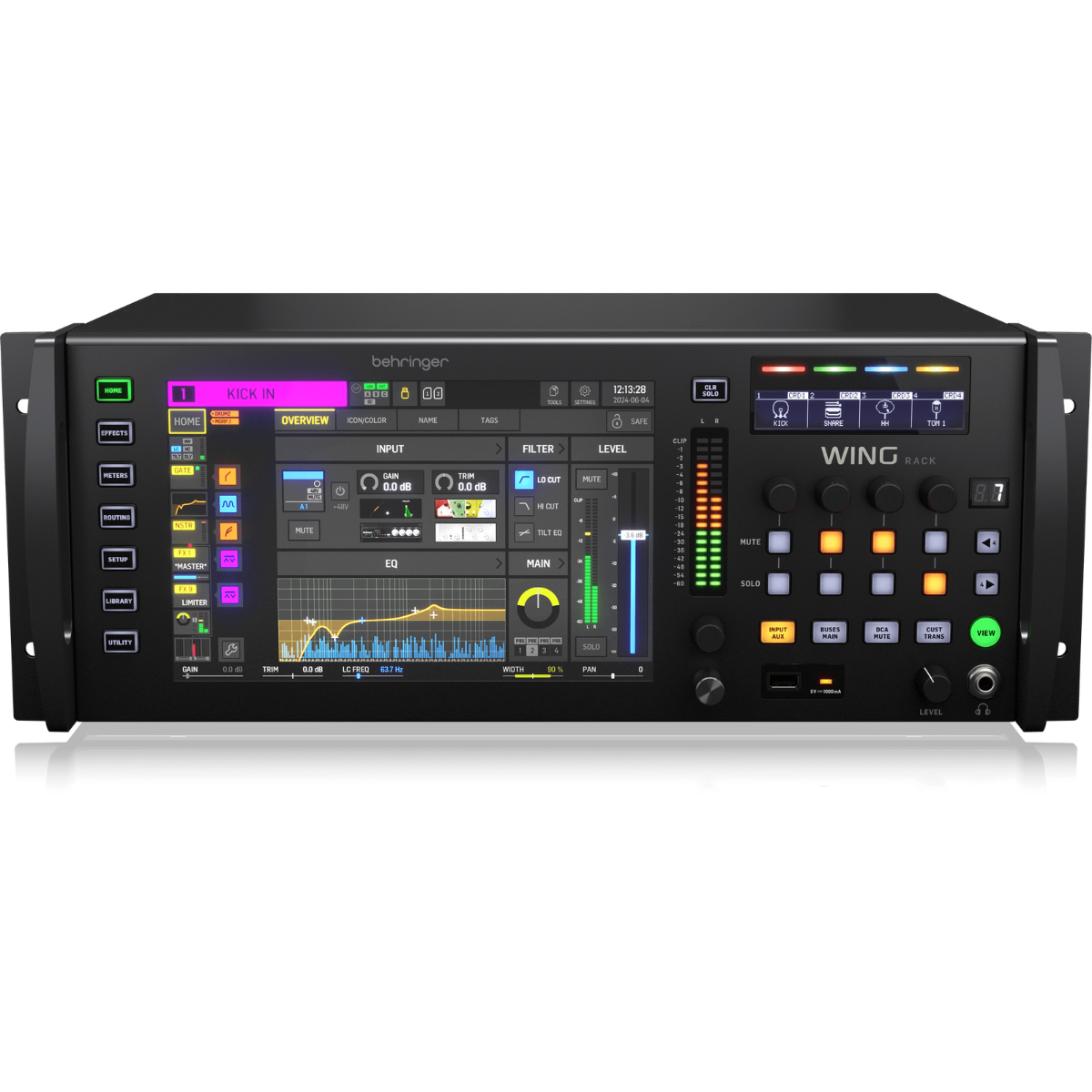

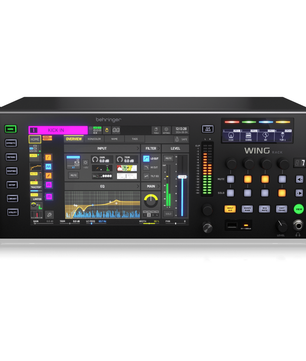

Behringer WING RACK | 48 Channel Digital Mixer Engine | Rackmount with 24 Midas Preamps

Behringer WING RACK | 48 Channel Digital Mixer Engine | Rackmount with 24 Midas Preamps

$1,799.00

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Digital Mixing Engine

Behringer WING RACK is a powerful rackmount digital mixing engine designed for live sound, monitor mixing, and installed audio systems. Delivering the full performance of the WING platform in a compact 4U format, it offers flexible control, massive I/O capability, and premium sound quality.

Behringer WING RACK Competitive Differences

48 fully configurable stereo channels with mono, stereo, or M/S operation
24 Midas PRO preamps for high-end audio performance
Rackmount 4U design with adjustable front control panel
28 stereo buses optimized for immersive monitoring workflows
Dual SD card recorder with up to 64-track recording

Behringer WING RACK Description

The Behringer WING RACK brings the full capabilities of the WING mixing system into a streamlined rackmount format, making it ideal for touring racks, installed systems, and monitor mixing setups. Its innovative FlexChannel architecture allows every channel to operate in mono, stereo, or mid/side mode without sacrificing processing power.

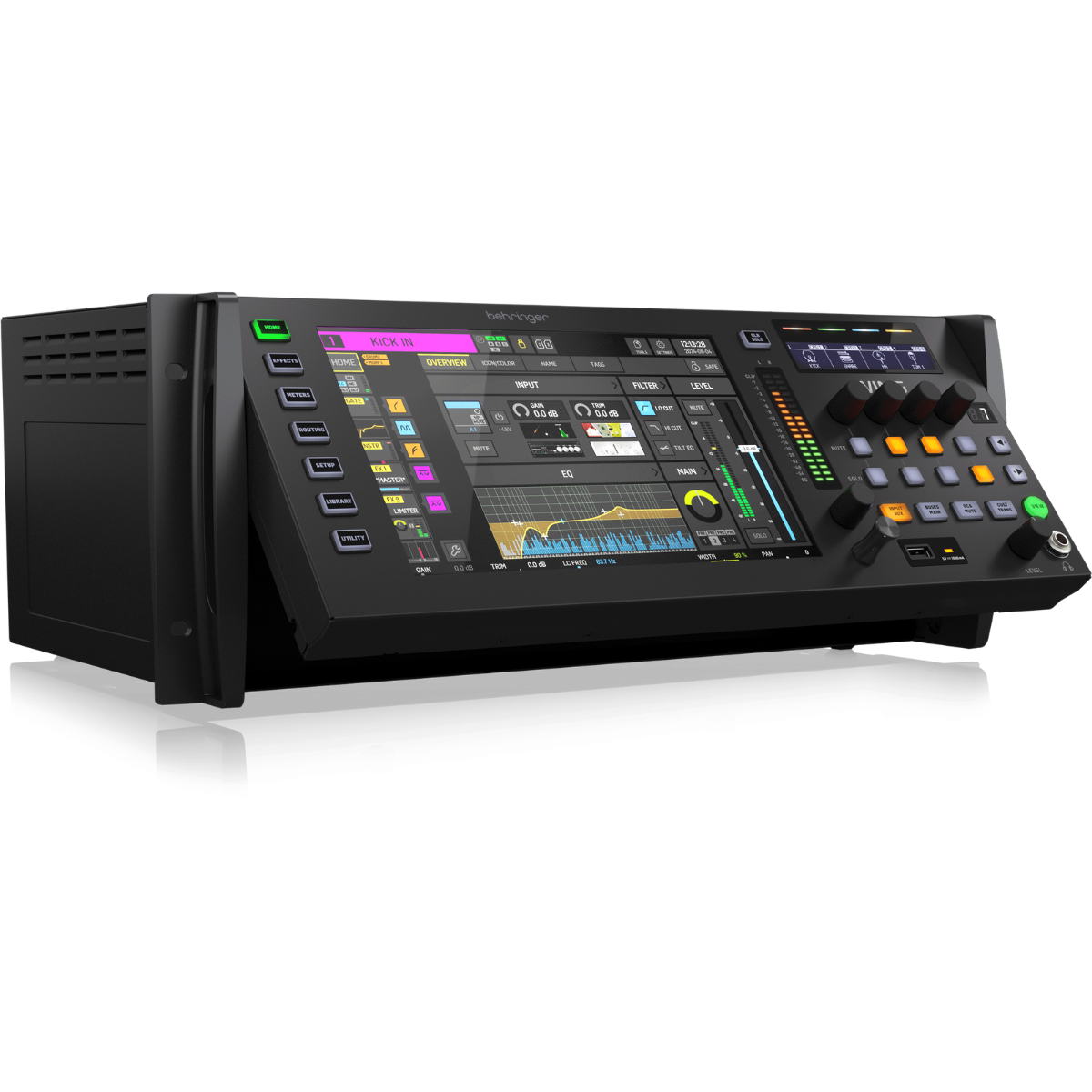

With 24 Midas PRO mic preamps onboard, the WING RACK delivers exceptional clarity, dynamic range, and low-noise performance. Its unique adjustable front panel with integrated 10.1" touchscreen and rotary controls provides intuitive access to key parameters, even when mounted in a rack.

The system features extensive I/O with AES50 connectivity, StageConnect integration, and a built-in 48x48 USB audio interface for seamless DAW workflows. The included dual SD card recorder supports up to 64-track recording and playback, making it ideal for virtual soundchecks and live production capture.

Powered by 40-bit internal processing and equipped with 16 stereo FX engines and over 80 premium effects, the WING RACK eliminates the need for external processing. Its flexible control options, network capabilities, and expansion slots make it a future-ready solution for professional audio environments.

WING RACK Features

48 stereo channels configurable as mono, stereo, or M/S
28 stereo buses with full processing and inserts
24 Midas PRO mic preamps and 8 outputs
Rackmount 4U design with adjustable control panel
10.1" capacitive touchscreen with rotary controls

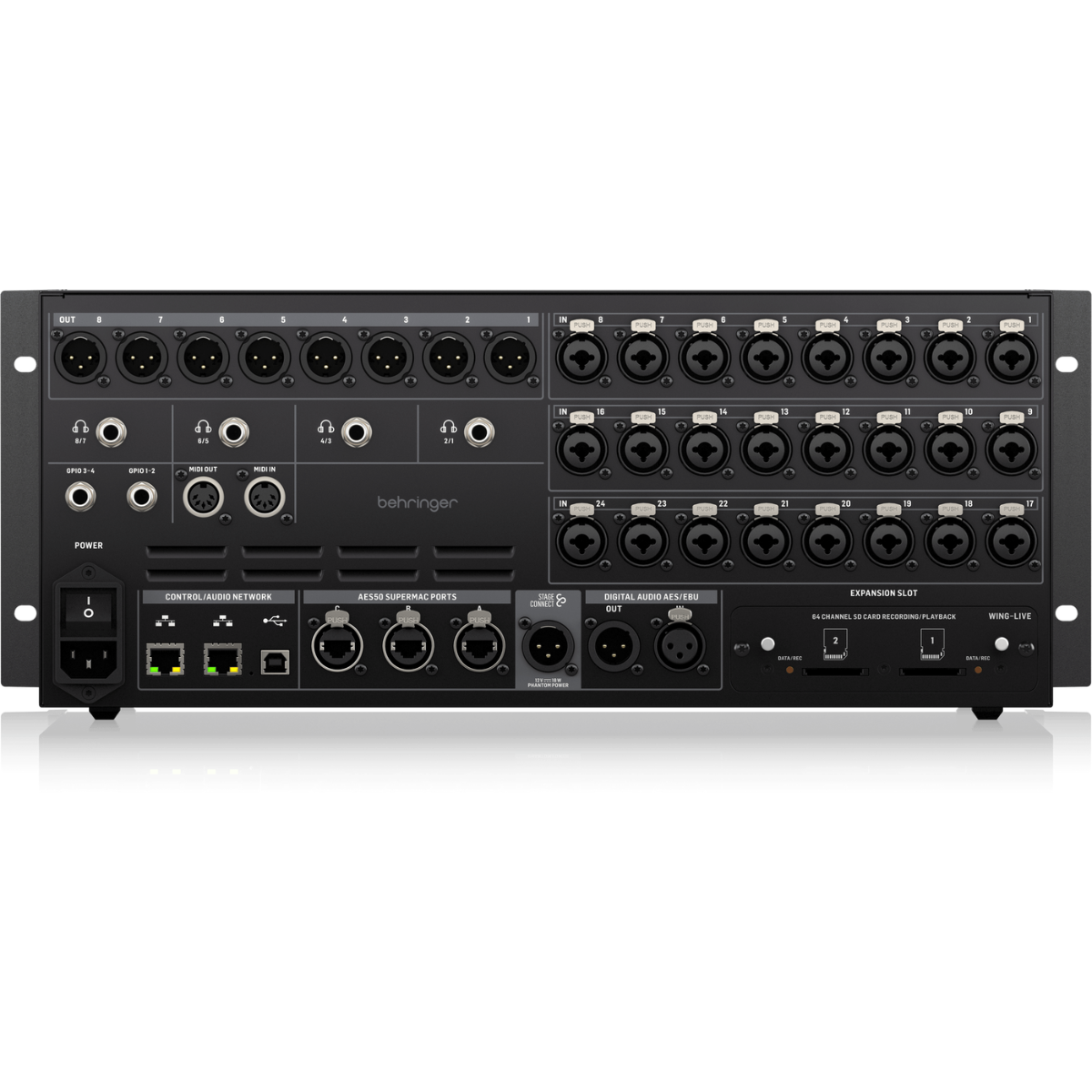

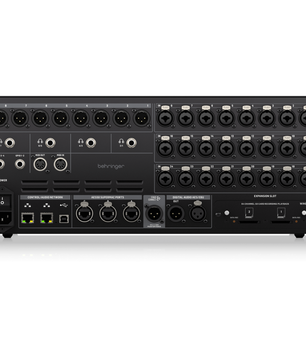

3 AES50 ports with 144x144 channels and ultra-low latency
StageConnect 32-channel bidirectional audio over XLR
48x48 USB audio interface for DAW integration
Dual SD card recorder with up to 64 tracks
16 stereo FX engines with 80+ effect algorithms
4 headphone outputs with high-performance amps for IEM use
GPIO, MIDI, AES/EBU, and network control support
Expansion slot for Dante, Waves SoundGrid, MADI, and more

WING RACK Specifications

Frequency Response: 10 Hz – 20 kHz
Dynamic Range (Analog In to Out): 111 dB (XLR), 108 dB (Aux)
A/D Dynamic Range: 112 dB (XLR), 110 dB (Aux)
D/A Dynamic Range: 118 dB (XLR), 112 dB (Aux)
Main Display: 10.1" TFT LCD, 1280 x 800, multi-touch
USB Audio Interface: 48x48 channels
Recorder: Dual SD card, up to 64 tracks
Power Supply: 100–240 VAC, auto-ranging
Power Consumption: 130 W
Dimensions: 19.1 x 12.8 x 7.2 in (486 x 326 x 183 mm)
Weight: 20.8 lb (9.44 kg)

What's In The Box

Behringer WING RACK digital mixing engine
Power cable
Quick start guide
