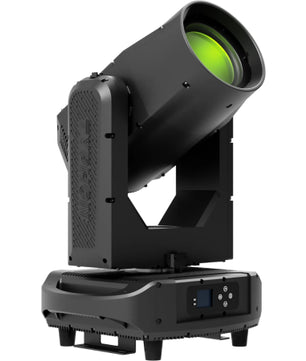

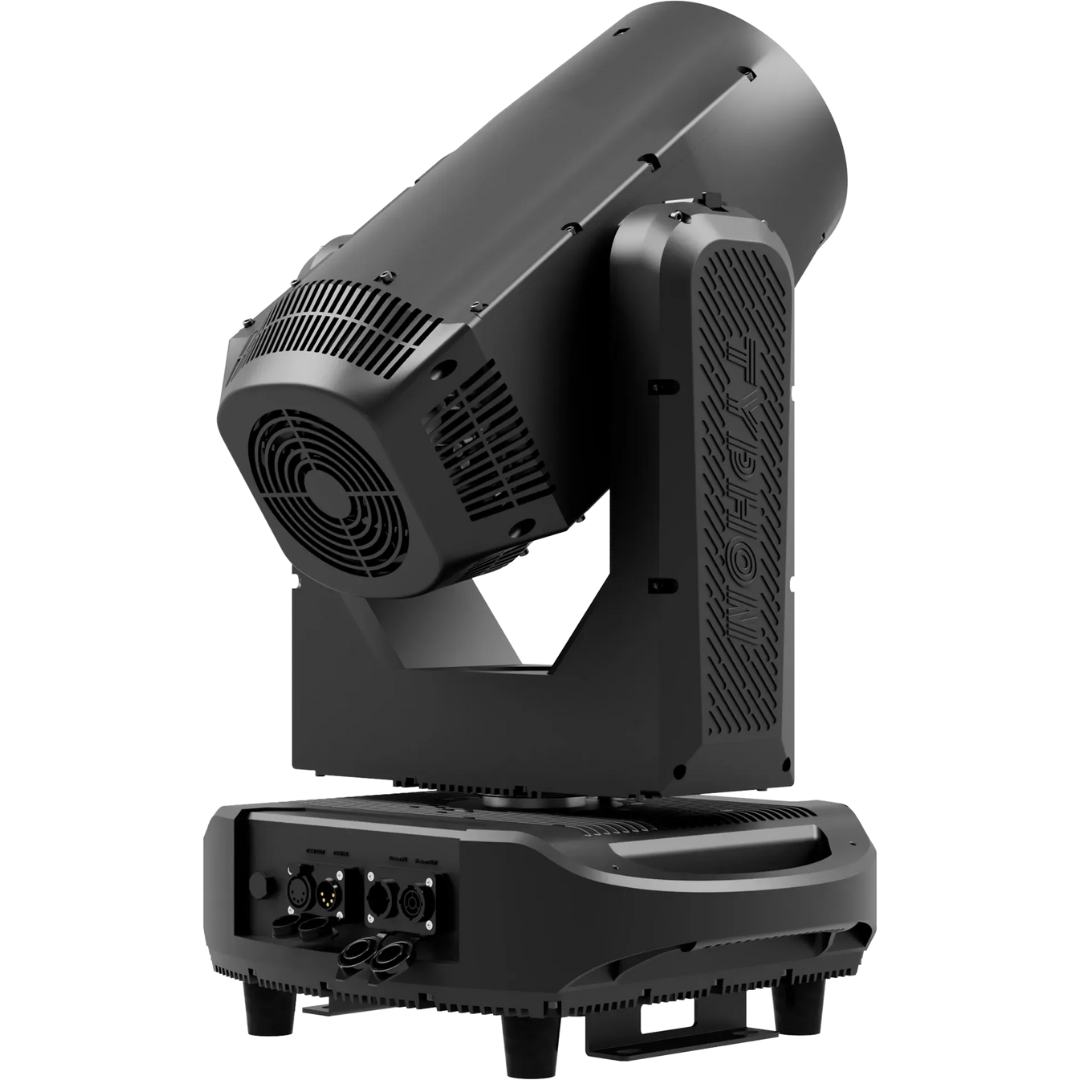

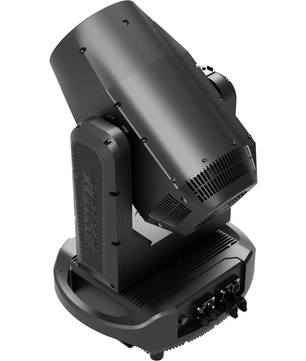

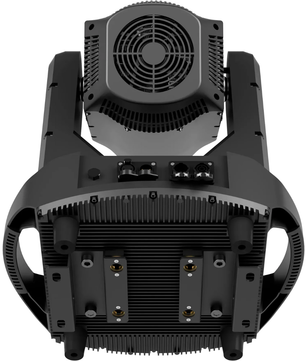

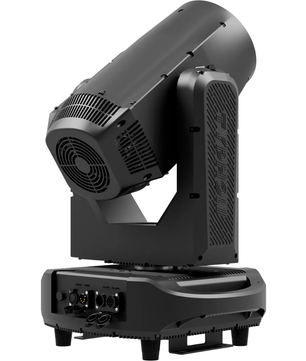

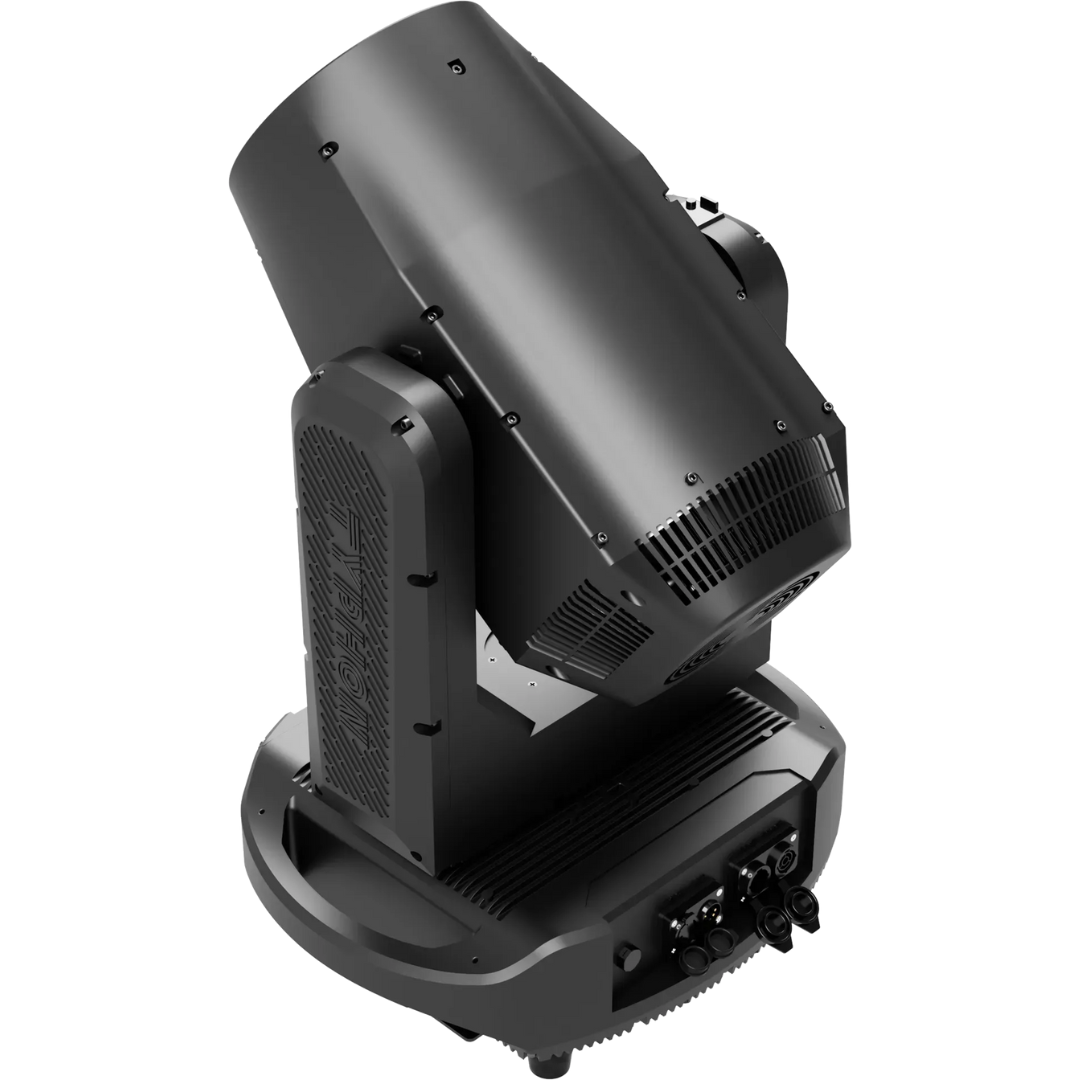

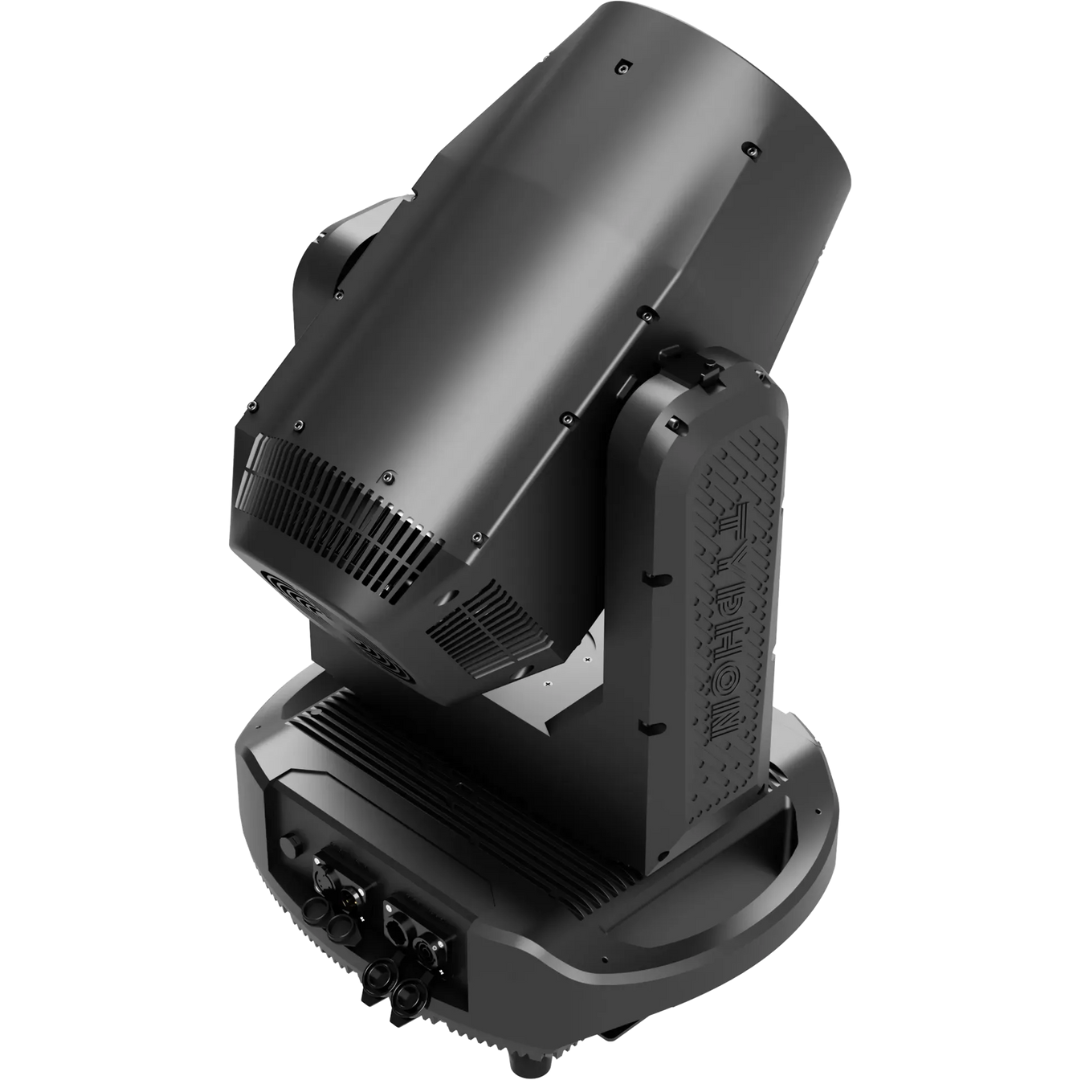

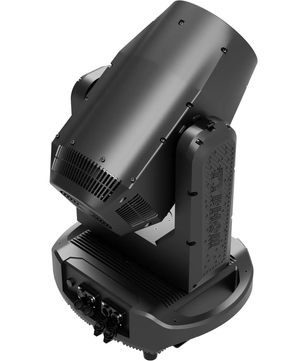

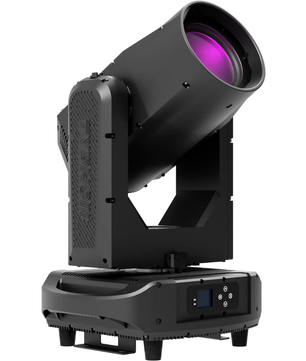

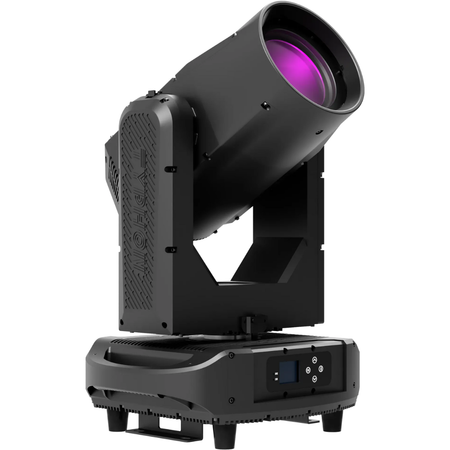

Blizzard Lighting Typhon IP BSW 400 | IP66 Beam/Spot/Wash Moving Head | 400W LED with CMY & Dual Prisms

IP66 Beam, Spot, Wash LED Moving Head

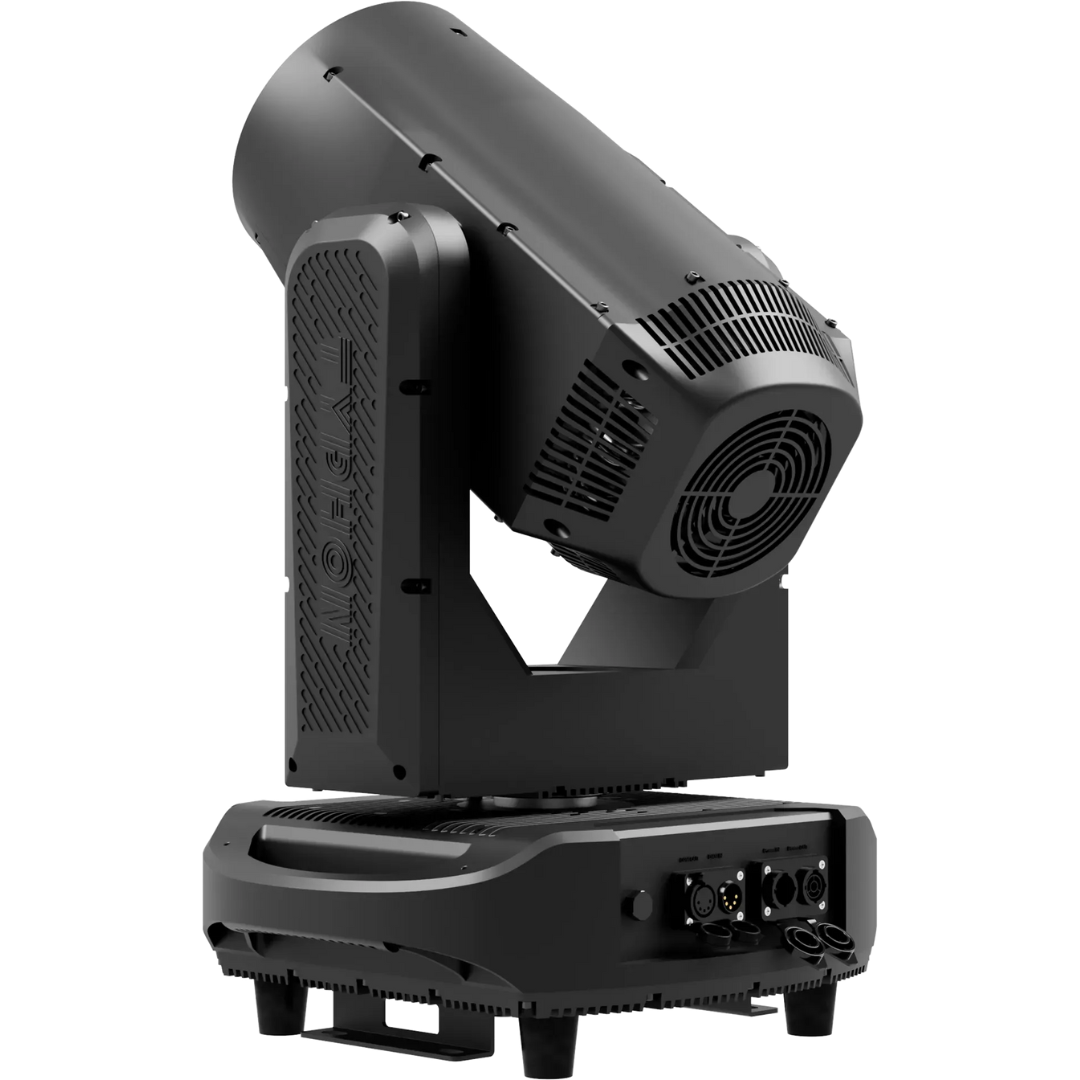

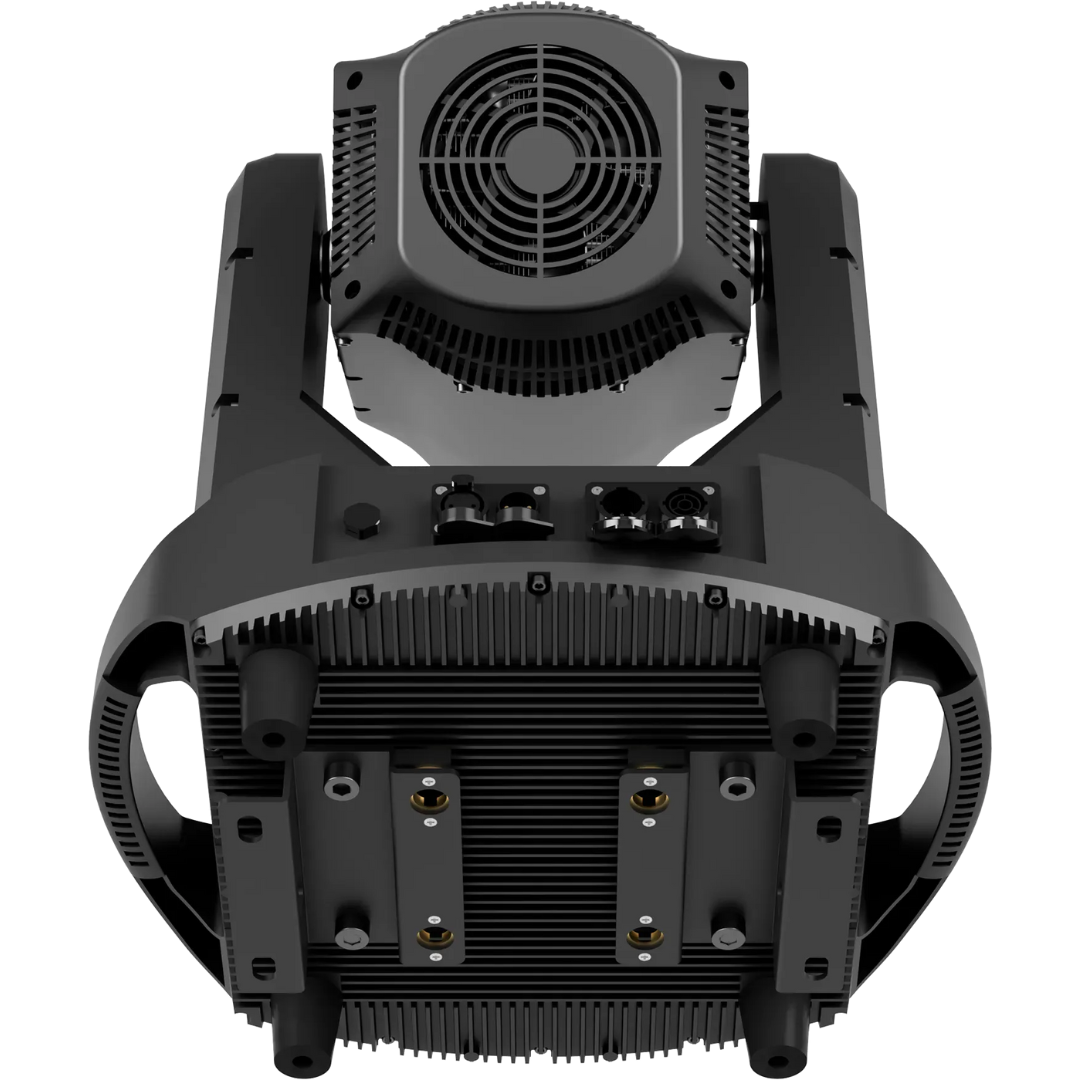

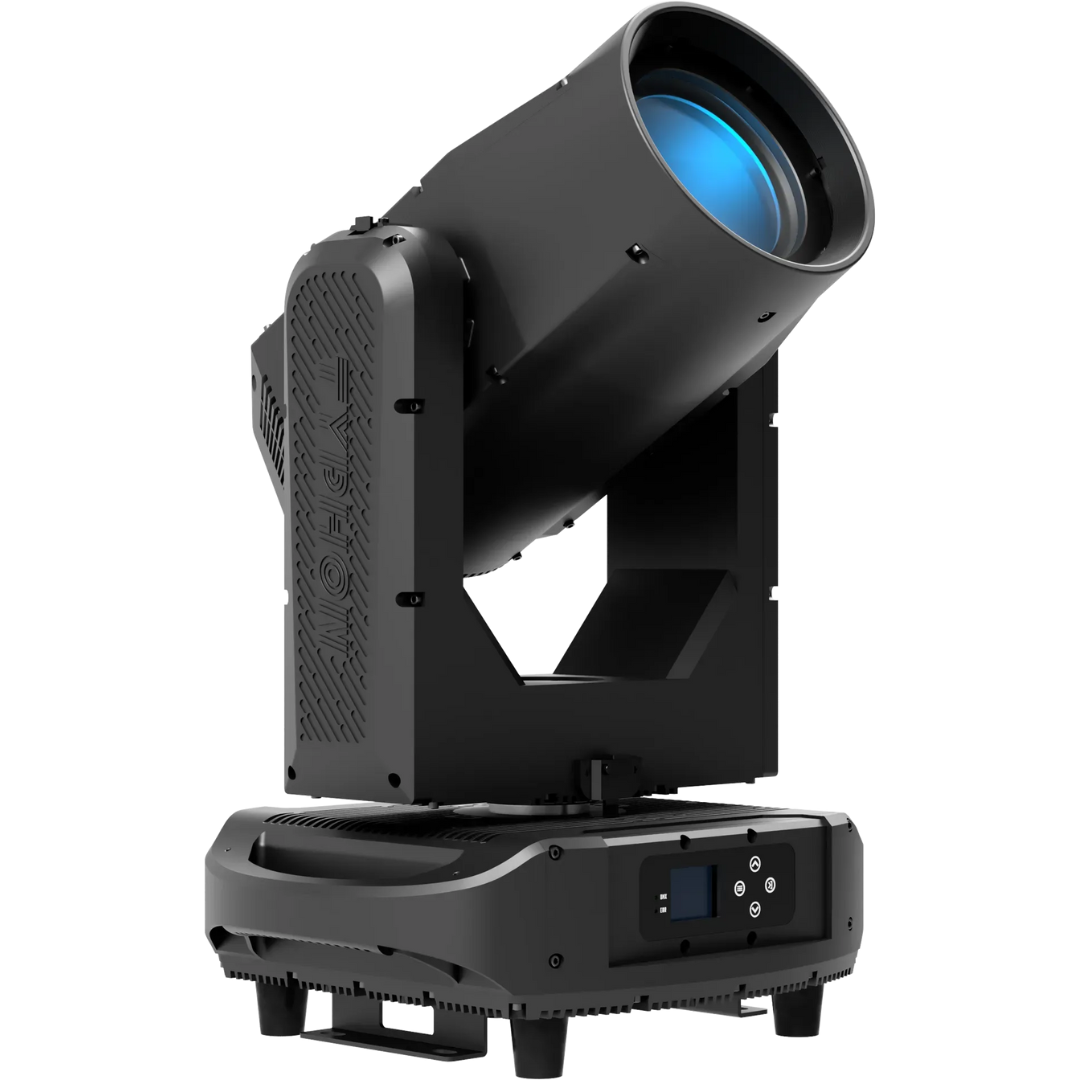

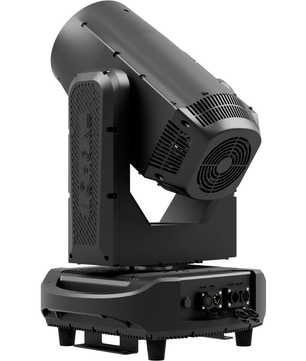

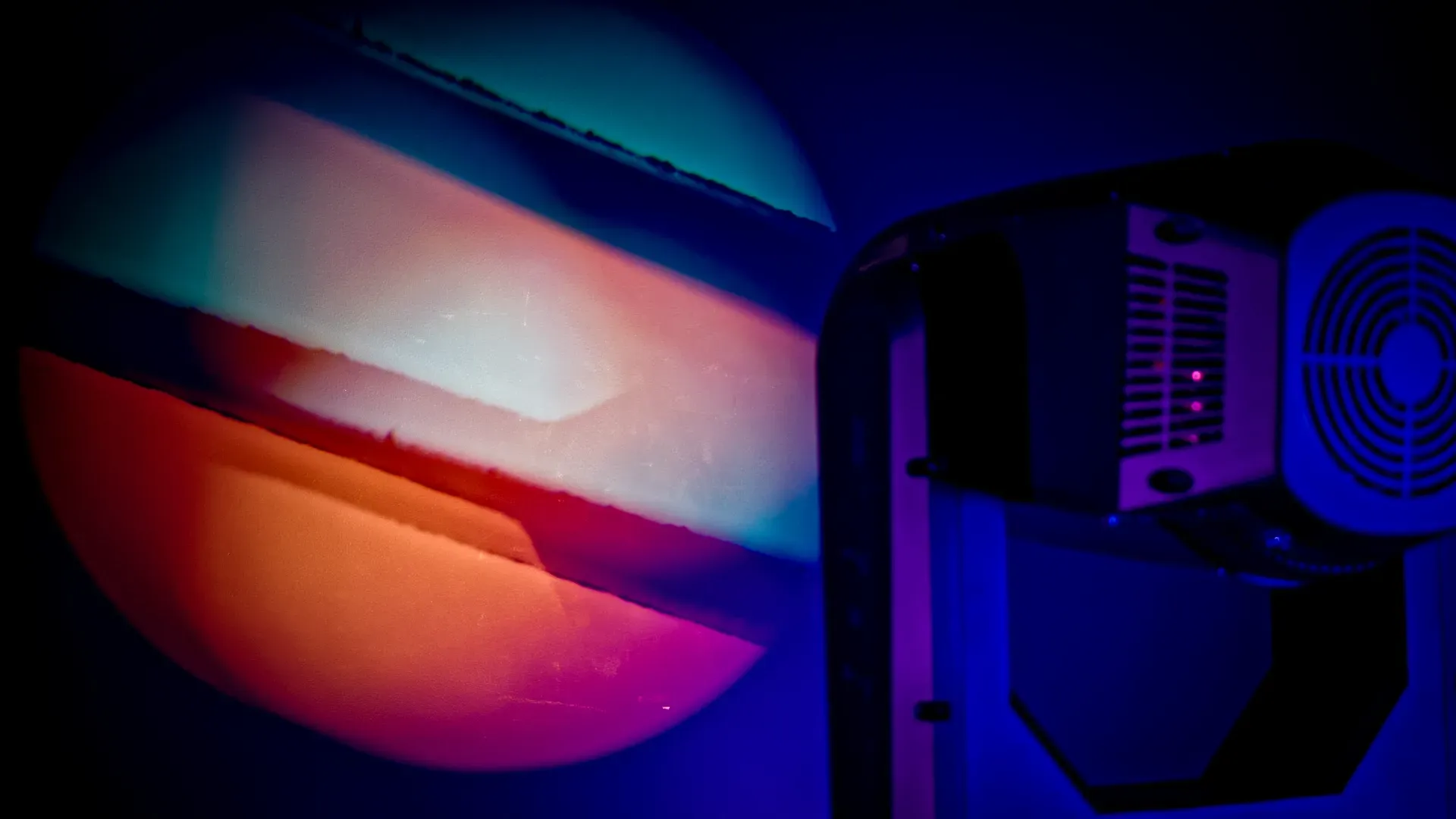

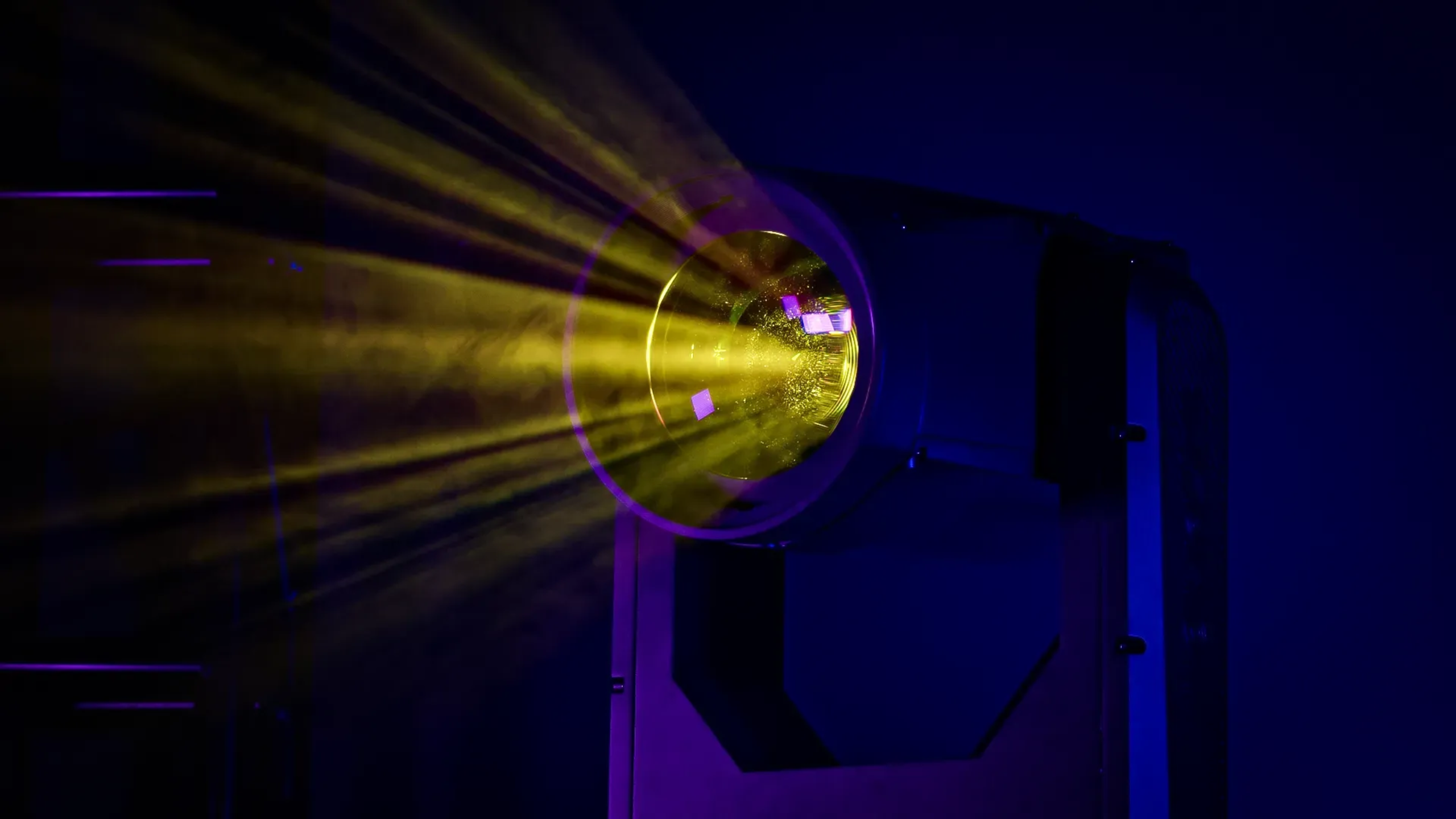

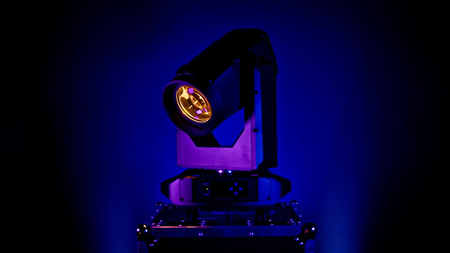

Blizzard Lighting Typhon IP BSW 400 is a powerful and weatherproof moving head designed to handle the most demanding outdoor environments. With a 400W white LED engine, CMY color mixing, motorized zoom, and dual gobo systems, it offers exceptional versatility for professional lighting applications.

Blizzard Lighting Typhon IP BSW 400 Competitive Differences

• IP66-rated for all-weather use in harsh environments
• CMY + CTO color mixing with dual gobo wheels and dual prisms

Blizzard Lighting Typhon IP BSW 400 Description

The Blizzard Lighting Typhon IP BSW 400 is built for serious outdoor productions where durability meets precision performance. Featuring a high-output 400W white LED (6800K), it produces brilliant beams, spots, and washes with a 3°–38° linear zoom and motorized focus and frost for soft-edge effects. This fixture offers full CMY color mixing and CTO adjustment, alongside a dedicated color wheel with 8 vibrant colors plus open. It’s equipped with both rotating and static gobo wheels, including 7 rotating gobos, 10 static gobos, and 2 beam reducers—ideal for layering textures and effects. Creative control is enhanced by dual rotating prisms (3-facet and 4-facet), a 0–30Hz strobe with pulse/random effects, and precision 540° pan and 270° tilt movement with 8 or 16-bit resolution. Rated IP66, the Typhon IP BSW 400 is engineered to operate reliably in rain, dust, or harsh conditions without compromise. It supports DMX512 and RDM protocols in a 23-channel mode and includes a PowerCON® TRUE1-compatible input/output and a full-color TFT LCD interface with touch buttons. Perfect for festivals, arenas, outdoor installations, and touring productions, this fixture delivers high-performance lighting under any conditions.

Model Features

• 400W white LED (6800K, 20,000-hour life)
• IP66-rated housing for outdoor use
• CMY color mixing with CTO correction
• 8-color wheel plus open

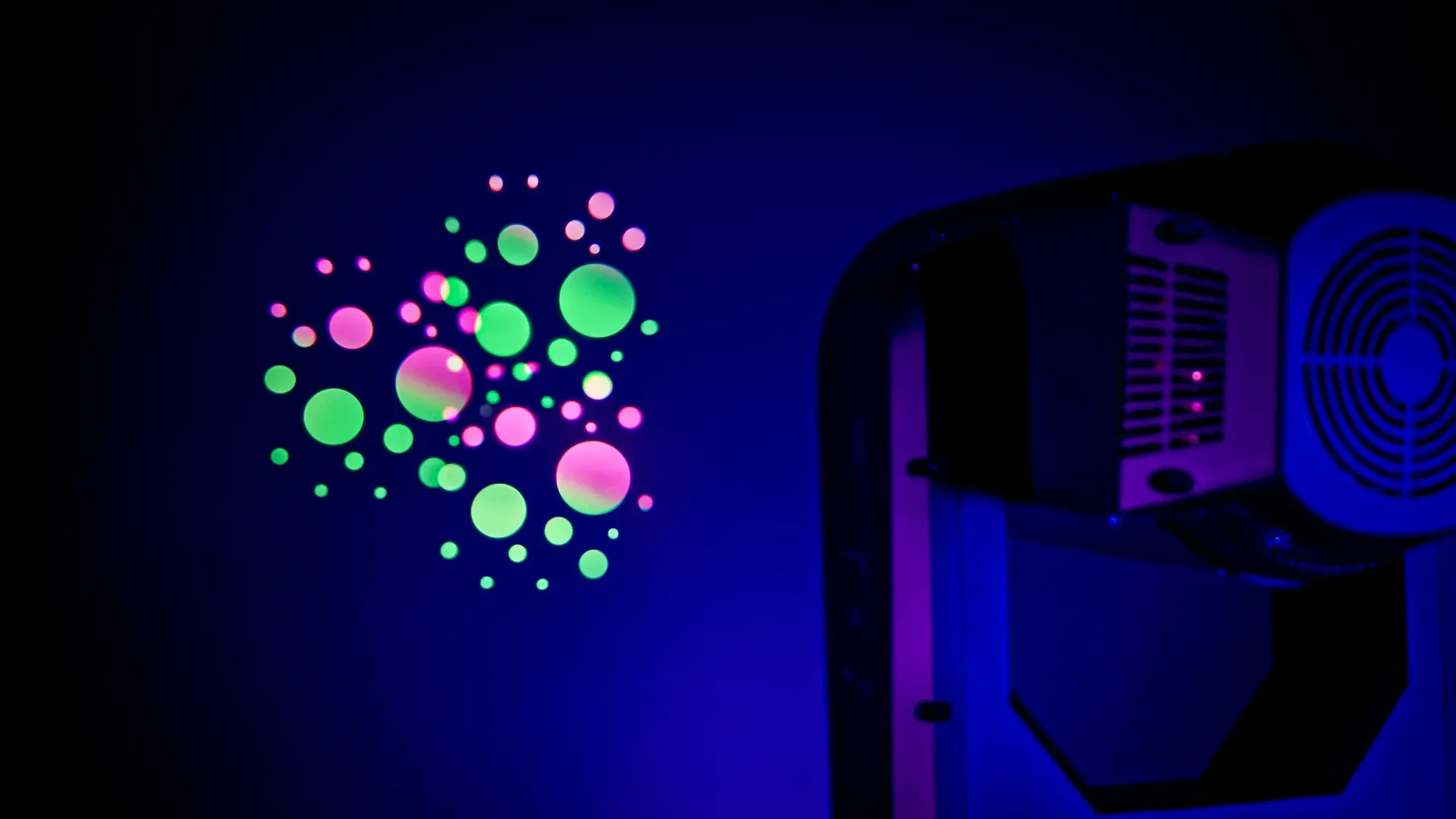

• Rotating gobo wheel: 7 gobos + open
• Static gobo wheel: 10 gobos + 2 beam reducers + open
• Dual rotating prisms: 3-facet and 4-facet
• Linear motorized zoom: 3° to 38°
• Motorized focus and frost effects
• 0–30Hz strobe with pulse and random modes
• Pan: 540°, Tilt: 270° (8/16-bit resolution)
• DMX512 and RDM with 23-channel mode
• PowerCON® TRUE1 in/out and TFT LCD with touch controls
• Ambient temp rating: up to 104°F (40°C)

Model Specifications

• Dimensions (Single Pack): 21.5 x 20.5 x 34 in.
• Weight: 112 lbs. (50.8 kg)

What's In The Box

• Typhon IP BSW 400 moving head fixture
• Mounting hardware
• User guide
