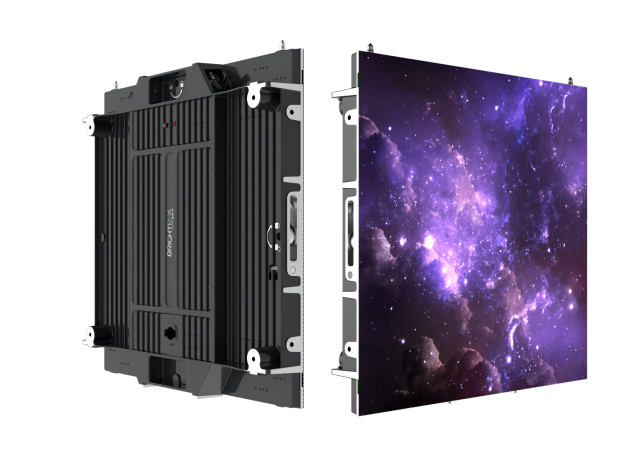

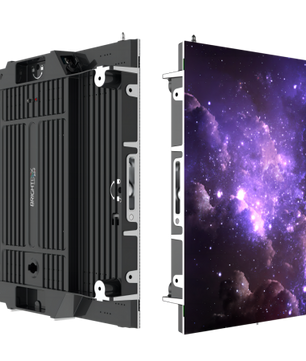

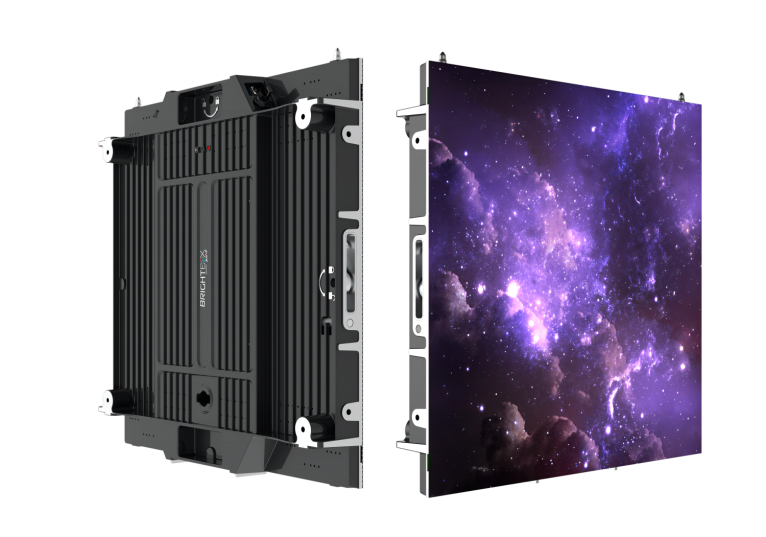

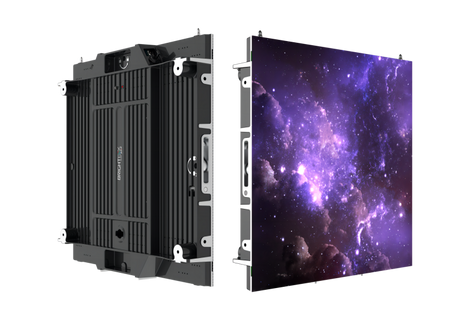

BrightBox Osiris 1.9 | 1.9mm Pixel Pitch GOB LED Panel | Front-Service Fixed Display with Ultra-Fine Resolution

High-Resolution Indoor LED Display Panel

The BrightBox Osiris 1.9 is a fixed indoor LED panel designed for ultra-fine image clarity and professional-grade durability. Featuring a 1.9mm pixel pitch and high pixel density, it’s engineered for environments where close-up viewing and sharp visuals are essential. With GOB (Glue-on-Board) technology, front service access, and versatile mounting options, this panel is ideal for digital signage, corporate displays, retail environments, and more.

BrightBox Osiris 1.9 Competitive Differences

• Ultra-fine 1.9mm pixel pitch with 256 x 256 resolution per panel
• GOB (Glue-on-Board) LED protection for improved durability and reliability

BrightBox Osiris 1.9 Description

The BrightBox Osiris 1.9 delivers crisp, high-definition imagery with a fine 1.9mm pixel pitch, ideal for installations where viewers are close to the display. Each panel uses 1010/1515 LED technology and features a dense 256 x 256 resolution, producing highly detailed visuals for professional environments. With GOB protection, the LED surface is sealed and more resistant to dust, moisture, and physical impact, making it more durable than traditional panels—without compromising visual clarity. Whether wall-mounted directly or suspended, its slim 2.4-inch depth and lightweight frame allow for streamlined installation and easy integration into existing spaces. The panel achieves an ultra-smooth refresh rate of ≥3,840 Hz, providing flicker-free performance suitable for motion-heavy content, live presentations, and interactive displays. Certified for safety and performance (ETL, FCC, ROHS, CE) and backed by a 3-year warranty, the Osiris 1.9 is built to meet the demands of professional installations.

Model Features

• 1.9mm pixel pitch for ultra-fine detail
• GOB LED technology for enhanced durability
• 800 nit brightness for vivid indoor viewing
• ≥3,840 Hz refresh rate for flicker-free visuals
• Direct wall or hang mounting options
• Front serviceable for easy maintenance
• ETL, FCC, ROHS, and CE certified

Model Specifications

• Pixel Pitch: 1.9 mm
• LED Type: 1010/1515 with GOB coating
• Pixel Resolution: 256 x 256
• Panel Dimensions: 19.6″ x 19.6″ x 2.4″ (500 x 500 x 63 mm)
• Weight: 15.2 lb (6.9 kg)
• Brightness: 800 Nit
• Refresh Rate: ≥3,840 Hz
• Grayscale: 16-bit
• Pixel Density: 262,144 dots/m²
• Scan Mode: 1/64
• Max Power Usage: 200W
• Input Power: 600W
• IP Rating: IP30 (Front), IP20 (Rear)
• Serviceability: Front
• Control System: Novastar
• Lifespan: 100,000 hours
• Certifications: CE, RoHS, FCC, ETL
• Warranty: 3 Years
• UPC: 618528598529
