ChamSys MagicQ Compact Connect | 10 Playbacks, 2 DMX Outputs | USB Lighting Control Surface for MagicQ
USB Lighting Control Surface

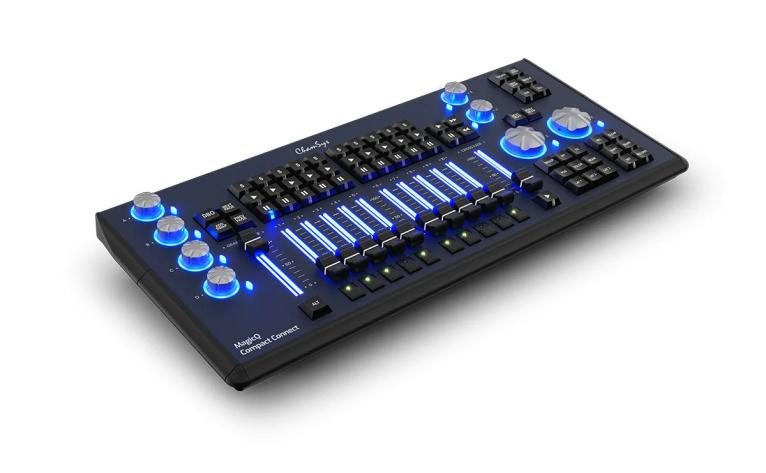

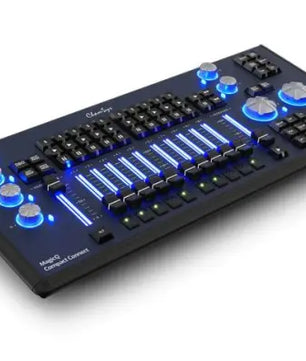

The ChamSys MagicQ Compact Connect is a portable USB lighting control surface designed to provide hands-on control of DMX lighting, LED fixtures, and media systems through MagicQ software. Featuring 10 playback faders, eight rotary attribute encoders, two direct DMX512 outputs with RDM support, and up to 64 universes of ArtNet and sACN output, this compact controller delivers extensive lighting programming and playback capabilities. Compatible with Windows, macOS, and Linux, it provides a practical solution for touring lighting designers, theaters, clubs, schools, studios, and entertainment venues.
ChamSys MagicQ Compact Connect Competitive Differences
- 64 Universes of Lighting Control: Outputs up to 32,768 DMX channels through ArtNet and sACN using the onboard network connection without additional licenses or dongles.
- Two Direct DMX512 Outputs: Built-in DMX ports support RDM for direct fixture communication and management.
- 10 Illuminated Playback Faders: Dedicated playback faders with Flash, Go, and Select buttons provide tactile control during live performances.
- Eight Rotary Attribute Encoders: Illuminated encoders provide direct access to fixture parameters for precise adjustments.
- Dedicated Grand Master and Crossfader: Independent controls provide convenient management of overall lighting levels and transitions.
- Free MagicQ Software Integration: Connects to MagicQ software running on Windows, macOS, or Linux for lighting programming, visualization, pixel mapping, and media control.
- Integrated USB Hub: Four USB-A ports and one USB-C input simplify computer connectivity and peripheral integration.
- Audio and Remote Trigger Inputs: Includes an audio input and 10Scene/Remote input for additional show control options.
- Extensive Show Programming: Supports up to 5,000 cues, 2,000 cue stacks, 5,000 groups, and 4,096 palettes.
- Travel-Friendly Design: Compact 20.55-inch-wide chassis weighs approximately 8.05 lb and is designed for portable lighting control applications.
ChamSys MagicQ Compact Connect Description

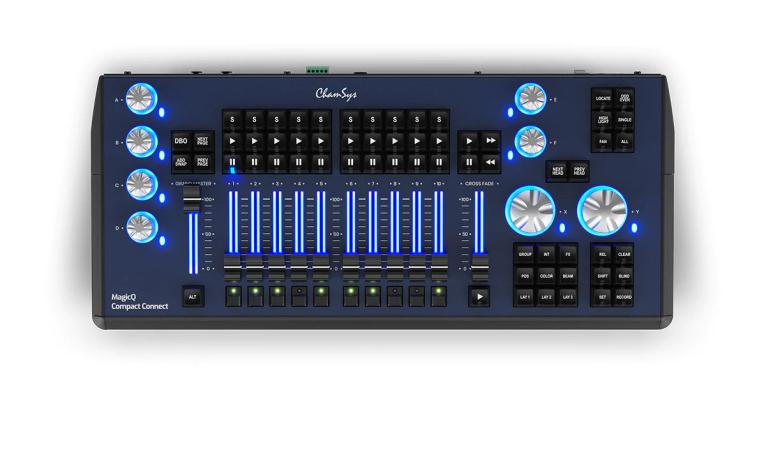

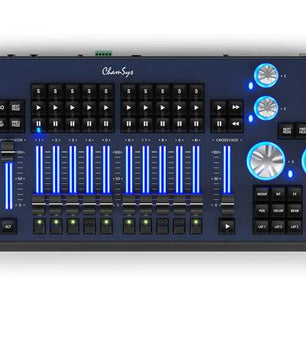

The ChamSys MagicQ Compact Connect brings the extensive programming capabilities of MagicQ software into a compact, physical control surface designed for lighting professionals. Connecting to a compatible computer through USB, the controller provides direct access to fixture attributes, playback functions, and overall show control. Its 10 illuminated playback faders feature dedicated Flash, Go, and Select buttons, while eight rotary encoders allow precise adjustment of lighting parameters. Dedicated Grand Master and Crossfader controls make it easy to manage overall intensity and playback transitions during live performances.

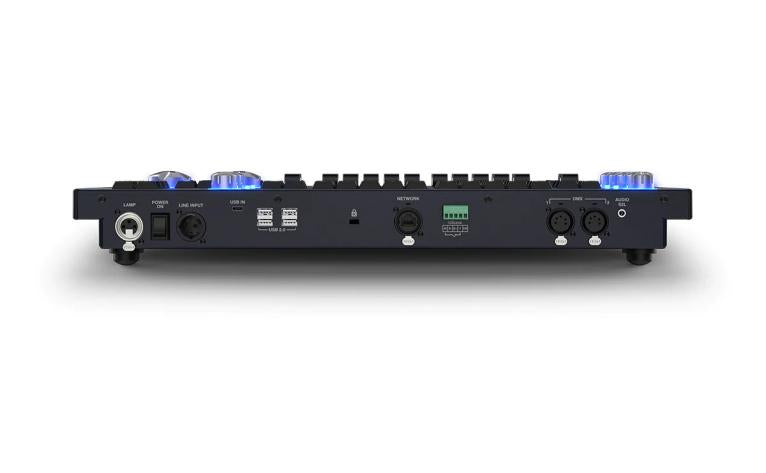

Designed for both conventional DMX lighting and larger networked systems, the Compact Connect features two direct DMX512 outputs with RDM support and an integrated Ethernet connection capable of transmitting up to 64 universes through ArtNet and sACN. This allows lighting designers to control up to 32,768 DMX channels without additional output licenses or dongles. The hardware also includes a built-in USB hub with four USB-A ports, an audio input, a 10Scene/Remote input, a Kensington security lock fixing, and a working light connection for added convenience in production environments.
MagicQ software provides a comprehensive platform for programming and operating lighting, LED fixtures, and media systems. Features include integrated lighting visualization, pixel mapping, HD media playback, and extensive show management tools. The system supports up to 32,768 fixtures, 5,000 cues, 2,000 cue stacks, 5,000 groups, and 4,096 palettes, along with control of up to 50 media server layers containing different content. These capabilities allow lighting designers to develop detailed shows with coordinated fixture movements, color effects, playback sequences, and media integration.
Built for portability and flexible installation, the Compact Connect measures just 20.55 inches wide, 9.06 inches deep, and 2.56 inches high, with a weight of approximately 8.05 lb. Its compact design makes it suitable for traveling lighting designers who need tactile control alongside a laptop, as well as fixed installations in theaters, clubs, schools, houses of worship, and production studios. A Neutrik powerCON TRUE1 power connection supports 110–240V AC operation, while the included dual-color desk light, dust cover, USB cable, and power cable provide essential accessories for setup and operation. The Compact Connect requires a compatible computer running MagicQ software and is not a standalone lighting console.
MagicQ Compact Connect Features
- Compact USB lighting control surface for MagicQ software
- Compatible with Windows, macOS, and Linux computers
- 10 illuminated playback faders for live lighting control
- Flash, Go, and Select buttons for each playback
- Eight illuminated rotary attribute encoders for fixture parameter adjustments
- Dedicated Grand Master and Crossfader controls
- Two direct DMX512 outputs with RDM support
- Up to 64 ArtNet and sACN universes through onboard Ethernet
- Maximum capacity of 32,768 DMX channels
- No additional output licenses or dongles required for supported ArtNet and sACN universes
- Integrated USB hub with four USB-A outputs
- USB-C input for computer connection
- Single-channel audio input with seven-band processing
- 10Scene/Remote input for external control integration
- Integrated network port for ArtNet and sACN output
- Working light socket with included dual-color desk light
- Kensington security lock fixing
- MagicQ lighting visualization and pixel mapping capabilities
- HD media playback and media server control through MagicQ software
- Support for up to 50 media server layers with different content
- Support for up to 32,768 fixtures
- Maximum of 5,000 cues and 2,000 cue stacks
- Up to 5,000 groups and 4,096 palettes
- Portable design suitable for touring and fixed installations
- Neutrik powerCON TRUE1 AC power connection
- Universal 110–240V AC power compatibility
- Includes USB A-to-C cable, dual-color desk light, dust cover, and power cable
MagicQ Compact Connect Specifications
- Product Type: USB Lighting Control Surface
- Control Software: ChamSys MagicQ
- Supported Operating Systems: Windows, macOS, Linux
- Direct DMX Outputs: 2
- DMX Protocol: DMX512
- RDM Support: Yes
- Network Protocols: ArtNet, sACN
- Maximum Universes: 64
- Maximum DMX Channels: 32,768
- Maximum Supported Fixtures: 32,768
- Fader Playbacks: 10
- Attribute Encoders: 8
- Playback Controls: Flash, Go, Select
- Master Controls: Grand Master, Crossfader
- USB Ports: 5 Total
- USB-A Ports: 4 Outputs
- USB-C Ports: 1 Input
- Network Ports: 1
- Audio Input: 1 Channel, 7-Band
- 10Scene/Remote Input: Yes
- Kensington Security Lock Fixing: Yes
- Working Light Port: Yes
- Maximum Cues: 5,000
- Maximum Cue Stacks: 2,000
- Maximum Groups: 5,000
- Maximum Palettes: 4,096
- Maximum Supported Media Server Layers: 50 (Each with Different Content)
- Power Connection: Neutrik powerCON TRUE1
- Input Voltage: 110–240V AC
- Maximum Power Consumption: 15W
- Console Width: 20.55 in (522 mm)
- Console Depth: 9.06 in (230 mm)
- Console Height: 2.56 in (65 mm)
- Height to Top of Encoders: 3.07 in (78 mm)
- Console Weight: 8.05 lb (3.65 kg)
- Boxed Dimensions (W x D x H): 24.80 x 14.17 x 9.06 in (630 x 360 x 230 mm)
- Boxed Weight: 12.13 lb (5.5 kg)
What's In The Box
- 1 x ChamSys MagicQ Compact Connect USB Lighting Control Surface
- 1 x USB A-to-C Cable
- 1 x Dual-Color Desk Light
- 1 x Dust Cover
- 1 x Neutrik powerCON TRUE1 Power Cable
