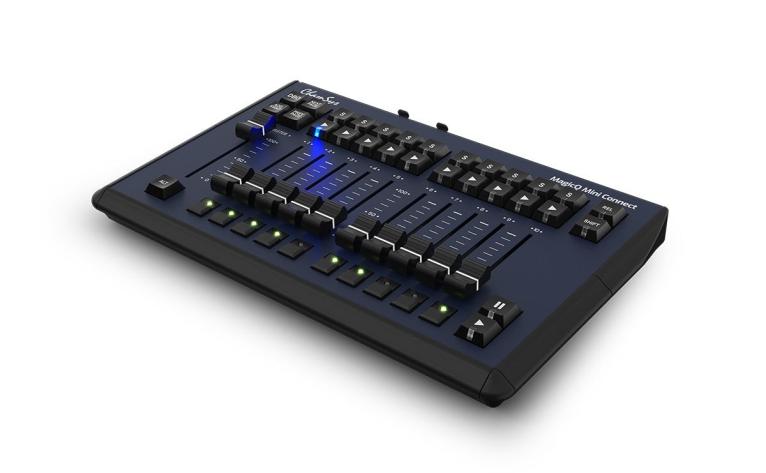

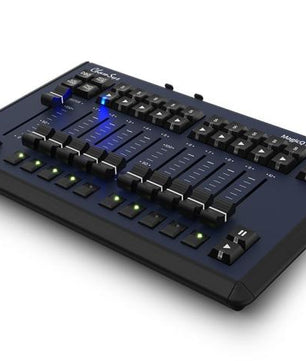

USB Lighting Control Surface

ChamSys MagicQ Compact Mini Connect is a compact and portable USB-powered control surface that transforms your PC, Mac, or Linux system into a professional-grade lighting console. Designed for flexibility and control, it’s ideal for venues, clubs, theatres, and installations needing tactile playback with the power of MagicQ software.

ChamSys MagicQ Compact Mini Connect Competitive Differences

10 physical playback faders with Flash, Go, and Select buttons
Supports 64 universes via ArtNet and sACN over onboard network port

ChamSys MagicQ Compact Mini Connect Description

The MagicQ Compact Mini Connect combines portability with professional-grade performance. With a sleek, compact footprint, it includes 10 fader playbacks, a Grand Master fader, and essential show control buttons, giving lighting operators tactile command during live performances. Built for seamless integration with free MagicQ software, this unit supports up to 64 universes over ArtNet or sACN, along with 1 direct DMX output. It delivers robust capabilities for controlling complex lighting rigs while remaining cost-effective and highly transportable. This model connects via USB-C and is powered entirely by a USB 3.0 port, eliminating the need for an external power supply. The included lightweight, durable case makes it ideal for travel, quick setups, and mobile productions. Whether you're programming shows or running a backup system, the MagicQ Compact Mini Connect delivers professional control in a small package.

Model Features

10 fader playbacks with Flash, Go, and Select buttons
Dedicated Grand Master fader
1 DMX output with RDM support
64 universes via ArtNet/sACN
USB-C connection, USB 3 powered
Includes durable travel case and USB A–C cable

Model Specifications

Max Universes: 64
Max DMX Channels: 32,768
Max Fixtures Supported: 32,768
Max Cues: 5,000
Max Cue Stacks: 2,000
Max Groups: 5,000
Max Palettes: 4,096
Media Server Layers Supported: 50
Supported OS: Windows 8.1+, macOS 10.13+, Linux
Console Dimensions: 12.9 x 8.03 x 1.78 in (327 x 204 x 45 mm)
Console Weight: 4 lb (1.85 kg)
Boxed Dimensions: 15 x 3.94 x 11.8 in (380 x 100 x 300 mm)
Boxed Weight: 6.6 lb (3.0 kg)

What's In The Box

ChamSys MagicQ Compact Mini Connect
USB A–C Cable
Lightweight Durable Case
