ChamSys MagicQ MQ250M Stadium | 64–128 Universe Lighting Console | Motorized Faders & Dual Touch Displays

High-Capacity Lighting Control Console

ChamSys MagicQ MQ250M Stadium is a powerful all-in-one lighting control console built for demanding productions that require advanced features and maximum universes without external processing. With 64 universes standard (expandable to 128), motorized playback faders, and built-in UPS, the MQ250M is the ultimate portable solution for tours, theatres, and live events.

ChamSys MagicQ MQ250M Stadium Competitive Differences

• Control up to 128 universes directly—no additional processing required
• 10 motorized faders and 10 RGB-illuminated playback encoders with multi-bank access

ChamSys MagicQ MQ250M Stadium Description

The ChamSys MagicQ MQ250M Stadium is engineered for high-level lighting designers who demand intuitive access to massive control capabilities in a compact, tour-ready form. With direct output of 64 universes (and expansion to 128), this console removes the need for external nodes or processors, supporting sACN, Art-Net, and Pathport protocols natively. Ten motorized fader playbacks and ten illuminated encoder playbacks offer a highly customizable surface, with up to 202 accessible playbacks across six banks. RGB feedback lighting and touchscreen labeling above the encoders enable rapid identification of functions during complex live shows. The dedicated programmer, master, and playback modes support live editing, group intensity control, channel tweaking, and more—all accessible on the fly. A 15” HD multi-touch display and an additional 5” attribute/encoder touchscreen allow for efficient navigation of MagicQ software features, including MagicVis visualizer, MagicHD media playback, pixel mapping, and the built-in audio timeline editor. The console also features dual 100mm crossfade faders, 8 attribute encoders, MIDI and LTC I/O, 4 DMX outputs, and 4 network ports for advanced connectivity. A built-in UPS ensures show continuity during power interruptions. Whether running festivals, corporate shows, or complex theatre productions, the MQ250M Stadium delivers unmatched control, customization, and reliability—all in a single integrated package.

Model Features

• 64 universes standard, expandable to 128—no external processing needed
• 10 motorized fader playbacks and 10 encoder playbacks
• RGB-illuminated encoder tops and fader tracks
• Backlit keys and customizable cue stack colors

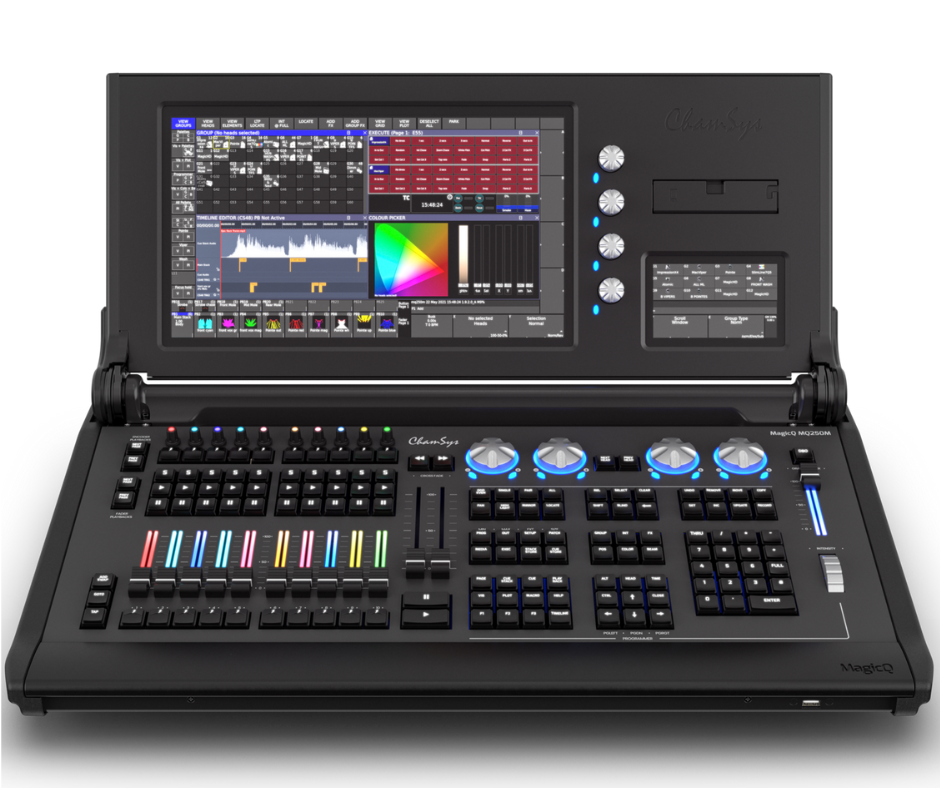

• 15” HD multi-touch display + 5” attribute touchscreen
• Dual 100mm manual crossfaders with GO/BACK buttons
• 4 DMX outputs with RDM support
• 4 network ports for Art-Net/sACN/Pathport output
• In-built WiFi and UPS (12V sealed lead-acid)
• External display support via DisplayPort (1920×1200)
• USB ports x6 (2 high-power charging ports)
• Audio I/O, MIDI I/O, LTC I/O, 10Scene port

Model Specifications

• Universes: 64 (standard), 128 (optional upgrade)
• Max DMX Channels: 32,768 (expandable to 65,536)
• Max Fixtures: 32,768 (expandable)
• Max Cues: 5,000
• Max Cue Stacks: 2,000
• Max Groups: 5,000
• Palettes: 4,096
• Media Server Layers: 50
• Display: 15" HD Touchscreen + 5" Encoder Display
• External Monitor: 1x DisplayPort (1920x1200)
• Network Ports: 4
• DMX Outputs: 4 (RDM supported)
• USB Ports: 6 (2 high-power)
• Audio In/Out: Yes
• MIDI I/O: Yes
• LTC Timecode I/O: Yes
• Power Input: Neutrik powerCON TRUE1 (110–240 VAC)
• Max Power: 351W
• Inbuilt UPS: Yes
• Console Dimensions: 26.7 x 16.4 x 6.26 in (680 x 416 x 159 mm)
• Console Weight: 28.7 lb (13 kg)
• Flight Case Dimensions: 31.9 x 20.9 x 12.6 in (810 x 530 x 320 mm)
• Weight in Flight Case: 57.3 lb (26 kg)

What's In The Box

• ChamSys MagicQ MQ250M Stadium console
• Neutrik powerCON TRUE1 power cable
• 2x dual-color desk lights
• Dust cover
• DisplayPort to HDMI cable
