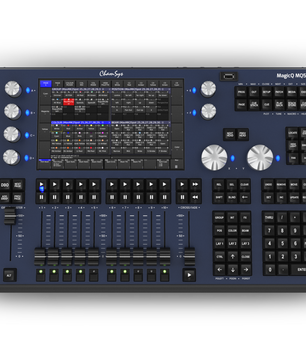

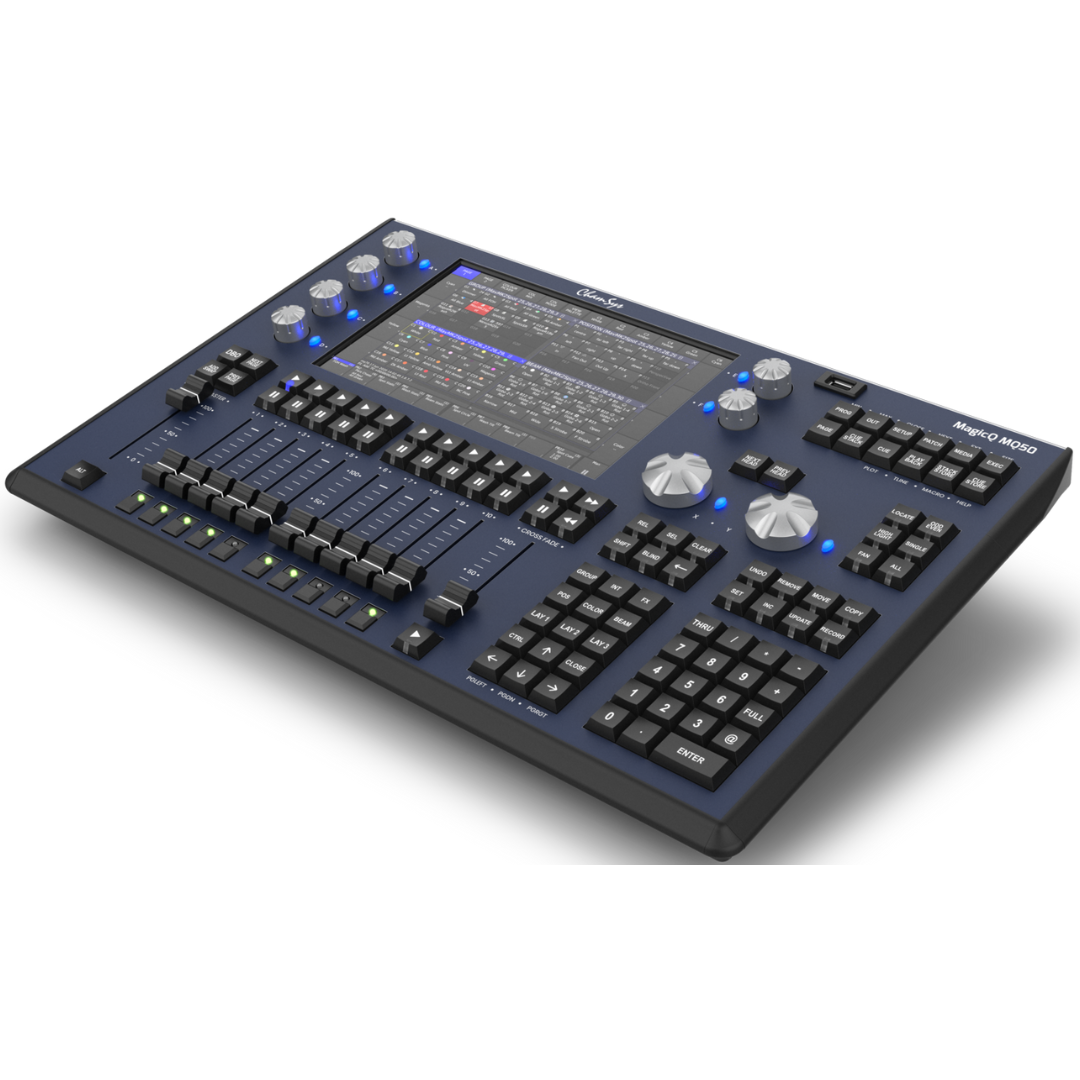

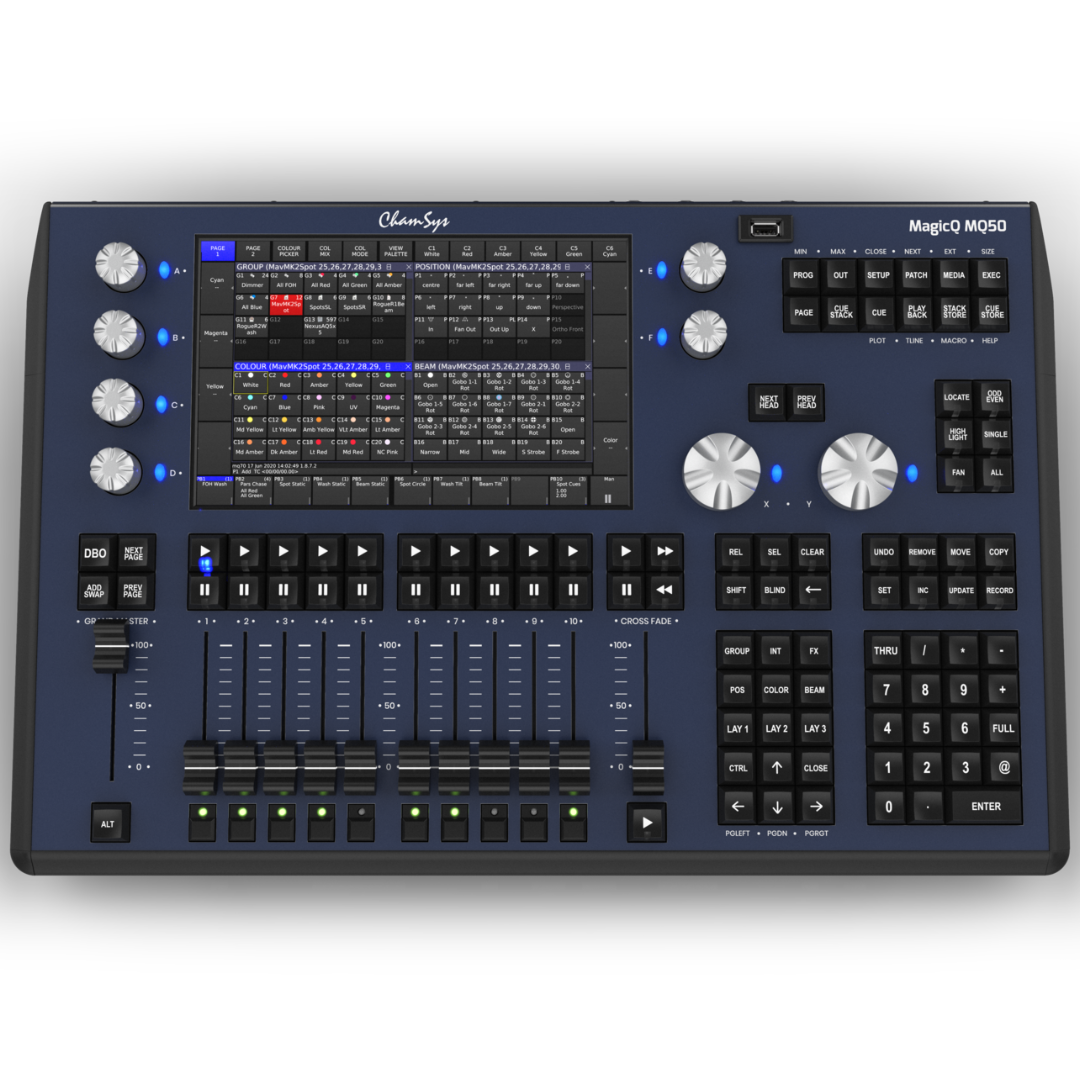

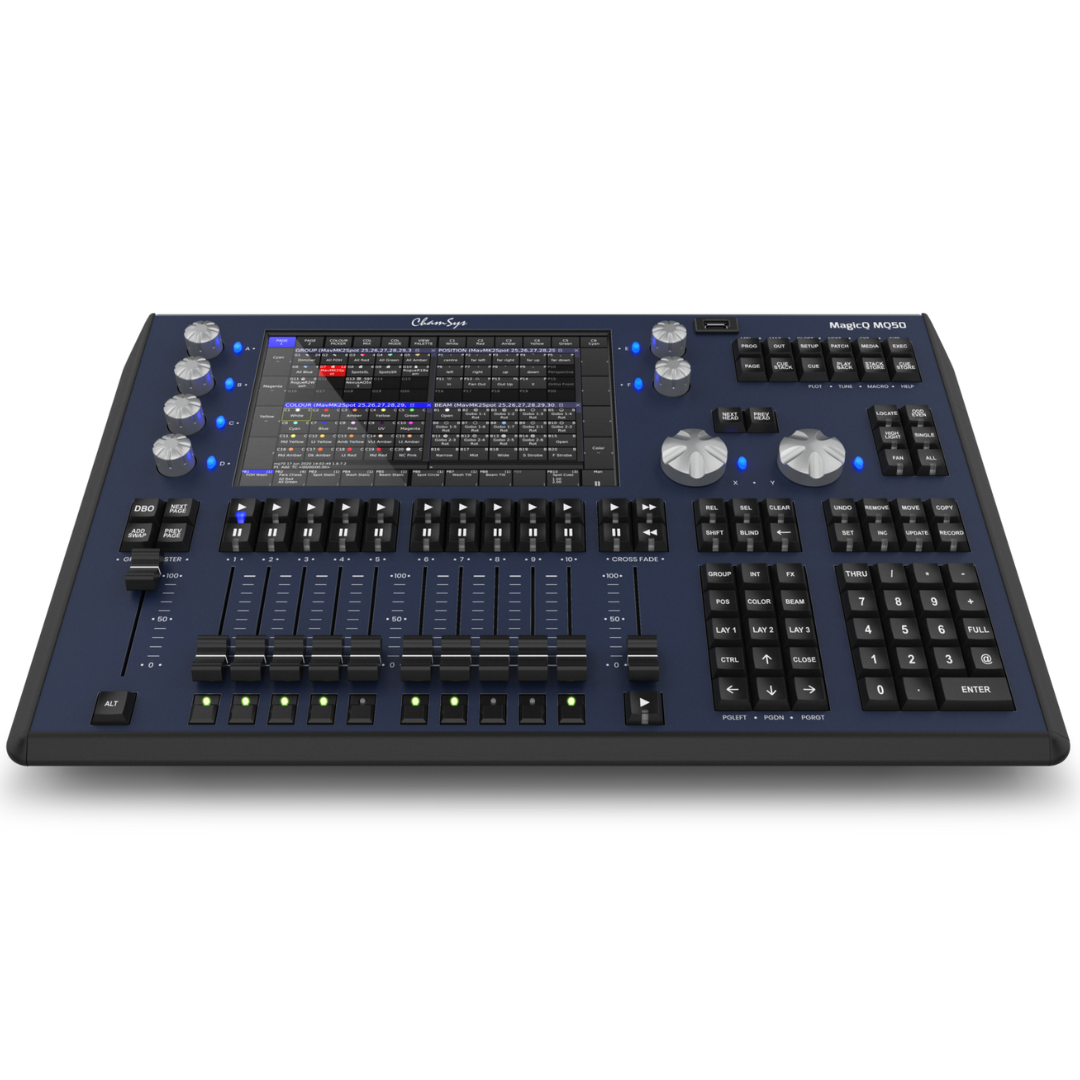

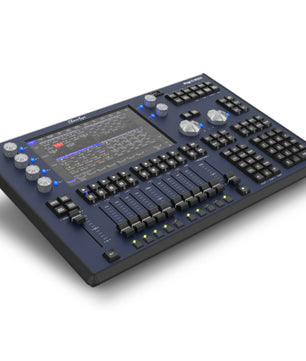

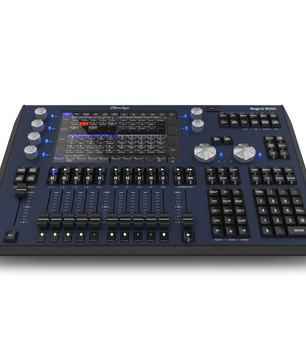

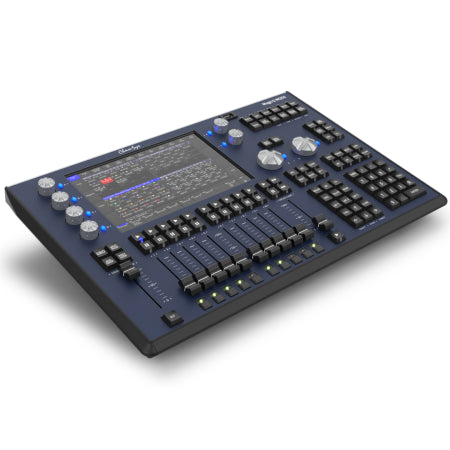

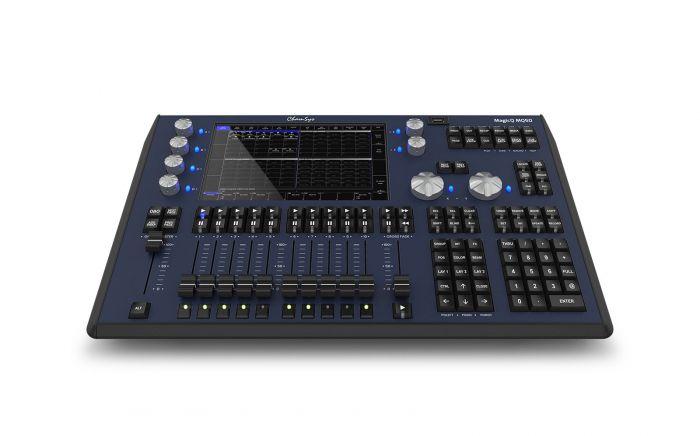

ChamSys MagicQ MQ50 | 10.1in Touchscreen Console with 8 Universes | 4 DMX Outputs & Wi-Fi

ChamSys MagicQ MQ50 | 10.1in Touchscreen Console with 8 Universes | 4 DMX Outputs & Wi-Fi

$7,165.00

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

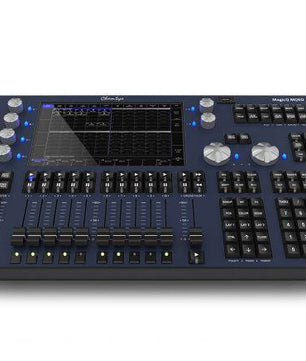

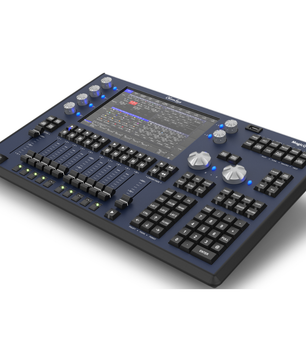

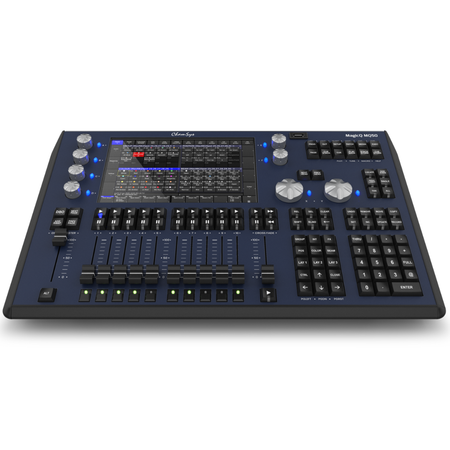

Compact Lighting Console with Touchscreen

ChamSys MagicQ MQ50 is a full-featured, compact lighting console designed for small to medium-sized venues, including theatres, schools, clubs, and houses of worship. It offers powerful control in a quiet, compact chassis—making it ideal for installations and live events where space and simplicity are key.

ChamSys MagicQ MQ50 Competitive Differences

8 universes directly from the console via ArtNet, sACN, or Pathport
Built-in Wi-Fi for remote focus app control—no external router needed

ChamSys MagicQ MQ50 Description

The MQ50 delivers professional-grade lighting control in a portable and easy-to-use console. Its high-resolution 10.1" multi-touch display provides intuitive access to programming and playback functions, while the 10 cue stack playbacks offer flexibility for live performance control. This model supports 8 universes natively without additional hardware, with 4 assignable 5-pin DMX outputs that support RDM. Built-in Wi-Fi allows for quick pairing with the MagicQ Remote app, providing wireless access to show programming and fixture focusing. Despite its compact footprint, the MQ50 includes 8 rotary encoders for attribute control, HDMI output for external monitors, and multiple USB ports for show backup and peripheral devices. The console runs ChamSys' industry-standard MagicQ software and is compatible with MagicVis and MagicHD, allowing for complete visualisation and media playback integration. The MQ50 is completely silent with no internal fan, making it a perfect fit for theatres and noise-sensitive environments. It supports all MagicQ file formats, ensuring a smooth upgrade path across the ChamSys ecosystem.

Model Features

10.1" HD multi-touch display
10 cue stack playback faders
4 DMX outputs with RDM support
8 universes direct from console (ArtNet/sACN/Pathport)
Built-in Wi-Fi for MagicQ Remote app
8 rotary encoders for fixture attribute control
External monitor support up to 1920×1200 (HDMI)
Silent operation with fanless design

Model Specifications

Universes Supported: 8
Max DMX Channels: 4096
Max Fixtures Supported: 4096
Max Cues: 5000
Cue Stacks: 2000
Max Groups: 5000
Palettes: 4096
Media Server Layers: 50

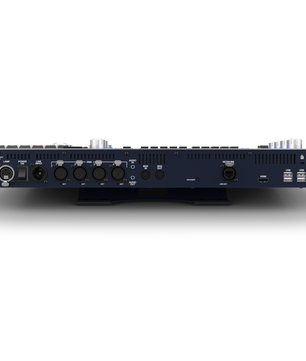

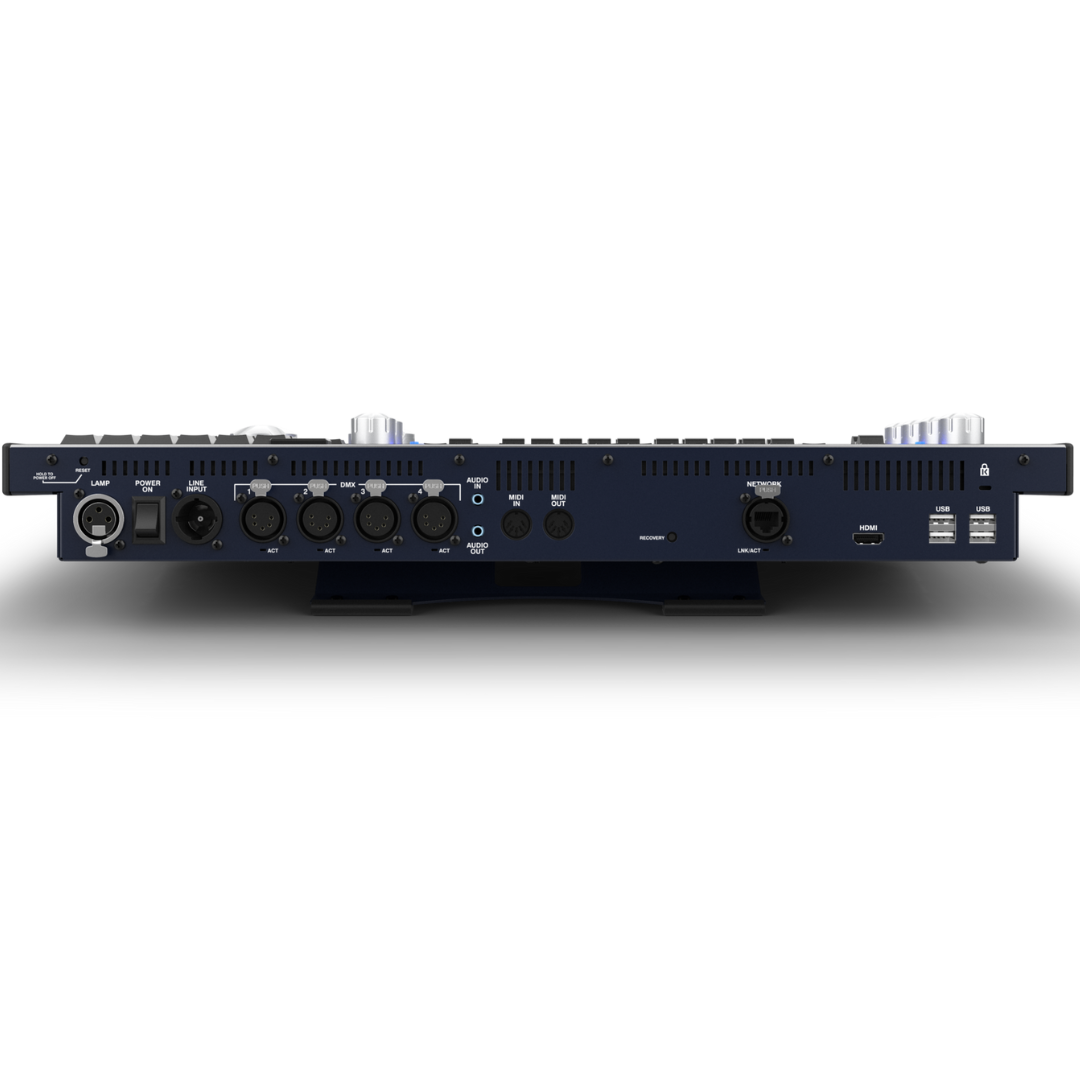

DMX Outputs: 4 x 5-pin XLR (assignable)
Network Port: 1
USB Ports: 5
Audio Input: 1 (7-band)
Audio Output: Yes
MIDI Ports: 1 In, 1 Out (Notes Only)
Power Input: Neutrik powerCON TRUE1 (110–240V AC)
Power Consumption: Max 35W
Console Dimensions: 20.6 x 13.7 x 2.3 in (525 x 350 x 60 mm)
Console Weight: 15.4 lb (7 kg)
Boxed Dimensions: 26.7 x 11.4 x 19.6 in (680 x 290 x 500 mm)
Boxed Weight: 22 lb (10 kg)
Flightcase Dimensions: 23.6 x 7.95 x 16.5 in (600 x 202 x 421 mm)
Flightcase Weight: 37.4 lb (17 kg)

What's In The Box

ChamSys MagicQ MQ50 Console
Dual Colour Desk Light
Dust Cover
Neutrik powerCON TRUE1 Power Cable
