Flagship Lighting Console for Arena & Touring Shows

ChamSys MagicQ MQ500 Stadium is an ultra-powerful lighting control console built for the world’s most demanding productions. Designed for stadiums, festivals, tours, and broadcast environments, it supports up to 200 DMX universes directly from the console—no external processors required.

ChamSys MagicQ MQ500 Stadium Competitive Differences

200 universes direct from console—no external nodes or wings needed
Dual 15" HD multi-touch displays with gesture support and adjustable tilt

ChamSys MagicQ MQ500 Stadium Description

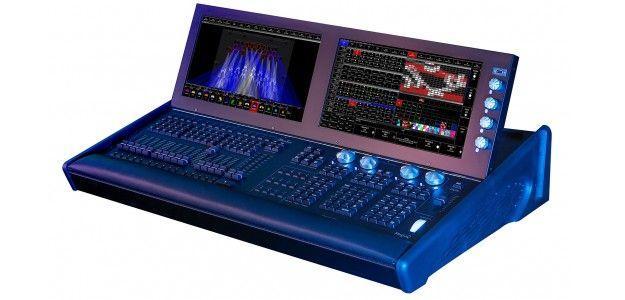

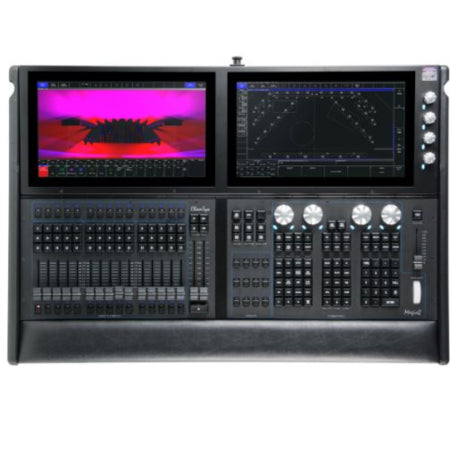

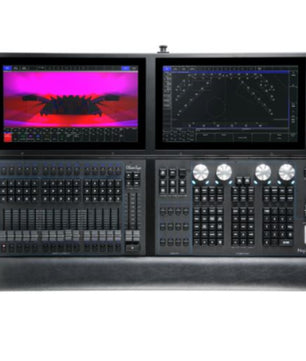

The MQ500 Stadium is ChamSys’ top-tier console, engineered for the highest levels of show control. With support for up to 200 universes via onboard processing, it offers immense power in a single self-contained system. Its dual 15" high-resolution touchscreens support multi-touch gestures, offering a fast, fluid interface for programming and playback. A total of 42 playbacks—including 15 fader playbacks, 15 executor buttons, and 12 multipurpose keys—enable advanced cue stacking, macros, palette triggering, and live busking with exceptional flexibility. An onboard 4-port network switch supports ArtNet and sACN output, and 4 DMX ports with RDM capability provide direct connectivity for fixtures. For advanced pre-visualisation, the console comes with integrated MagicVis 3D visualiser, supporting high-quality beam and gobo rendering. The MQ500 Stadium is ideal for large-scale, complex shows that demand absolute reliability and deep functionality, from concert tours and festivals to broadcast events and corporate spectaculars.

Model Features

Supports 200 universes direct from console (no external processors)
Dual 15" HD multi-touch displays with adjustable tilt
42 playbacks: 15 fader, 15 executor, 12 macro/execute keys
Built-in MagicVis 3D visualiser for pre-programming
4 DMX outputs with RDM support
4-port Ethernet switch (ArtNet/sACN/Pathport)
Dedicated intensity wheel and 100mm split crossfaders
Compatible with MagicQ Stadium Wing for expanded control

Model Specifications

Universes Supported: 200 (Direct)
Max DMX Channels: 102,400
Max Fixtures Supported: 102,400
Cue Stacks: 2000
Cues: 5000
Groups: 5000
Palettes: 4096
Media Server Layers: 50
DMX Outputs: 4 x 5-pin XLR (RDM-capable)
Network Ports: 4 (via internal switch)
Touchscreens: 2 x 15” HD Multi-Touch
Playbacks: 42 total (15 fader, 15 executor, 12 multi-function)
Crossfade Faders: 2 x 100mm
Intensity Wheel: 1
Visualiser: Integrated MagicVis 3D with beam/gobo rendering

What's In The Box

ChamSys MagicQ MQ500 Stadium Console
Flight Case
Dual Colour Desk Light
IEC or Neutrik power cable (varies by region)
Dust Cover
