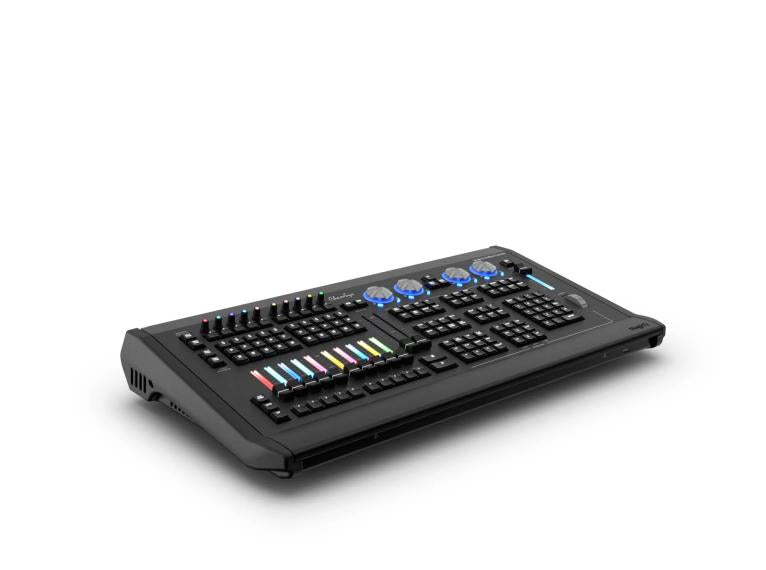

ChamSys MagicQ Stadium Connect | 64 Universe USB Control Surface | Motorized Faders & Dual Crossfaders

USB Lighting Control Surface for MagicQ Software

ChamSys MagicQ Stadium Connect is a professional-grade, motorized lighting control interface built for use with MagicQ software on Windows, macOS, or Linux. Designed for lighting designers needing maximum power in a compact footprint, it delivers up to 64 output universes with zero external processing and supports pre-visualization of up to 400 universes.

ChamSys MagicQ Stadium Connect Competitive Differences

• 64 universes direct from MagicQ software via ArtNet/sACN/Pathport
• 10 motorized faders and 10 encoder playbacks with RGB illumination

ChamSys MagicQ Stadium Connect Description

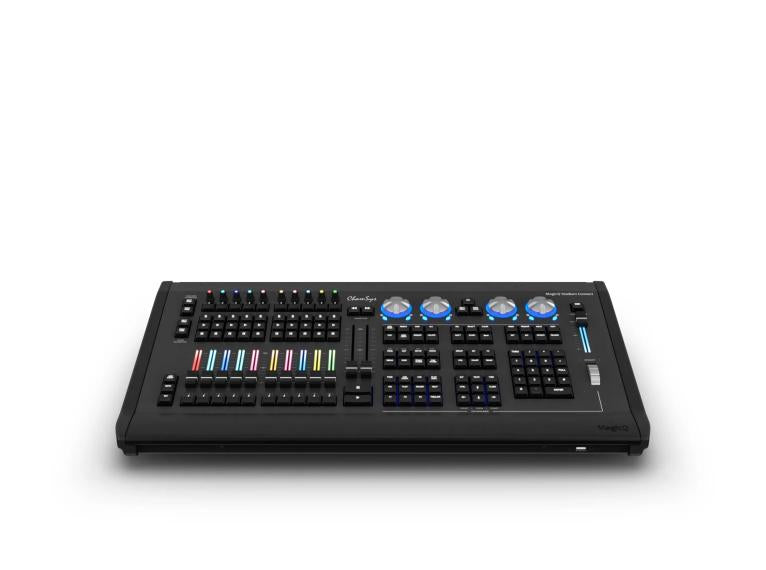

The MagicQ Stadium Connect delivers flagship performance in a portable programming solution, offering hands-on control with 20 total playbacks (10 motorized faders + 10 encoders). With a layout matching the MQ250M and MQ500M consoles, it's an ideal companion for programming shows off-site or running live productions with a PC or Mac. The console features backlit keys, RGB-illuminated encoder rings and fader tracks, and dual 100mm manual crossfaders—perfect for theater-style cue control. The playback encoders can be assigned to control intensity, FX speed, size, rate, or cue stacks, making them incredibly versatile for live busking or cue-based shows. Motorized fader banks offer six playback pages, giving access to up to 202 programmable playbacks. It also supports master fader modes, fixture intensities, and channel-level controls for real-time adjustments without pre-programming. With 4 onboard DMX outputs, MIDI in/out, LTC timecode ports, and audio input for sound-to-light control, the Stadium Connect bridges physical control and software flexibility, all while remaining compatible with the broader MagicQ system family.

Model Features

• 10 fully motorized playback faders with RGB backlighting
• 10 playback encoders with customizable assignments
• Dual 100mm manual crossfade faders with GO/BACK buttons
• 64 universes direct via software (ArtNet/sACN/Pathport)
• 400 visualization universes for pre-programming
• RGB illuminated encoder tops and fader tracks
• Backlit buttons and customizable legending
• Works with MagicQ software for Windows, macOS, and Linux

Model Specifications

• Universes Supported: 64 (Direct from MagicQ software)
• Pre-Vis Universes: 400
• Max DMX Channels: 204,800
• Max Fixtures Supported: 204,800
• Cue Stacks: 2000
• Cues: 5000
• Groups: 5000
• Palettes: 4096
• Media Server Layers: 50

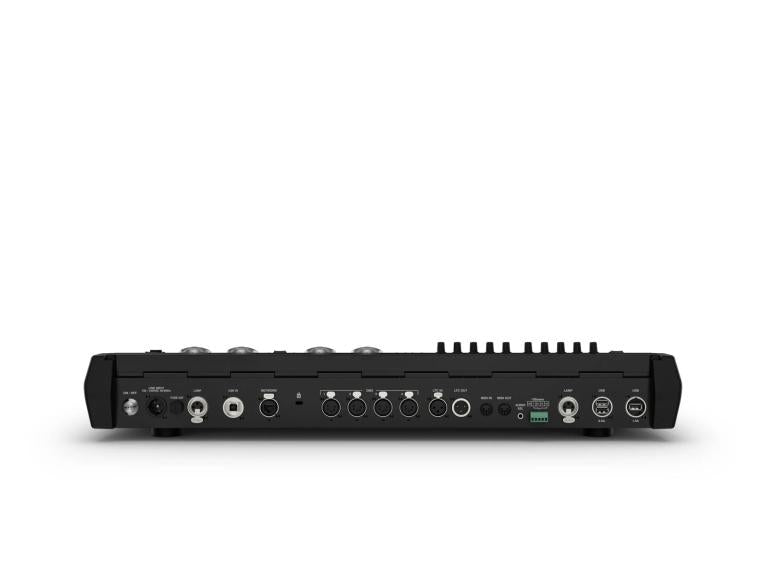

• DMX Outputs: 4 x 5-pin XLR
• Motorized Faders: 10
• Playback Encoders: 10
• Crossfade Faders: 2 x 100mm manual
• Attribute Encoders: 4
• Intensity Wheel: 1
• USB Ports: 4
• Network Port: 1
• MIDI Ports: 1 In / 1 Out
• LTC Ports: 1 In / 1 Out
• 10Scene Port: 1
• Audio Input (Sound-to-Light): Yes
• Power Input: Neutrik powerCON TRUE1 (110–240V AC)
• Max Power Consumption: 360W
• Console Dimensions: 26.8 x 14.3 x 3.3 in (680 x 364 x 85 mm)
• Console Weight: 19.1 lb (8.7 kg)
• Flightcase Dimensions: 29.9 x 18.3 x 7.7 in (761 x 467 x 197 mm)
• Flightcase Weight: 44.1 lb (20 kg)

What's In The Box

• ChamSys MagicQ Stadium Connect Unit
• Dual Colour Desk Lights (2)
• Neutrik powerCON TRUE1 Power Cable
• USB Cable
• Dust Cover
