Chauvet CORE 5X1 ILS | COB LED Pixel Mapping Light | Linkable Multi-Effect Fixture

Multi-Effect LED Stage Light

Chauvet CORE 5X1 ILS is a compact, high-output LED lighting fixture built for live events, DJs, stages, and mobile productions. Using COB LED technology and a large reflector, it delivers smooth color mixing, natural color temperatures, and evenly saturated output for uplighting, washes, and eye-catching pixel effects.

Chauvet CORE 5X1 ILS Competitive Differences

• COB LED technology for smooth color blending and natural color tones
• Tool-free linking hardware for fast multi-fixture and pixel-mapped setups
• ILS compatibility for easy synchronization with other ILS-enabled fixtures
• Multi-purpose design functions as a blinder, wash, chase, or pixel effect

Chauvet CORE 5X1 ILS Description

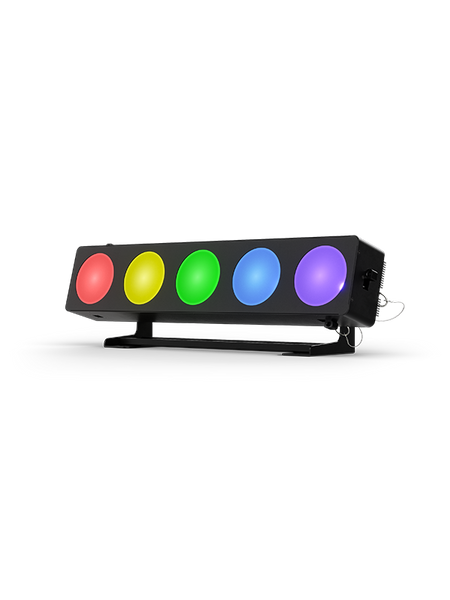

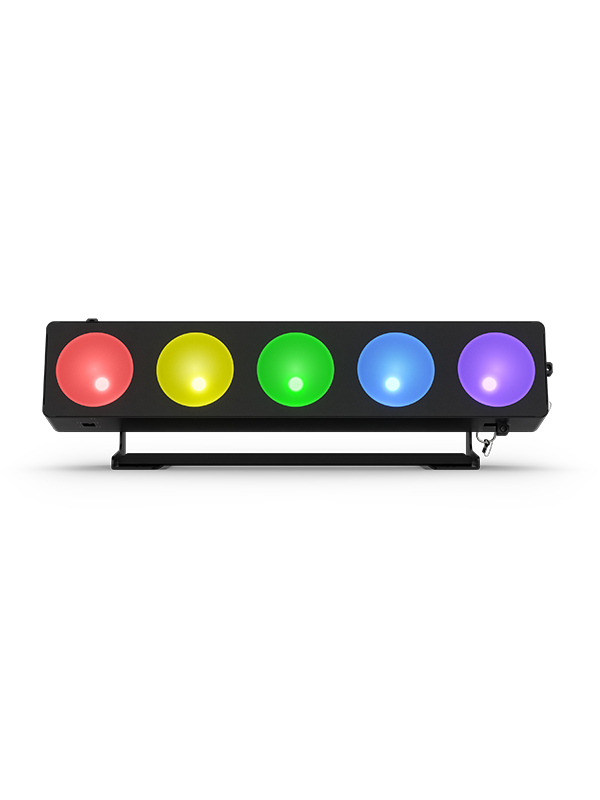

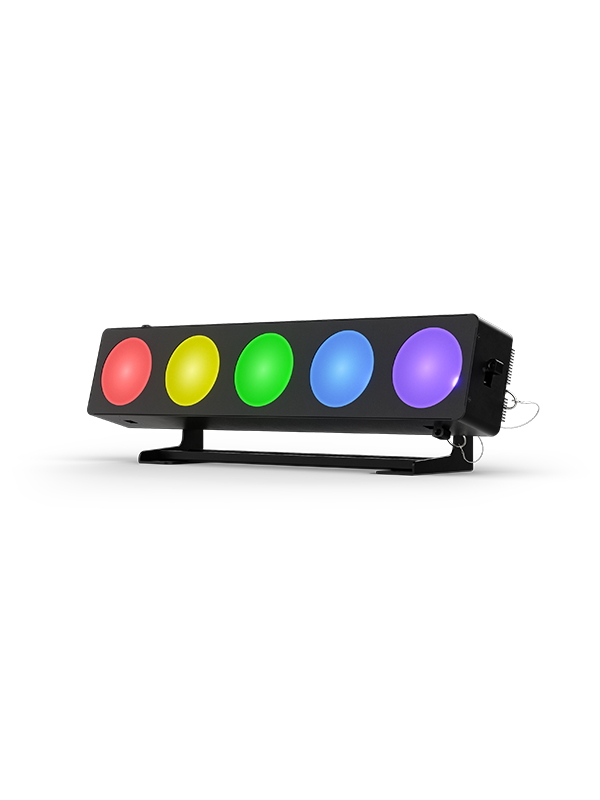

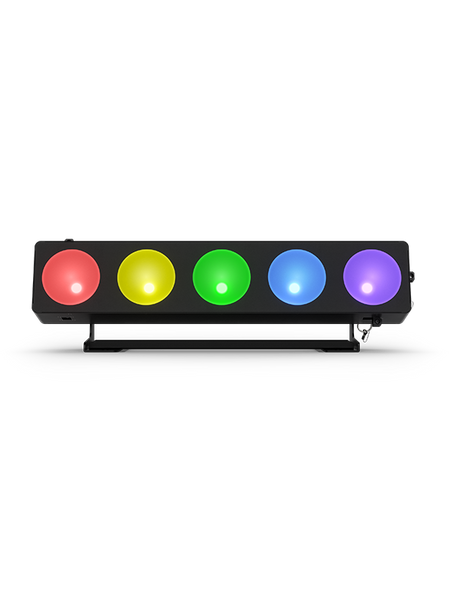

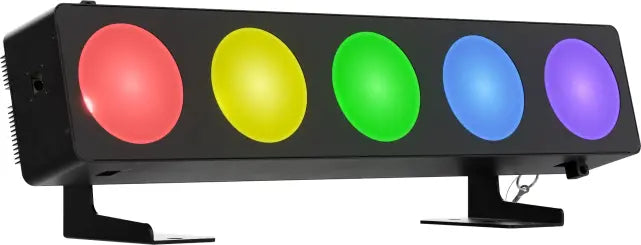

The Chauvet CORE 5X1 ILS is engineered for creative flexibility, allowing users to build dynamic lighting looks from a single fixture or by linking multiple units together. Its five high-powered quad-color RGB+WW LEDs produce a broad color spectrum while maintaining smooth fades and consistent coverage.

Built-in, toolless connecting hardware allows up to six fixtures to be linked vertically, enabling runway chase effects, blinder bursts, or high-impact pixel-mapped visuals. The fixture can be floor-mounted for uplighting or configured into larger arrays for stage and scenic applications.

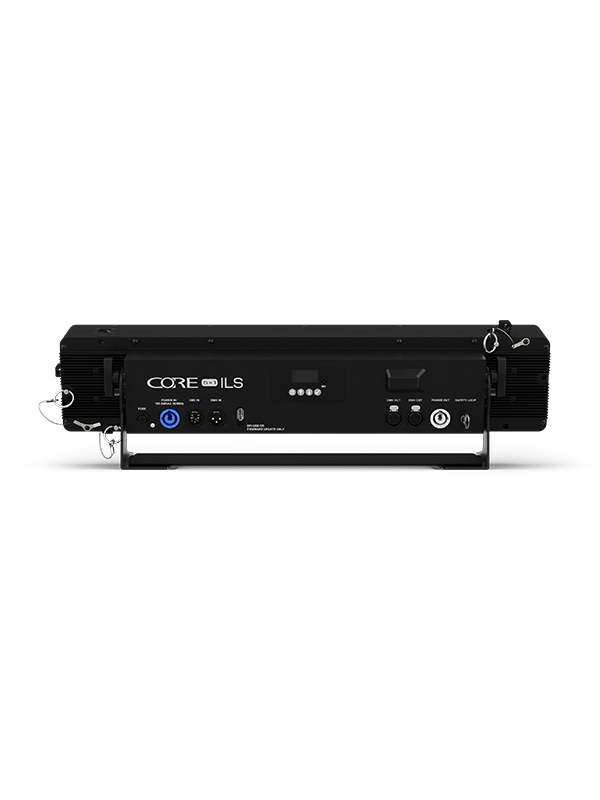

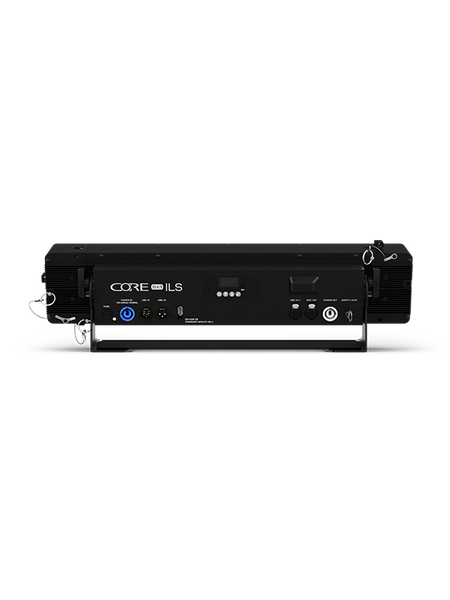

Designed for professional use, the housing is rugged enough to handle frequent transport and touring conditions. Multiple control options—including stand-alone operation, DMX, ILS, RF, and master/slave modes—make the CORE 5X1 ILS adaptable to virtually any lighting system.

CORE 5X1 ILS Features

• Multi-purpose LED fixture for pixel mapping, chases, blinders, and washes
• Five quad-color RGB+WW COB LEDs for smooth, natural-looking color output
• Tool-free linking hardware to attach multiple fixtures together
• Connect up to 6 fixtures vertically for extended effects
• ILS-ready for synchronized lighting control (D-Fi USB sold separately)
• Multiple control modes: stand-alone, DMX, ILS, RF, and master/slave
• Durable housing designed for mobile and touring use

CORE 5X1 ILS Specifications

• Light Source: 5 x quad-color RGB+WW LEDs, 35W each
• LED Life Expectancy: 50,000 hours
• DMX Channels: 4, 8, or 22
• DMX Connectors: 3-pin and 5-pin XLR
• Beam Angle: 54°
• Field Angle: 75°
• Illuminance: 953 lux @ 2 m
• Lumens: 2,875
• Strobe Rate: 0–20 Hz
• Power Linking: 6 units @ 120 V, 10 units @ 230 V
• Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)
• Power Consumption: 120 W
• Current Draw: 1.8 A @ 120 V, 60 Hz
• Dimensions: 23.6 x 3.1 x 4.7 in (600 x 79 x 120 mm)
• Weight: 11 lb (5 kg)
• Approvals: CE, RoHS
• Cable Length: 5 ft (1.52 m)
• Bracket Mounting Hole: 13 mm
• Optional Controllers: ILS Command, RFC, RFC-XL

What's In The Box

• Chauvet CORE 5X1 ILS fixture
• Power cord
• Quick reference guide
