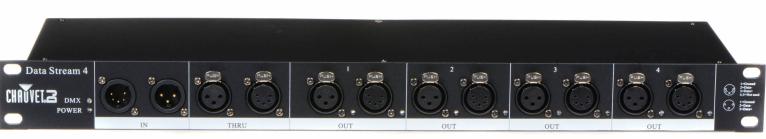

Chauvet DJ Data Stream 4 | 4-Way DMX Splitter with 3- & 5-Pin XLR | 1U Rackmount with Thru Port

Universal DMX-512 Optical Splitter

The Chauvet DJ Data Stream 4 is a professional DMX-512 optical splitter designed to enhance the reliability and flexibility of your lighting control setup. Perfect for complex lighting rigs and large installations, it splits a single DMX input into four isolated outputs, plus a pass-through port, with support for both 3-pin and 5-pin XLR connections.

Chauvet DJ Data Stream 4 Competitive Differences

• Four electrically isolated DMX outputs plus thru port for easy daisy chaining
• Supports both 3-pin and 5-pin XLR for full compatibility

Chauvet DJ Data Stream 4 Description

The Chauvet DJ Data Stream 4 simplifies DMX distribution by providing a central hub for splitting your signal into four outputs—each electrically isolated for optimal performance and equipment protection. An additional thru port lets you pass the original signal to other devices or link to additional Data Stream 4 units. This splitter is equipped with both 3-pin and 5-pin XLR connectors on every input and output, allowing full compatibility with virtually any DMX gear. Its rugged 1U rackmount design makes it ideal for permanent installations and touring racks, while the low-profile format keeps cable runs short and clean. Whether you're managing lighting for concerts, theaters, events, or installations, the Data Stream 4 ensures clean, reliable signal distribution with built-in electrical isolation and multi-format compatibility.

Model Features

• 4 optically isolated DMX outputs with dedicated thru port
• Supports 3-pin and 5-pin XLR on all inputs and outputs
• Electrical isolation protects connected devices
• Compact 1U rackmount design for clean, pro installs
• Linkable with additional Data Stream 4 units

Model Specifications

• DMX Connections: 3-pin and 5-pin XLR
• Input Voltage: Auto-ranging 100–240 VAC, 50/60 Hz
• Power Consumption: 3W, 0.1A @ 120V | 5W, 0.1A @ 230V
• Dimensions: 19 x 5.3 x 1.8 in (483 x 134 x 46 mm)
• Weight: 5.8 lb (2.6 kg)
• Certifications: CE

What's In The Box

• Data Stream 4 DMX splitter
• Power cord
• Warranty card
