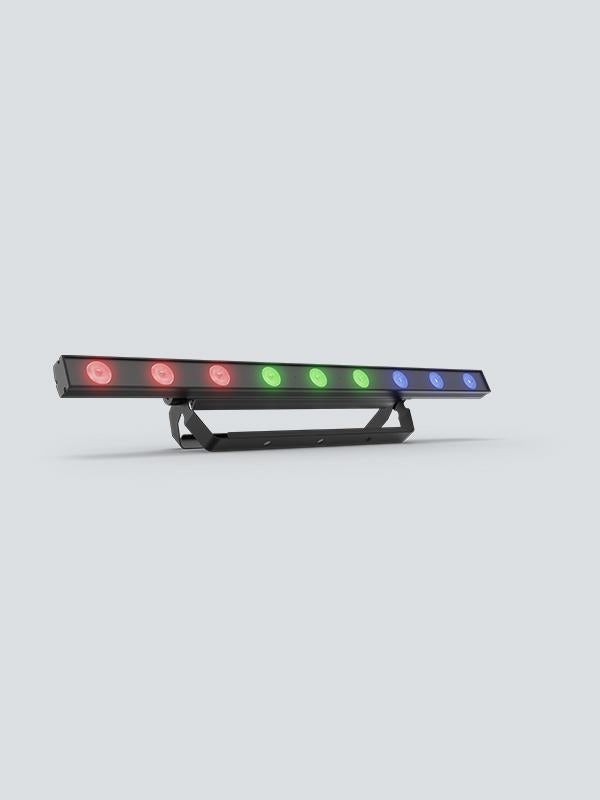

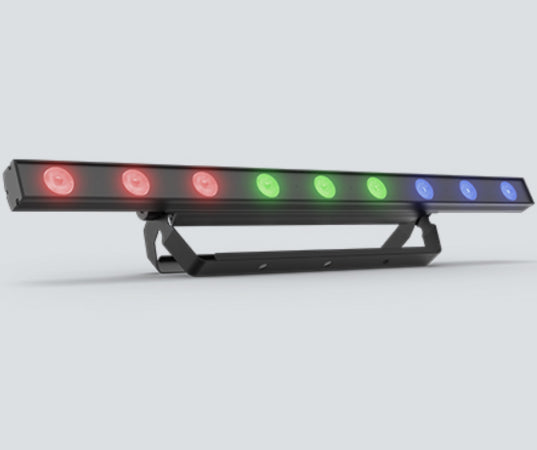

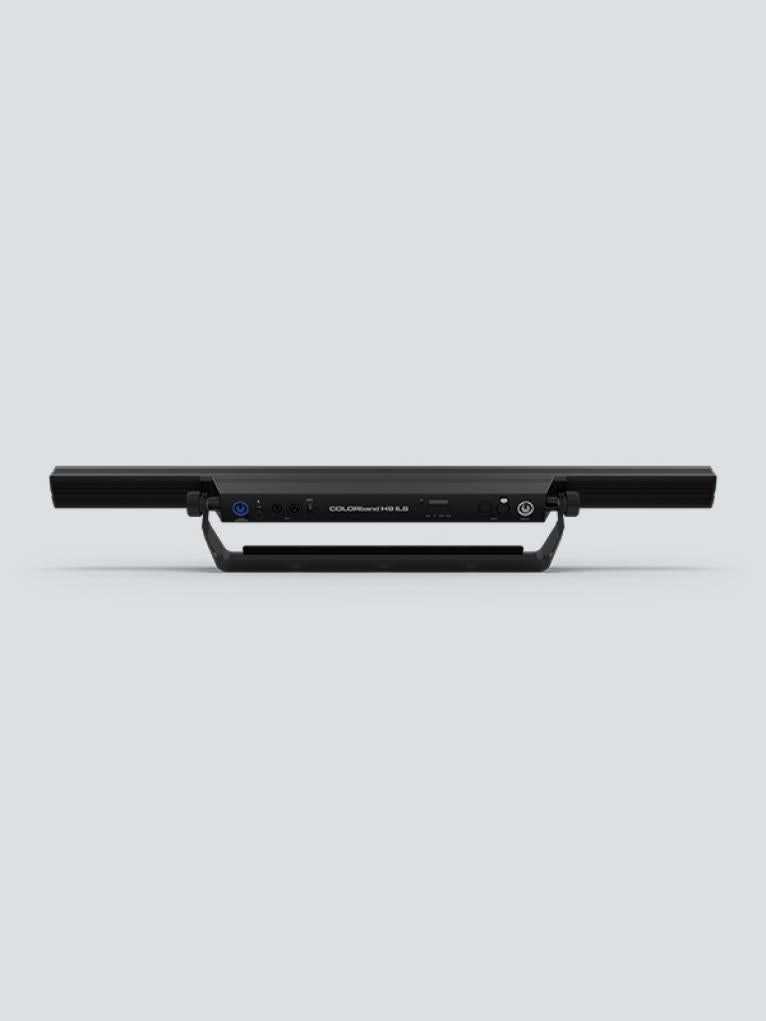

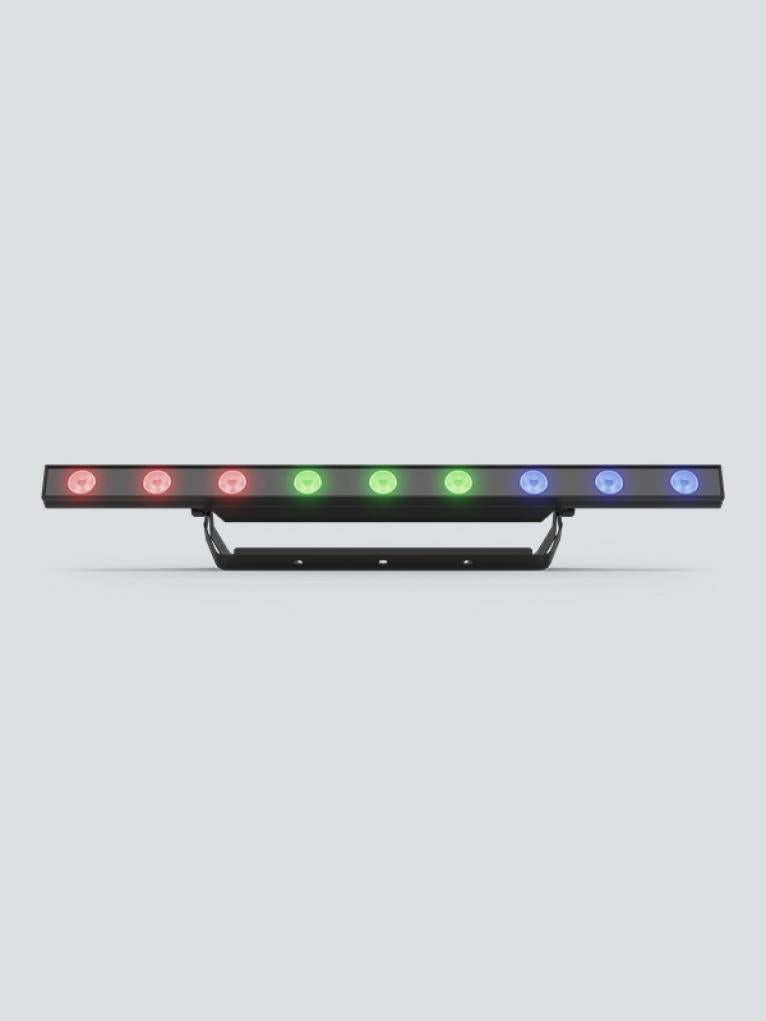

Chauvet DJ COLORband H9 ILS | Hex-Color LED Strip Light | 3-Zone Effects & Wireless Control

Hex-Color LED Strip Light with Zonal Control

The Chauvet DJ COLORband H9 ILS is a powerful, full-size LED strip light designed for immersive chase effects, bold washes, and stunning blinder looks. Featuring 9 hex-color (RGBWA+UV) LEDs and 3 zones of individual control, this versatile fixture is ideal for DJs, venues, and production professionals seeking dynamic, color-rich lighting.

Chauvet DJ COLORband H9 ILS Competitive Differences

• 3-zone pixel control for advanced chase and animation effects
• Built-in RF receiver for remote control via RFC and RFC-XL

Chauvet DJ COLORband H9 ILS Description

The COLORband H9 ILS brings advanced LED strip lighting to any setup, offering exceptional flexibility with multiple control options and ultra-smooth color rendering. With 6-in-1 HEX LEDs (RGBWA+UV), you can achieve everything from vibrant saturated colors to natural white tones and ultraviolet effects — all from a single fixture. ILS compatibility makes it easy to coordinate shows across a variety of fixture types within the Chauvet ecosystem. For even more freedom, it supports wireless control via D-Fi USB (sold separately) and comes equipped with a built-in RF receiver, compatible with RFC and RFC-XL remotes. Whether you're using DMX, auto modes, or remote control, you’ll have access to a wide range of built-in programs and personalities to fit your programming style. Silent operation with no moving parts makes the COLORband H9 ILS perfect for noise-sensitive environments like theaters and corporate events. Its rugged design and ease of transport (fits in the CHS-60 VIP gear bag) make it a reliable choice for mobile setups as well.

Model Features

• Full-size RGBWA+UV LED strip light with 3-zone pixel control
• ILS compatible for synchronized light shows across fixtures
• Built-in RF receiver works with optional RFC and RFC-XL remotes
• D-Fi USB support for wireless DMX and Master/Slave control
• Includes prebuilt programs for fast setup with or without DMX
• Multiple DMX channel modes (6 to 23) for flexible programming
• Silent, fan-free operation for quiet venues

Model Specifications

• DMX Channels: 6, 9, 11, 18, 23
• DMX Connectors: 3-pin and 5-pin XLR
• Light Source: 9 x 10W HEX LEDs (RGBWA+UV), 50,000-hour life
• Beam Angle: 23°
• Field Angle: 41°
• Illuminance: 3,529 lux @ 2 m
• Lumens: 2,977
• Strobe Rate: 0 to 16 Hz
• Power Linking: 12 units @ 120V, 21 units @ 230V
• Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 80W, 1.1A @ 120V | 79W, 0.6A @ 230V
• Dimensions: 39.4 x 2.2 x 6.8 in (1000 x 56 x 172 mm)
• Weight: 7.2 lb (3.3 kg)
• Certifications: CE, UKCA, RoHS, MET

What's In The Box

• COLORband H9 ILS fixture
• Power cord
• Hanging bracket
• Quick reference guide
