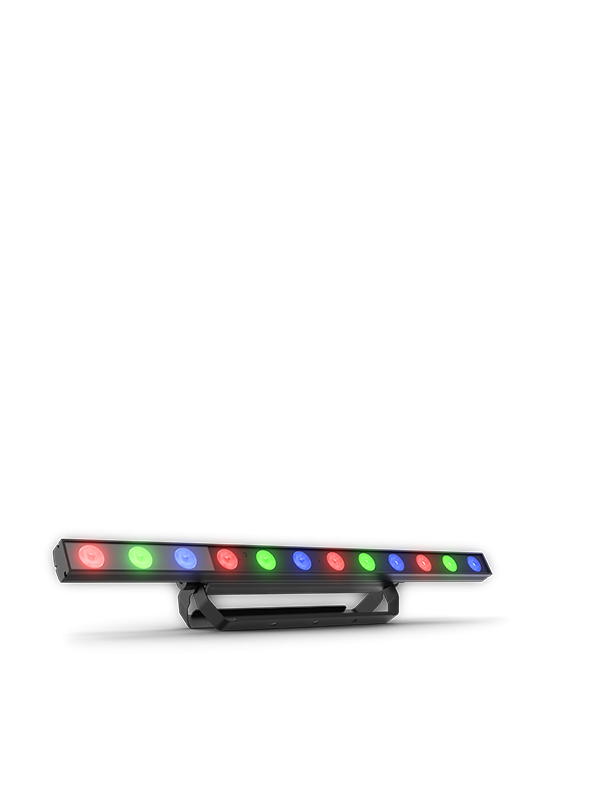

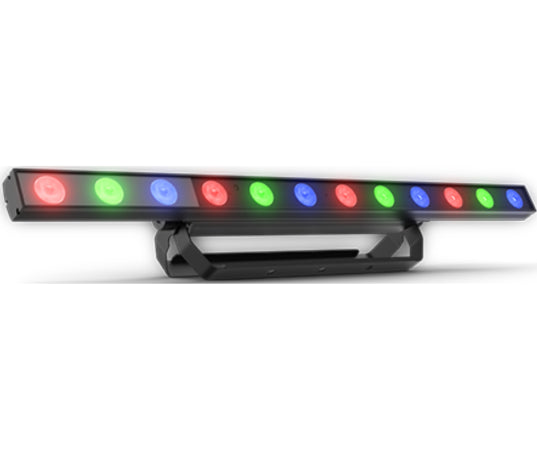

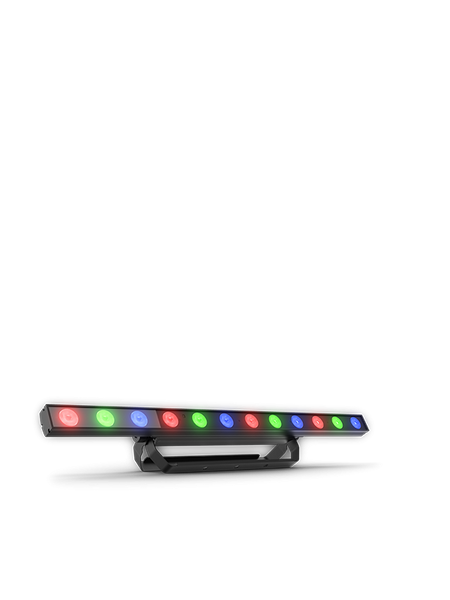

Chauvet DJ COLORband PiX ILS | Full-Size RGB LED Strip Light | Pixel Mapping & Wireless Control

Full-Size LED Strip Light with ILS

The Chauvet DJ COLORband PiX ILS is a professional-grade LED strip fixture that excels as a pixel mapping light, wall washer, or blinder. With full ILS compatibility, D-Fi USB wireless control, and RF remote access, it offers flexible programming for synchronized shows, animation effects, and video-friendly lighting.

Chauvet DJ COLORband PiX ILS Competitive Differences

• Individual LED control for pixel-mapped animations and video effects
• ILS ecosystem support for coordinated light shows across multiple fixture types

Chauvet DJ COLORband PiX ILS Description

The COLORband PiX ILS by Chauvet DJ is a powerful and flexible lighting solution designed for professionals seeking creative lighting control. With 12 individually controllable RGB LEDs and up to 41-channel DMX control, this fixture excels in pixel mapping, blinder effects, and vibrant wall washing. It supports ILS (Integrated Lighting System), allowing it to easily sync with other ILS-compatible fixtures. Built-in RF control lets you operate the unit wirelessly via optional RFC or RFC-XL remotes, while D-Fi USB compatibility enables wireless Master/Slave or DMX operation (D-Fi USB sold separately). Flicker-free operation ensures suitability for on-camera environments, and the silent, fan-free design makes it ideal for quiet settings like studios, theaters, and houses of worship. The COLORband PiX ILS also integrates with ShowXpress Pixels software for advanced show design.

Model Features

• 12x 3W RGB tri-color LEDs (50,000-hour lifespan)
• Full-size strip light for pixel effects, blinders, or wall washes
• ILS compatibility for seamless multi-fixture synchronization
• Built-in RF receiver for use with RFC or RFC-XL remotes
• D-Fi USB compatibility for wireless DMX or Master/Slave control
• Flicker-free operation for video use
• Silent operation with no moving parts
• Multiple built-in programs accessible with or without DMX
• Integrates with ShowXpress Pixels for complex show programming

Model Specifications

• DMX Channels: 3, 4, 6, 7, 8, 9, 12, 18, 36, or 41
• DMX Connectors: 3- and 5-pin XLR
• Light Source: 12 LEDs (tri-color RGB) 3W each (50,000 hrs)
• Strobe Rate: 0–20 Hz
• Beam Angle: 14°
• Field Angle: 27°
• Illuminance:
  • 4,142 lux @ 2m
  • 663 lux @ 5m
• Lumens: 1,402
• Power Linking: 19 units @ 120 V; 35 units @ 230 V
• Power and Current:
  • 49 W, 0.7 A @ 120 V, 60 Hz
  • 48 W, 0.4 A @ 230 V, 50 Hz
• Size: 38.9 x 2 x 6.2 in (987 x 49 x 157 mm)
• Weight: 7 lb (3.2 kg)
• Cable Length: 5 ft (1.5 m)
• Bracket Mounting Hole: 13 mm
• Approvals: CE, MET, UKCA, RoHS
• Optional Controllers: RFC, RFC-XL, D-Fi USB

What's In The Box

• COLORband PiX ILS fixture
• Power cord
• Quick reference guide
