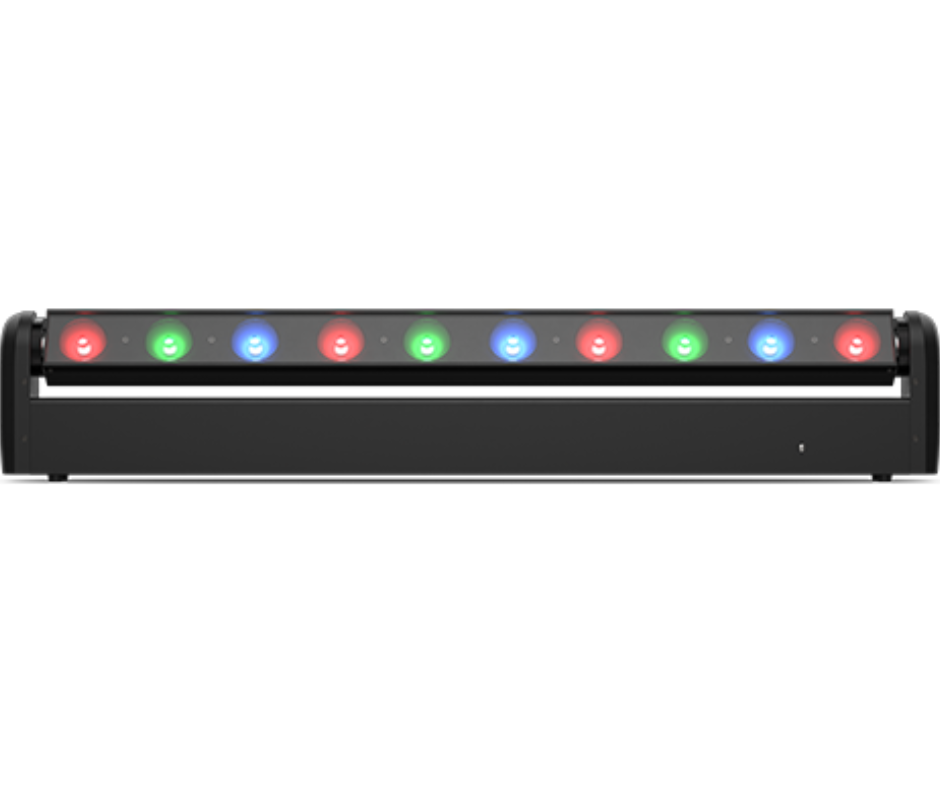

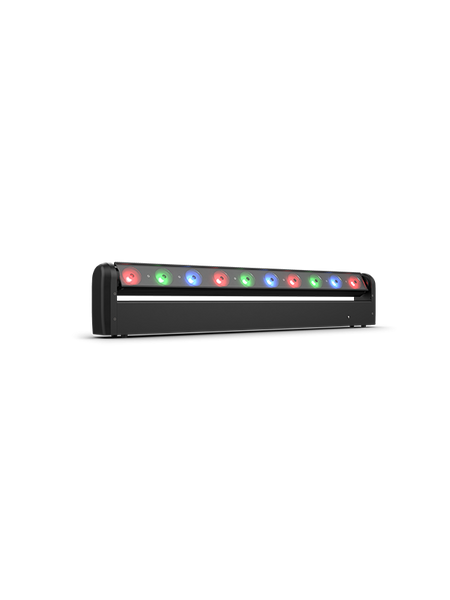

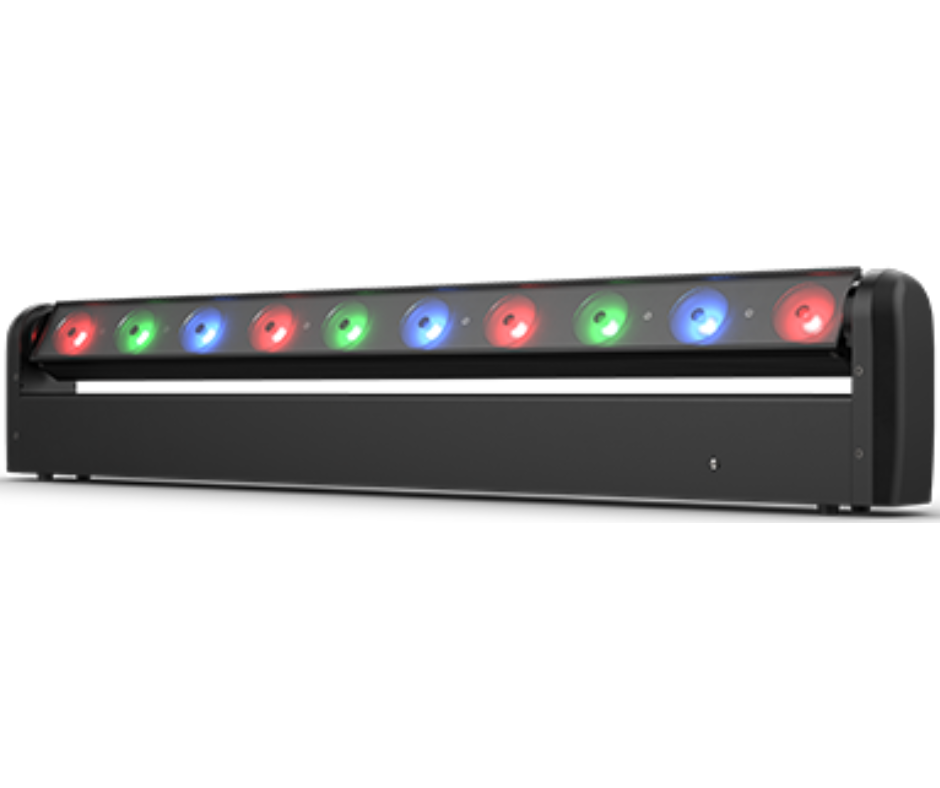

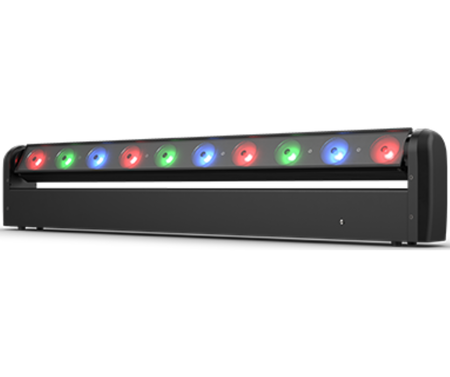

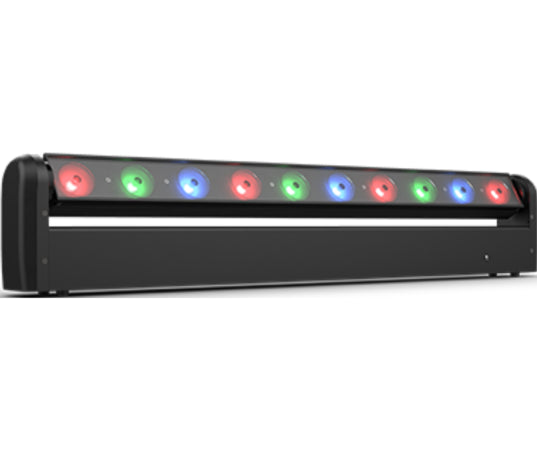

Chauvet DJ COLORband PiX-M ILS | Motorized RGB LED Strip Light | Pixel FX, ILS & Wireless DMX

Motorized LED Strip with Pixel Mapping

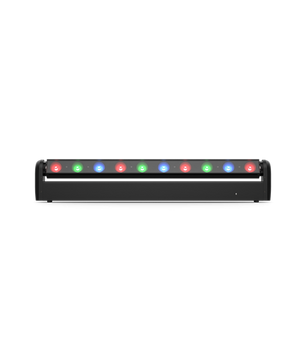

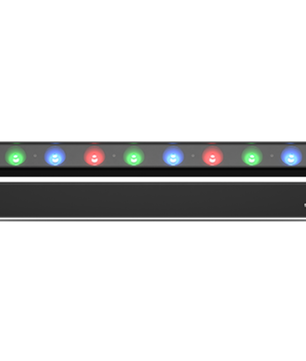

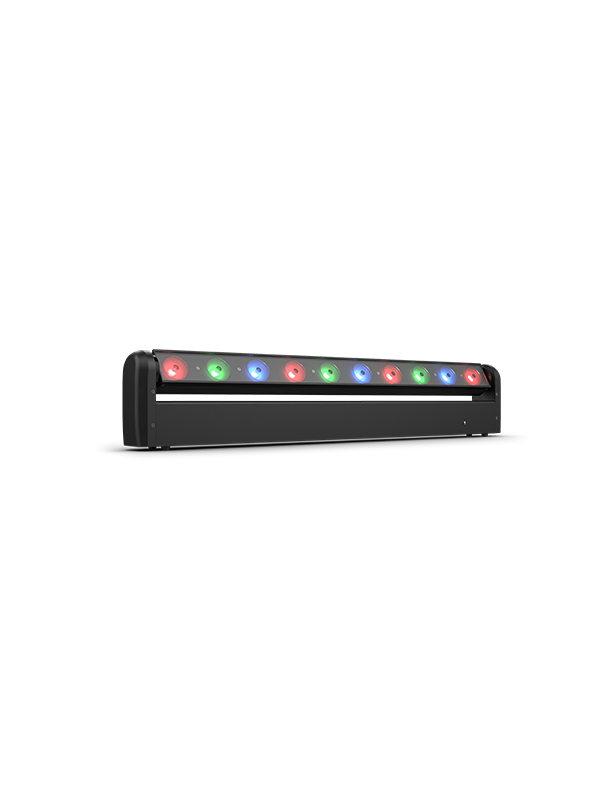

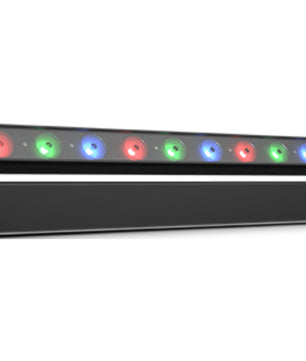

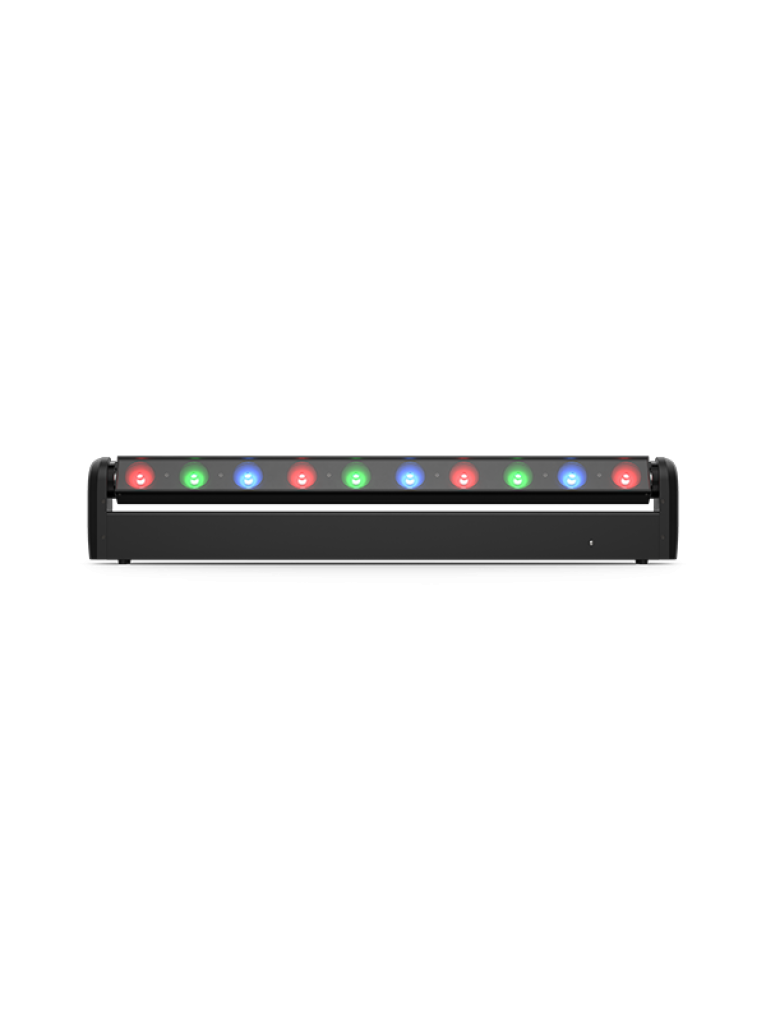

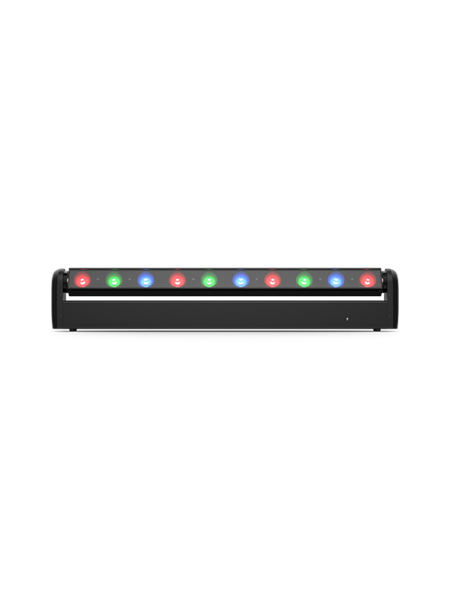

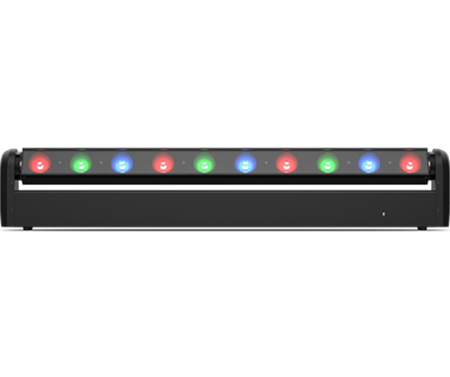

The Chauvet DJ COLORband PiX-M ILS is a dynamic, full-size motorized LED strip light designed to function as a wash, blinder, or pixel-mapping effect. Featuring 10 individually controllable RGB LEDs and built-in motorized tilt movement, it delivers stunning, sweeping visuals and animation effects — all with flexible control options, including ILS and D-Fi USB wireless compatibility.

Chauvet DJ COLORband PiX-M ILS Competitive Differences

• Motorized tilt (245°) for sweeping beam movement and custom angles
• Pixel-mapping control for animation and video-style effects

Chauvet DJ COLORband PiX-M ILS Description

The COLORband PiX-M ILS is built for lighting designers, DJs, and event pros looking to add motion and complexity to their light shows. This moving strip light features 10 RGB LEDs (6W each) with individual control for custom pixel effects, vibrant chases, and full-blown animations. A 245° tilt range adds dynamic motion that takes your wash effects to the next level. This fixture is part of Chauvet’s ILS (Instant Light Shows) ecosystem, allowing it to sync seamlessly with other ILS-compatible lights for coordinated shows. It also supports wireless DMX through D-Fi USB (dongle sold separately) and features a built-in RF receiver for remote control using Chauvet's RFC or RFC-XL. Designed for flexibility and power, the COLORband PiX-M ILS has both 3- and 5-pin DMX connections, multiple DMX channel modes, and powerCON-compatible in/out for daisy-chaining power. Whether you're uplighting, pixel mapping, or animating a wall, this unit combines precision, movement, and visual flair in one sleek package.

Model Features

• 10x 6W RGB LEDs with individual pixel control
• Motorized 245° tilt for sweeping visual movement
• Built-in RF receiver for remote control via RFC or RFC-XL
• ILS compatibility for synced multi-fixture shows
• D-Fi USB support for wireless DMX (dongle sold separately)
• 7 selectable DMX modes for full customization
• 15° beam angle and 27° field angle for focused output

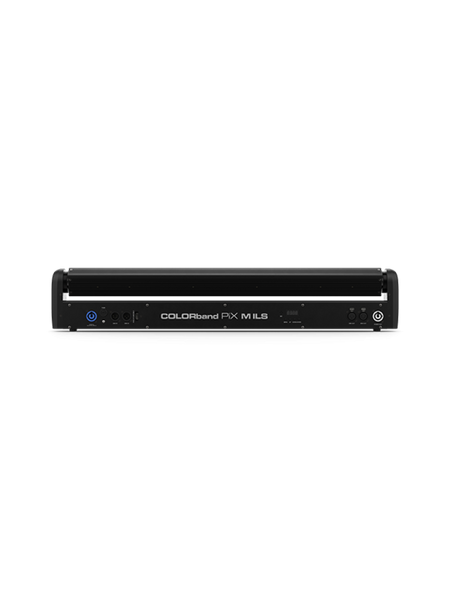

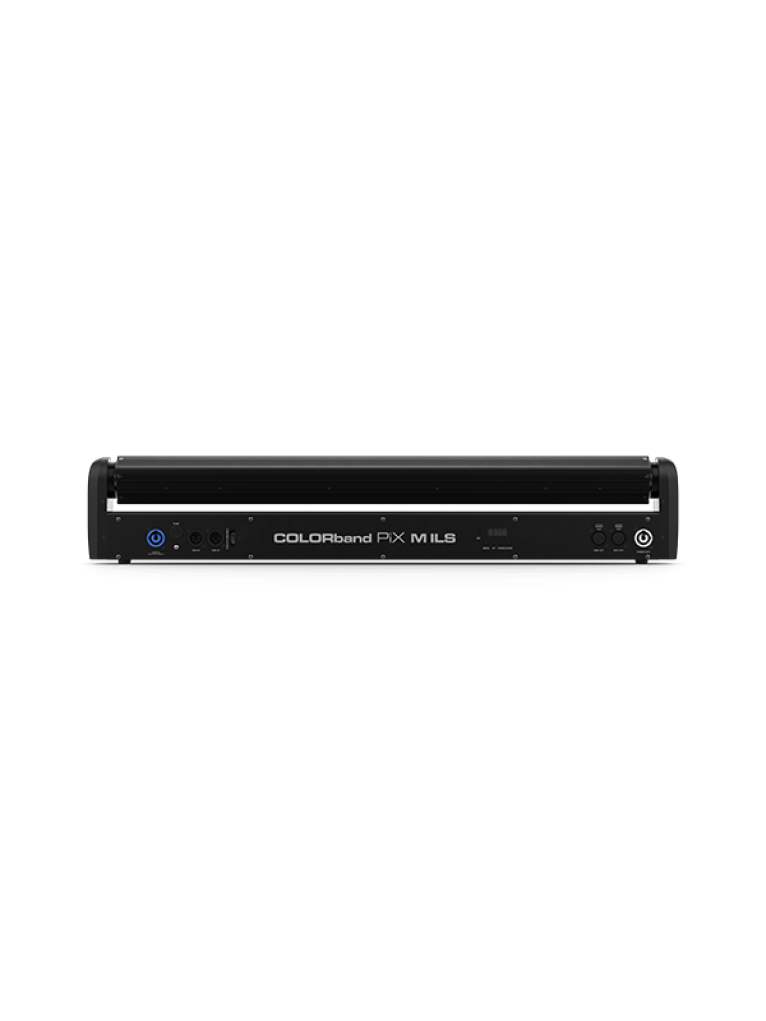

• PowerCON®-compatible input/output for linking power

Model Specifications

• DMX Channels: 5, 6, 8, 10, 17, 32, or 36
• DMX Connectors: 3-pin and 5-pin XLR
• Light Source: 10x RGB LEDs (6W each), 50,000-hour life
• Strobe Rate: 0 to 29 Hz
• Beam Angle: 15°
• Field Angle: 27°
• Illuminance: 7,441 lux @ 2 m
• Tilt Range: 245° motorized
• Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
  • 86 W, 1.2 A @ 120 V, 60 Hz
  • 84 W, 0.7 A @ 230 V, 50 Hz
• Power Linking: 12 units @ 120 V; 20 units @ 230 V
• Size: 31 x 2.6 x 4.8 in (785 x 67 x 123 mm)
• Weight: 8.2 lb (3.7 kg)
• Mounting Bracket Hole: 13 mm
• Approvals: CE, UKCA, RoHS
• Optional Controllers: RFC, RFC-XL

What's In The Box

• COLORband PiX-M ILS
• Power cord
• Quick reference guide
