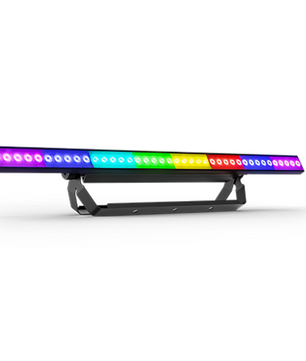

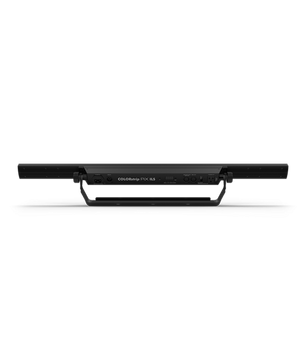

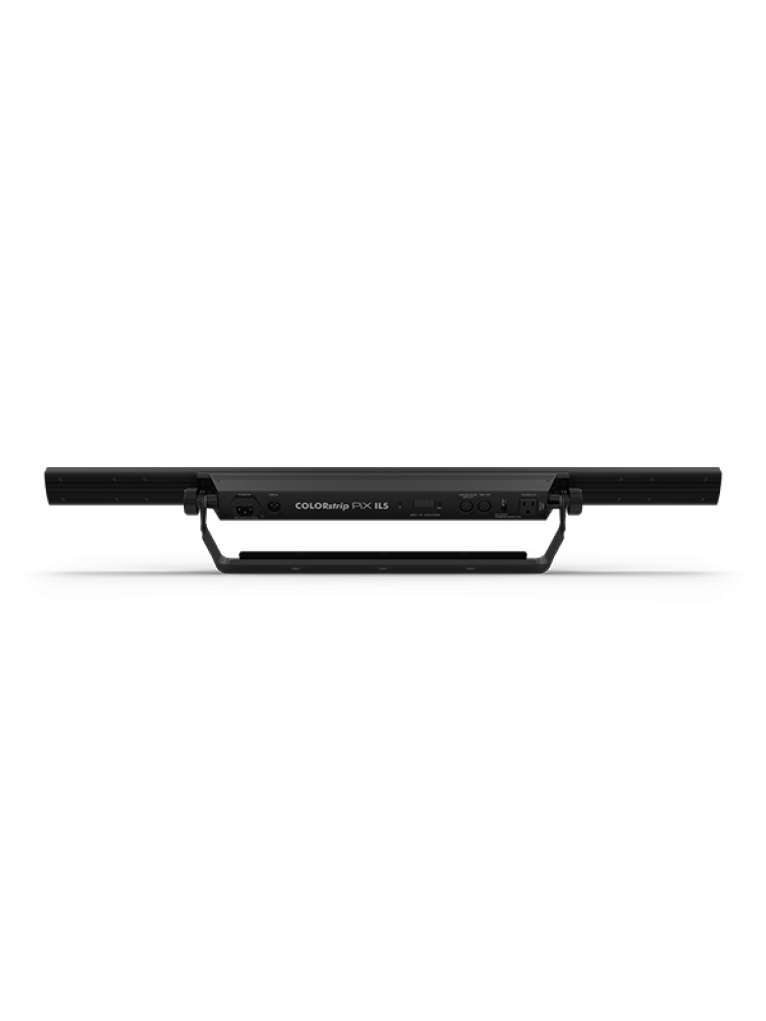

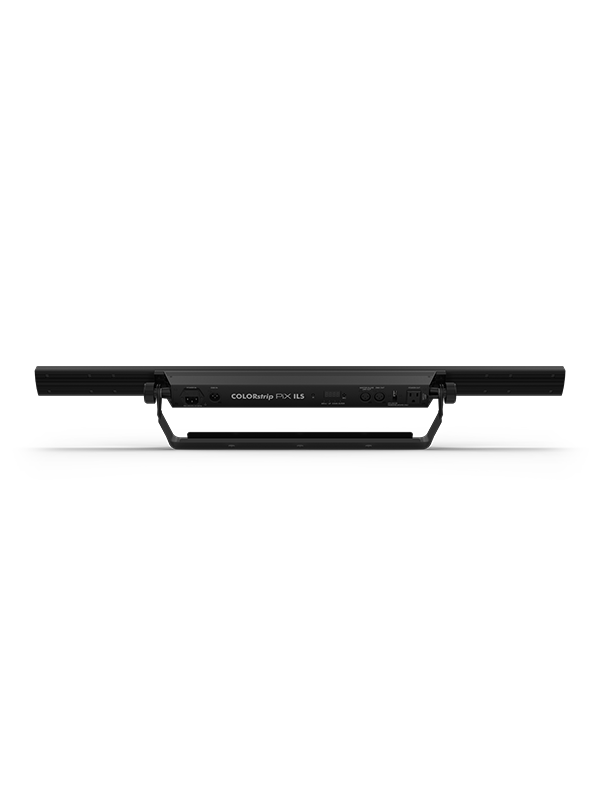

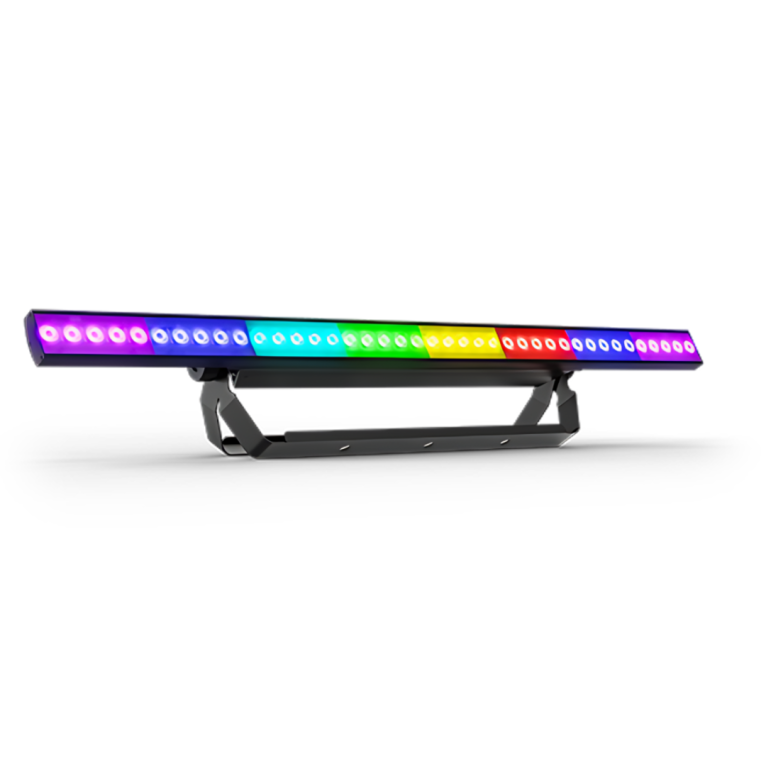

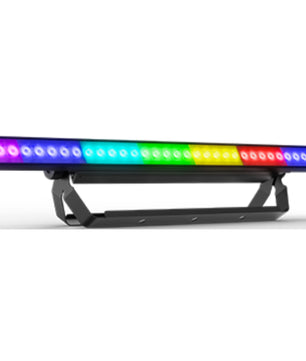

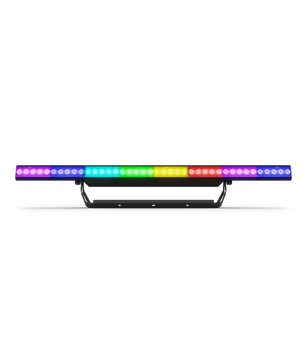

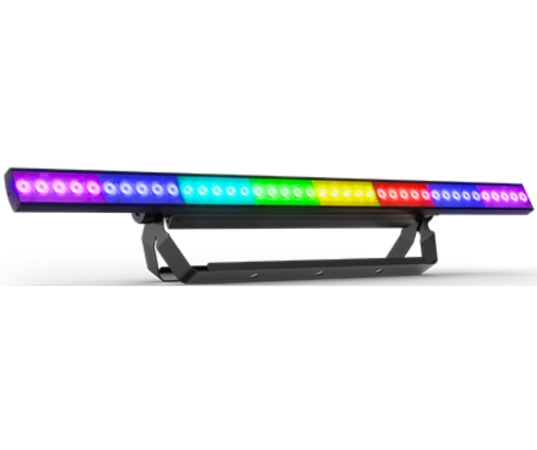

Chauvet DJ COLORstrip Pix ILS | RGB Pixel Mapping Strip Light | ILS & D-Fi USB Compatible

RGB LED Strip Light with Pixel Mapping

The Chauvet DJ COLORstrip Pix ILS is a versatile LED strip light that functions as a pixel-mapping effect, dynamic uplight, or eye-catching runway fixture. Designed for DJs, production companies, and event professionals, this fixture features 40 individually controlled tri-color LEDs and supports ILS integration and wireless DMX via D-Fi USB (sold separately).

Chauvet DJ COLORstrip Pix ILS Competitive Differences

• Pixel-mappable with 40 tri-color LEDs for animated visual effects
• ILS and D-Fi USB compatibility for wireless, synchronized light shows

Chauvet DJ COLORstrip Pix ILS Description

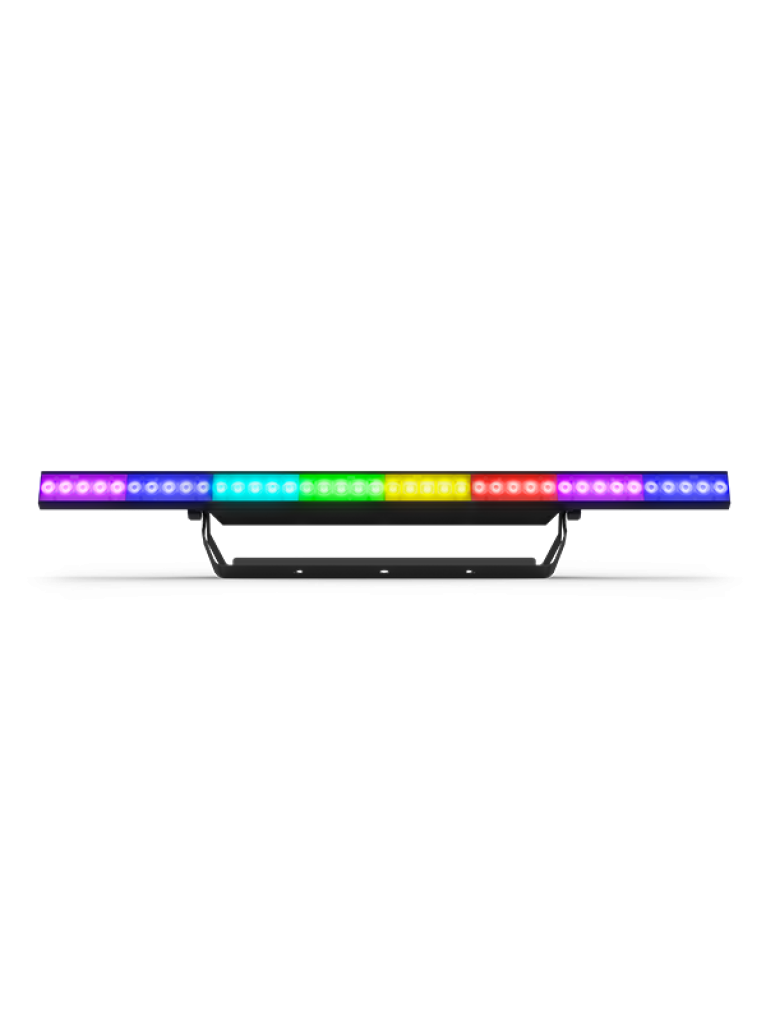

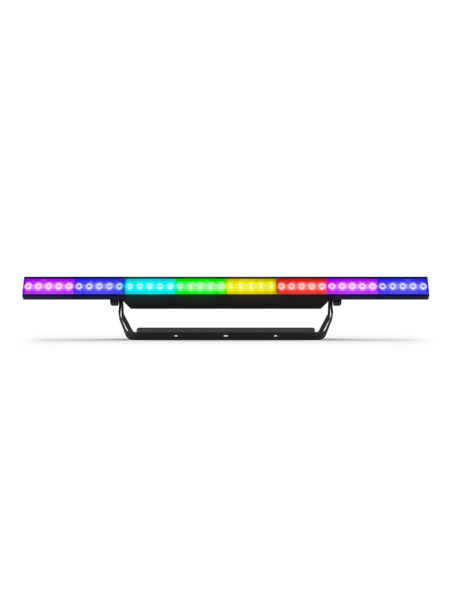

The Chauvet DJ COLORstrip Pix ILS delivers vivid RGB lighting with advanced pixel control in a slim, low-profile strip design. Each of its 40 tri-color LEDs is individually controllable, allowing for dazzling animations, chases, and video-like effects. Whether you're lighting a stage, creating uplight ambiance, or adding visual flair to a dance floor or runway, this strip offers unmatched flexibility and performance. This fixture is fully compatible with Chauvet’s Integrated Lighting System (ILS), making it easy to synchronize with other ILS-enabled fixtures for cohesive, immersive shows. D-Fi USB support (dongle sold separately) allows for wireless Master/Slave or DMX operation, while silent operation makes it ideal for theaters and sound-sensitive venues. Multiple DMX modes (up to 122 channels) provide full customization potential, or you can go cable-free with the optional IRC-6 remote for simple color and effect control.

Model Features

• Full-size RGB strip light with pixel mapping
• 40 individually controlled tri-color LEDs (RGB)
• ILS compatibility for easy show integration
• D-Fi USB ready for wireless DMX/Master-Slave control
• Create runway chases by linking multiple units
• Silent, fan-free operation for quiet environments
• Supports IRC-6 remote for wireless, non-DMX use
• Fits in optional CHS-60 VIP gear bag

Model Specifications

• DMX Channels: 3, 8, 120, 122
• DMX Connectors: 3-pin XLR
• Light Source: 40 tri-color LEDs (2W each, 50,000-hour life)
• Beam Angle: 14°
• Field Angle: 24°
• Illuminance: 4,967 lux @ 2 m
• Lumens: 1,491
• Strobe Rate: 0 to 20 Hz
• Power Linking: 7 units @ 120V, 10 units @ 230V
• Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 79W, 1.2A @ 120V | 77W, 0.8A @ 230V
• Dimensions: 38.9 x 2 x 6.2 in (987 x 49 x 157 mm)
• Weight: 6.2 lb (2.8 kg)
• Cable Length: 5 ft (1.52 m)
• Bracket Mounting Hole: 13 mm
• Certifications: CE, RoHS

What's In The Box

• COLORstrip Pix ILS fixture
• Power cord
• Quick reference guide
