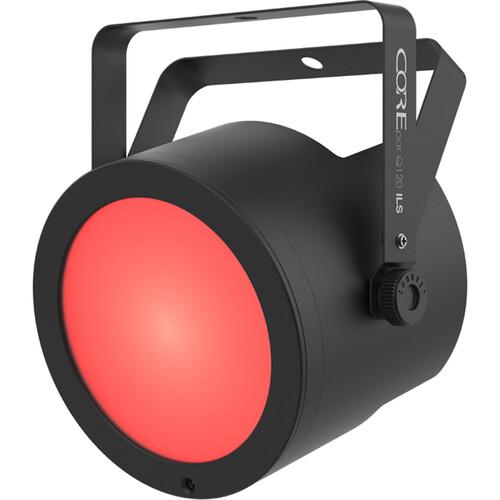

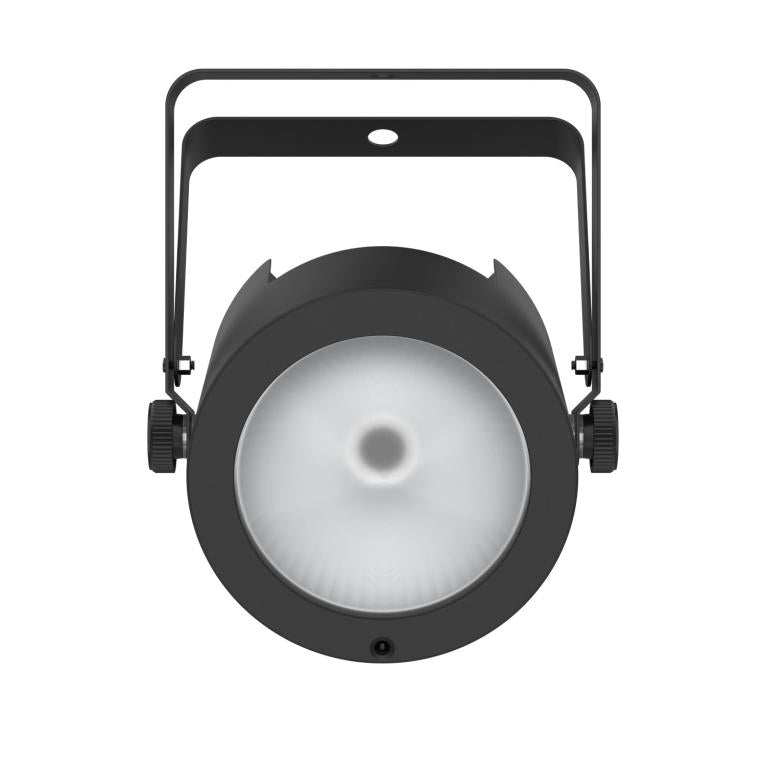

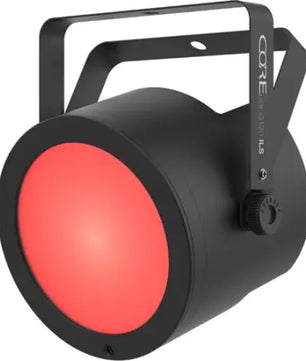

Chauvet DJ COREpar Q120 ILS | 120W RGBW COB LED Wash | ILS & D-Fi USB Compatible with Magnetic Lens

COB RGBW LED Wash Light

The Chauvet DJ COREpar Q120 ILS is a powerful 120-watt quad-color wash light featuring advanced COB (Chip-on-Board) LED technology for superior color mixing and a full-spectrum output. Designed for both mobile performers and installed lighting systems, this compact fixture combines high-output performance with flexible control options including ILS, D-Fi USB, and DMX.

Chauvet DJ COREpar Q120 ILS Competitive Differences

• Magnetic Fresnel lens for fast switching between wide and narrow beams
• ILS & D-Fi USB compatibility for easy integration into coordinated wireless shows

Chauvet DJ COREpar Q120 ILS Description

The Chauvet DJ COREpar Q120 ILS delivers professional-grade color washes in a rugged, travel-ready housing. Its COB LED engine offers a rich RGBW color mix and flicker-free output, ideal for video production and live events. The built-in dimming curves and smooth LED fading allow for seamless transitions, while the onboard display enables custom color creation without external control. With support for both ILS and D-Fi USB (sold separately), this fixture integrates easily into synchronized lighting setups, letting you run multiple fixtures wirelessly in Master/Slave or full DMX control. The sit-flat design features side-mounted power and DMX connections for low-profile floor use and easy cable management. The included magnetic Fresnel lens enables quick beam angle adjustments—go from a wide 100° field (56° beam) to a focused 30° field (20° beam) in seconds. Whether used as a wall wash, accent light, or stage fixture, the COREpar Q120 ILS delivers flexible performance with minimal setup.

Model Features

• 120W RGBW COB LED for vibrant full-spectrum color
• ILS and D-Fi USB compatible (USB sold separately)
• Magnetic Fresnel lens: wide 100° field or narrow 30° field
• Flicker-free dimming ideal for video and livestreaming
• Built-in color presets and dimming curves

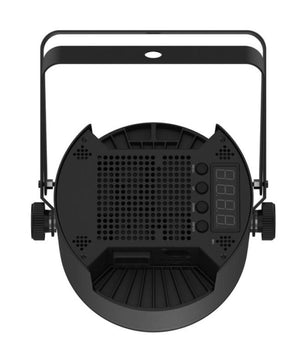

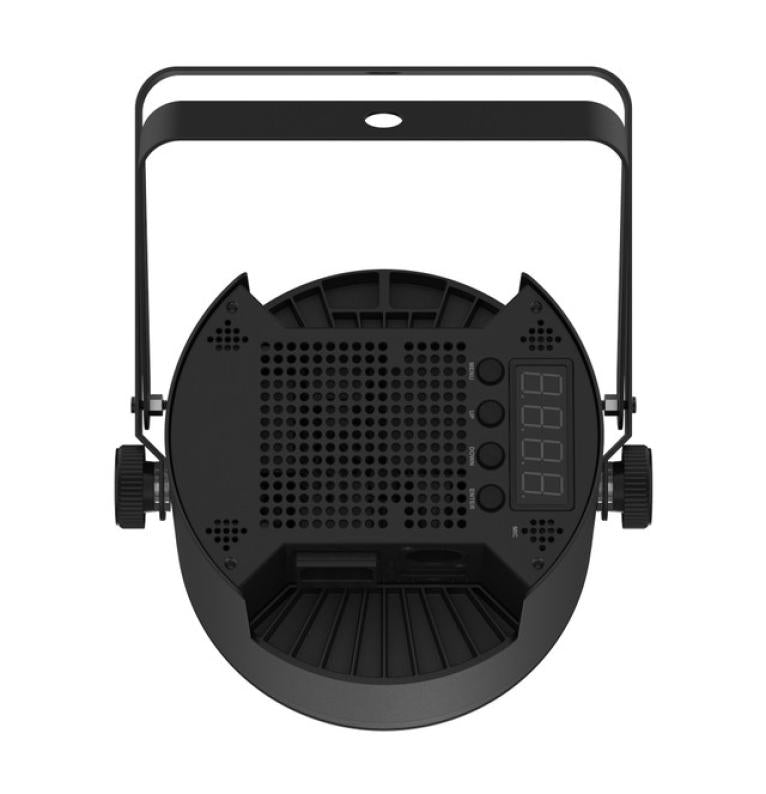

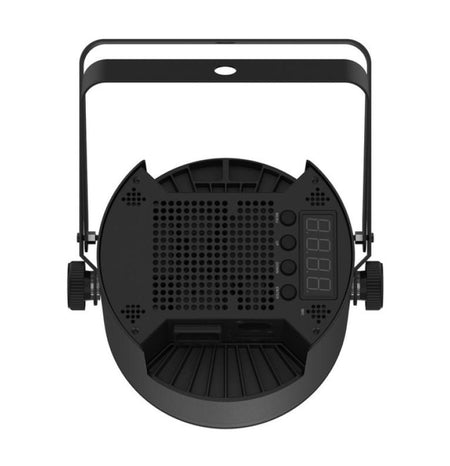

• Rugged, sit-flat housing with side-panel connectors
• Optional IRC-6 remote for point-and-shoot control

Model Specifications

• DMX Channels: 4 or 9
• DMX Connectors: 3-pin XLR
• Light Source: 1x COB RGBW LED, 120W total
• Beam Angle: 56° (no lens), 20° (with lens)
• Field Angle: 100° (no lens), 30° (with lens)
• Illuminance: 868 lux @ 2m (no lens), 4,639 lux @ 2m (with lens)
• Color Temp Range: 2700 K – 6000 K
• Strobe Rate: 0 to 29 Hz
• Power Linking: 6 units @ 120V, 10 units @ 230V
• Power Consumption: 100W, 1.3A @ 120V | 94W, 0.7A @ 230V
• Dimensions: 8.9 x 7.4 x 9 in (225 x 188 x 228 mm)
• Weight: 4.6 lb (2.1 kg)
• Bracket Mounting Hole: 13 mm
• Cable Length: 5 ft (1.5 m)
• Certifications: CE, RoHS, UKCA

What's In The Box

• COREpar Q120 ILS fixture
• Power cord
• Magnetic Fresnel lens
• Quick reference guide
