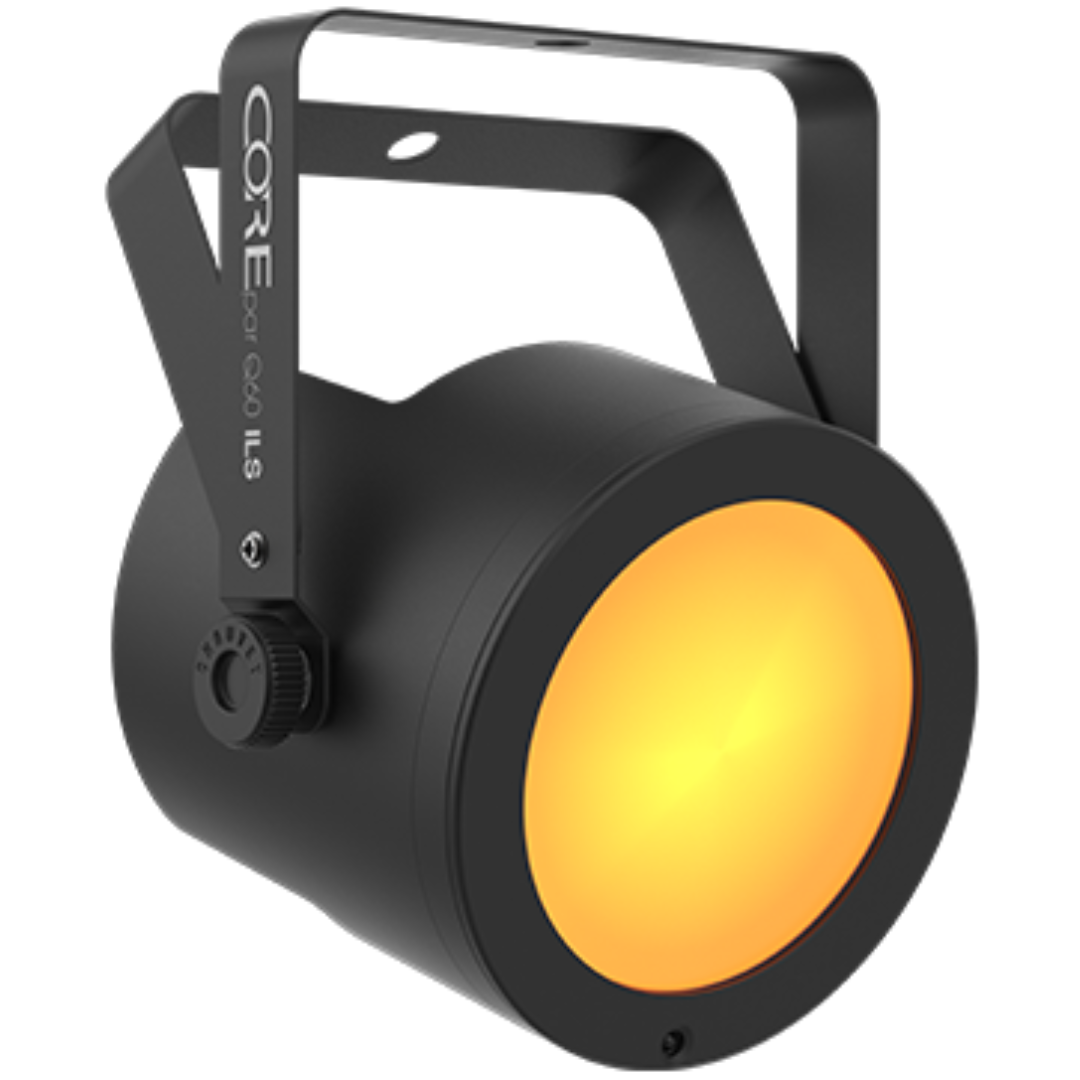

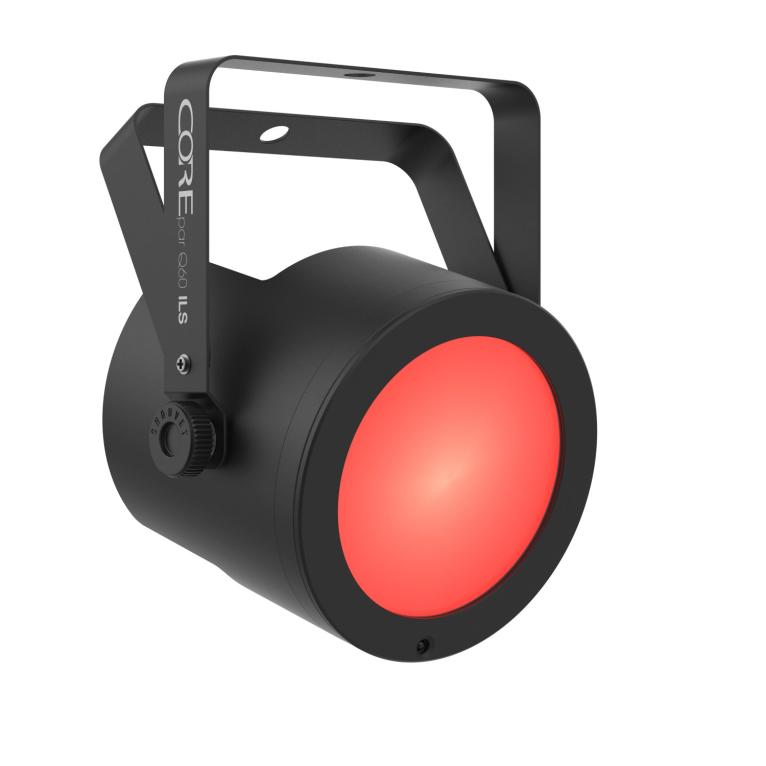

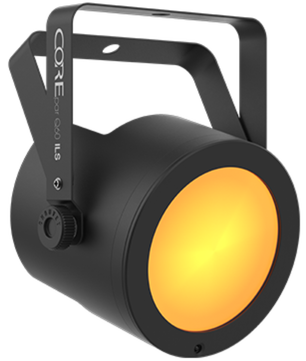

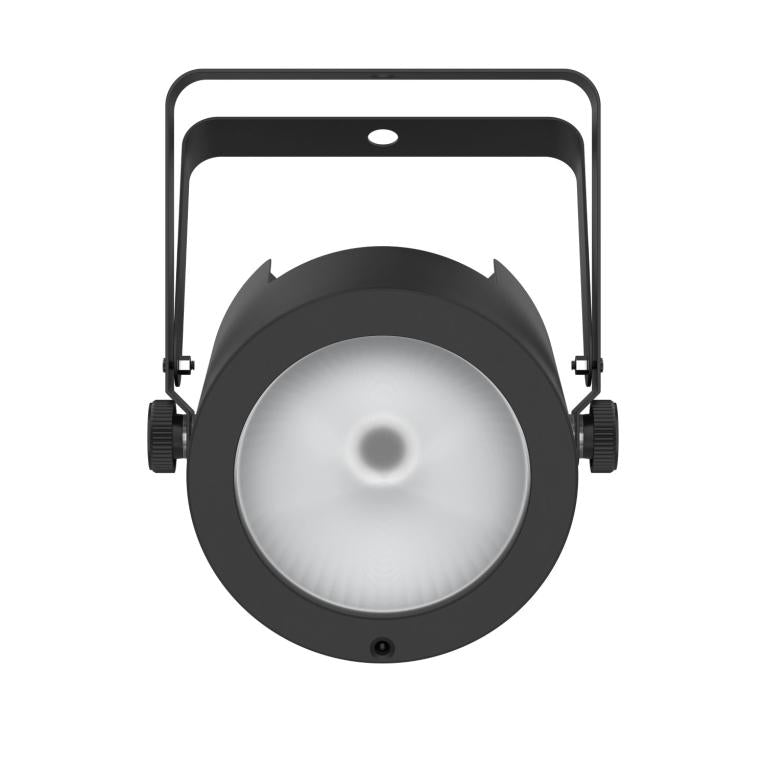

Chauvet DJ COREpar Q60 ILS | 60W RGBW COB Wash Light | ILS & D-Fi USB Compatible

COB LED Wash Light with ILS & Wireless DMX Support

Chauvet DJ COREpar Q60 ILS is a high-output quad-color (RGBW) COB LED fixture designed for rich color mixing and versatile wash lighting. With a 60-watt output, wide beam angles, and ILS/D-Fi USB compatibility, it offers powerful performance in a compact, rugged form that’s perfect for mobile DJs, small stages, and event lighting.

Chauvet DJ COREpar Q60 ILS Competitive Differences

• 60W RGBW COB LED with magnetic Fresnel lens for 20° to 74° beam control
• ILS and D-Fi USB compatibility for synced, wireless control across fixtures

Chauvet DJ COREpar Q60 ILS Description

The COREpar Q60 ILS offers impressive versatility in a travel-ready package. Powered by a single 60-watt COB LED, this fixture delivers exceptional color blending and wide-area washes. Its unique sit-flat housing with side-mounted DMX and power connectors ensures clean setups and floor placement without additional brackets. With built-in compatibility for the ILS (Integrated Lighting System) ecosystem and D-Fi USB (sold separately), users can easily coordinate synchronized light shows across various Chauvet DJ fixtures using wireless DMX or master/slave control. The included magnetic Fresnel lens allows for fast switching between ultra-wide (74°) and focused (20°) beams, giving lighting techs instant flexibility at events. Flicker-free operation ensures video-friendly performance, while built-in dimming curves deliver smooth fades. A user-friendly LED display allows manual color mixing, and optional accessories like the IRC-6 remote and CHS-40 gear bag make this fixture even more convenient for mobile use.

Model Features

• 60W RGBW COB LED for powerful color washes
• Magnetic Fresnel lens for adjustable beam (20° narrow, 74° wide)
• ILS compatibility for coordinated light shows
• D-Fi USB support for wireless DMX/master-slave control

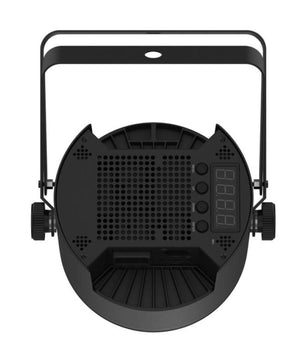

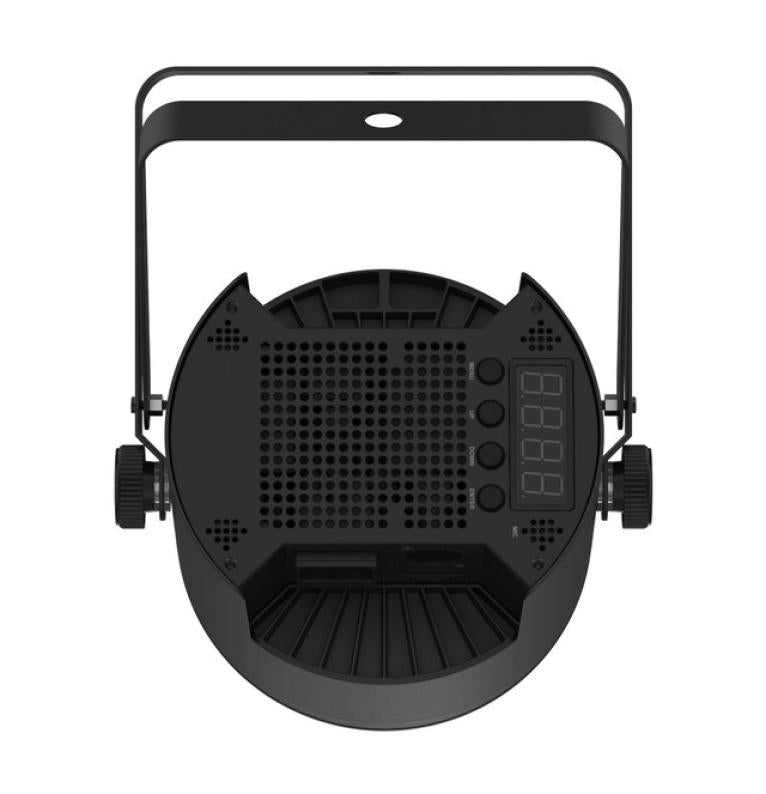

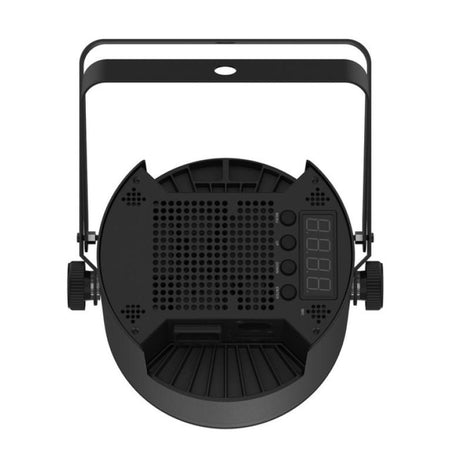

• Sit-flat housing with side-mounted power & DMX connections
• High-frequency LED dimming for flicker-free video use
• Built-in dimming curves and LED display for color control
• Power linking (up to 9 units @ 120V or 17 @ 230V)

Model Specifications

• DMX Channels: 4 or 9
• DMX Connectors: 3-pin XLR
• Light Source: 1x 60W RGBW COB LED, 50,000-hour life
• Beam Angle: 74° (wide), 20° (with lens)
• Field Angle: 100° (wide), 30° (with lens)
• Illuminance: 320 lux @ 2m (wide), 2796 lux @ 2m (with lens)
• Strobe Rate: 0–29 Hz
• Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)
• Power Consumption:
  • 59W, 0.8A @ 120V
  • 57W, 0.5A @ 230V
• Power Linking: 9 units @ 120V, 17 units @ 230V
• Dimensions: 7.5 x 7.5 x 8.2 in (192 x 192 x 210 mm)
• Weight: 3.4 lb (1.5 kg)
• Approvals: CE, RoHS, UKCA
• Cable Length: 5 ft (1.5 m)
• Bracket Mounting Hole: 13 mm

What's In The Box

• Chauvet DJ COREpar Q60 ILS Fixture
• Power Cord
• Magnetic Fresnel Lens
• Quick Reference Guide
