LED Linear Batten Light
Chauvet DJ EVE B160Q is a full-color RGBW LED batten designed for linear wash lighting, stage accents, and wall grazing in both mobile and installation environments. With multiple controllable zones, color temperature presets, and flicker-free performance, it provides flexible control and consistent color output for productions that demand precision and reliability.
Chauvet DJ EVE B160Q Competitive Differences
- 8 controllable zones enable dynamic chase and pixel-mapped effects
- Pre-set color temperature ranges for accurate warm and cool white output
- Flicker-free operation ideal for video and broadcast applications
- D-Fi USB compatibility for wireless DMX or Master/Slave control
Chauvet DJ EVE B160Q Description

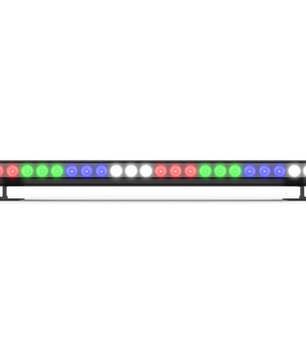

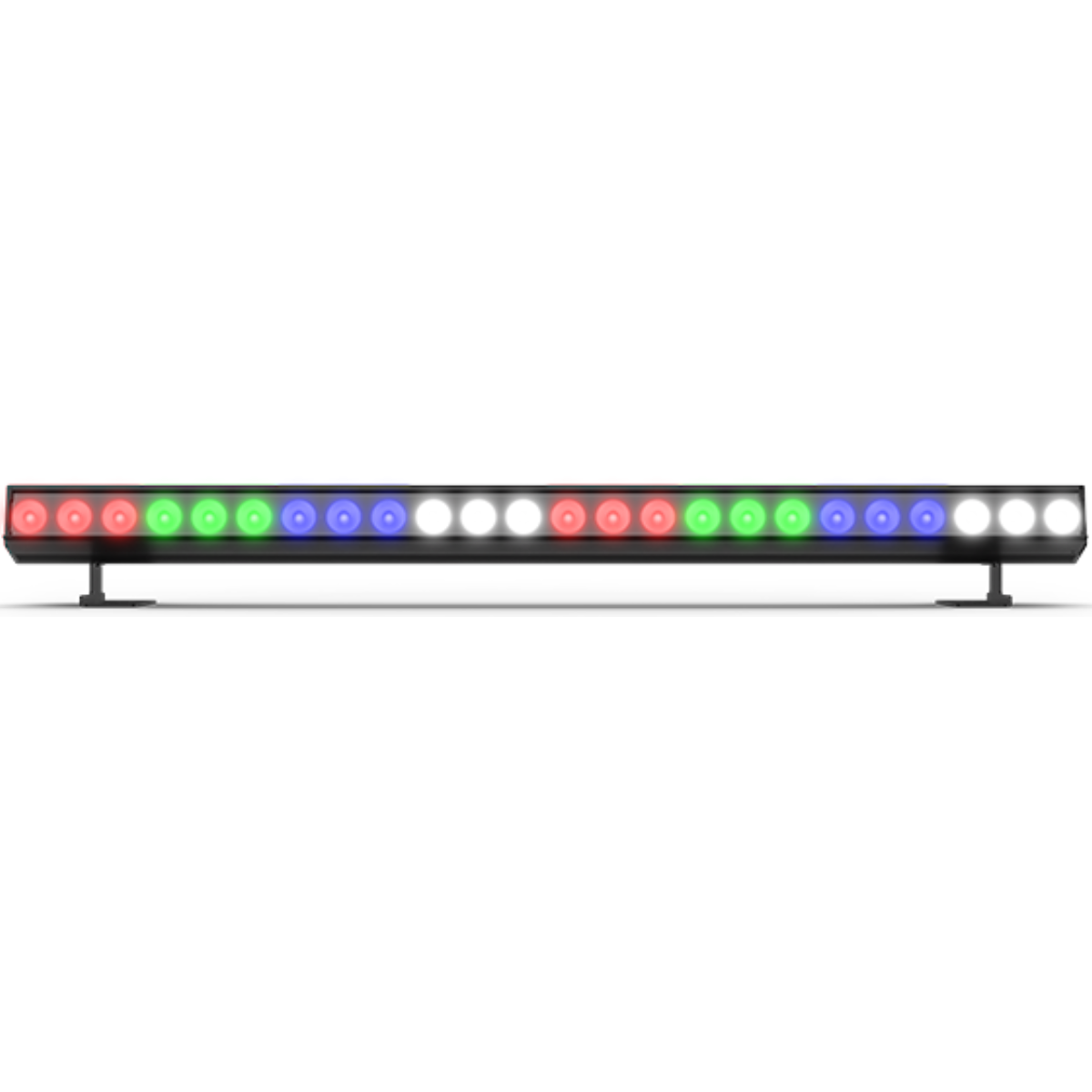

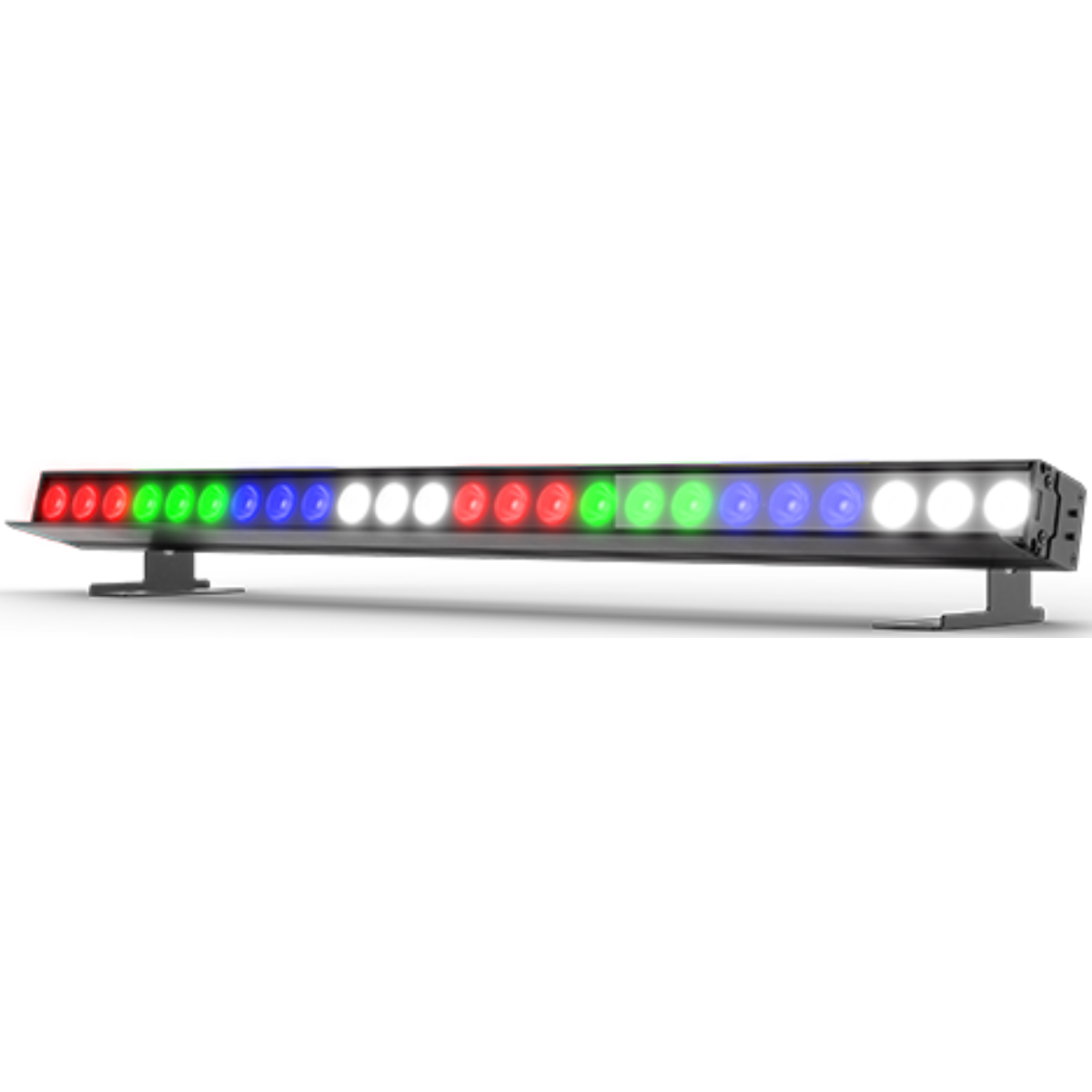

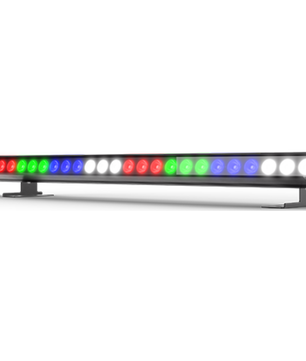

The Chauvet DJ EVE B160Q is engineered to deliver vibrant linear color washes with the added flexibility of zone control. Its 24 RGBW LEDs allow for smooth color mixing and consistent output, while the 8-zone configuration makes it easy to create eye-catching chase effects, gradients, and animated lighting looks across stages, walls, or truss systems.
Designed to integrate seamlessly with other fixtures in the EVE series, this batten includes preset color temperature options, ensuring accurate matching with fresnels, ellipsoidals, and PAR fixtures. This makes it especially useful in theatrical, broadcast, and event environments where consistent white balance and color rendering are critical.
For video production and live streaming, the fixture offers flicker-free operation, eliminating unwanted camera artifacts. Control flexibility is enhanced with multiple DMX channel modes, 3- and 5-pin DMX connections, and compatibility with the optional D-Fi USB system for wireless operation, reducing cable clutter in complex setups.

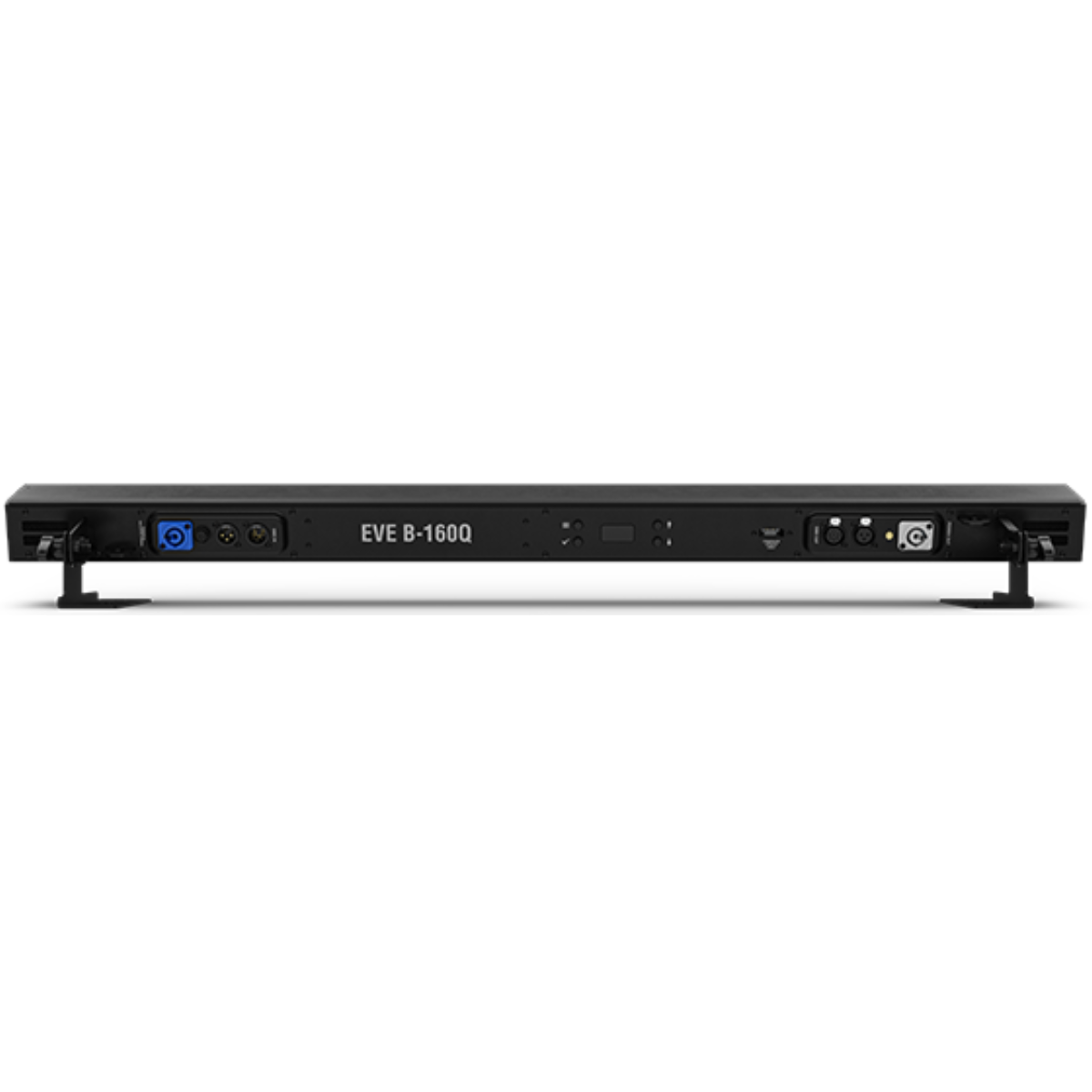

Chauvet DJ EVE B160Q is also built with practical deployment in mind, featuring PowerCON-compatible power input and output for reliable power linking, along with a durable housing suited for both touring and permanent installation. Its long form factor and wide field angle make it ideal for wall washing, stage backlighting, and architectural lighting applications.
EVE B160Q Features
- Full-color RGBW LED batten for linear wash applications
- 8 individually controllable zones for dynamic effects
- Preset color temperature ranges for accurate white tones
- Flicker-free output for video and broadcast use
- D-Fi USB compatibility for wireless DMX or Master/Slave control
- Multiple DMX channel modes for flexible programming
- 3-pin and 5-pin XLR DMX connectivity
- PowerCON-compatible power input/output for power linking
- Wide field angle for even wall and stage coverage
- Designed to match output with other EVE series fixtures
EVE B160Q Specifications
- Light Source: 24 x 6.5W RGBW LEDs
- LED Life Expectancy: 50,000 hours
- DMX Channels: 3, 4, 11, or 39
- DMX Connectors: 3-pin and 5-pin XLR
- Beam Angle: 15°
- Field Angle: 30°
- Beam Angle (with filter): 24°
- Field Angle (with filter): 52°
- Illuminance: 8,300 lux @ 2 m
- Lumens: 3,909
- Strobe Rate: 0 to 20 Hz
- Input Voltage: 100 to 240 VAC, 50/60 Hz
- Power Consumption: 105W @ 120V, 60 Hz
- Current Draw: 1.6A @ 120V, 60 Hz
- Power Consumption: 102W @ 230V, 50 Hz
- Current Draw: 1.0A @ 230V, 50 Hz
- Power Linking: 7 units @ 120V; 11 units @ 230V
- Cable Length: 5 ft (1.524 m)
- Weight: 10.4 lb (4.7 kg)
- Dimensions: 39.4 x 5.9 x 7.6 in (1000 x 151 x 194 mm)
- Approvals: CE, MET, RoHS
What's In The Box
- EVE B160Q
- Power cord
- Quick Reference Guide
