Chauvet DJ EVE F-160ZQ | 160W RGBW LED Fresnel | Zoom Optics & D-Fi USB Control

RGBW LED Fresnel

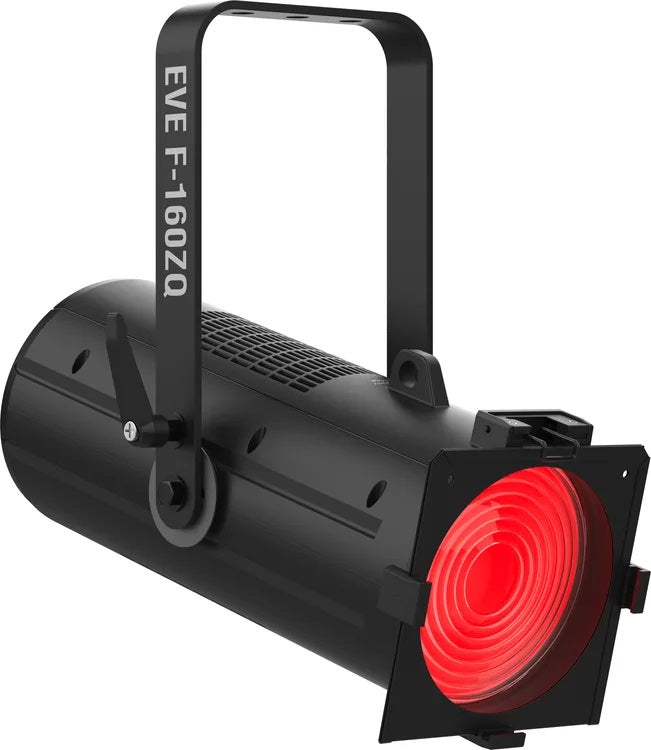

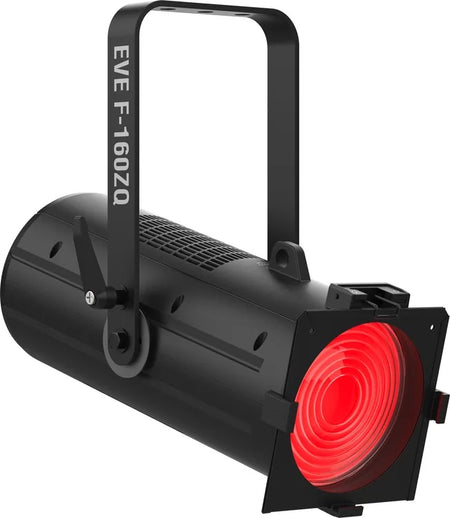

Chauvet DJ EVE F-160ZQ is a full-color Fresnel fixture that delivers powerful, smooth lighting for both stage and studio applications. Designed for installations and mobile productions alike, it features a 160W quad-color LED source (RGBW) with zoomable optics and flicker-free operation—ideal for theatrical lighting, house of worship, broadcast, and film environments.

Chauvet DJ EVE F-160ZQ Competitive Differences

• 160W RGBW LED with zoomable beam from 16° to 61°
• Pre-set color temperature ranges for fast design setups

Chauvet DJ EVE F-160ZQ Description

The Chauvet DJ EVE F-160ZQ is engineered for professionals who demand rich color mixing, flexible control options, and high-quality output in a rugged yet compact form. The 160W quad-color RGBW LED produces brilliant, even washes with excellent color rendering (CRI 96), and its zoom range (16°–61° beam / 29°–90° field) allows users to adapt the beam width to various stage and subject distances without changing fixtures. Pre-set color temperatures between 2800K and 8000K simplify design workflows, enabling fast setup without complex programming. This Fresnel also offers flicker-free operation for video use and supports D-Fi USB compatibility for wireless master/slave or DMX control, giving lighting designers multiple flexible control paths. PowerCON-compatible power linking minimizes cable clutter during multi-fixture setups, while both 3-pin and 5-pin DMX options ensure compatibility with professional control systems. The included barn doors and gel frame offer precise beam shaping and filtering options out of the box. Perfect for schools, houses of worship, theaters, and portable productions, the EVE F-160ZQ balances performance, ease of use, and build quality in a professional-grade Fresnel solution.

Model Features

• 160W quad-color RGBW LED Fresnel
• Zoomable beam angle: 16°–61° (29°–90° field)
• Pre-set color temperature range: 2800K–8000K
• High CRI (96) for accurate color rendering
• Flicker-free operation for video and broadcast
• D-Fi USB compatible for wireless DMX or master/slave control

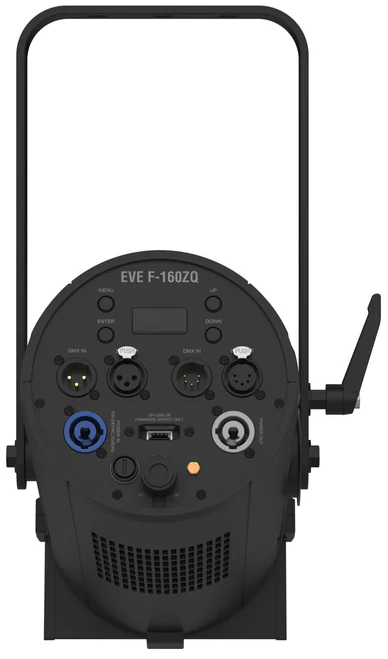

• powerCON in/out for reliable power linking
• 3- and 5-pin DMX connectors

Model Specifications

• DMX Channels: 3, 4, or 11
• Light Source: 1x 160W RGBW LED (50,000 hrs)
• Zoom Range: 16°–61° (beam), 29°–90° (field)
• Illuminance:
  • 7072 lux @ 2m (24°)
  • 2964 lux @ 2m (37°)
  • 1132 lux @ 5m (24°)
  • 474 lux @ 5m (37°)
• Color Temperature Range: 2800K–8000K
• CRI: 96
• Strobe Rate: 1–30 Hz
• Power and Current: 150W, 1.3A @ 120V | 150W, 0.7A @ 230V
• Power Linking: 9 units @ 120V | 16 units @ 230V
• Input Voltage: 100–240V AC, 50/60Hz (auto-ranging)
• DMX Connectors: 3-pin and 5-pin XLR
• Dimensions: 18.4 x 9.8 x 16.9 in (467 x 248 x 429 mm)
• Weight: 12.2 lb (5.5 kg)
• Approvals: CE, RoHS, MET
• Accessory Holder Size: 6.25 in

What's In The Box

• EVE F-160ZQ fixture
• Power cord

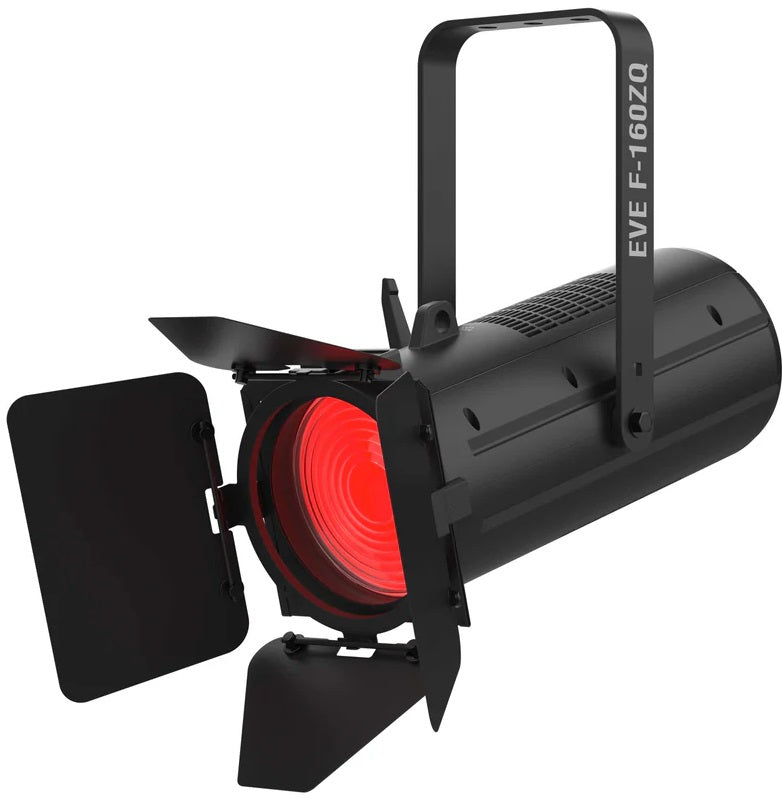

• Barn doors
• Gel frame
• Quick reference guide
