Chauvet DJ FXpar 6 | 6 Zone RGBW + RGB Ring Effects | Compact Party Wash with DMX Control

Effect Par Light

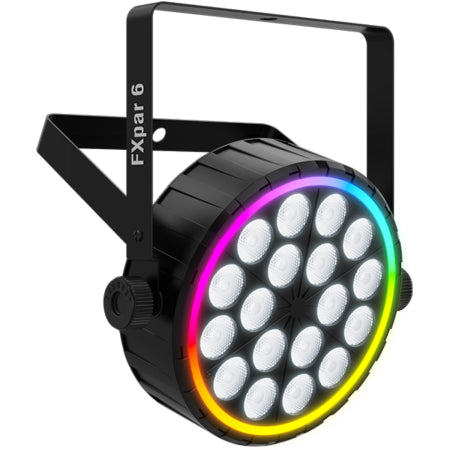

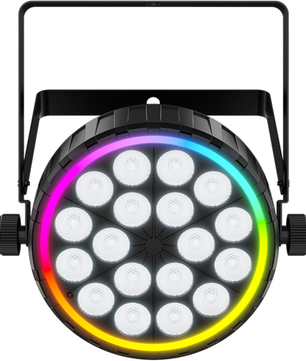

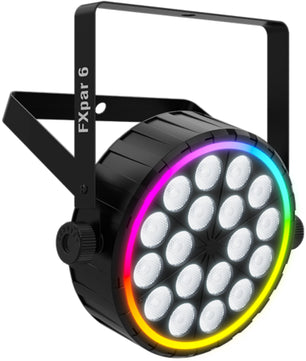

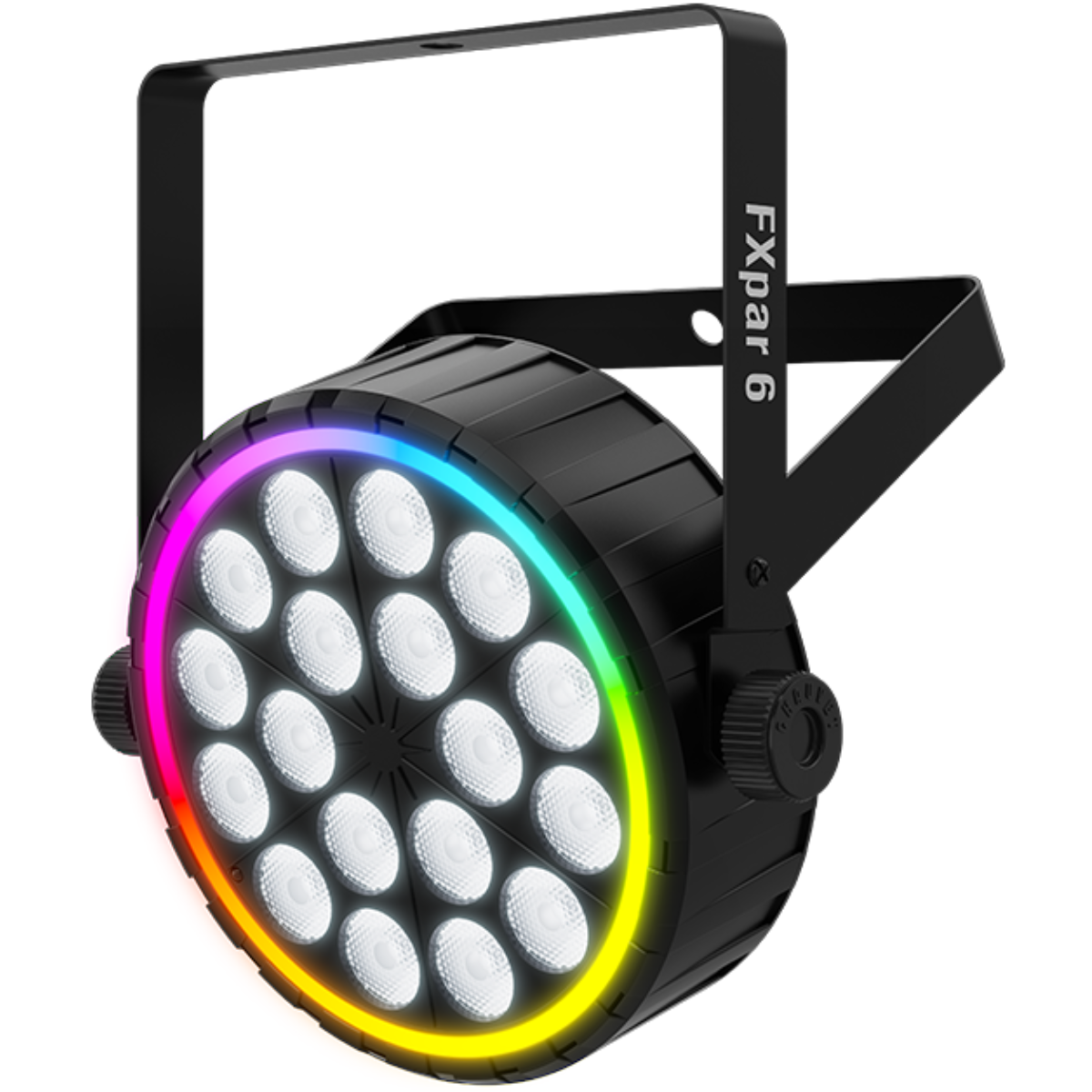

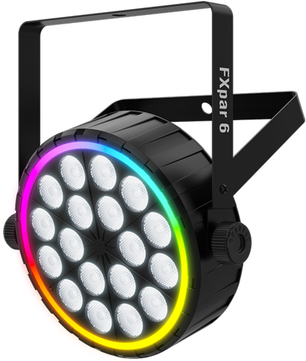

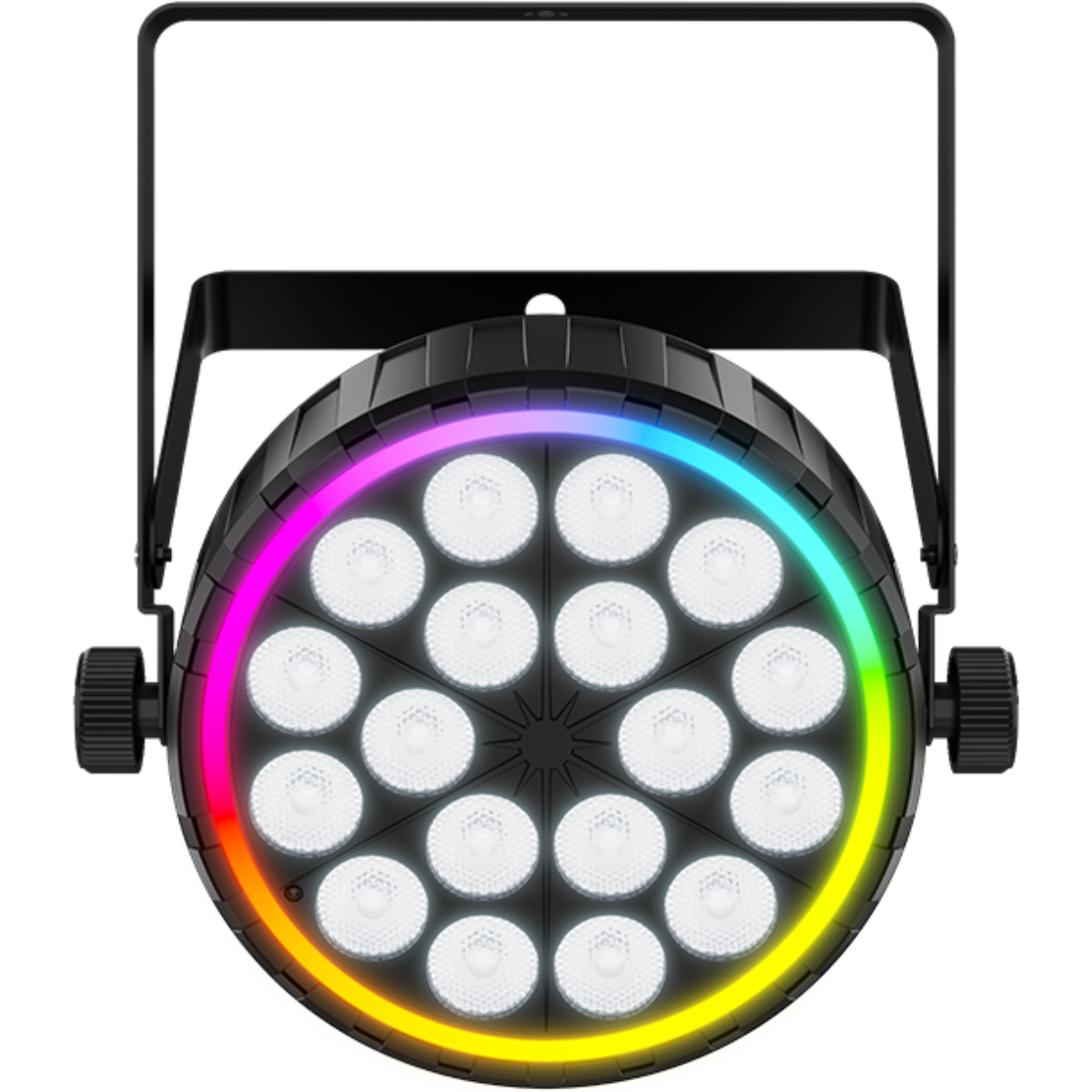

Chauvet DJ FXpar 6 is a compact effect par fixture that combines colorful wash lighting with an eye-catching RGB outer ring for layered visual effects. It is useful for DJs, small stages, parties, and event setups that need dynamic lighting in a portable fixture with flexible control options.

Chauvet DJ FXpar 6 Competitive Differences

• Six independently controlled RGBW zones plus a separate RGB outer ring for more dynamic looks than a standard par light
• Supports DMX, sound-activated programs, automated programs, and optional IRC-6 remote control for flexible operation

Chauvet DJ FXpar 6 Description

The Chauvet DJ FXpar 6 is designed for users who want more than a traditional wash fixture. By combining 18 quad-color RGBW LEDs with 51 RGB ring LEDs, it can produce both broad color washes and animated outer-ring effects from a single compact housing.

Its six zones of control allow users to create more detailed chases, segmented color looks, and layered visual patterns. For programmed shows, the fixture supports 3, 6, or 11 DMX channels through 3-pin XLR connections, making it suitable for custom lighting scenes in mobile and installed applications.

For quick setups, the built-in sound-activated and automated programs generate energetic effects without needing a controller. The FXpar 6 also supports the optional IRC-6 remote for convenient wireless access to static colors and preset looks, which is especially useful for DJs and event operators who need fast adjustments during a show.

This fixture is also practical in real-world use, with flicker-free video performance for on-camera applications and power linking that helps reduce extra cabling. Its lightweight 3.0 lb design makes it easy to transport, and it fits well in the CHS-40 VIP Gear Bag for mobile gig setups.

FXpar 6 Features

• Compact effect par with multiple lighting technologies in one fixture
• Six independently controlled RGBW zones
• RGB outer ring for added visual effects
• Independent control of wash LEDs and outer ring
• Sound-activated and automated programs
• DMX control via 3, 6, or 11 channels
• Optional IRC-6 remote compatibility
• Flicker-free operation suitable for video and camera use
• Power linking for faster setup and fewer cables
• Fits best in the CHS-40 VIP Gear Bag

FXpar 6 Specifications

• DMX Channels: 3, 6, or 11

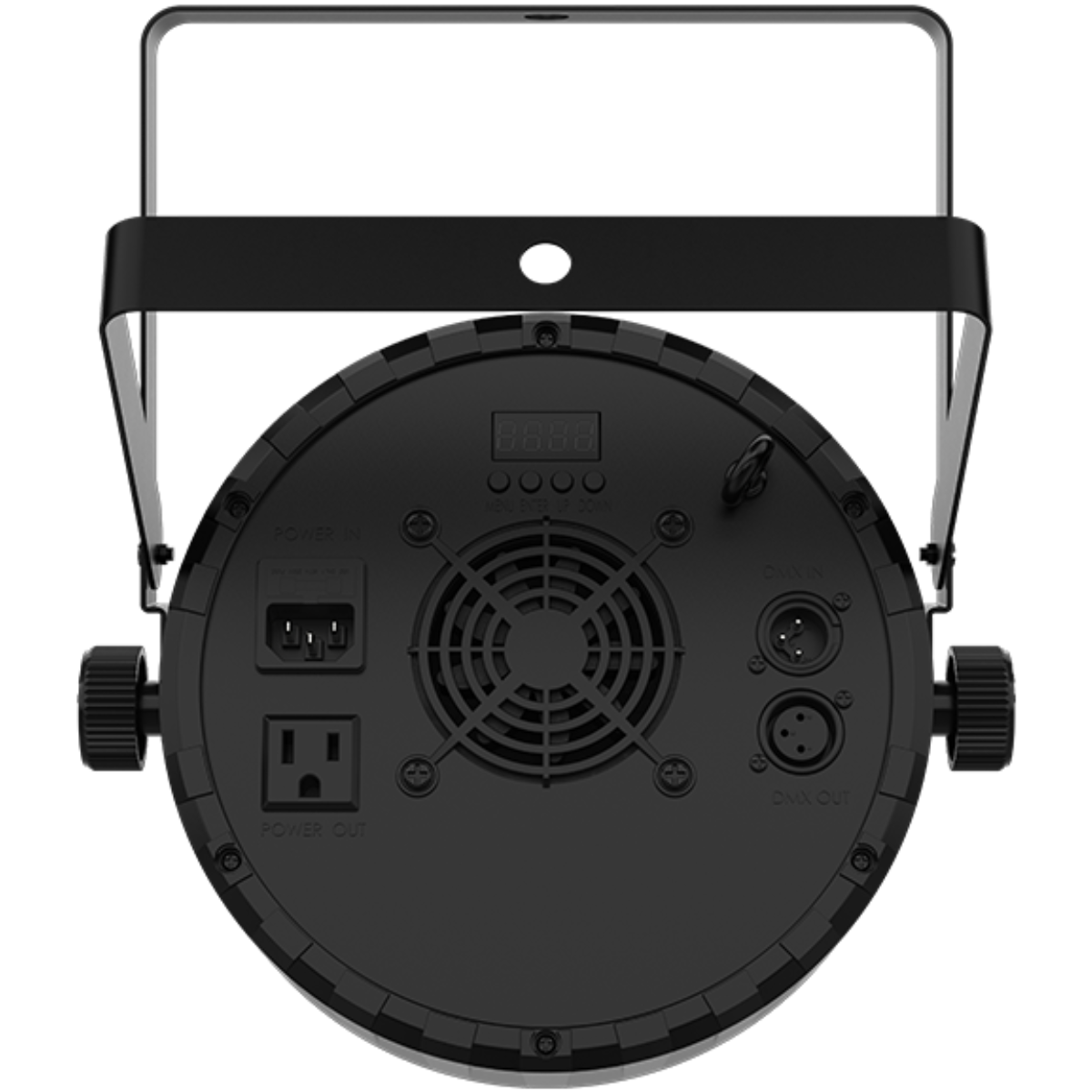

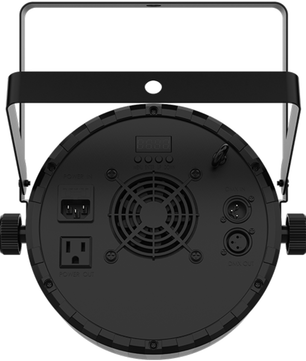

• DMX Connectors: 3-pin XLR
• Beam Angle: 20°
• Field Angle: 36°
• Illuminance: 5,657 lux @ 2 m
• Lumens: 3,239
• Power Linking: 8 units @ 120 V; 12 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 63 W, 0.9 A @ 120 V, 60 Hz
• Power and Current: 62 W, 0.6 A @ 230 V, 50 Hz
• Weight: 3.0 lb (1.3 kg)
• Dimensions: 10.8 x 2.7 x 12 in (275 x 69 x 305 mm)
• Approvals: CE, RoHS
• Light Source: 18 LEDs (quad-color RGBW), 52 W, 1 A, 50,000-hour life expectancy
• Light Source (Ring): 51 LEDs (RGB), 6 W, 0.5 A, 50,000-hour life expectancy
• Strobe Rate: 0 to 20 Hz
• Bracket Mounting Hole: 13 mm
• Optional Controllers: IRC-6

What's In The Box

• FXpar 6
• Power cable
• Quick Reference Guide
