All-in-One Moving Head & Wash Light System

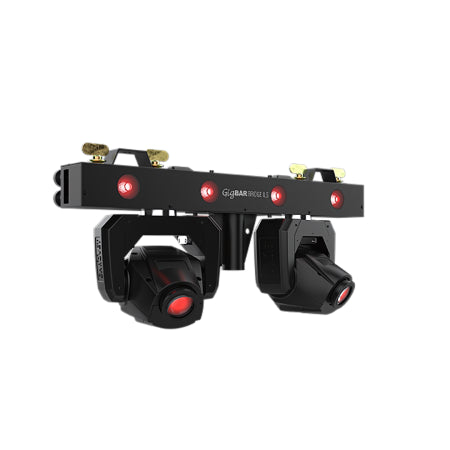

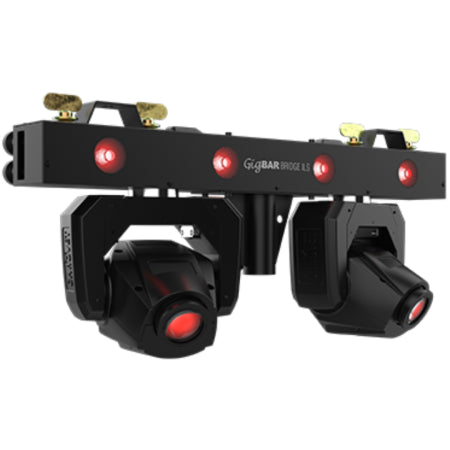

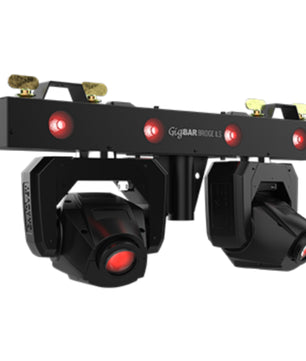

The Chauvet DJ GigBAR Bridge ILS is a powerful, all-in-one lighting bar that blends the excitement of moving heads with the vibrant color of RGBAW+UV wash lights. Designed for fast setup and seamless light show integration, this ILS-compatible system is perfect for mobile DJs, weddings, clubs, and live performers.

Chauvet DJ GigBAR Bridge ILS Competitive Differences

  • 2-in-1 system: Moving heads + washes pre-mounted on a single bar
  • Built-in D-Fi wireless for DMX and ILS syncing — no extra cabling needed

Chauvet DJ GigBAR Bridge ILS Description

Chauvet GigBAR Bridge ILS offers show-ready lighting in a compact format that sets up in minutes. With two 40W cool white moving heads and four 10W RGBAW+UV wash LEDs, this fixture delivers beam movement, color mixing, and built-in effects — all pre-mounted on a single bar. The integrated D-Fi transceiver allows wireless DMX or ILS (Instant Light Shows) compatibility, enabling full synchronization with other ILS fixtures without running data cables. Built-in locking systems let you connect multiple GigBAR Bridge units quickly and securely for expanded coverage. A removable mounting bracket makes it easy to mount on tripods or truss systems. Each moving head features independent color and gobo wheels with 9 colors and 9 gobos (plus open), offering creative visual combinations. Totem Mode ensures the heads stay focused on the dance floor, maintaining energy and engagement. Easily navigate settings using the full-color LCD or trigger built-in shows with the included RF remote — no line of sight required.

Model Features

  • 2-in-1 system with moving heads and RGBAW+UV wash lights
  • Integrated D-Fi transceiver for wireless DMX or ILS signal control
  • ILS compatibility for synchronized light shows
  • Independent color and gobo wheels (9 each + open)
  • Totem Mode keeps moving heads aimed at the dance floor
  • Full-color LCD for quick setup and control
  • Power linking: 8 units @ 120V, 13 @ 230V
  • Trigger built-in shows with included RF remote
  • Tool-free mounting on tripods or truss with removable bracket

Model Specifications

  • DMX Channels: 3, 16, or 46
  • DMX Connectors: 3-pin XLR
  • Power & Current: 191W, 1.5A @ 120V | 175W, 1A @ 230V
  • Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)
  • Moving Head LEDs: 2x 40W cool white (50,000 hr lifespan)
  • Wash LEDs: 4x 10W RGBAW+UV (50,000 hr lifespan)
  • Beam Angle (Wash): 22° | Field Angle: 38°
  • Strobe Rate: 0–20 Hz
  • Max D-Fi Distance: 600 ft (183 m)
  • Fits Tripod Size: 1.5 in (37.4 mm)
  • Size: 26 x 2.8 x 12 in (660 x 71 x 305 mm)
  • Weight: 18.6 lb (8.4 kg)
  • Certifications: CE, RoHS, FCC

What's In The Box

  • GigBAR Bridge ILS fixture
  • Power cable
  • 2 hanging brackets
  • RF remote
  • Quick reference guide
