Chauvet DJ ILS Command | Wireless Controller for ILS Fixtures | Built-In D-Fi, Presets & Audio Sync

Wireless Controller for ILS Fixtures

The Chauvet DJ ILS Command is a hardware lighting controller designed to take full command of Chauvet DJ’s Integrated Lighting System (ILS). It eliminates the complexity of DMX while offering deep control over an unlimited number of ILS-enabled lights with wireless ease.

Chauvet DJ ILS Command Competitive Differences

• Controls unlimited ILS-enabled fixtures with built-in D-Fi transmitter
• Program, save, and recall presets without DMX or software

Chauvet DJ ILS Command Description

Chauvet DJ ILS Command simplifies lighting control while delivering pro-level customization. It’s the central hub of the ILS ecosystem, enabling coordinated light shows across compatible fixtures without the need for DMX programming. This powerful controller broadcasts wirelessly using a built-in D-Fi transmitter, making it ideal for mobile entertainers, production crews, and venue operators looking to cut cable clutter and setup time. Users can create, save, and recall up to six custom presets for instant access to complex looks. Whether you're prepping for a wedding, concert, or corporate event, this controller makes setup faster while enhancing flexibility. Its backlit silicone buttons provide clear visibility and tactile control in low-light environments, ensuring smooth operation on dark stages or backstage areas. A standout feature is the innovative "follow spot mode," which allows you to spotlight entrances or moments without disrupting your overall lighting show. For sound-reactive performances, the built-in audio connector improves beat detection accuracy. Manual override is available at any time via nine quick-access color buttons. Software backups, updates, and show memory can all be managed through the USB-C port, and access to the controller can be restricted via a built-in lockout function for added security in public installations.

Model Features

• Wireless ILS controller for all ILS-enabled fixtures
• Built-in D-Fi transmitter with 600 ft range
• Create, save, and recall up to 6 programmable presets
• Follow spot mode for live entrances and special effects
• Backlit silicone buttons for dark environments
• Audio input for precise sound-to-light synchronization
• Onboard lockout for secure operation
• Manual color override with 9 quick-access buttons

Model Specifications

• Max Unobstructed Distance: 600 ft (183 m)
• Operating Frequency: 2.412 to 2.484 GHz

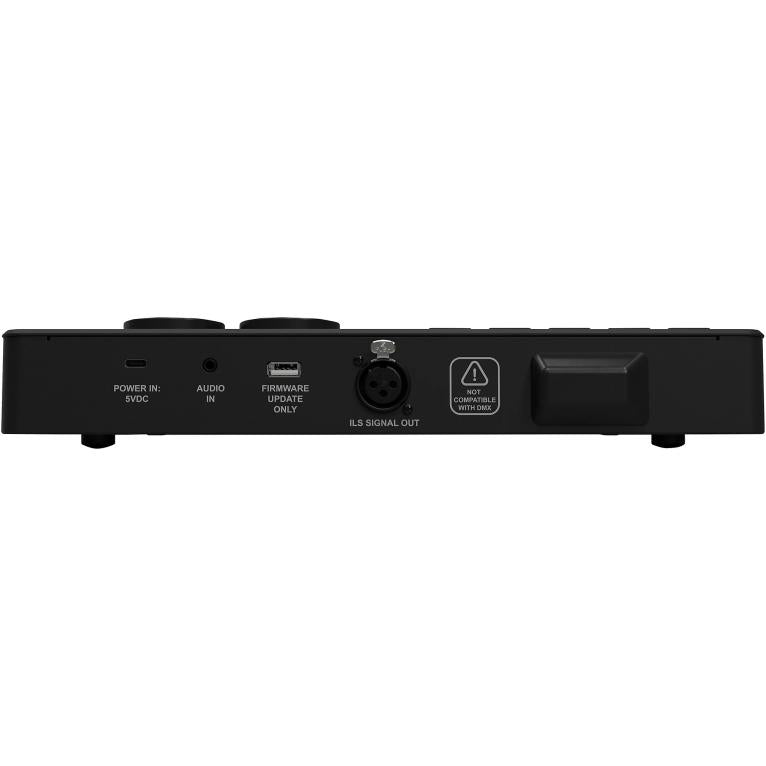

• ILS Connectors: 3-pin XLR
• Programmable Presets: 6
• Input Voltage (USB-C): 5V, 1A
• Cable Length: 20 in (508 mm)
• Dimensions: 12.3 x 9.9 x 0.7 in (313 x 252 x 19 mm)
• Weight: 3.6 lb (1.6 kg)
• Approvals: CE, UKCA, RoHS, FCC

What's In The Box

• ILS Command controller
• External power supply
• USB-C cable
• Carrying bag
• Quick reference guide
