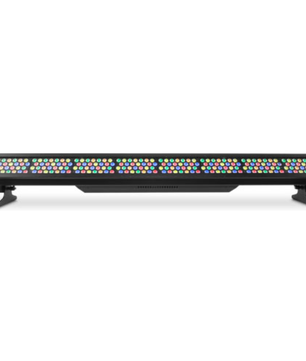

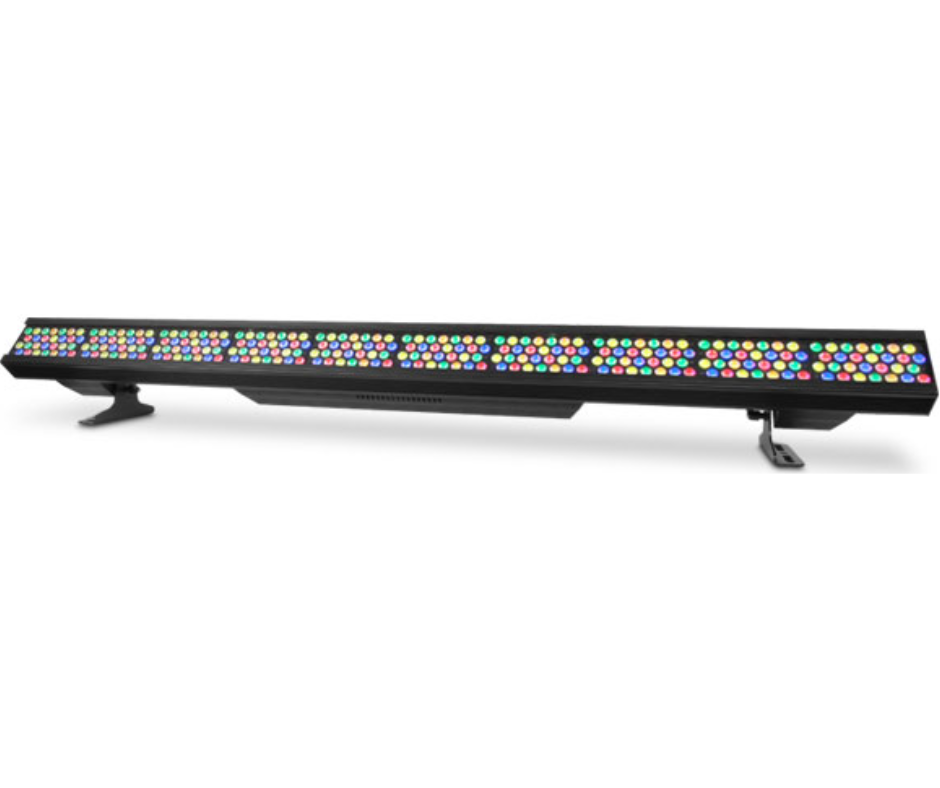

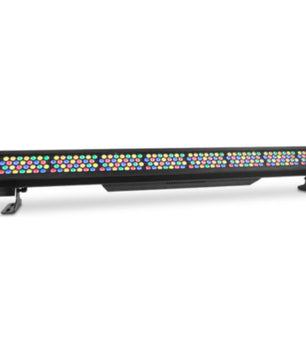

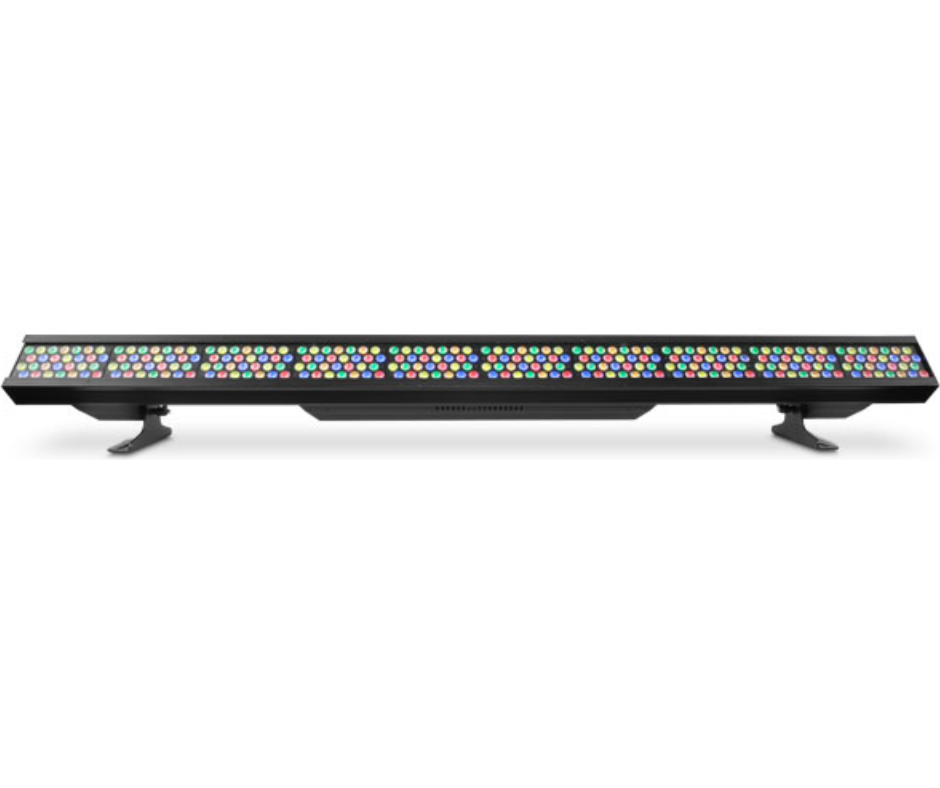

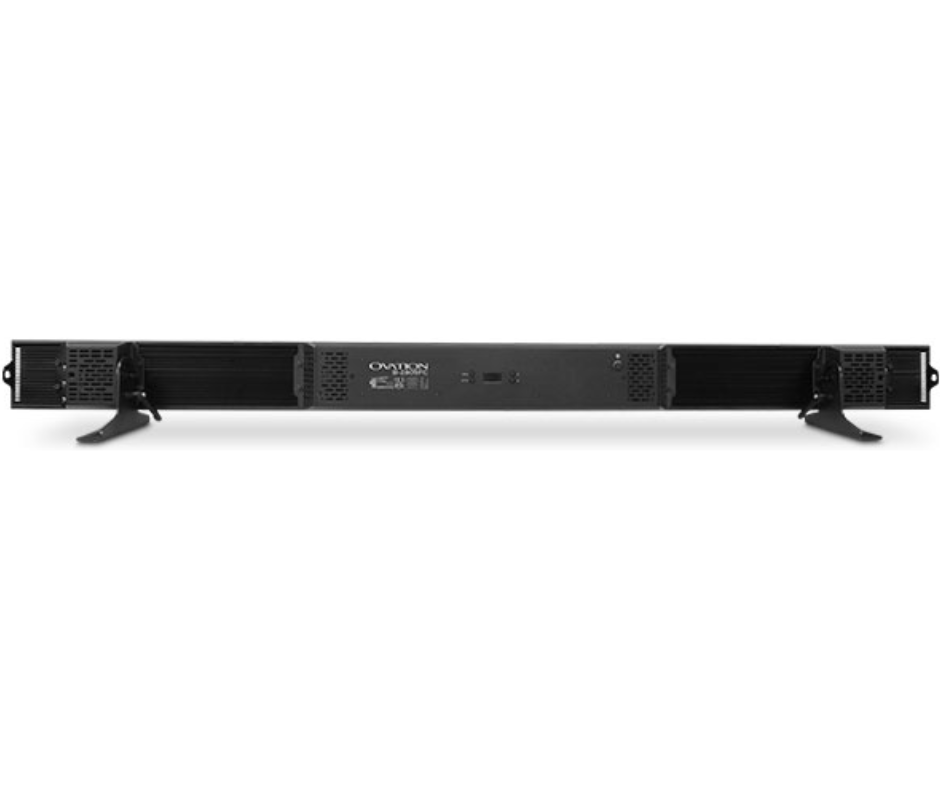

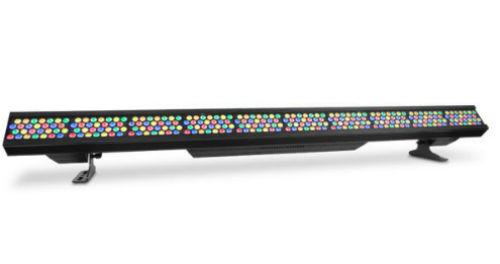

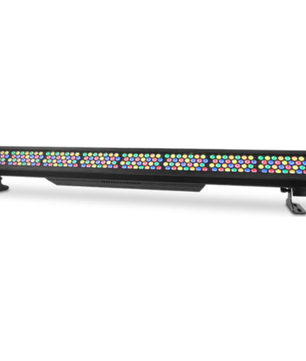

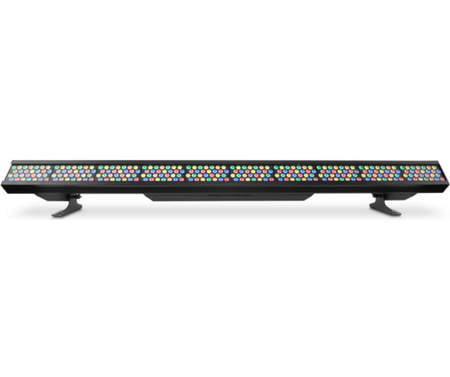

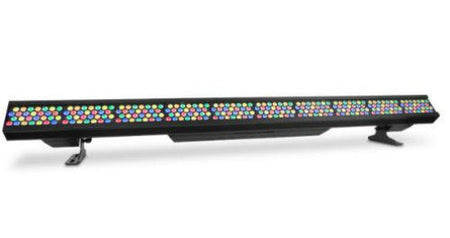

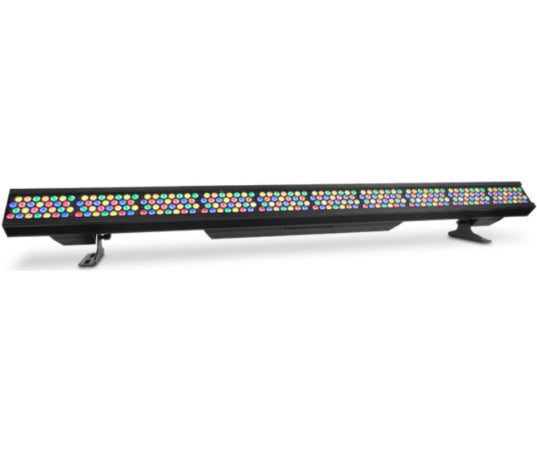

Chauvet Pro Ovation B-2805FC | RGBA-Lime LED Batten | 10-Cell Control with Art-Net & sACN

Full-Color LED Batten

The Chauvet Pro Ovation B-2805FC is a powerful, theatre-ready LED batten that features RGBA-Lime color mixing and advanced control capabilities for dynamic lighting in film, stage, and production environments. With a built-in holographic filter, it delivers exceptional cyc lighting and wall grazing with even, seamless color blending.

Chauvet Pro Ovation B-2805FC Competitive Differences

• RGBA-Lime LED array with over 32,000 lumens of output
• Supports DMX, RDM, Art-Net, and sACN protocols with 10-section control

Chauvet Pro Ovation B-2805FC Description

The Ovation B-2805FC stands as Chauvet Pro’s flagship batten fixture, utilizing 280 high-powered RGBAL LEDs to deliver exceptional brightness and color flexibility. With a max output of 32,673 lumens, it is capable of illuminating large backdrops or architectural surfaces with ease. Its RGBA-Lime system expands the color palette while offering high CRI whites and deep, saturated hues. Designed for professional theater and broadcast use, the B-2805FC includes 16-bit dimming for both master and individual color channels, supporting smooth fades and precise color control. A holographic diffusion filter is included to improve vertical spread, making it ideal for seamless wall and cyc coverage. Control options are comprehensive, including 3- and 5-pin DMX, RDM, Art-Net, and sACN. The fixture can be operated in up to 10 independently controlled sections, enabling pixel-mapped effects and advanced lighting designs. PWM frequency is selectable up to 25kHz to ensure flicker-free operation on camera. With robust die-cast aluminum construction and near-silent operation, the Ovation B-2805FC is built for high-demand environments such as studios, live theater, and touring productions.

Model Features

• 280 high-output LEDs (RGBA-Lime)
• 10 individually controllable cells for pixel mapping
• Art-Net™, sACN, DMX, and RDM support
• Virtual color wheel with gel-matched presets
• Color temperature presets from 2800K to 10000K
• 16-bit dimming and 8-bit dimming curves
• Selectable PWM up to 25,000 Hz
• Near-silent operation for studio and theater use

Model Specifications

• Lumens: 32,673
• CRI (3200K): 80
• Beam Angle: 25° H x 20° V (52° H with filter)
• Field Angle: 42° H x 40° V (83° H with filter)
• Power Consumption: 636W @ 120V
• Selectable PWM: 600 Hz – 25,000 Hz
• Control Protocols: DMX, RDM, Art-Net™, sACN
• DMX Personalities: 32 modes up to 135 channels
• Dimensions: 69 x 8.26 x 8.13 in (1,753 x 210 x 207 mm)
• Weight: 45.4 lb (20.5 kg)
• IP Rating: IP20 (indoor use only)
• Item Code: 03031236

What's In The Box

• Ovation B-2805FC fixture
• Neutrik® powerCON® power cable
• Wall washing holographic filter
