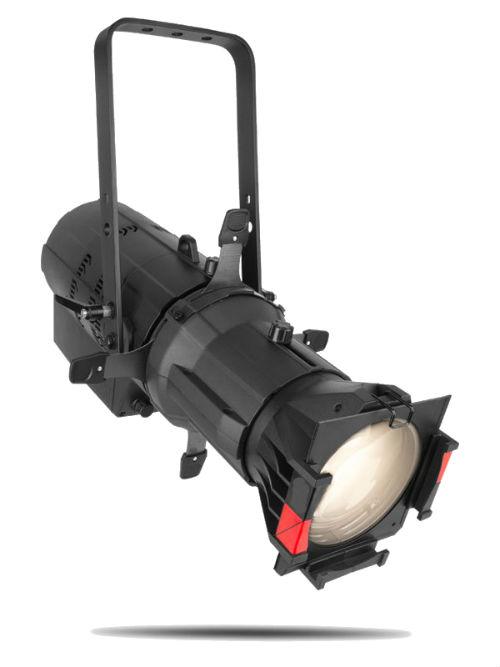

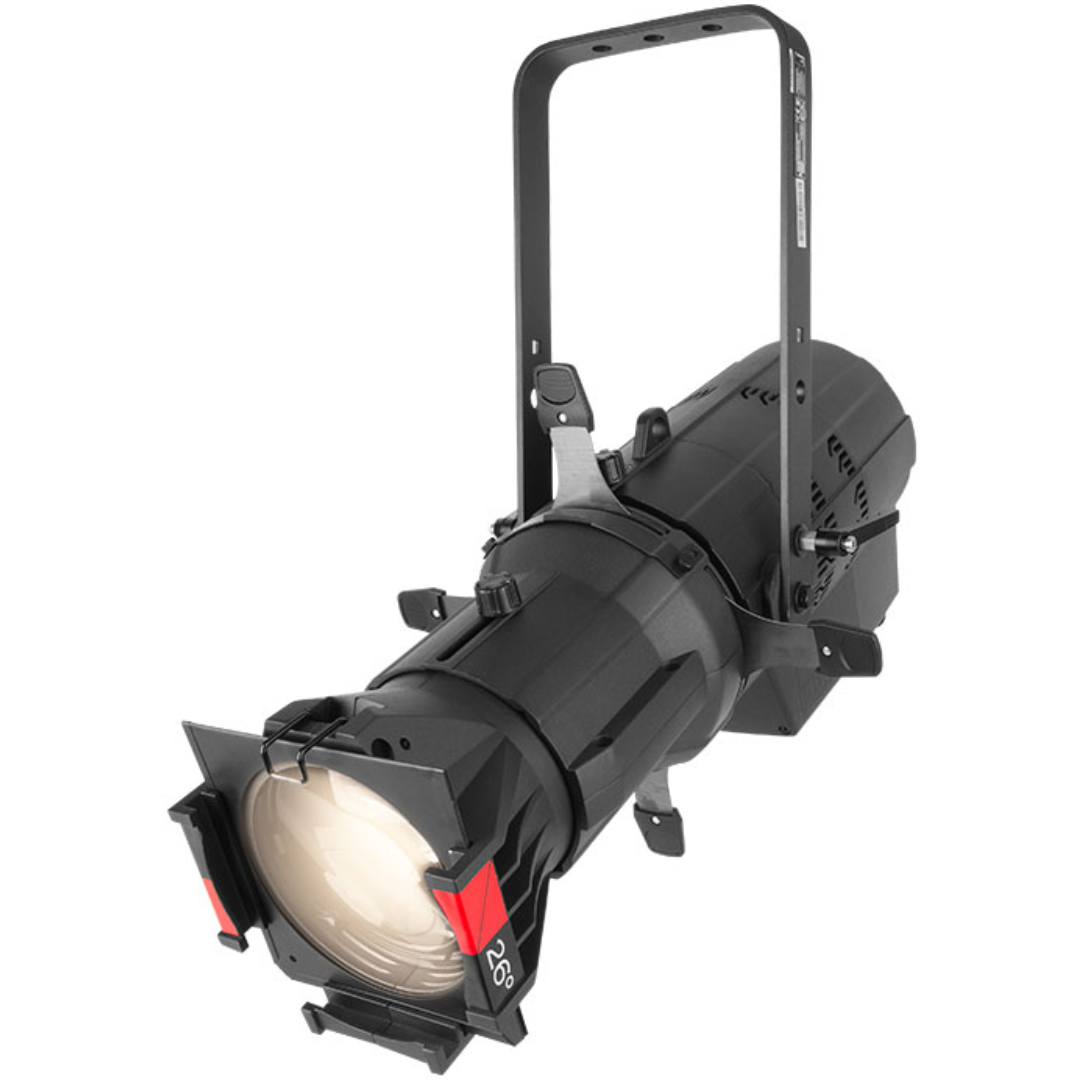

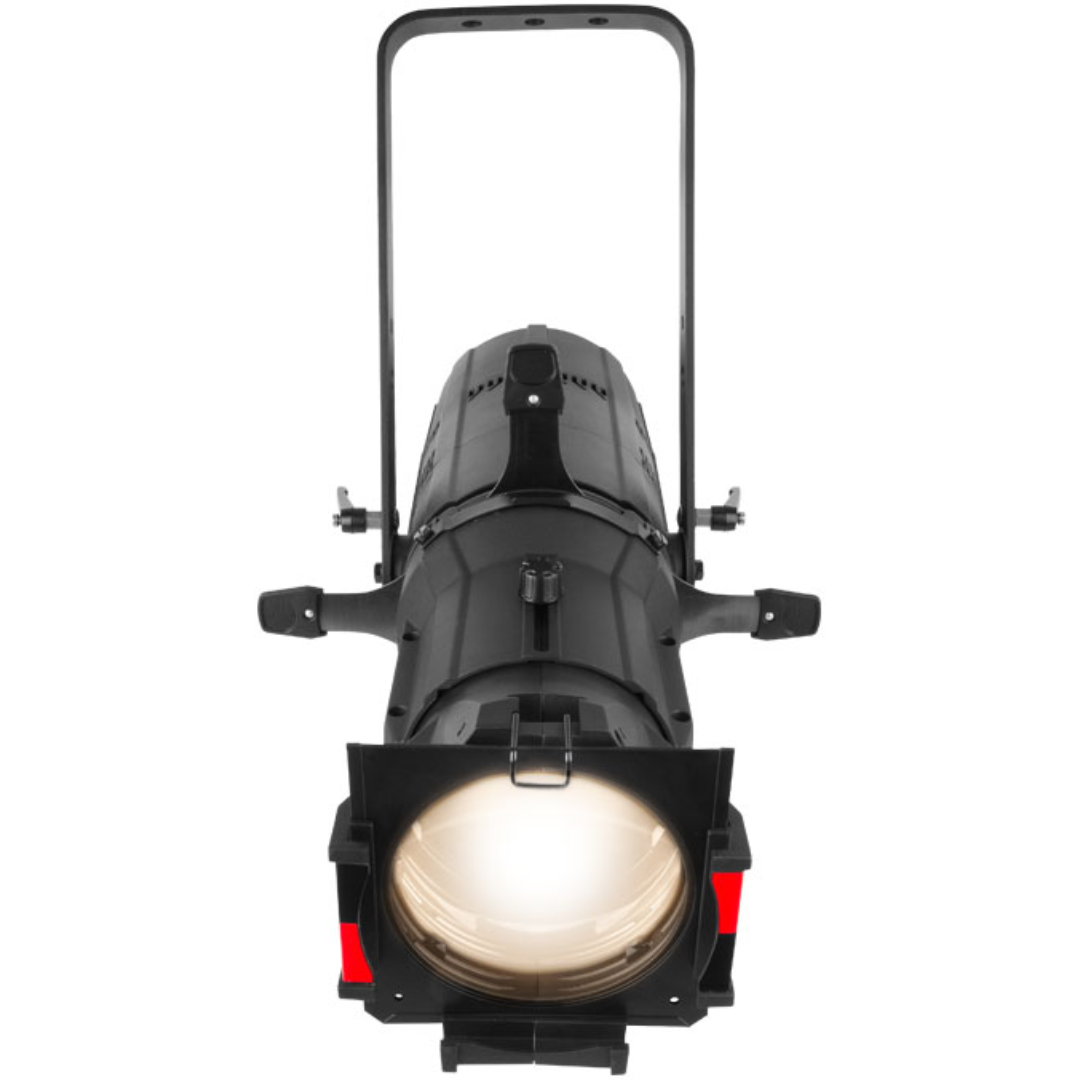

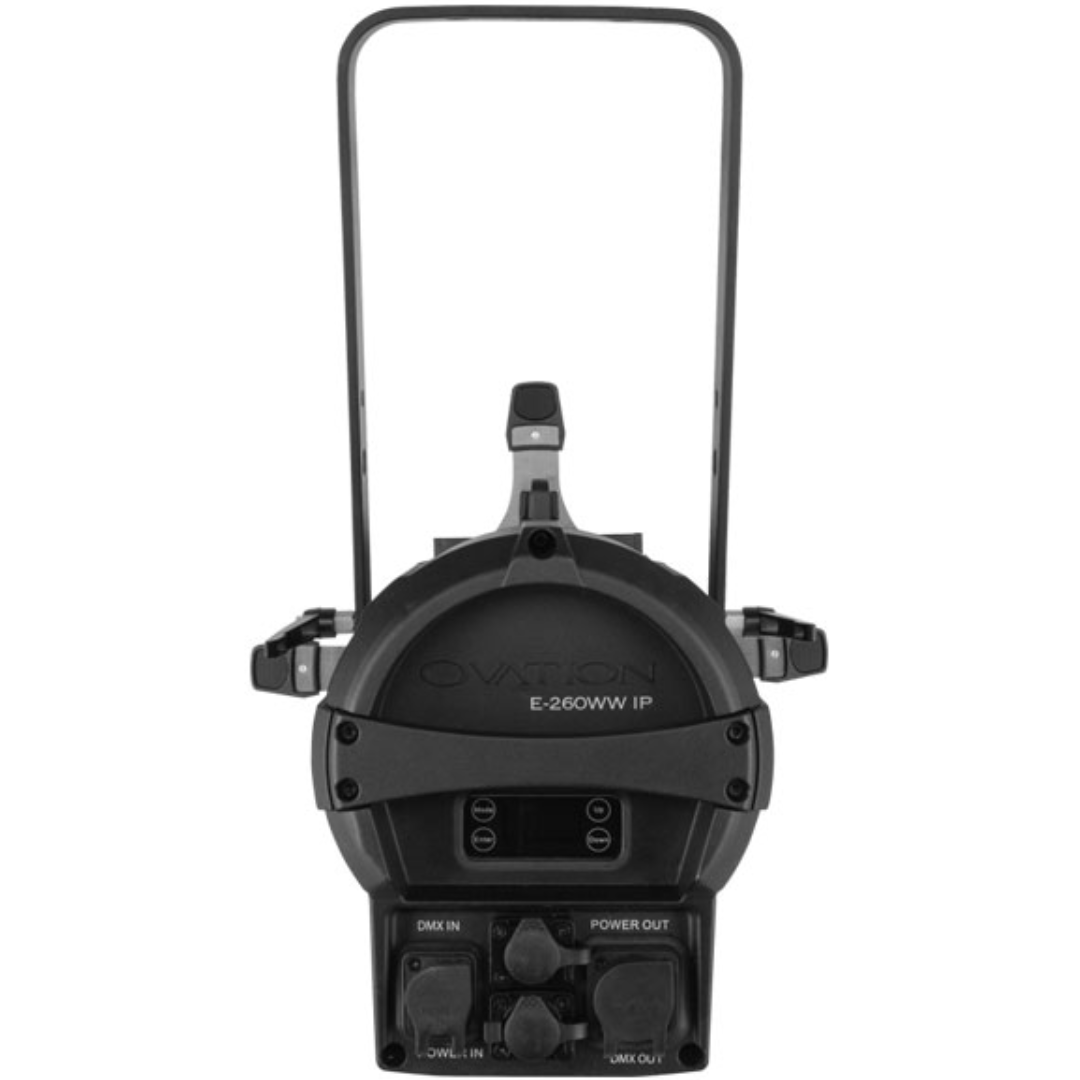

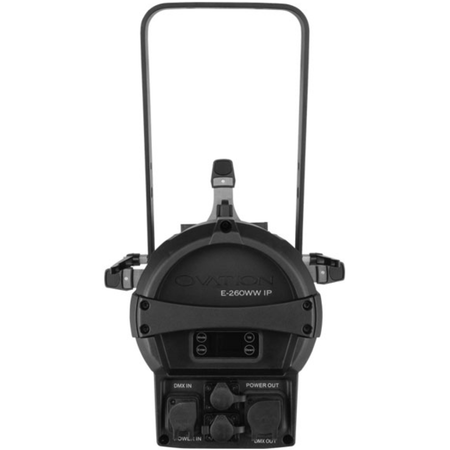

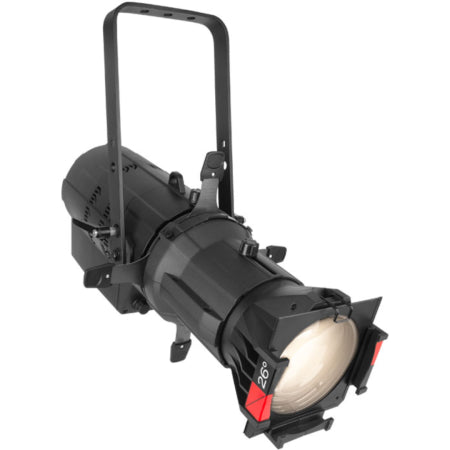

Chauvet Pro Ovation E-260WW IP | IP65 Warm White ERS | 230W LED with Smooth 16-Bit Dimming

Outdoor Warm White ERS Fixture

The Chauvet Pro Ovation E-260WW IP is a weatherproof ellipsoidal lighting fixture designed to deliver powerful warm white output in demanding outdoor or indoor environments. With a light engine exceeding the brightness of a traditional 750W HPL lamp, this fixture excels in theatrical, architectural, and live event settings where quality, durability, and precision are essential.

Chauvet Pro Ovation E-260WW IP Competitive Differences

• 230W warm white LED surpasses 750W tungsten output
• Fully IP65-rated for reliable outdoor use

Chauvet Pro Ovation E-260WW IP Description

The Ovation E-260WW IP brings studio-quality performance to the outdoors with its high-CRI (96), 3149K warm white LED engine, and IP65-rated sealed construction. Engineered for long-term installation or mobile use in outdoor venues, this ERS-style fixture combines modern control and dimming with traditional lens compatibility for a familiar user experience. Equipped with ultra-smooth 16-bit dimming and selectable PWM up to 25kHz, the E-260WW IP ensures flawless fades and flicker-free operation, even for broadcast applications. The fixture supports multiple dimming curves and operates silently, making it suitable for film, theater, and worship environments. Designed for use with Chauvet’s standard Ovation lens tubes and beam shaping shutters, this fixture provides even light distribution and excellent gobo projection. Its sealed, fanless design is resistant to rain, dust, and debris, making it an ideal solution for outdoor architectural lighting or event venues exposed to the elements.

Model Features

• High-output 230W warm white LED (3149K)
• Output brighter than a 750W tungsten source
• IP65-rated housing for permanent or seasonal outdoor use
• 16-bit master and color dimming for smooth transitions
• Flat, even field for superior gobo projection
• Selectable PWM (600 Hz to 25,000 Hz) for video-safe operation
• DMX and RDM control with multiple personality modes

Model Specifications

• Light Source: 230W warm white LED, 3149K
• CRI: 96
• Beam Angles: 5°–31° (lens dependent)
• Field Angles: 8°–52° (lens dependent)
• Max Output: 13,632 lumens (w/25°–50° wide lens)
• Selectable PWM: 600Hz to 25,000Hz
• DMX Channels: 2, 3, 4, or 7
• Control Protocols: DMX, RDM
• Dimensions (fixture only): 19.49 x 11.14 x 18.42 in (495 x 342 x 506 mm)
• Weight (fixture only): 20.2 lb (9.2 kg)
• IP Rating: IP65 (outdoor use)
• Power Consumption: 221W @ 120V
• Item Code: 03121239

What's In The Box

• Ovation E-260WW IP fixture
• Seetronic Powerkon IP65 power cord
