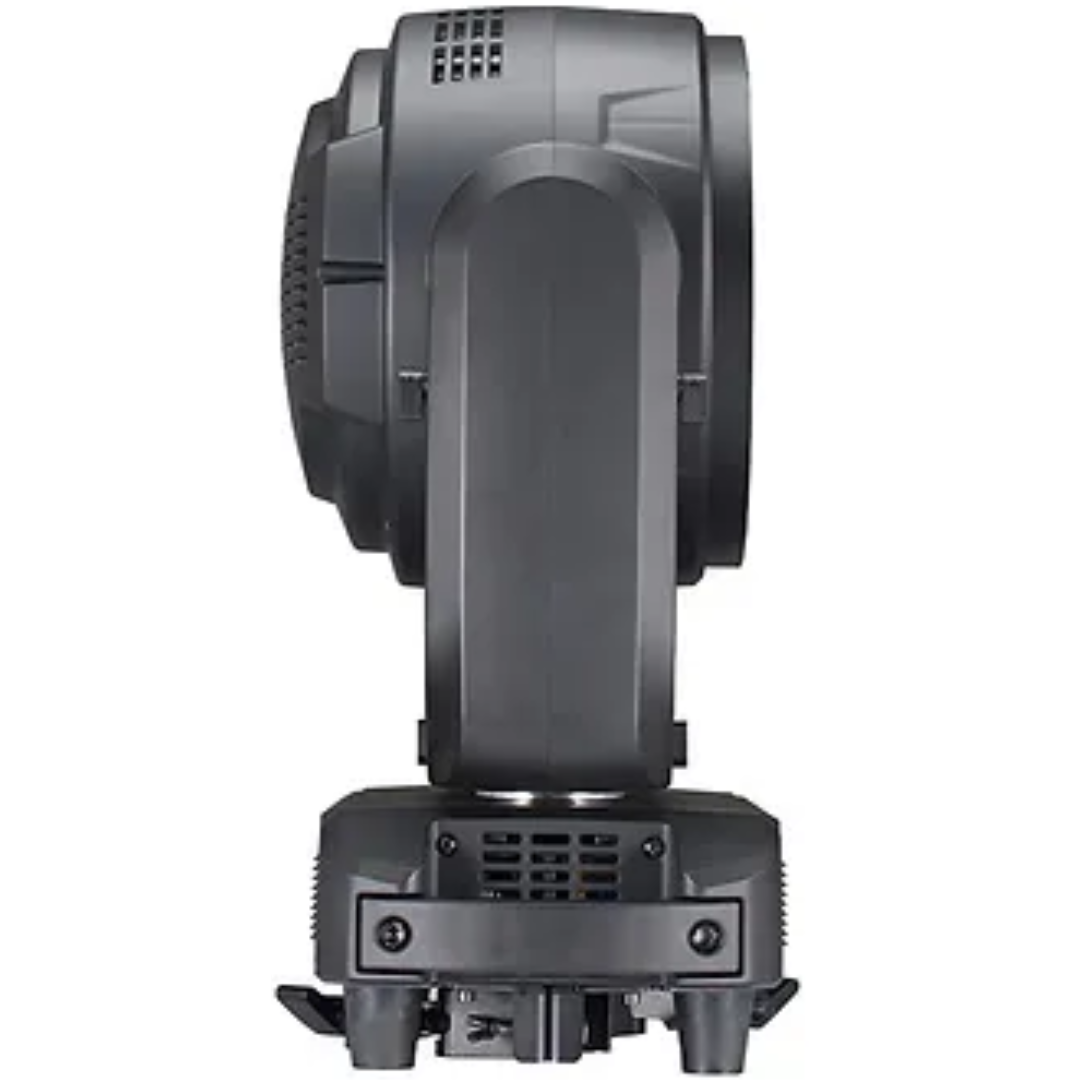

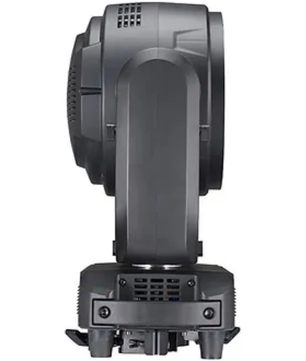

Crisp STELLA WASH 1940F | 760W RGBW LED Wash Moving Head | Pixel Mapping & 360° Rotating Lens

RGBW LED Wash Moving Head

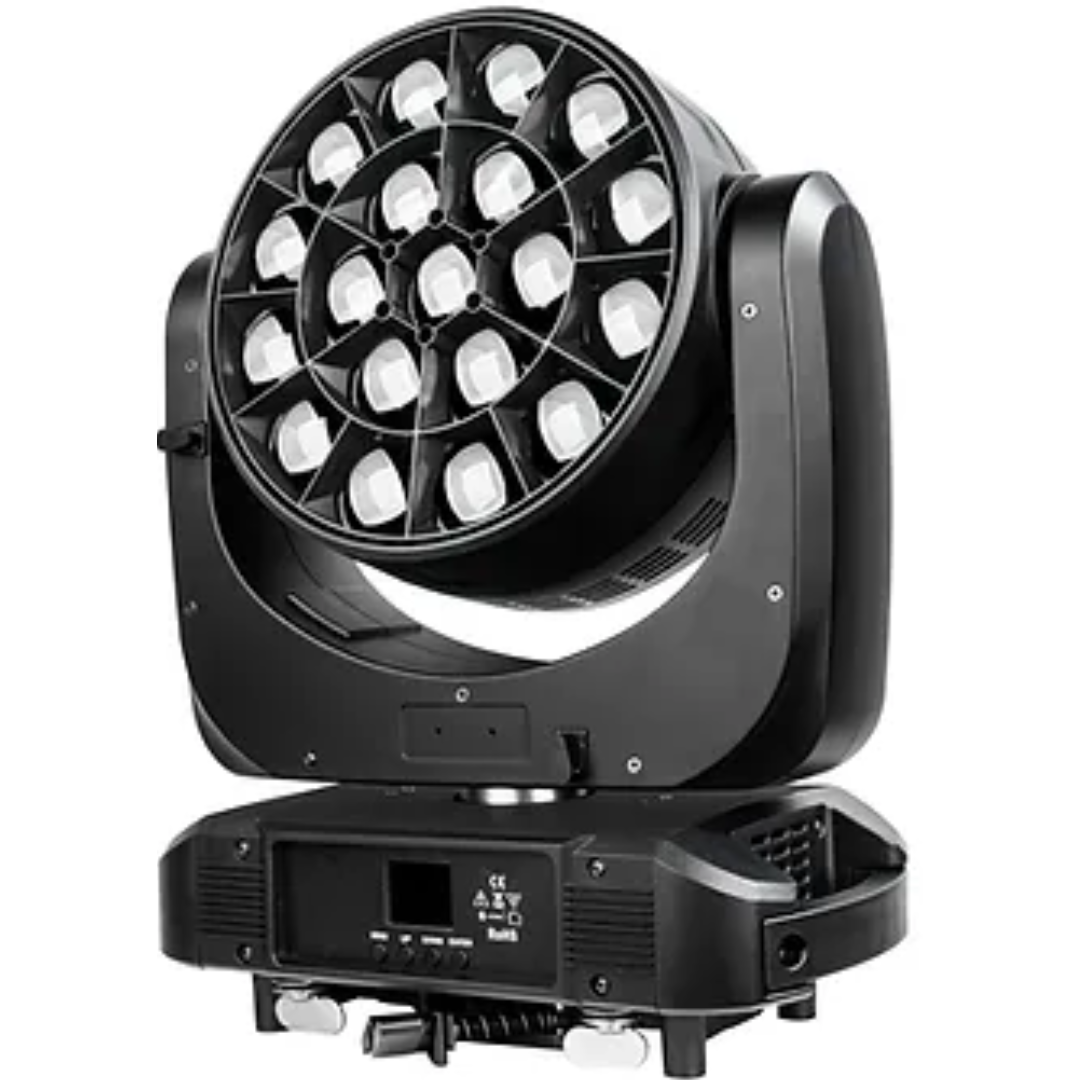

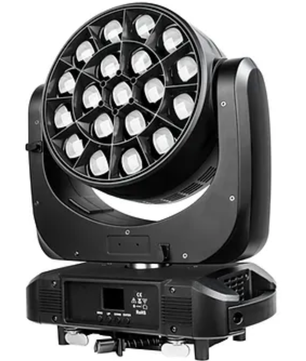

Crisp STELLA WASH 1940F is a high-powered, multi-functional wash moving head fixture designed for professional stage, touring, and event lighting. With 760W of RGBW LED output, advanced pixel mapping, and a wide zoom range, it delivers vivid color washes, immersive mid-air effects, and dynamic motion that captivate audiences in large-scale environments.

Crisp STELLA WASH 1940F Competitive Differences

• 19x 40W RGBW LEDs with pixel-level control for advanced effects
• 360° rotating lens and 5.8°–55° zoom range for beam-to-wash versatility

Crisp STELLA WASH 1940F Description

The Crisp STELLA WASH 1940F is built to meet the demands of lighting designers who need flexibility, performance, and creative control. Featuring 19 high-intensity 40W RGBW LEDs, this moving head wash delivers a total of 760 watts of saturated, dynamic color with ultra-smooth transitions and deep dimming from 0–100%. Its standout feature—a 360° rotating front lens—enables stunning mid-air effects and adds motion to static pixel patterns. Combined with a 5.8° to 55° motorized zoom, this fixture performs equally well as a powerful beam or a wide wash light, making it perfect for everything from concert stages to corporate productions. Pixel mapping capabilities unlock custom lighting designs, allowing individual control of each LED for eye-catching visuals. Onboard macro effects, multiple DMX channel modes, and a range of control options—including DMX, Auto, Sound, and Master/Slave—provide unmatched flexibility for integration into complex lighting rigs. The integrated clamp system simplifies truss mounting, and a dual XLR (3-pin and 5-pin) DMX interface plus True1 in/out power connectors make it tour-ready. Durable, quiet, and built with fan-assisted temperature control, the STELLA WASH 1940F is ready for demanding live environments.

Model Features

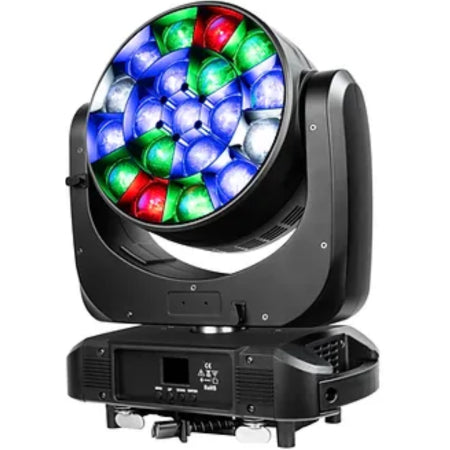

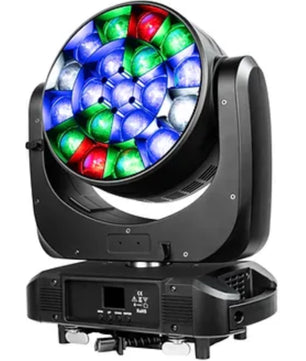

• 760W total output via 19 x 40W RGBW LEDs
• Pixel mapping with multiple DMX control modes (21 to 99 channels)
• Dynamic zoom range from 5.8° to 55°
• 360° rotating lens for mid-air and kinetic effects
• 0–100% linear dimming and 1–25Hz strobe
• 540° pan and 270° tilt with 8/16-bit precision
• Built-in macro effects for fast creative programming
• DMX, Auto, Sound, and Master/Slave control modes

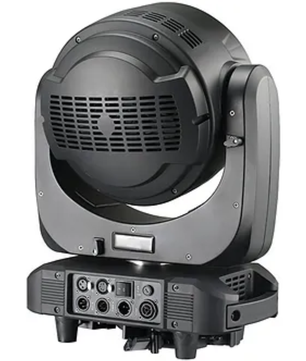

• 3-pin & 5-pin DMX in/out, True1 power in/out

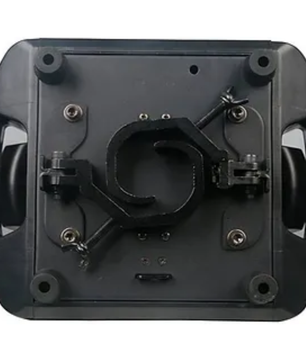

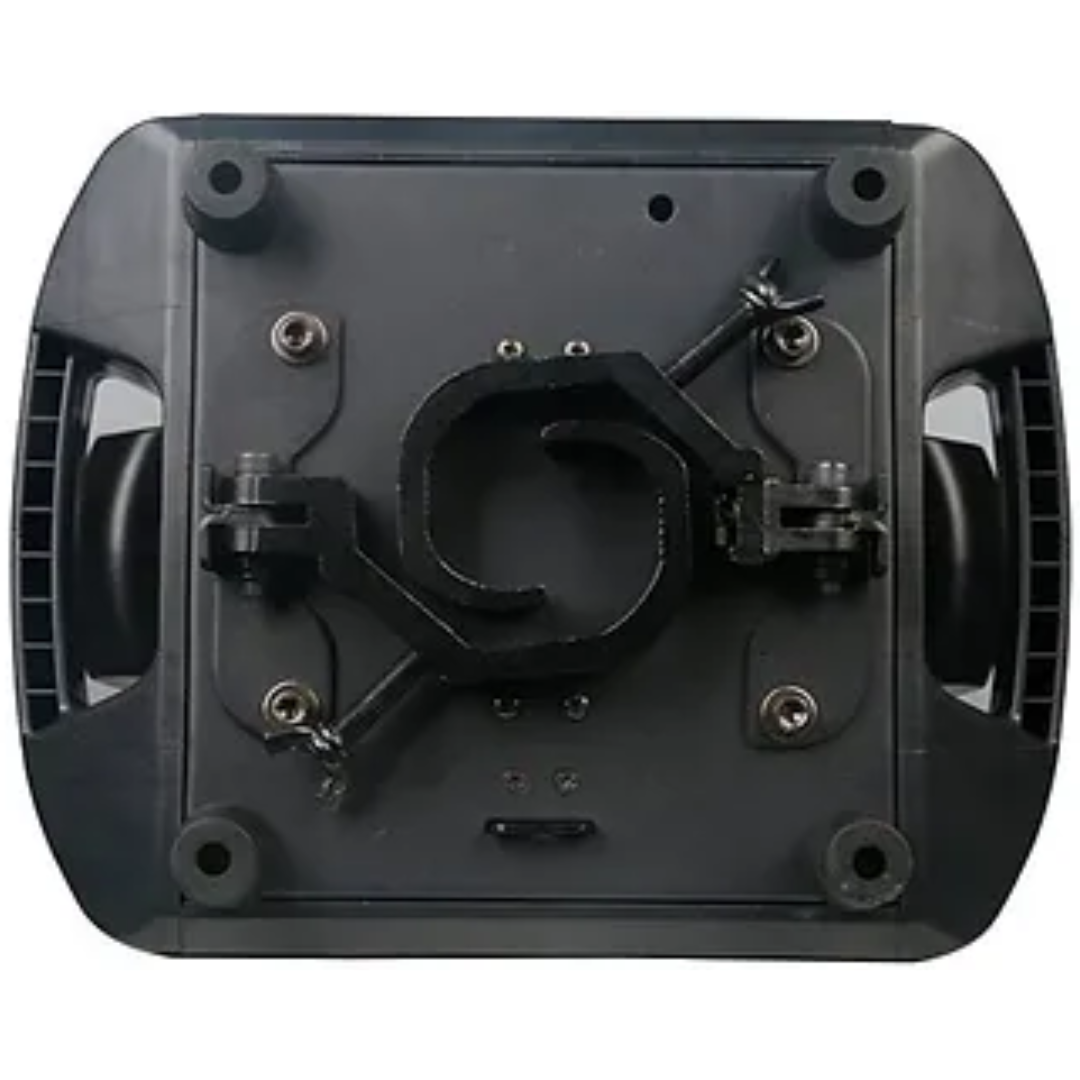

• Integrated clamp for fast and secure rigging

Model Specifications

• Light Source: 19 x 40W RGBW LEDs
• Total Output: 760W
• Beam Angle: 5.8°–55° motorized zoom
• Pan/Tilt: 540° / 270°, 8/16-bit resolution
• Control Modes: DMX (21/23/35/78/92/97/99CH), Auto, Sound, Master-Slave

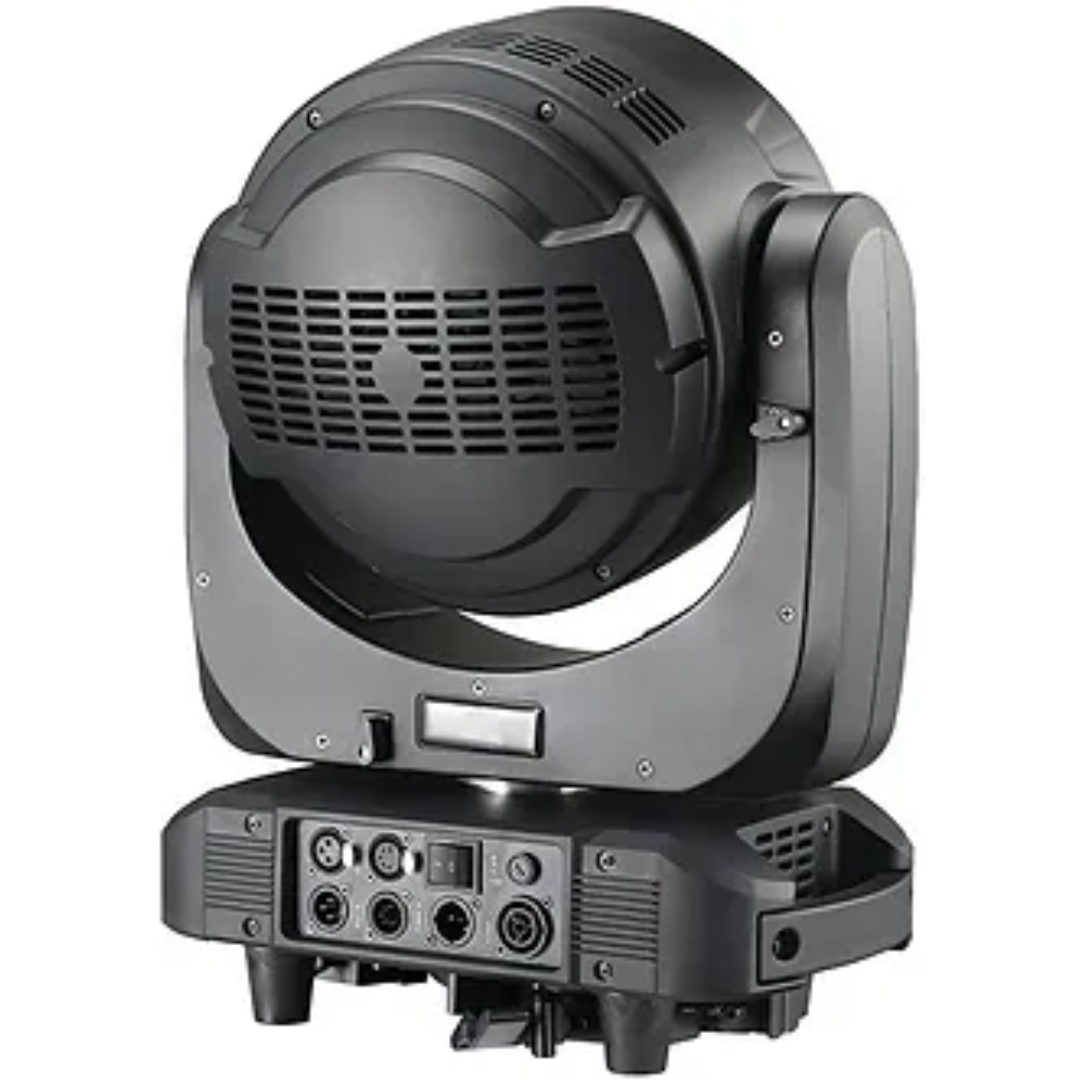

• Connectors: 3-pin & 5-pin XLR I/O, True1 power I/O
• Display: LED screen with 4-button menu
• Dimming: 0–100% linear
• Strobe Rate: 1–25Hz
• Cooling: Fan with temperature control
• Power: AC 100–240V, 50/60Hz, 640W
• IP Rating: IP20
• Operating Temp: -10°C to 40°C (14°F to 104°F)
• Dimensions: 14.8 x 11 x 16.5 in (376 x 280 x 420 mm)
• Weight: 36.4 lb (16.5 kg)

What's In The Box

• Crisp STELLA WASH 1940F moving head
• Power cable (True1 compatible)
• Integrated clamp (pre-installed)
• User manual
• 2-year warranty
