LED Beam Spot Wash Moving Head Light

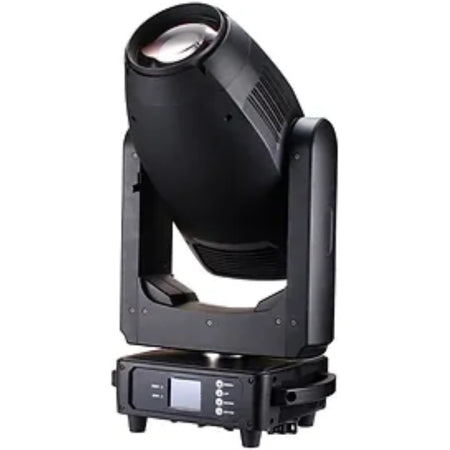

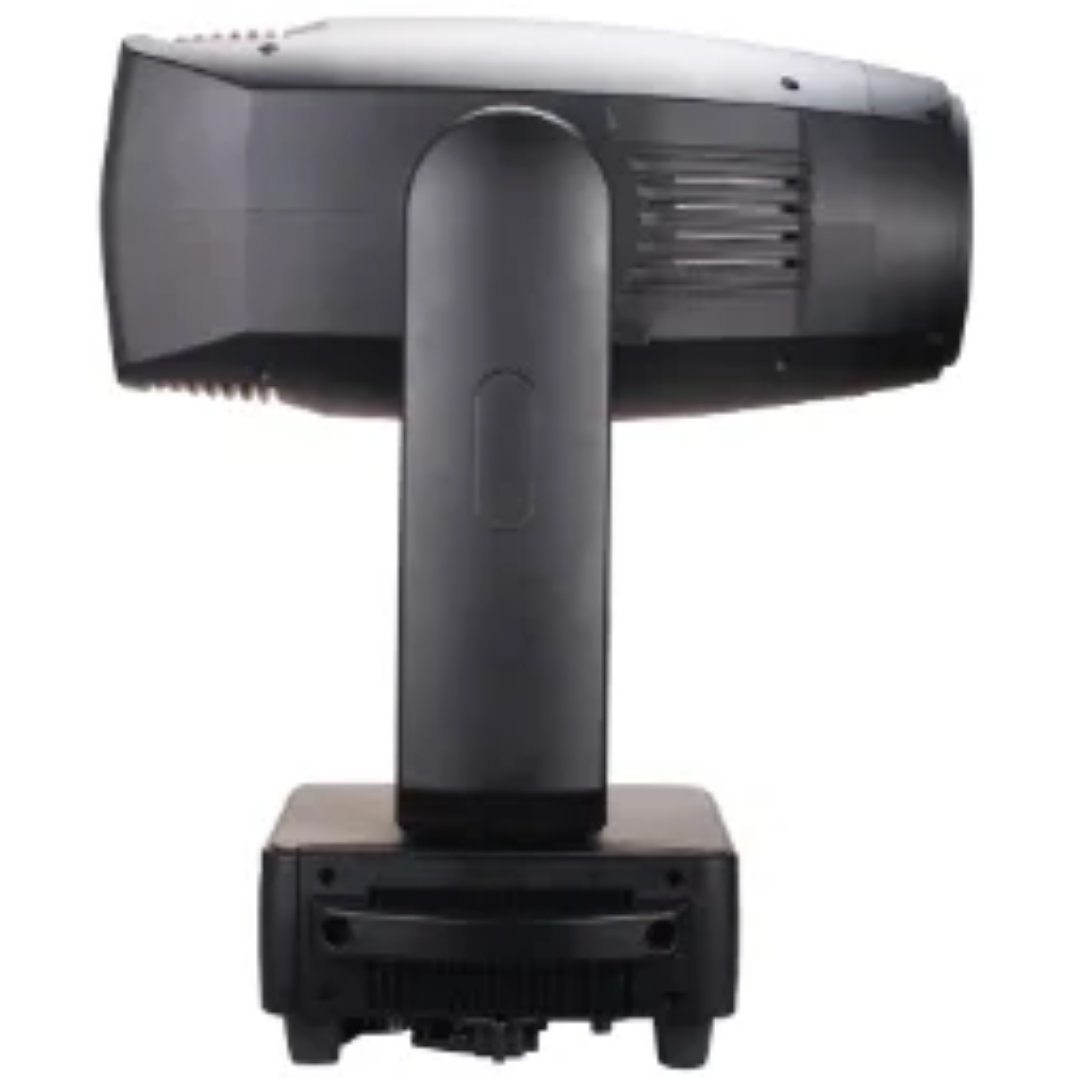

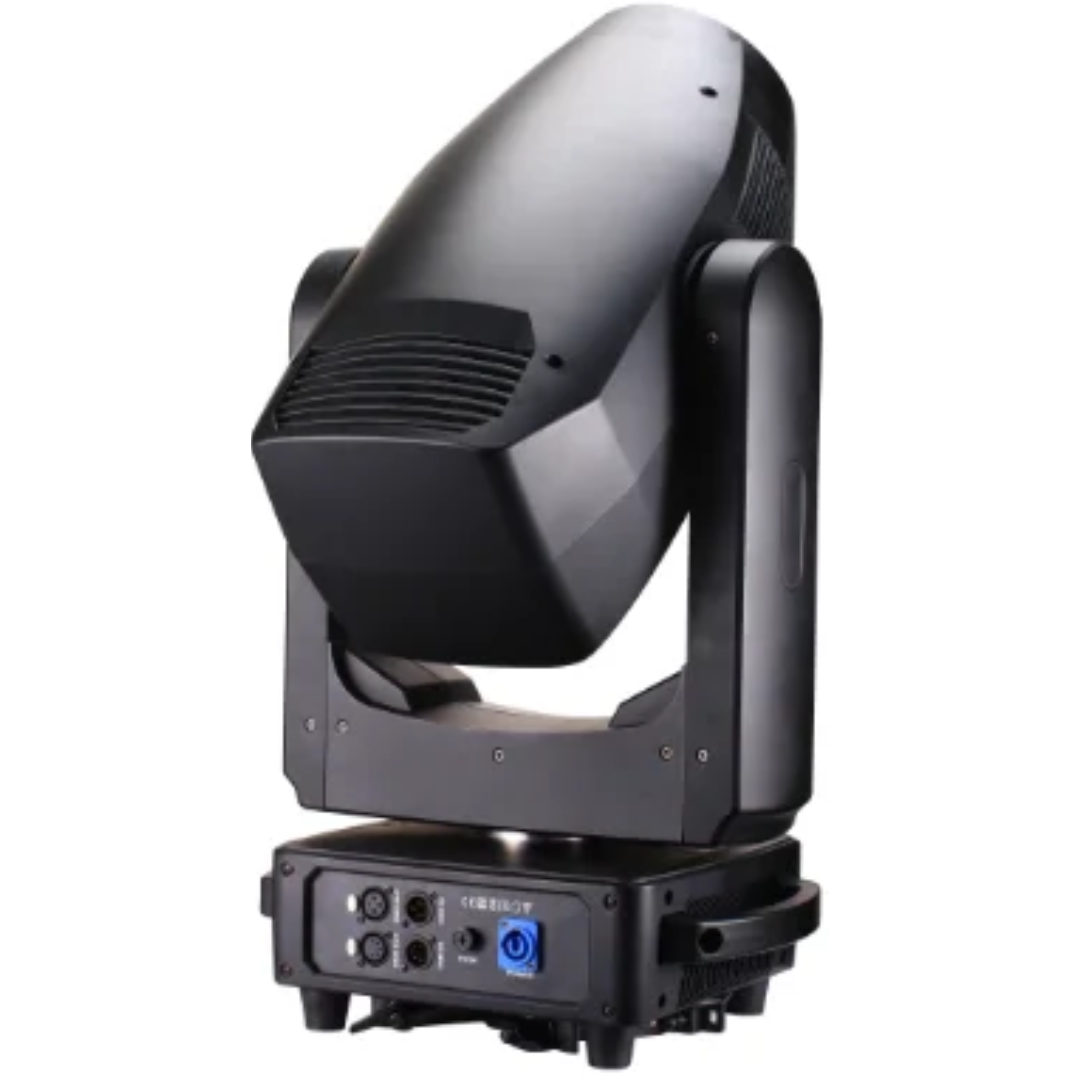

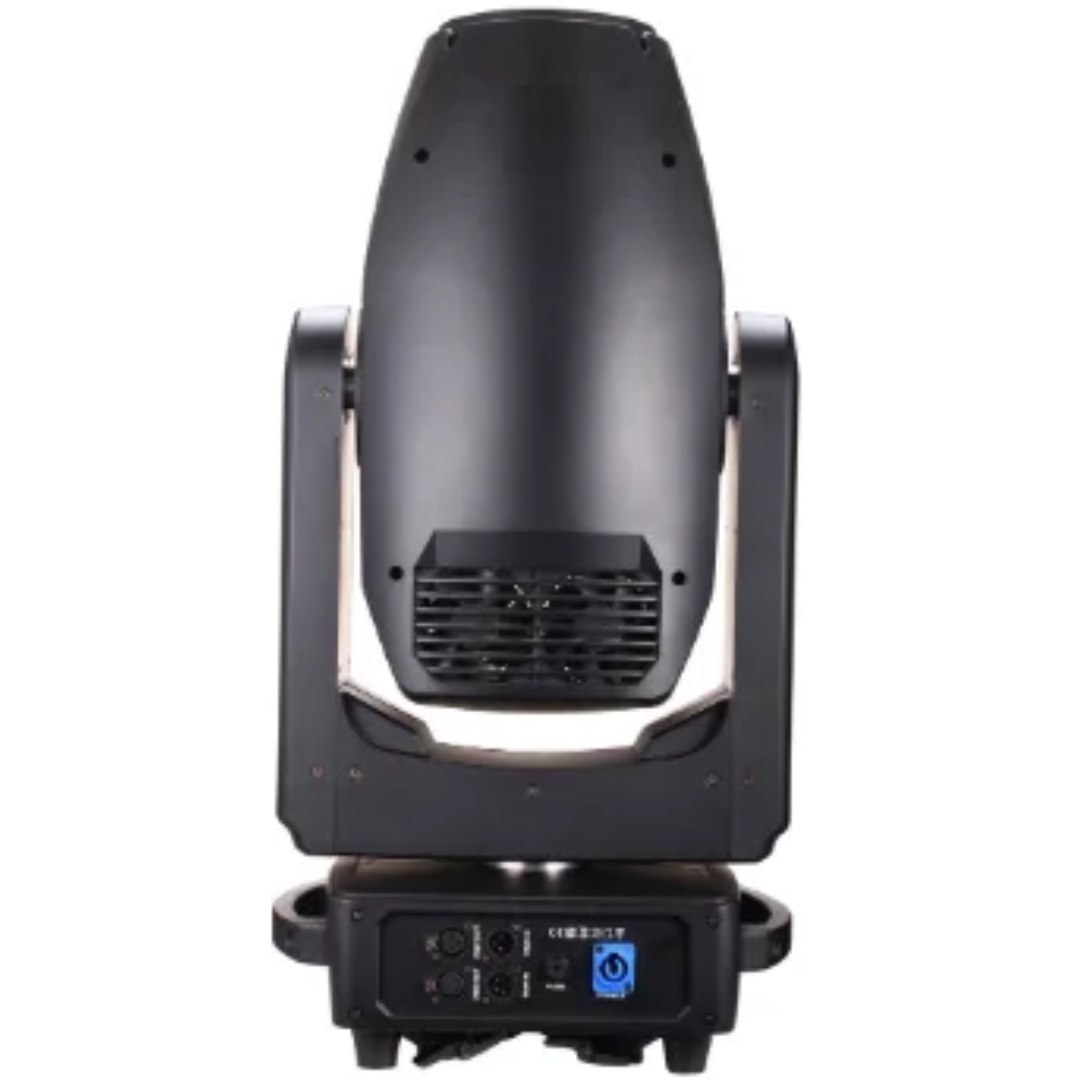

Crisp VERSATILIS 700BSWF is a high-performance LED moving head fixture designed for professional stage productions, touring applications, concerts, theaters, and event venues. Combining beam, spot, wash, and advanced visual effects in one fixture, it delivers powerful output, flexible optics, and dynamic creative control for demanding lighting environments.
Crisp VERSATILIS 700BSWF Competitive Differences
- 600W LED engine with adjustable 3°–42° beam angle
- CMY color mixing, rotating gobos, dual prisms, and animation effects
Crisp VERSATILIS 700BSWF Description
The Crisp VERSATILIS 700BSWF features a powerful 600W LED light source engineered for high-output professional lighting applications. Its advanced optical system allows smooth transitions between narrow beam effects and wide wash coverage, making it suitable for everything from focused aerial looks to immersive stage washes.
The fixture incorporates CMY color mixing along with linear CTO adjustment from 3200K to 6200K, giving lighting designers precise color control for theatrical productions, concerts, broadcast environments, and live events. Additional color wheel options including CTB and dedicated color slots expand creative possibilities even further.
Dynamic effects include a rotating gobo wheel with seven replaceable gobos, dual rotating prisms, frost effect, and an animation wheel capable of producing cloud, fire, and water-style textures. Variable strobe and multiple dimming curves help create smooth fades, dramatic effects, and energetic performance lighting.
Designed for professional integration, the VERSATILIS 700BSWF supports DMX, RDM, Art-Net, and sACN control protocols with both 3-pin and 5-pin DMX connectivity. Precision 16-bit pan and tilt movement ensures accurate positioning for complex lighting cues and automated productions.
VERSATILIS 700BSWF Features
- 600W LED moving head fixture
- Beam, spot, wash, and effects functionality
- Adjustable beam angle from 3° to 42°
- CMY color mixing system
- Linear CTO adjustment from 3200K to 6200K
- Rotating gobo wheel with 7 replaceable gobos
- Animation wheel with cloud, fire, and water effects
- Dual rotating prisms
- Frost effect
- 0-100% linear dimming with selectable dimming curves
- 1-25Hz variable strobe
- DMX, RDM, Art-Net, and sACN control support
- 16-bit pan and tilt movement
- LCD color display
VERSATILIS 700BSWF Specifications
- Light Source: 600W LED
- LED Lifespan: 20,000 hours
- Power Consumption: 850W
- Input Voltage: AC100-240V, 50/60Hz
- Beam Angle: 3°–42°
- Color System: 9 Colors + Open + CTO + CTB + CMY
- CTO Adjustment: 3200K–6200K Linear
- Dimming: 0-100% Linear
- Dimming Curves: 4
- Strobe Rate: 1-25Hz
- Rotating Gobos: 7 Replaceable Gobos + Open
- Prism 1: 8-Facet Rotatable
- Prism 2: 3-Facet Rotatable
- Control Protocols: DMX, RDM, Art-Net, sACN
- DMX Channels: 35CH / 38CH / 60CH
- DMX Connectors: 3-pin and 5-pin XLR
- Power Connector: PowerCon Input
- Pan Movement: 540° 16-bit
- Tilt Movement: 270° 16-bit
- Operating Temperature: -10°C to 40°C (-14°F to 104°F)
- Dimensions: 15.3 x 15.3 x 26.7 in (389 x 389 x 678 mm)
- Weight: 63.8 lb (29 kg)
What's In The Box
- Crisp VERSATILIS 700BSWF Moving Head Fixture
- Power Cable
