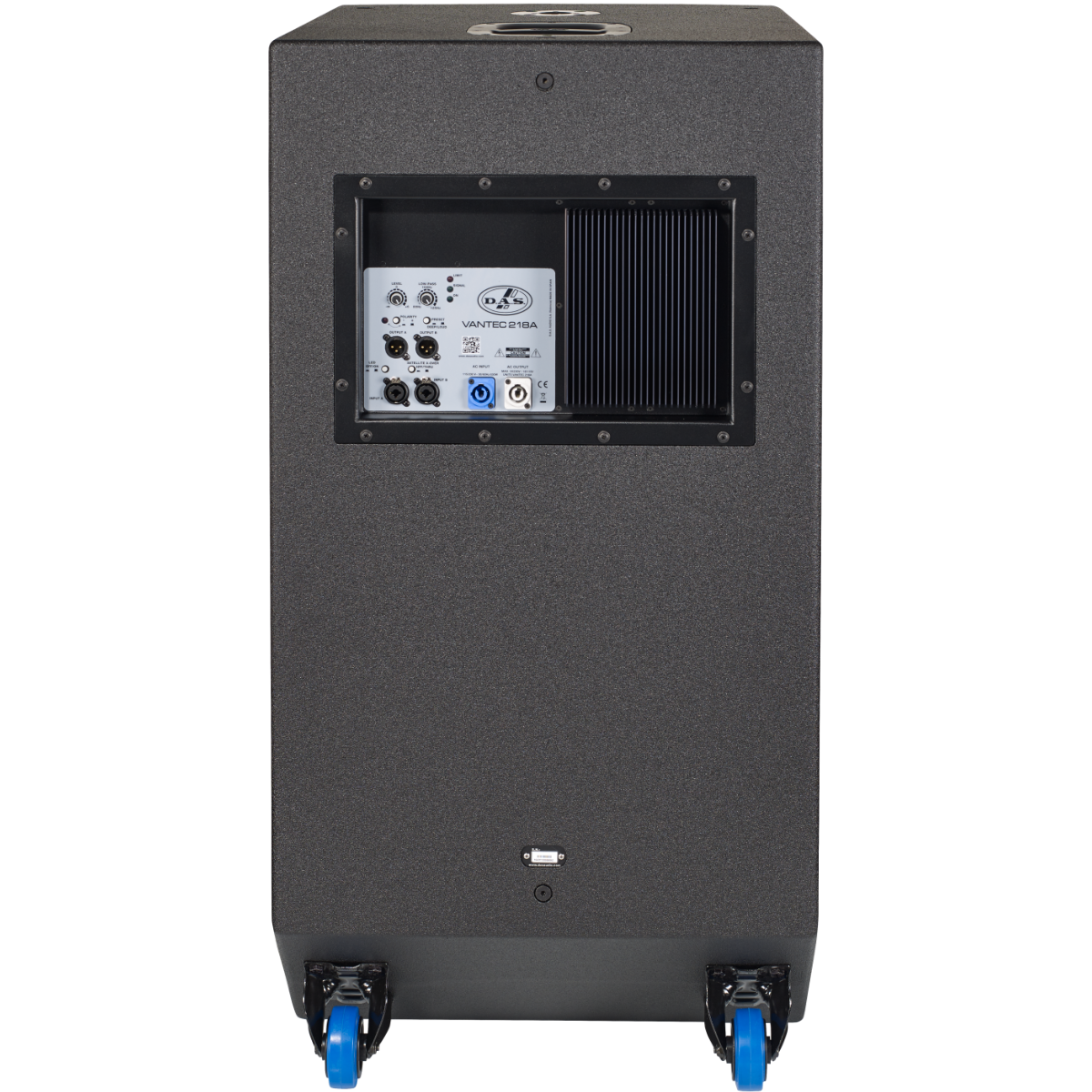

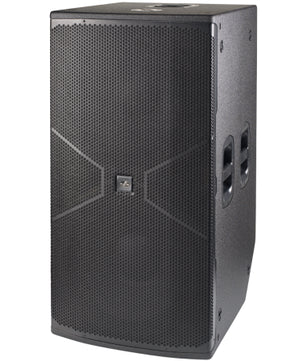

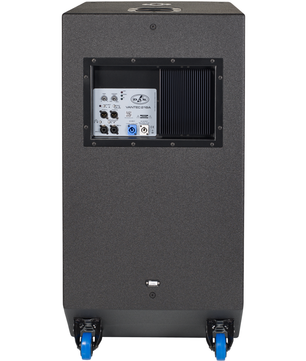

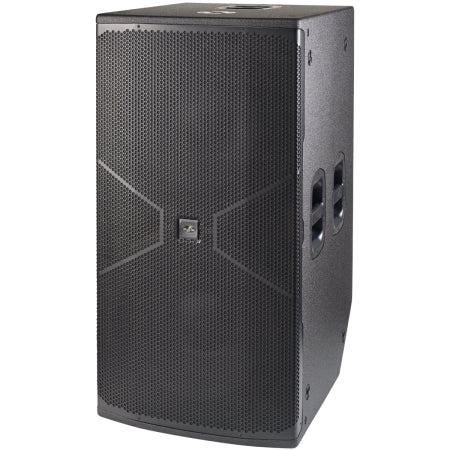

DAS Vantec 218A | Dual 18in - 140dB | Powered Bass Subwoofer

Powered Bass Subwoofer

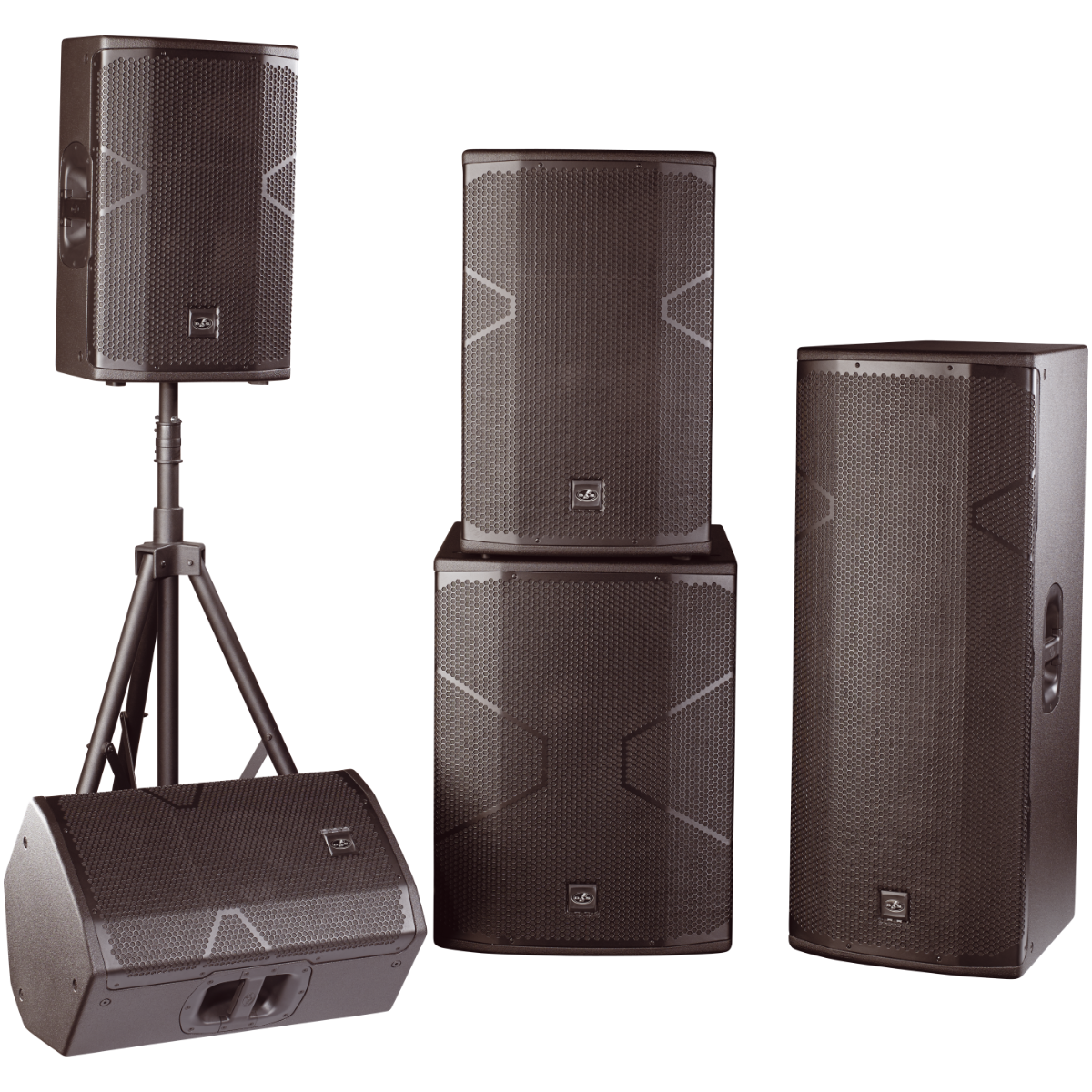

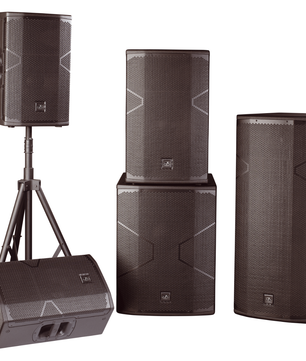

DAS Vantec 218A is a powered dual 18-inch bass subwoofer designed to deliver extended low-frequency response for Vantec full-range loudspeaker systems. With a 4000W peak Class D amplifier, DSP processing, and dual long-excursion 18LX drivers, it provides powerful bass output for live events, clubs, mobile productions, and installed sound systems.

DAS Vantec 218A Competitive Differences

• Dual DAS 18LX long-excursion 18-inch drivers with 4-inch voice coils for high-output bass performance
• 4000W peak Class D amplifier with switch-mode power supply and digital signal processing
• Selectable Loud and Deep tuning modes for flexible low-frequency response
• Stereo inputs with HPF filtered outputs or loop-thru operation for satellite speaker integration

DAS Vantec 218A Description

DAS Vantec 218A is engineered for users who need serious low-end reinforcement from a compact powered enclosure. Its dual 18-inch DAS 18LX drivers use long-excursion designs, 4-inch voice coils, and large magnet structures to support high power handling and strong output for demanding professional applications.

The onboard Class D amplifier delivers 2000W continuous and 4000W peak power, supported by switch-mode power supply technology and integrated DSP. With a maximum peak SPL of 140dB and frequency response down to 30 Hz in Deep mode, the Vantec 218A is well suited for high-impact music playback, live sound reinforcement, DJ systems, and performance venues.

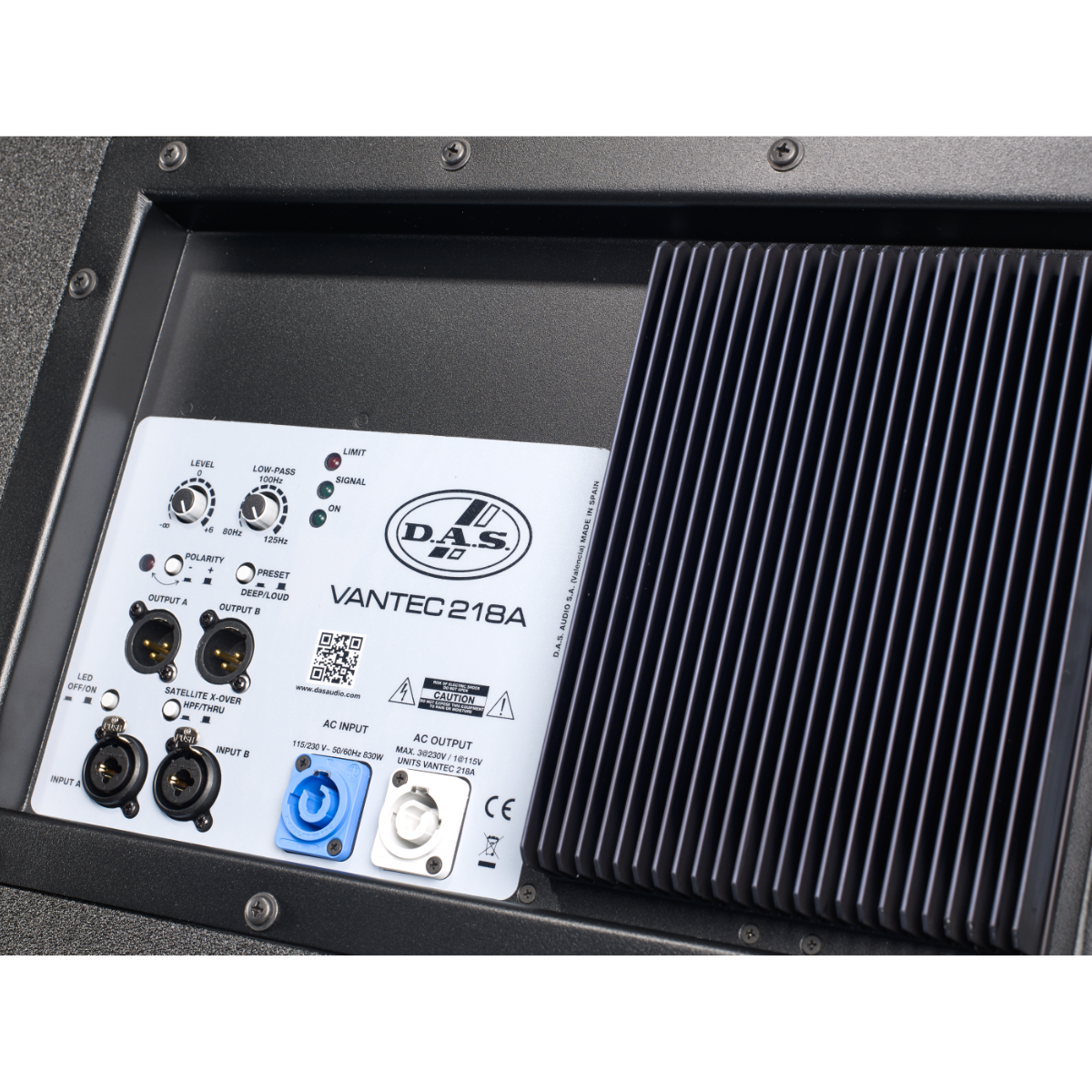

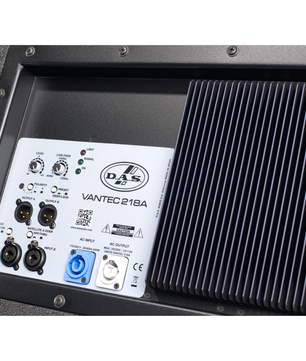

System control includes balanced A-B inputs, stereo HPF filtered outputs for satellite systems, defeatable HPF for loop-thru connections, a variable 80 Hz to 125 Hz low-pass crossover, gain control, and polarity reverse. These options make it easy to integrate the subwoofer into a wide range of PA configurations.

The birch plywood enclosure is finished in durable ISO-flex black paint and protected by a powder-coated steel front grille. Side and rear handles, rear wheels, and M10 rigging points provide practical handling and installation flexibility for touring, rental, and fixed sound environments.

Vantec 218A Features

• Powered dual 18-inch bass subwoofer
• Dual DAS 18LX long-excursion low-frequency drivers
• 4-inch voice coils with large magnet structures
• 4000W peak Class D amplifier
• 2000W continuous amplifier power
• Integrated digital signal processing
• Switch-mode power supply
• Loud and Deep operating modes
• Variable low-pass crossover from 80 Hz to 125 Hz
• Stereo HPF filtered outputs for satellite systems
• Defeatable HPF for stereo loop-thru operation
• Gain control and polarity reverse
• Birch plywood cabinet with ISO-flex black finish
• Powder-coated steel front grille
• Side and rear handles with rear wheels for transport
• M10 rigging points

Vantec 218A Specifications

• Frequency Range (-10 dB): Loud: 35 Hz - 125 Hz; Deep: 30 Hz - 125 Hz
• Maximum Peak SPL: 140dB
• Amplifier Type: Class D with switch-mode power supply
• Nominal Amplifier Power Continuous: 2000W
• Nominal Amplifier Power Peak: 4000W
• LF Driver: 2 x DAS 18LX
• Voice Coil: 4 in
• Input Type: Balanced
• Input Impedance: 20 kohms
• Input Sensitivity: 3 V (+12 dBu)
• Audio Signal Input Connector: 2 x Female XLR
• Audio Signal Loop Thru Connector: 2 x Male XLR
• AC Input Connector: powerCON NAC3FCA
• AC Output Connector: powerCON NAC3FCB
• Current Draw: 3.0 A at 230 V; 6.0 A at 115 V
• Enclosure Construction: Birch plywood
• Enclosure Geometry: Rectangular
• Rigging: M10 rigging points
• Color: Black
• Dimensions: 42.1 x 21.5 x 26.6 in (1070 x 545 x 675 mm)
• Net Weight: 152.0 lb (69.0 kg)
• Carton Dimensions: 46.5 x 28.7 x 24.0 in (1180 x 730 x 610 mm)
• Shipping Weight: 161.0 lb (73.0 kg)
